Royal Sovereign RSC-1650C Bedienungsanleitung

Introduction

Roll Laminators

Property of Royal Sovereign International, Inc. Page 1

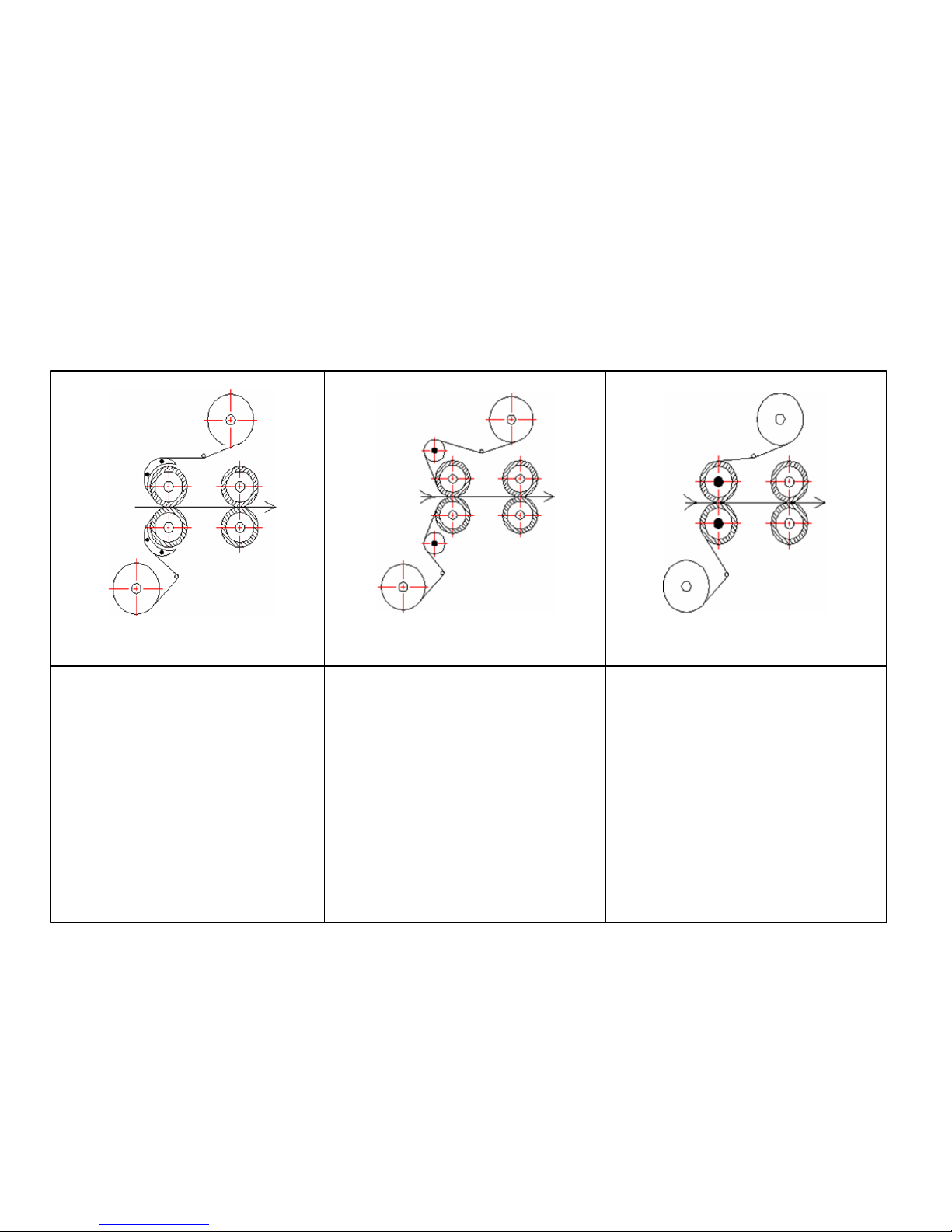

Types of Roll Laminators

Property of Royal Sovereign International, Inc. Page 2

Hot Shoe

(Good)

RSS-685/1050

Rolling Shoe

(Better)

RSR-685/1050

Hot Roller

(Best)

RSH-1050/1650

Heating lamps are placed

inside the two shoes. While

the film touch and passes the

heated shoes resin from the

film melts. Front rollers

presses the film for bondage .

Rear roller presses again for

bondage while take away the

heat to prevent film curls.

Heating lamps are placed inside

the rolling shoes. While the film

touch and rolls with the heated

rolling shoe resin from the film

melts. Front rollers presses the

film for bondage . Rear roller

presses again for bondage while

take away the heat to prevent film

curls.

Heating lamps are placed inside

the front rollers. While the film

touch and rolls with the heated

front rollers resin from the film

melts. Front rollers presses the

film for bondage . Rear roller

presses again for bondage while

take away the heat to prevent

film curl.

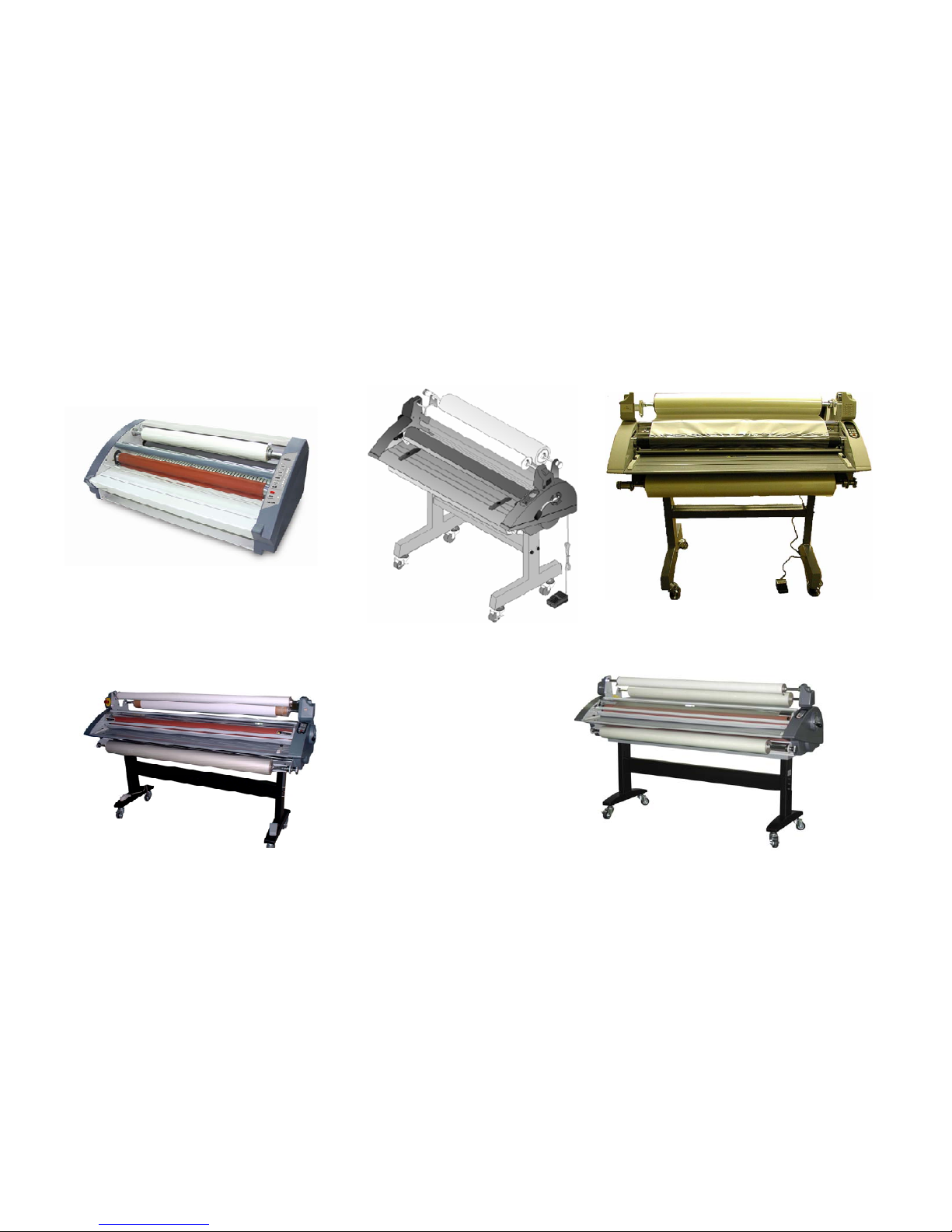

Pictures of Roll Machines

Property of Royal Sovereign International, Inc. Page 3

RSS-685/1050 RSR-685/1050

RSH-1050/1650

RSL-2701

RSC-1650C/H

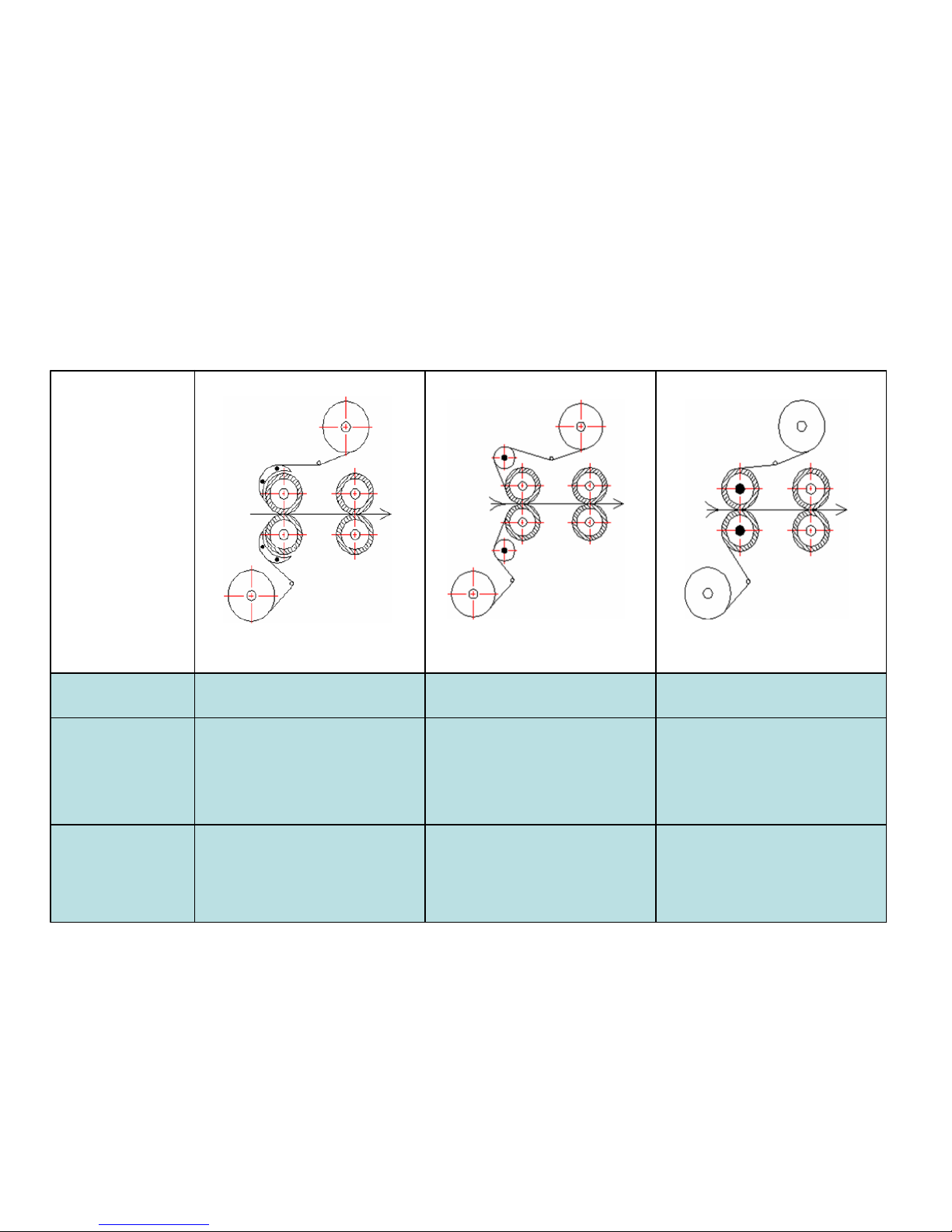

Merit & Weak Points

•Minor scratches.

•Quality decreases as film gets

thinner.

•Fast laminating speed.

•Capable of wide lamination.

•Withstand heavy use.

•Inside shoe.

Hot Shoe

RS-685/1050

RSS-685/1050

•More heat loss than hot shoe

– smaller diameter.

•Capable of wide lamination.

•Fast laminating speed.

•Withstand heavy use.

•No scratches.

•Patented Technology.

•Inside rolling shoe.

Rolling Shoe

RS-685N/1050N

RSR-685/1050

•Higher cost compare to other

RS models.

•Slower laminating speed.

Weak Points

•Best laminating quality.

•Perfect for photo laminating.

•Capable of wide lamination.

•Professional series.

Merit Points

•Inside front rollers.

Heating Source

Hot Roller

RS-1050H/1650H

RSH-1050/1650

Type

Property of Royal Sovereign International, Inc. Page 4

Old Name

New Name

Comparing RS & Other Roll Laminators

O----

Excelam-1110S

50mm

RS-1050H

80mm

O----

Excelam-1670S

80mm

RS-1650H

95mm

Roller Diameter

OXXXXOOFoot Switch

XXXXXXORemote Switch

XXXXXXNewLaminating Paper Counter

XXXXXOOChange °C with °F

XXXXXXNewFilm Feeding Length Check

---X-OOAuto Shut-Off & Standby

OXXOOOOLCD Display

OXX--OOPreset (9 Memory)

OXXOXOOCold Lamination

OXOOXOOReverse

OXOOOOOMount Lamination

OXXOXOOSide Cutter

LAMIRELYOSANCODORATTALUSSSIGMPRSSpecification

• RS Provides Rewinder & Roll Paper Plate as an option for continuous lamination.

• Operates smoother and quieter.

• Heavy duty legs for smooth operation.

Property of Royal Sovereign International, Inc. Page 5

Comparison with GMP & RS Roll Laminator

Property of Royal Sovereign International, Inc. Page 6

355Q1

655Q1`

1055Q1

1055QRS

DC355Q1

DC655Q1

DC1055Q1

655COLD/R

1400COLD/RS

1600COLD/RS

1400COLD/RS

1600COLD/RS

1100RS

1670RS

655

500

800

1000S

LA MINA T ING

SPEED

SP EED

CONTROL

COLD

LA M INA T ING MOUNTING FOOT SWITCH

F U N C T I O N

DOLPHIN

SONIC

ULTIMA

EXCELAM

EXCELA M-

COLD

BOARDLAM

EXCELA M-

FOAM

SURELAM

RS- 1050H

RS- 1650H

RSL- 2701

RS- 685,685N

RS- 1050, 1050N

EXCELAM

OO -

1.6-

1.6

OO O X5 HOT ROLLER

1.6OO X

1.6-O

OX5 HOT ROLLER

1.6OO X

1.6-O

OXX HOT ROLLER

1.6-

1.6

-OO X

OX5X

OO -

1.3-

1.3

XO O X13 X

-OO X

OX50 X

1.6 2OO

OO O

OOOOO XO

OO XO12 15 HOT ROLLER HOT ROLLER

XOX X

XXXHEAT SHOE

OX X

OO X XXHEAT SHOE

XOX X

XXXHEAT SHOE

1.6X

2.4 2.4

XOOXO XX

X12 HOT ROLLER

XOOXO XO

XXXHEAT SHOE

OOXO 66X 15 HEAT SHOE HEAT SHOE X O X O

MODEL NAME

TEMP

CONTROL HEATING METHOD REMOTE

HOT ROLLER

5 HOT ROLLER

HOT ROLLER

X HOT ROLLER

13 X

HEAT SHOE

12 15 HOT ROLLER HOT ROLLER

HEAT SHOE

XHEAT SHOE

15 HEAT SHOE HEAT SHOE

X X HOT ROLLER HOT ROLLER

GMP

GMP RS

GMPRSGMPRSGMPRS GMP RS GMPRSGMP RS GMP RS

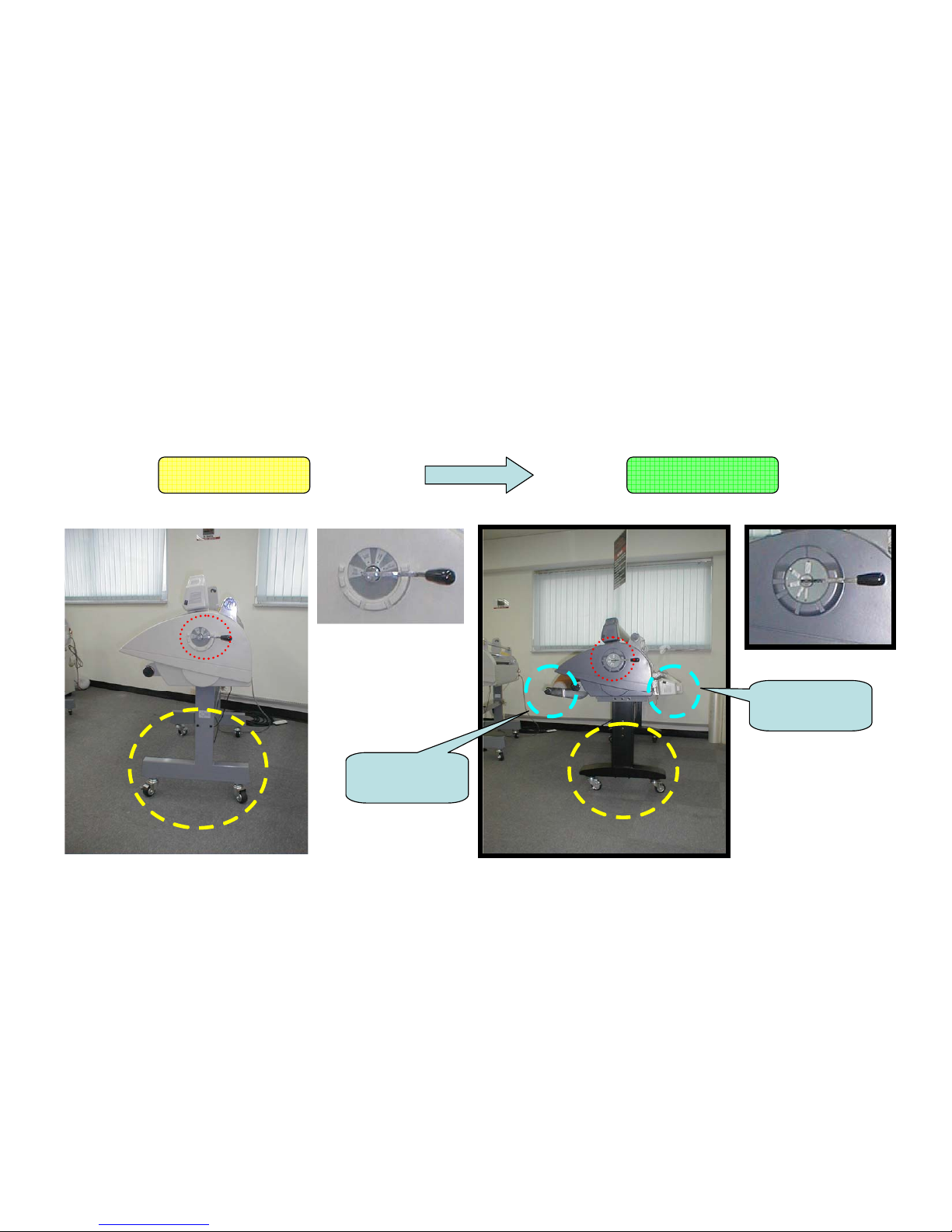

Old Version New Version

REWINDER

Front Paper

Plate

New Features

Property of Royal Sovereign International, Inc. Page 7

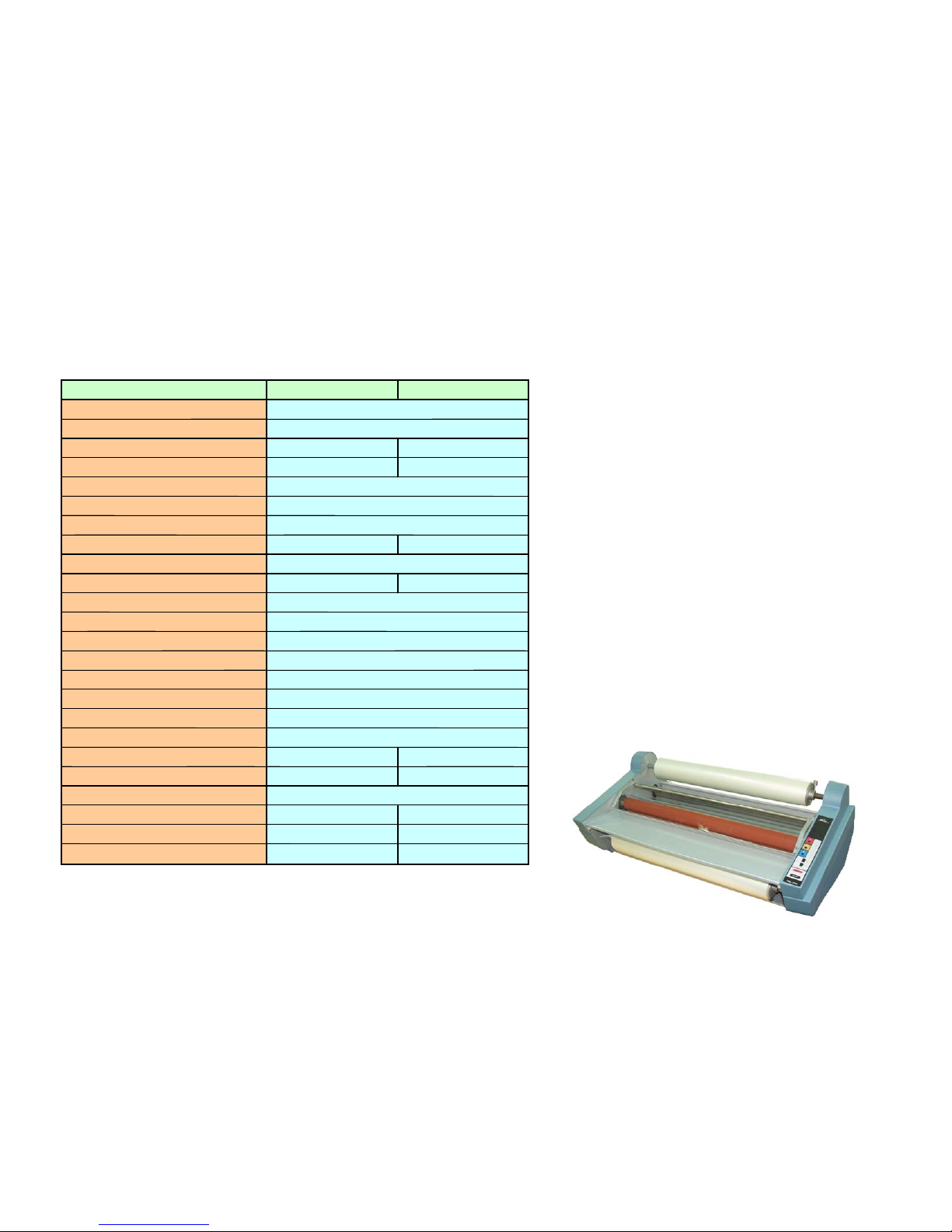

RSL-2701

SPECIFICATIONS

Model RSL-2701 (GMP)Ultima-65

Power Supply

Power Consumption (Watts)

Max. Laminating Width (mm) 685 650

Laminating Film Thickness (mic) 25~125 38~125

Max. Film Diameter (mm)

Max. Laminating Thickness (mm)

Laminating Speed (m/min)

Ready time (min) 8~9 10~12

Heating Method

Temp' Select Touch Inlay Touch Button

Temp' control

Speed Control (Steps)

Driving Motor

Transport Type

Display

Mount Lamination

2mm Foam Board Lamination

Reverse

Standby Mode Auto(30min) Touch Button

Auto Shut-Off (Heat) Yes(30min) No

Cross Cutter

Core Size (inch) 1 , 2¼(Option) 1

Unit Dimension (WxDxH,mm) 915 x 509 x 367 879 x 537 x 317

Unit Weight (Kg) 46 51

AC100V,120V,AC220~240V/50~60Hz

2.4

Yes

DC Geared Motor

4 Rollers

1500

LED

Yes

120(1",75mic,130Mz)

Hot Roller

Digital (Micom)

RSL-2701 Features

1. Fastest laminating machine in its class with

superior quality.

2. Short Ready Time, only 8 ~ 9 min.

3. Maximum laminating width [27” (685mm)].

4. Uses digital micom control system for best

laminating quality.

5. Capable of laminating foam board [0.79”

(2mm)] and mount.

6. Reverse function to avoid jam and mis-feeds.

7. Auto-Shut Off function saves electricity and

improves safety.

8. Touch –Inlay operating for easy control.

9. Variable speed control system [max.

7.87’/min (2.4m/min)].

Property of Royal Sovereign International, Inc. Page 8

Specifications

Property of Royal Sovereign International, Inc. Page 9

Model RSS- 685 RSS- 1050 RSR- 685 RSR- 1050 RSH- 1050 RSH- 1650

Power Supply

Power Consumption 2000W 3000W 2000W 3000W 3000W 3300W

Max.Laminati ng Width 27" (685mm) 41.3" (1050mm) 27" (685mm) 41.3" (1050mm) 41.3" (1050mm) 65" (1650mm)

Laminati ng Thickness

Laminati ng Speed

Ready Time 25min 40min

Heating M ethod

Temp' Select

Temp' contr ol

Speed contr ol

Driving Motor

Transport T ype

Cooling System 1 DC Fan 2 DC Fan 1 DC Fan 2 DC Fan 2 DC Fan 3 DC Fan

Display

Cold Lamination

Photo Lamination

Mount Lamination

Reverse

Stand- By Mode

Power Auto-Off

Foot Switch

Remote Switch

Laminati ng Leng th M easur ement

Laminati ng Paper C ounti ng

42.1" x 25.6" x 47.4" 55.1" x 25.6" x 47.4" (42.1" x 25.6" x 47.4") (55.1" x 25.6" x 47.4") (55.1" x 25.6" x 47.4") 77.2" x 25.6" x 47.4"

(1070mmx650mmx1205mm) (1400mmx650mmx1210mm) (1070mmx650mmx1205mm) (1400mmx650mmx1210mm) (1400mmx650mmx1210mm) (1960mmx650mmx1210mm)

Unit Weight 220 Ibs (100Kg) 308 Ibs ( 140Kg) 220 Ibs ( 100Kg) 308 Ibs (140Kg) 308 Ibs ( 140Kg) 660 Ibs ( 300 Kg)

43.9" x 31.5" x 34.4" 59.0" x 31.5" x 34.4" 42.1" x 25.6" x 47.4" 59.0" x 31.5" x 34.4" 59.0" x 31.5" x 34.4" 82.7" x 34.1" x 49.2"

(1115mmx800mmx875mm) (1500mmx800mmx875mm) 1115x800x875 (1500mmx800mmx875mm) (1500mmx800mmx875mm) (2100mmx875mmx1250mm)

Gr oss Weig ht 330 Ibs (150Kg) 440 Ibs ( 200Kg) 330 Ibs (150Kg) 440 Ibs ( 200Kg) 440 Ibs ( 200Kg) 792 Ibs ( 360 Kg)

120V/60HZ, 240V/60HZ

1~10mil ( 25~250micron)

19.7 ft/min (6000mm/min) 13.1 ft/min (4000mm/min) 6.6 ft/min (2000mm/min)

20min 15min

Hot Shoe Rolling Shoe Hot Roller

To uch Rubber

Digital(Micom)

1~9 (9 Func)

DC Geared Motor

4 Roller

LCD

Yes

0.51in (13mm) 0.59in (15mm)

Yes

Yes (ideal- 30min)

Yes ( ideal -30min)

Yes

Di mensi on (WxDxH)

Gr oss D imension ( WxDxH)

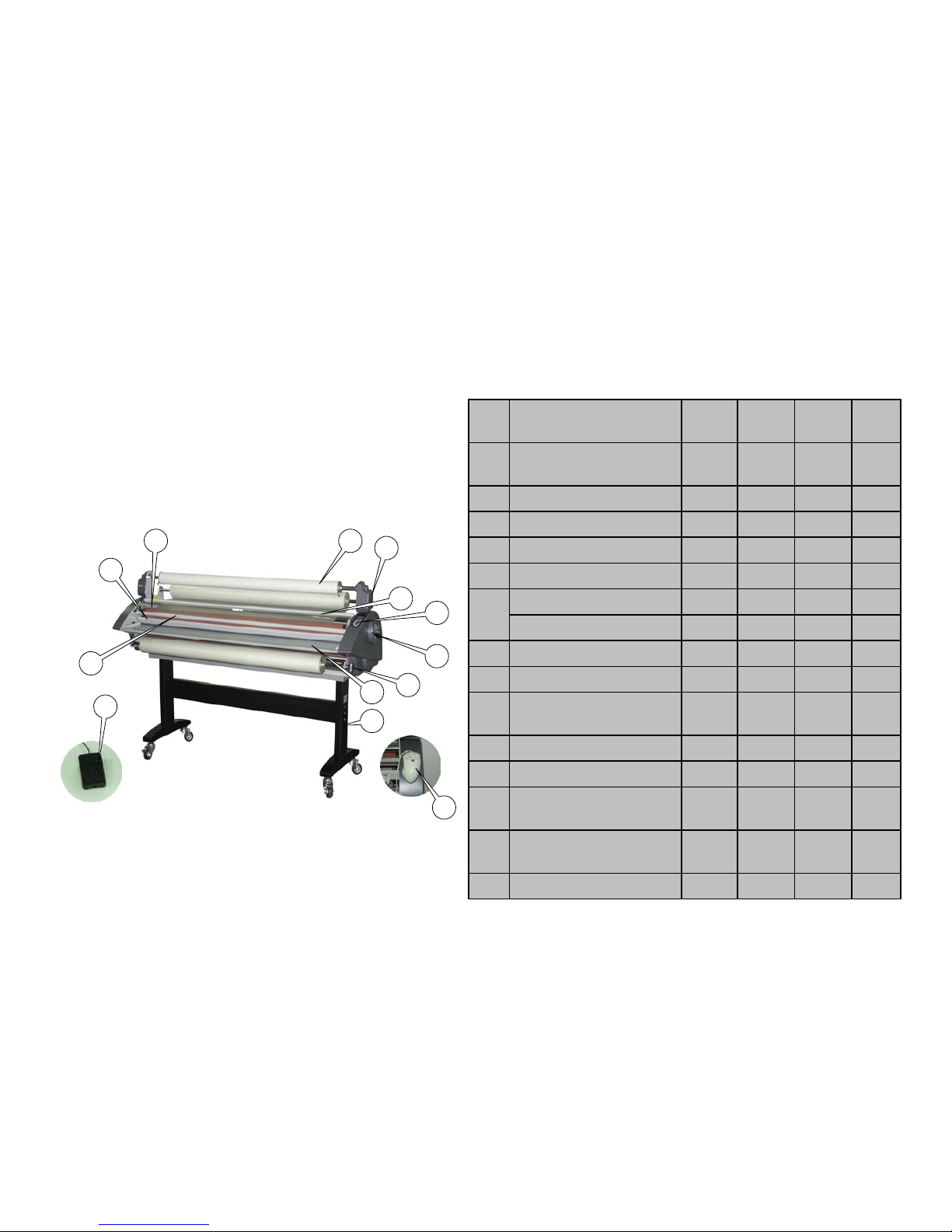

Major Components

○○○○SAFETY COVER14

○○○

FILM ALIGNMENT

KNOB

○○○○

TENSION CONTROL

KNOB

○○○○PRESSURE LEVER11

○○○○CONTROL PANEL10

○○○○

REMOTE CONTROL

SWITCH

○○○○FOOT SWITCH8

○○○○ASS'Y-STAND7

○○

HOT METAL ROLLER

○○HOT ROLLER

○○○○TABLE-FRONT5

○○○○IDLE BAR4

○○○○TAKE-UP BOBBIN3

○○○○TAKE-UP SWITCH2

○○○○

FRAME-

GUIDE,PAPER

RSR

685

RSR

1050

RSH

1050

RSH

1650

PART NAME

Property of Royal Sovereign International, Inc. Page 10
