RoyalTek REB-1315S5 Kurzanleitung

REB-1315S5 Operational Manual

Version 0.3

2013/09/16

This document contains information highly confidential to RoyalTek Company LTD

(RoyalTek). It is provided for the sole purpose of the business discussions between

customer and RoyalTek and is covered under the terms of the applicable

Non-Disclosure Agreements. Disclosure of this information to other parties is

prohibited without the written consent of RoyalTek.

Prepared by RoyalTek Company LTD.

4F., No.188, Wen Hwa 2nd Rd., Kuei Shan,

Tao Yuan 333, Taiwan

TEL: 886-3-3960001

FAX: 886-3-3960065

http://www.royaltek.com/contact

Approved by Checked by Prepared by

RoyalTek Confidential

REB-1315S5 Operational Manual

Content

1.Introduction...................................................................................................2

2.Product Pictures...........................................................................................3

3.REB-1315S5 Block Diagram ........................................................................3

4.REB-1315S5 Technical Specification............................................................4

5.Reference schematic:...................................................................................5

6.Recommend layout PAD & Moisture Sensitivity: ..........................................6

7.Mechanical diagram .....................................................................................7

8.Interface pin definition ..................................................................................8

9.Software Interface ......................................................................................11

10.Package Specification and Order Information...........................................16

11.Contact Royaltek.......................................................................................16

Revision History.............................................................................................16

RoyalTek Confidential 2

REB-1315S5 Operational Manual

1. Introduction

RoyalTek REB-1315S5 is the GPS module of CSR SiRFstarVTM .The module is powered by

latest CSR SiRFstarVTM 5e-based chip, multi-GNSS platform and able to track GPS and

Glonass constellation at the same time. With RoyalTek proprietary navigation technology that

provides you stable and accurate navigation data. The suitable form factor and miniature

design is the best choice to be embedded in a device such as portable navigation device,

personal locator, speed camera detector and vehicle locator.

Product Features

²52 track verification channels.

²Support GPS, GLONASS, QZSS and being deployed for Compass and Galileo.

²Support client-based and server-based SiRF InstantFixTM Extended Ephemeris (EE),

²Embedded CGEE / SGEE (With back-end server support) to speed up TTFF performance.

²Power supply 3.3V voltage.

²SMT type with stamp holes

²Small form factor with embedded SiRF Star V technology.

²Removes in-band jammers up to 80 dB-Hz, tracks up to 8 CW jammers

²Excellent sensitivity for urban canyon and foliage environments.

1.1 Product Applications

²Automotive navigation

²Personal positioning and navigation

²Mobile gaming

²Cameras

²Asset Tracking

²Others location-aware consumer devices

RoyalTek Confidential 3

REB-1315S5 Operational Manual

2. Product Pictures

3. REB-1315S5 Block Diagram

System block diagram description:

RoyalTek Confidential 4

REB-1315S5 Operational Manual

4. REB-1315S5 Technical Specification

Impedance：50Ω

No Function Specification

GPS receiver

1 Chipset CSR SiRFstarVTM 5e CSRG0530

version

2 Frequency Tracking L1,GPS CAcode and GLONASS FDM

Channels

3 Code C.A. Code.

4 Channels 52 channels

5 Sensitivity Autonomous Acquisition -146dBm

Tracking Sensitivity -165dBm

6 Chipset Cold start(open sky)

35 sec

7 Chipset Warm start(open sky)

35 sec

8 Chipset Hot start(open sky) 1 sec

9 Reacquisition 0.1sec typical

10 Position accuracy Position: within 10m for 90%

11 Maximum altitude 18000 m

12 Maximum velocity 515 m/s

13 Update rate 1Hz

14 Protocol Default GGA(1),GSA(1),GSV(5),RMC(1)

Interface

15 I/O Pin 22pins

Power consumption

16 Vcc DC +3.3V@ ±5%

17 Current (TBD) Normal Current 35mAh (Typ.)

Hibernate Current 50uA(Typ.)

Mechanical requirements

18 Dimension(mm) 13±0.2 x 15.2±0.2 x 2.2 ±0.25mm

19 Weight ≦3g

Environment

20 Operating/Storage

temperature Operating : -40 ~ 85℃

Storage: -40 ~ 85℃

21 Humidity ≦95% non-condensing

RoyalTek Confidential 5

REB-1315S5 Operational Manual

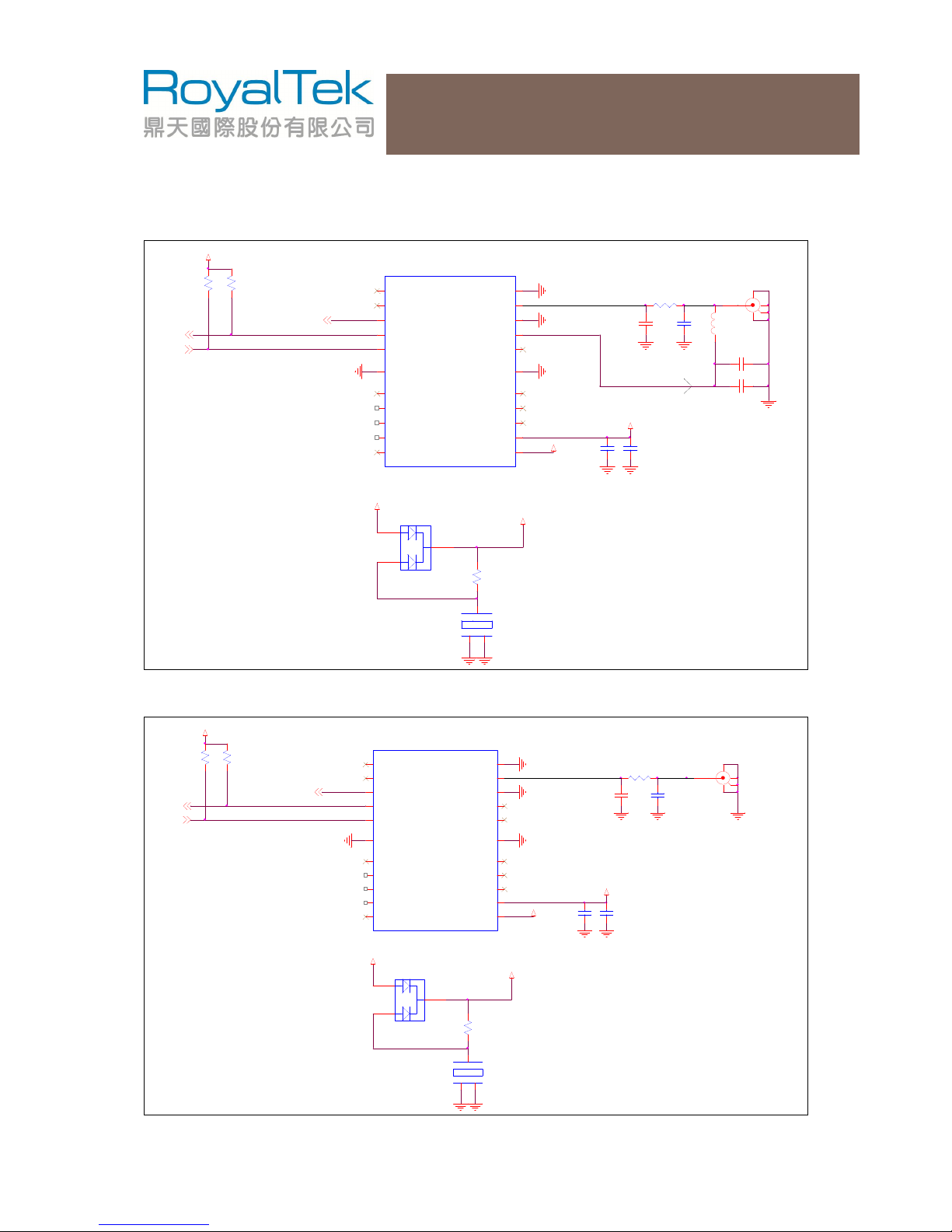

5. Reference schematic:

Active antenna

VCC_3V3

0.1uF C6

1uF

VCC_3V3

VCC_BATT

1PPS 1PPS

TXA-3V3

10K

VCC_3V3

10K

RXA-3V3

RB705D

470

3.3V

BAT1

REB-1315S5

VIN_3V3

TXA

RXA

VIN_3V3 12

1PPS

VRTC_3V3 11

8NC 13

NC 14

NC 15

NC 16

VIN_3V3 17

GND 18

RF_IN 19

GND 20

GND

21 GND 22

100nH

C3 0.1uF

C4 1uF

R5 0 ohm

NC C2

RF JACK

50 OHM TRACE

VCC_RF

VCC_BATT

Passive antenna

VCC_3V3

0.1uF C8

1uF

VCC_3V3

1PPS

VCC_BATT

1PPS

TXA-3V3

VCC_3V3

10K

RXA-3V3

Passive antenna

REB-1315S5

VIN_3V3

TXA

RXA

VIN_3V3 12

1PPS

VRTC_3V3 11

8NC 13

NC 14

NC 15

NC 16

VIN_3V3 17

GND 18

RF_IN 19

GND 20

GND

21 GND 22

R7 0 ohm

C11

NC C12

RF JACK

50 OHM TRACE

RB705D

470

3.3V

BAT1

VCC_BATT

RoyalTek Confidential 6

REB-1315S5 Operational Manual

6. Recommend layout PAD & Moisture Sensitivity:

6.1 Recommend layout PAD

6.2 Moisture Sensitivity

The GPS module must be placed and reflowed within 48 hours of first opening the

hermetic bag, at factory conditions are less than 30℃and less than 60% RH.

Level 5 (48 hours at <=30℃/60% RH by floor life)

RoyalTek Confidential 7

REB-1315S5 Operational Manual

7. Mechanical diagram

RoyalTek Confidential 8

REB-1315S5 Operational Manual

8. Interface pin definition

Pin definition:

number

function Type Description ELECTRICAL

CHARACTERISTICS

1 NC ~ NO CONNECTION

2 NC ~ NO CONNECTION

3 1PPS O 1PPS TIMEMARK

PULSE 200mS ACTIVE HIGH

VOL <0.4V, VOH >2.2V

4 TXA O UART SERIAL DATA

OUTPUT VOL <0.4V, VOH >2.2V

5 RXA I UART SERIAL DATA

INPUT VIL <0.45V, 1.26V<VIH <3.6V

6 NC ~ NO CONNECTION

7 NC ~ NO CONNECTION

8 NC ~ NO CONNECTION

9 VIN_3V3 P NO CONNECTION

10 NC ~ NO CONNECTION

11 VRTC_3V3 P BACK UP BATTERY 2.2V MIN. 3V TYP. 3.3V MAX.

RoyalTek Confidential 9

REB-1315S5 Operational Manual

VOLTAGE INPUT

12 VIN_3V3 P SUPPLY MAIN

VOLTAGE INPUT 3.3V±5%

13 NC ~ NO CONNECTION

14 NC ~ NO CONNECTION

15 NC ~ NO CONNECTION

16 NC ~ NO CONNECTION

17 VIN_3V3 P PROVIDE VOLTAGE

FOR ACTIVE

ANTTENA 3.3V±5% , Base Pin11 .

18 GND P GROUND

19 RF_IN RF GPS RF SIGNAL

INPUT Impedance 50Ω

20 GND P GROUND

21 GND P GROUND

22 GND P GROUND

nVCC_IN (DC 3.3V@ 5% power Input)

This is the DC power supply input pin for GPS system. It provides voltage to module.

The power supply must add bypass capacitor (10uF and 1uF). It can reduce the Noise

from power supply and increase power stability.

If shutdown the REB-1315S5 module, please remove the VCC_IN Pin voltage into

Hibernate mode.(It’s will keep the Warm start and Hot start function work well)

nGND

GND provides the reference ground.

nRXA

This is the main receiver channel and is used to receive software commands to the

board from SIRFdemo software or from user written software.

nTXA

This is the main transmitting channel and is used to output navigation and measurement

data to SiRFdemo or user written software.
