RP 1062-1 Bedienungsanleitung

Ceiling Fan Owner's Manual

Read and Save These Instructions











Model: 1062-1

1063-1

1064-1

1062

Tools and Materials Required.........................................................................................

Package Contents .........................................................................................................

Safety Rules...................................................................................................................

Mounting Options...........................................................................................................

Hanging the Fan ............................................................................................................

Making Electrical Connections.......................................................................................

Attaching the Fan Blades...............................................................................................

Operating Your Fan ......................................................................................................

Care of Your Fan...........................................................................................................

Troubleshooting.............................................................................................................

TABLE OF CONTENTS

2. PACKAGE CONTENTS

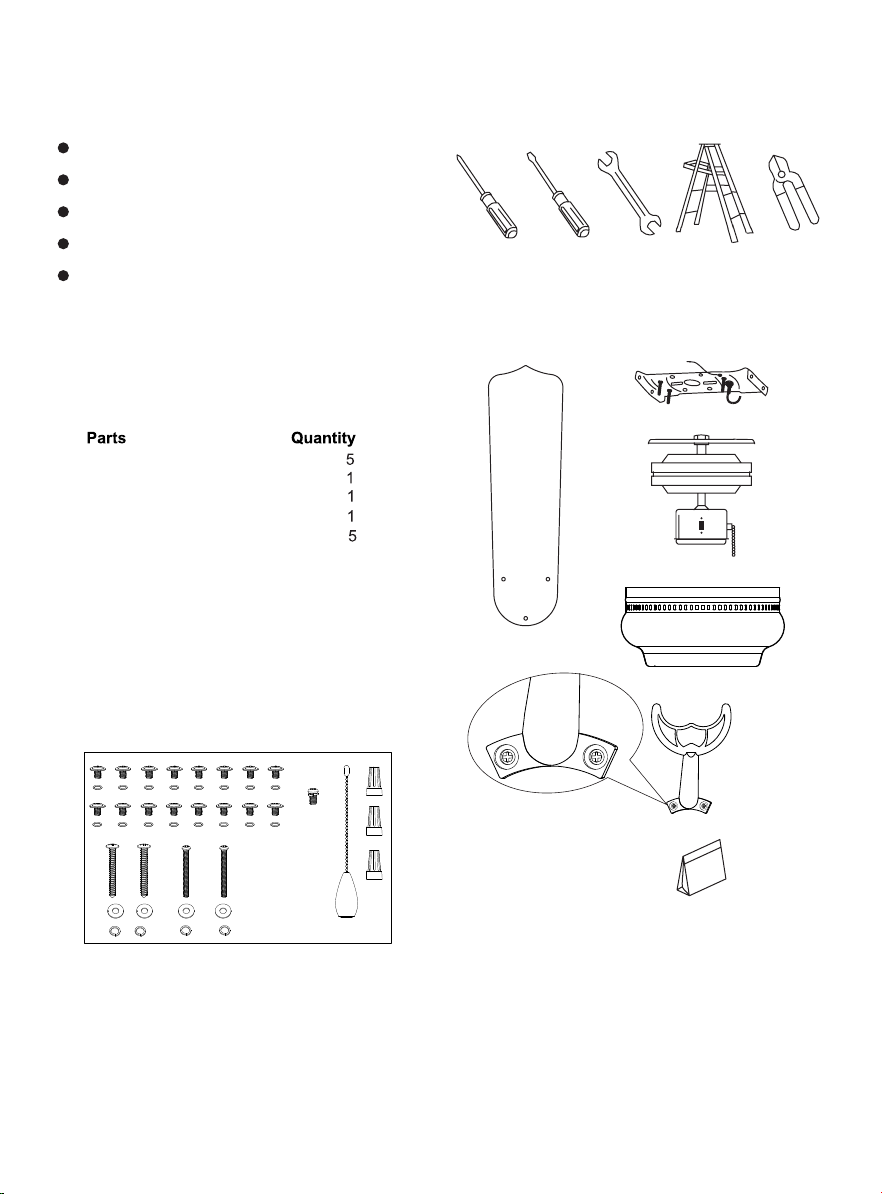

Unpack your fan and check the contents. You

should have the following items:

a. Blade set

b. Mounting bracket

c. Fan motor assembly

d. Motor housing

e. Blade bracket set

f. Screw package

1) Mounting hardware:

wood screws (2), screws (2),

lock washers (4), wire nuts (3),

washers (2)

2) Blade attachment hardware:

screws (16), fiber washers (16)

3) Motor housing hardware:

screw (4)

4) Pull chain and fob

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

1. TOOLS AND MATERIALS

REQUIRED

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local electrical

codes. Electrical installation should be

performed by a qualified licensed electrician.

3. WARNING: To reduce the risk of electrical

shock and fire, do not use this fan with any

solid-state fan speed control device.

4. WARNING: To reduce the risk of personal

injury, use only the two steel screws (and lock

washers) provided with the outlet box for

mounting to the outlet box. Most outlet boxes

commonly used for the support of lighting

fixtures are not acceptable for fan support and

may need to be replaced, consult a qualified

electrician if in doubt.

5. The outlet box and support structure must be

securely mounted and capable of reliably

supporting a minimum of 50 pounds. Use only

UL Listed outlet boxes marked "FOR FAN

SUPPORT".

6. The fan must be mounted with a minimum of 7

feet clearance from the trailing edge of the

blades to the floor.

7. Do not operate reversing switch while fan

blades are in motion. Fan must be turned off

and blades stopped before reversing blade

direction.

8. Avoid placing objects in the path of the blades.

9. To avoid personal injury or damage to the fan

and other items, be cautious when working

around or cleaning the fan.

10. Do not use water or detergents when cleaning

the fan or fan blades. A dry dust cloth or

lightly dampened cloth will be suitable for most

cleaning.

11. After marking electrical connections, spliced

conductors should be turned upward and

pushed carefully up into outlet box. The wires

should be spread apart with the grounded

conductor and the equipment-grounding

conductor on one side of the outlet box.

12. Electrical diagrams are reference only. Light kit

that are not packed with the fan must be UL

Listed and marked suitable for use with the

model fan you are installing. Switches must be

UL General Use Switches. Refer to the

Instructions packaged with the light kits and

switches for proper assembly.

3. SAFETY RULES

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT

FAN TO OUTLET BOX MARKED

"ACCEPTABLE FOR FAN SUPPORT".

WARNING

TO REDUCE THE RISK OF PERSONAL

INJURY, DO NOT BEND THE BLADE

BRACKETS (ALSO REFERRED TO AS

FLANGES) DURING ASSEMBLY OR AFTER

INSTALLATION. DO NOT INSERT OBJECTS IN

THE PATH OF THE BLADES.

4. MOUNTING OPTIONS

If there isn't an existing UL listed mounting box,

then read the following instructions. Disconnect the

power by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 50 lbs). Do not use plastic outlet boxes.

Figures 1 and 2 are examples of different ways to

mount the outlet box.

To hang your fan where there is an existing fixture

but no ceiling joist, you may need an installation

hanger bar as shown in Figure 3.

Outlet box

Figure 1

Figure 3

Outlet box

Figure 2

5. HANGING THE FAN

REMEMBER to turn off the power. Follow the steps

below to hang your fan properly.

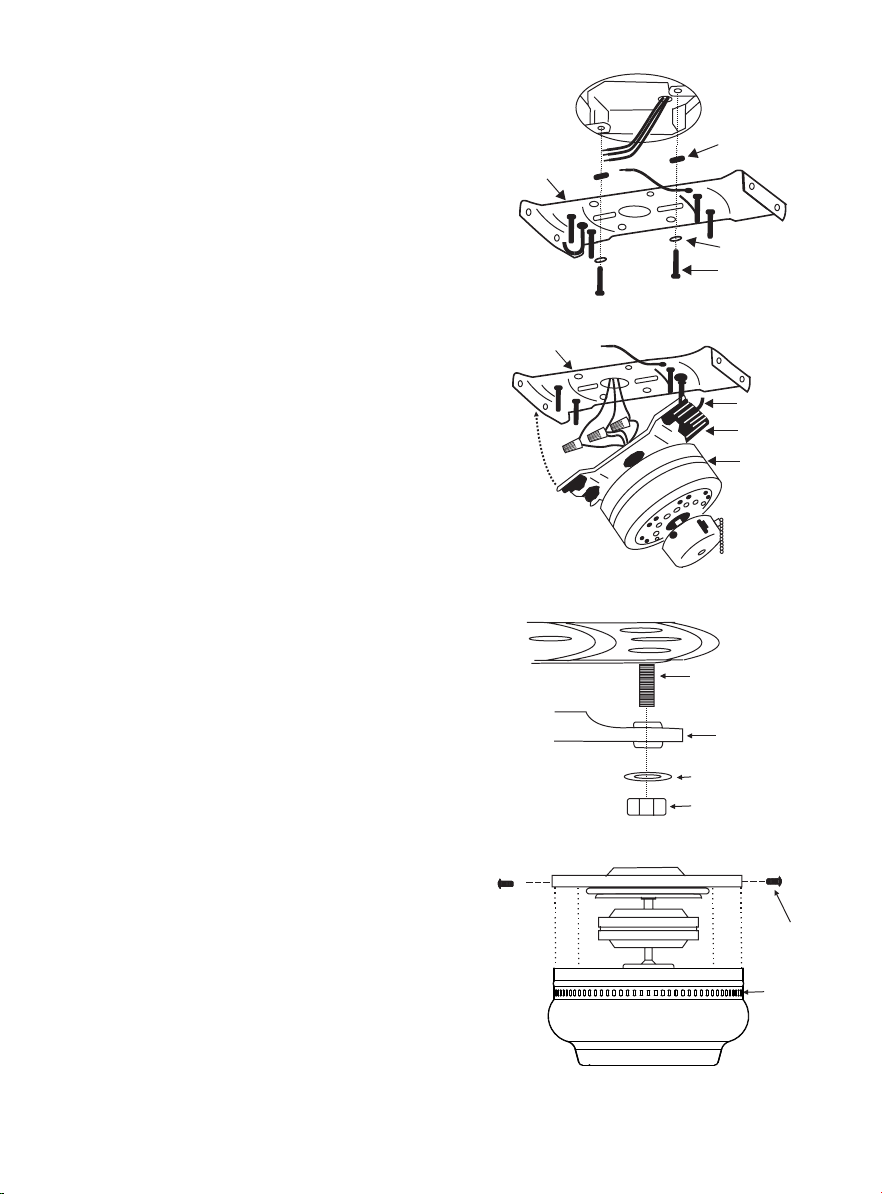

1. ATTACH THE MOUNTING BRACKET to the

outlet box with two screws and washers

provided, making sure the bracket is tight and

secure. (Fig. 4)

2. LIFT FAN INTO POSITION by hanging the motor

assembly onto the hook of the ceiling mounting

bracket allowing it to hang freely. (Fig. 5)

3. MAKING ELECTRICAL CONNECTIONS by

connecting the black and blue wire from the fan

to the black wire in the outlet box. Then, connect

the white wire from the fan to the white wire from

the outlet box. Last, connect the green wire from

downrod to the green or ground wire from outlet

box. (Fig. 5)

4. MOVE FAN INTO POSITION over the four

mounting studs and secure with the provided

washers and nuts. (Fig. 6)

5. INSTALL THE DECORATIVE HOUSING over the

motor assembly and secure with the four

mounting screws. (Fig. 7)

Figure 4

Figure 5

Figure 6

Figure 7

Mounting studs

Steel washer

Nut

Mounting plate

Rubber

gasket

Screws

Washers

Mounting

bracket

Screws

Housing

Mounting

bracket

Hook

Motor

assembly

Mounting

plate

Figure 8

Figure 9

Figure 10

6. MAKE ELECTRICAL

CONNECTIONS

Remember to disconnect the power.

Follow the steps below to connect the fan to your

household wiring. Use the wire connecting nuts

supplied with your fan. Secure the connectors with

electrical tape. Make sure there are no loose

strands or connections.

Step 1 Connect the fan supply (black) wire and

light supply (blue) wire to the black household

supply wire as shown in Figure 8.

Step 2. Connect the neutral fan (white) wire to the

white neutral household wire.

Step 3 Connect green or bare copper wire from

outlet box to the hanger bracket and downroll

ball green ground wires together. (Figure 8)

Step 4 After connecting the wires, spread them

apart so that the green and white wires are on one

side of the outlet box and the black and the blue

wires are on the other side.

Step 5 Turn the connecting nuts upward and push

the wiring into the outlet box.

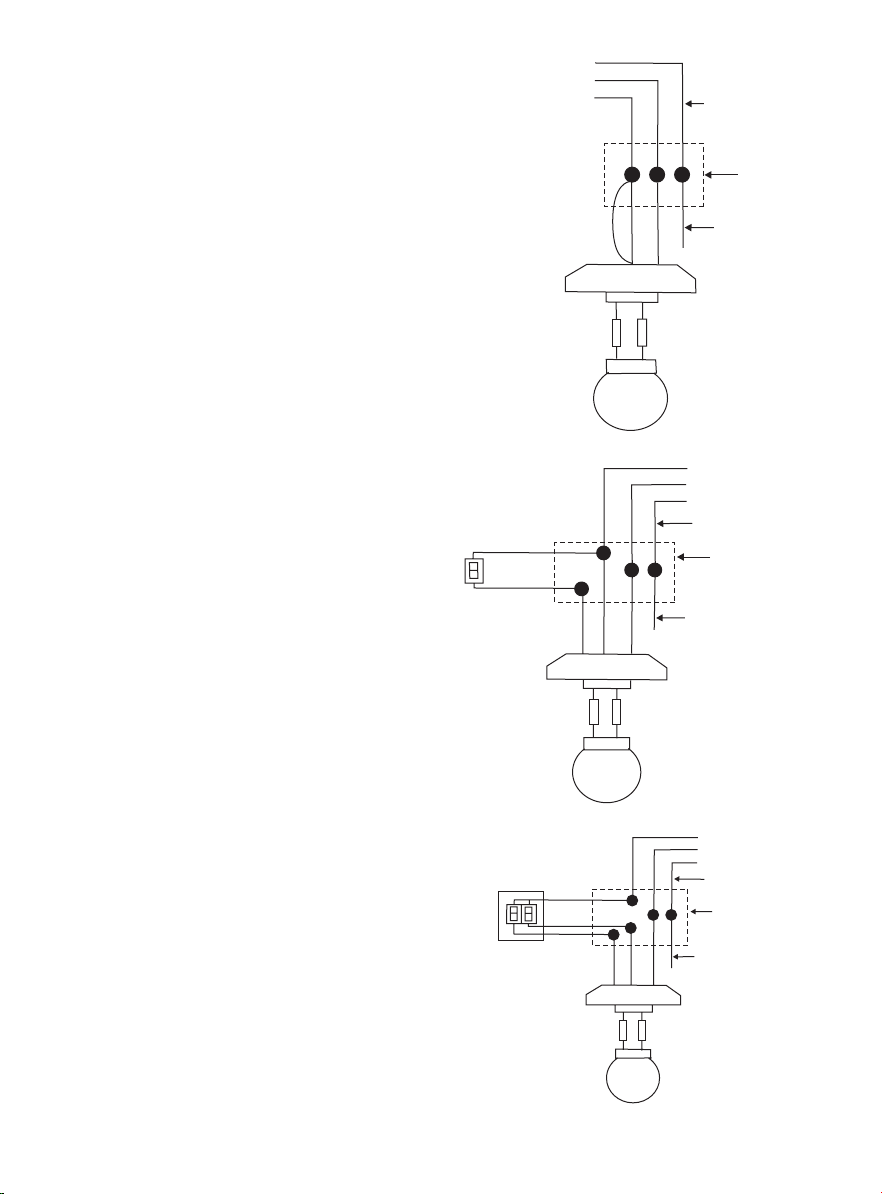

Figures 9 and 10 illustrate the wiring connections

for optional wall control (The wire color out of wall

control may vary, see wall control's installation

manual for correct wire connections.)

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK, OR OTHER PERSONAL

INJURY. MOUNT FAN ONLY ON AN OUTLET

BOX OR SUPPORTING SYSTEM MARKED

ACCEPTABLE FOR FAN SUPPORT.

EULB

KLB KLB

GRN

WIRING

BOX

WIRING

BOX

GROUND TO

MOUNTING

BRACKET

AND DOWNROD

GROUND TO

MOUNTING

BRACKET

OR DOWNROD

BLUE

BLK WH

FAN

LIGHT

POWER LINES 120V

EULB

KLB KLB

FAN

LIGHT

BLK

BLUE WH

LIGHT

SWITCH

GREEN GROUND

GROUND TO

MOUNTING

BRACKET

OR DOWNROD

POWER LINES 120V

GREEN

GROUND

WIRING

BOX

EULB

KLB KLB

FAN

LIGHT

BLUE

BLK

LIGHT FAN

7. ATTACHING THE FAN

BLADES

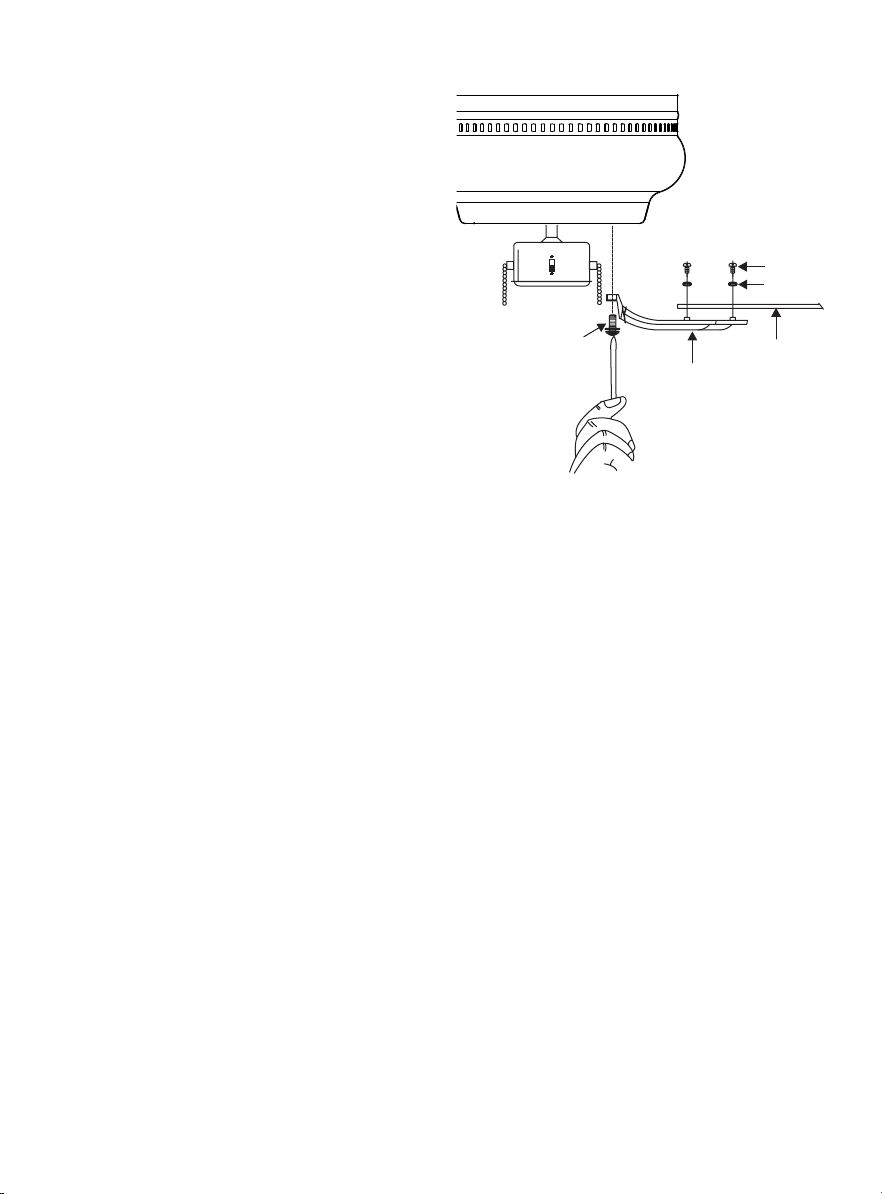

Step 1 Attach the blade to the blade bracket using

the screws and fiber washers as shown in Figure

11. Start screw into bracket. Repeat for the two

remaining screws.

Step 2 Tighten each screw. Make sure the blade is

straight.

Step 3 Fasten blade assembly to motor using the

screws supplied. (Fig. 11)

Figure 11

Screws Blade

Blades bracket

Screws

Fiber

washers

Figure 12

Figure 13

8. OPERATING YOUR

FAN

Turn on the power and check the operation of your

fan. The pull chain controls the fan speed as

follows:

3-speed pull chain- it controls the fan speed as

follows: 1 pull- High, 2 pulls- Medium, 3 pulls- Low,

and 4 pulls- Off.

Speed settings for warm or cool weather depend

on factors such as the room size, ceiling height,

number of fans, and so on.

The slide switch controls directions: forward

(switch down) or reverse (switch up).

NOTE: Wait for fan to stop before changing the

setting of the slide switch.

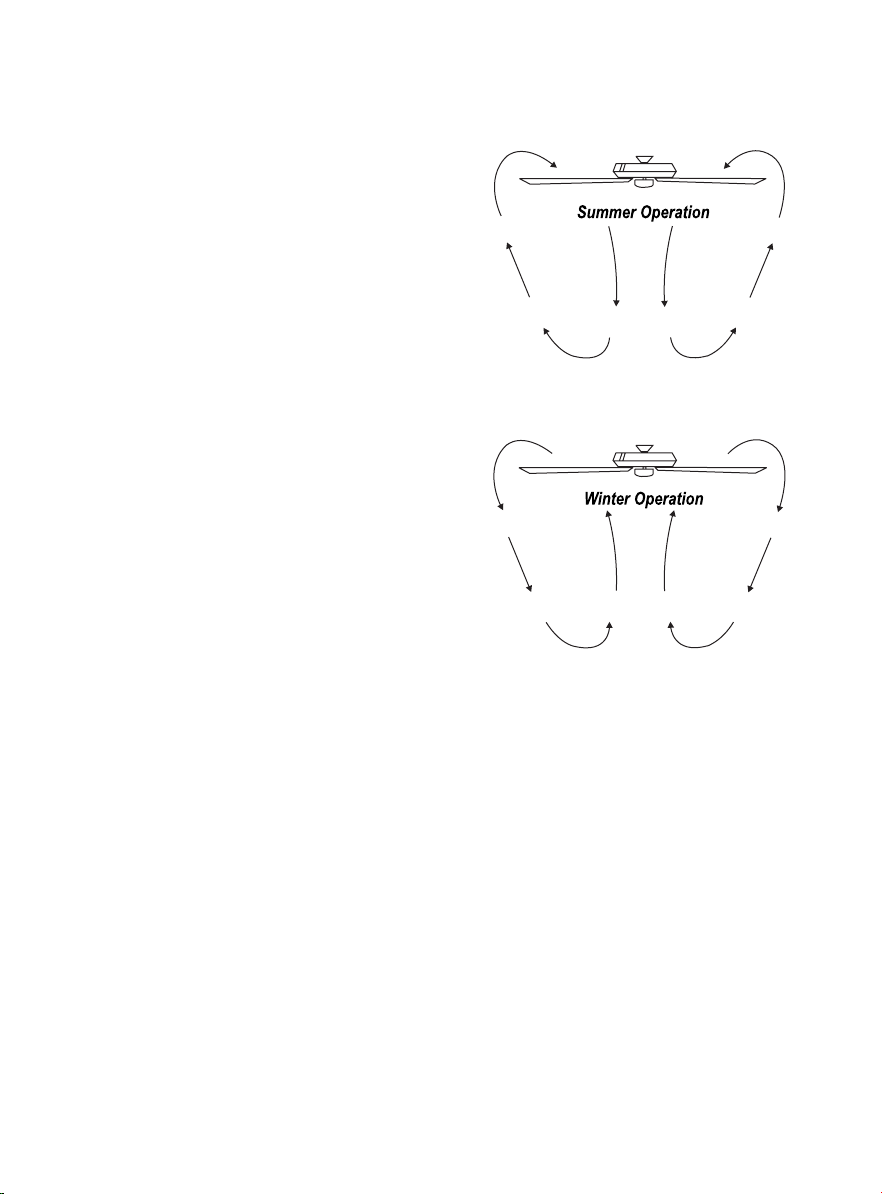

Warm weather - (Forward) A downward airflow

creates a cooling effect as shown in Fig. 12. This

allows you to set your air conditioner on a warmer

setting without affecting your comfort.

Cool weather - (Reverse) An upward airflow moves

warm air off the ceiling area as shown in Fig. 13.

This allows you to set your heating unit on a cooler

setting without affecting your comfort.

10. TROUBLESHOOTING

Problem

Fan will not start.

Fan sounds noisy.

Fan wobble.

Solution

1. Check circuit fuses or breakers.

2. Check line wire connections to the fan and switch wire connections in the switch

housing.

CAUTION: Make sure main power is off.

1. Make sure all motor housing screws are snug.

2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.

3. Make sure wire nut connections are not rubbing against each other or the interior

wall of the switch housing.

CAUTION: Make sure main power is off.

4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan

disappear during this time.

5. If using an optional light kit, make sure the screws securing the glassware are tight.

Check that light bulb is also secure.

6. Some fan motors are sensitive to signals from solid-state variable speed controls.

If you have installed this type of control, choose and install another type of control.

7. Make sure the upper canopy is a short distance from the ceiling. It should not

touch the ceiling.

1. Check that all blade and blade arm screws are secure.

2. Most fan wobbling problems are caused when blade levels are unequal. Check this

level by selecting a point on the ceiling above the tip of one of the blades. Measure

this distance. Rotate the fan until the next blade is positioned for measurement.

Repeat for each blade. The distance deviation should be equal within 1/8".

3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.

4. If the blade wobble is still noticeable, interchanging two adjacent (side by side)

blades can redistribute the weight and possibly result in smoother operation.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE ARM WHILE INSTALLING, BALANCING THE BLADES, OR CLEANING

THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN

BLADES.

9. CARE OF YOUR FAN

Here are some suggestions to help you maintain your fan

1. Because of the fan's natural movement, some connections may become loose. Check the support

connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not

necessary to remove fan from ceiling.)

2. Clean your fan periodically to help maintain its new appearance over the years. Use only a soft brush or

lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer to minimize discoloration

or tarnishing. Do not use water when cleaning. This could damage the motor, or the wood, or possibly

cause an electrical shock.

3. You can apply a light coat of furniture polish to the wood blades for additional protection and enhanced

beauty. Cover small scratches with a light application of shoe polish.

4. There is no need to oil your fan. The motor has permanently lubricated bearings.

IMPORTANT: MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU

ATTEMPT ANY REPAIRS. REFER TO THE SECTION "MAKING ELECTRICAL CONNECTIONS".

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere RP Lüfter Handbücher

RP RC-7 Betriebsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
