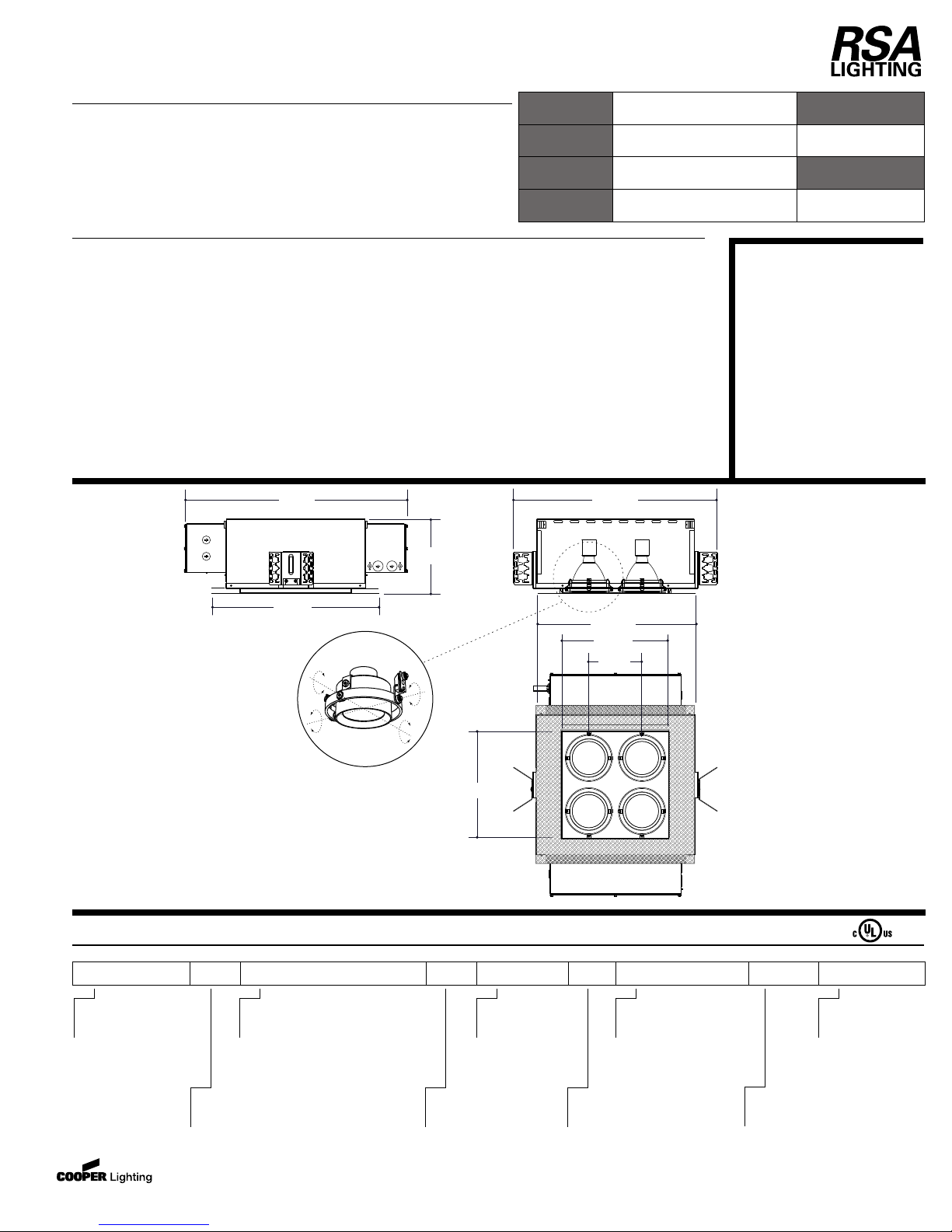

DESCRIPTION Catalog # Type

Project

Comments Date

Prepared by

SPECIFICATION FEATURES

www.cooperlighting.com

7.45”

11.38”

21.83”

23.87”

17.70”

45º x 45º

Adjust

Double

Gimbal

17.70”

Thermal

Protector

5.69”

11.38”

Perforated

Meshplate

Electrical Enclosure

Wiriing Compartment

Electrical Enclosure

Wiriing Compartment

A ... Housing

Housing, junction box & trimless

meshplate assembly are all steel

construction. Perforated meshplate allows

for trimless installation in drywall/plaster

ceilings by allowing the ceiling’s mudding

compound to be applied right up to the

edge of the ﬁxture opening. Includes

a beveled “knife-edge” lips to ensure a

clean edge. Can accommodate 0.50” to

1.25” ceiling thickness. Optional Chicago

Plenum conﬁguration available.

B ... System Protection:

Thermal protection provided to guard

against overheating and misuse of

insulation over and around ﬁxture. Vent

holes in housing provide cooler operation.

C... Junction Box

Junction Box is UL listed for through

branch wiring, 6 #12 90º C supply

conductors or 60º C for end of run. The

ﬁxture is also UL listed as ‘access above

ceiling not required’.

D... Electrical

Electrical accessible through ceiling

opening. J-Box located on the side

wall of the housing behind removable

access doors. Electrical components on

individually removable “trays” for easy

maintenance.

E ... Lamps

Four (4) PAR30 120V lamps mounted in

adjustable double gimbals. Lamp holders

are individually removable and may be re-

gressed 1” for additional cut-off. Lamp can

accept up to three optical accessories (i.e.

lens + hex louver + snoot). 45º x 45º locking

lamp adjustment. Beveled-edge lamp ring

is secured with threadless, bayonet ac-

tion. Optional retractable arm is available

for lamp pulldown and extreme aiming.

Includes Med. base sockets.

F ... Mounting

Butterﬂy Brackets accept 1/2” EMT,

C Channel, Tbar fasteners, and bar

hangers. Four tabs on housing for

securing to structure. Perforated ﬂaps

along housing sides for securing trimless

insert to ﬁxture and drywall.

G... Labels

cULus listed for non-type IC

applications, suitable for use in damp

locations.

Ceiling Cut-Out: 12.18” x 12.18”

COMBOLIGHT®

Next Generation

Recessed

Multi-Lamp Fixture

Four (4) Light Square

PAR30 120V

New Construction

Housing

Trimless

ORDERING INFORMATION

An adjustable Multi-lamp Recessed ﬁxture for trimless installation suitable for

downlighting and accent applications. Utilizes FOUR (4) PAR30 120V lamps in

a 2x2 square conﬁguration.

For new construction applications. Insulation must be kept 3” from all sides

and at least 1” above the housing.

Speciﬁcations and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031

rev 042408

Conﬁguration

CX =COMBOLIGHT

Recessed Four (4) Light

Square

Housing

N =New Construction

C =Chicago Plenum

CX N 120 N N

Lamp Type / Wattage Label

075P30 =75 Watt max. PAR30 120V

Power Supply

N =None - Line Voltage Lamp

Primary Voltage

1 =120V

Lamp Mechanism

G =Double Gimbal

R =Retractable Double Gimbal

Trim Insert Finish

N =Trimless

Trim Insert

N =Trimless

Housing Interior/Electrical Door/Sleeve

Finish

W =White

B =Black

S =Industrial Silver

For use with PAR30 120V lamps 75W max.
