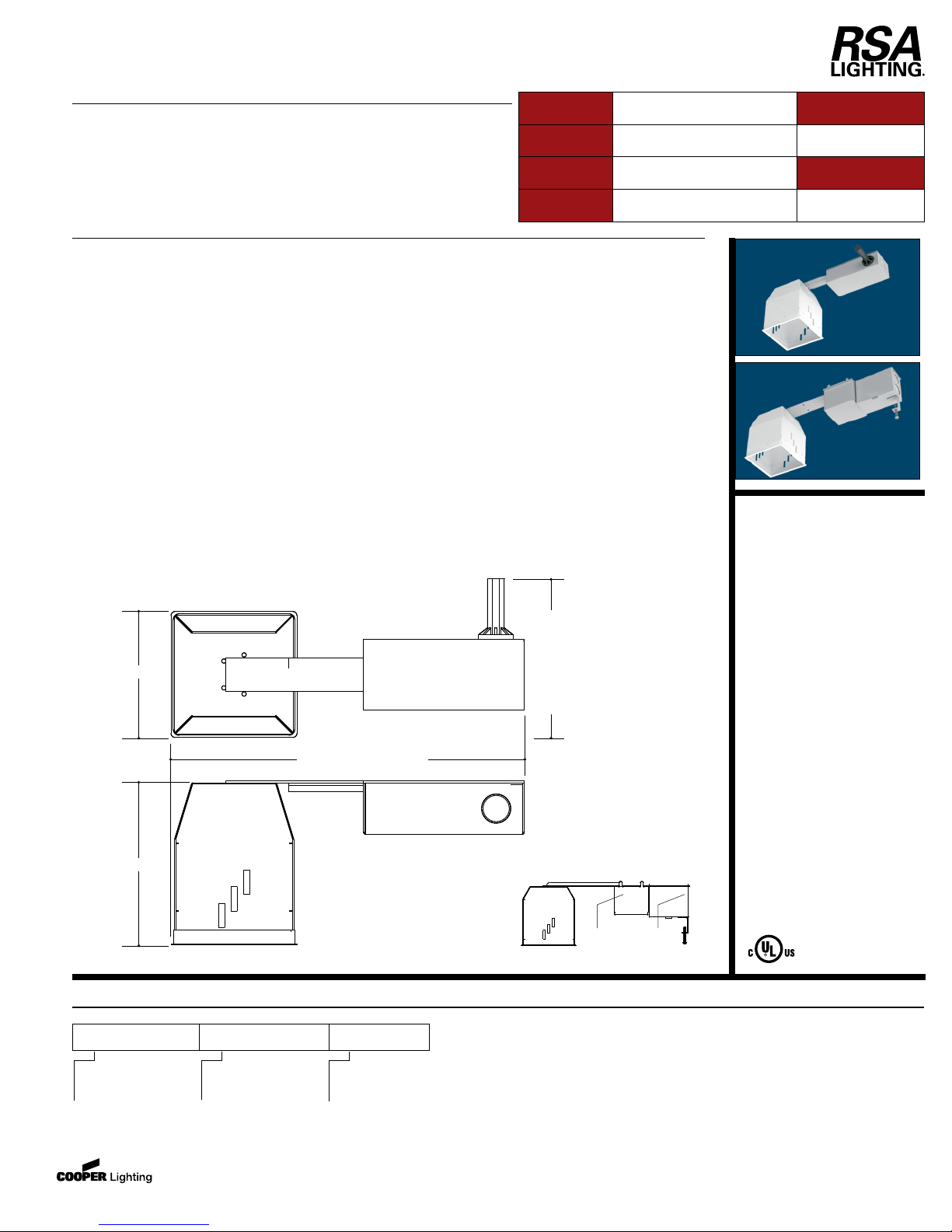

DESCRIPTION Catalog # Type

Project

Comments Date

Prepared by

SPECIFICATION FEATURES

www.cooperlighting.com

10.75” elc. 14.06” mag.

5.00”

J-box with integral

electronic

transformer

Magnetic transformer

configuration shown

below

Xfmr. J-box

3.81” sq.

4.30”

width elc.

only

Mag.

width

same as

housing

A...Housing

Constructed of 18 gauge CRS with white

powder coated ﬁnish.

B ...System Protection:

Thermal protection provided to guard

against overheating and misuse of

insulation over and around ﬁxture.

Vent holes in housing provide cooler

operation.

C ...Electrical

Integral j-box and low voltage (12V)

transformer . 120V input, 12V output.

Junction box is U.L. listed for through

branch wiring. Includes four 1/2 trade

size knockouts.

D...Lamp

12V MR16 50 watts max. (not included)

“POSI-GRIP” bi-pin lamp socket for ﬁrm,

mechanical lamp connection.

E ...Mounting

Housing is secured with four snap-in

retaining brackets. Clip mounting slots in

the housing accommodate 1/2”, 1”, and

1-1/2” ceiling thickness.

Ceiling Cut-Out: 3.68” sq..

MINI

ACCURUS

ACM514RM

Remodel Housing

for Square Trim

FOR 12V MR16 50 watts max.

ORDERING INFORMATION

Housing

ACM514RM =

Mini Accurus

Remodel Housing

for Square Trim

w/Integral Transformer

Voltage

120 =120 volts primary (standard)

277 =277 volts primary (available)

Remodel housing for Mini Accurus small aperture square trimless ﬁxtures.

(ACM5101, ACM5102, ACM5103, ACM5104).

For non-I.C. remodel applications. Fixture is installed after the ceiling.

Insulation must be kept 3” from all sides and at least 1” above the

housing.

Speciﬁcations and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031

Transformer

ELC =Electronic

MAG =Magnetic

ACM514RM

rev. 031407
