Catalog #

Type

Project

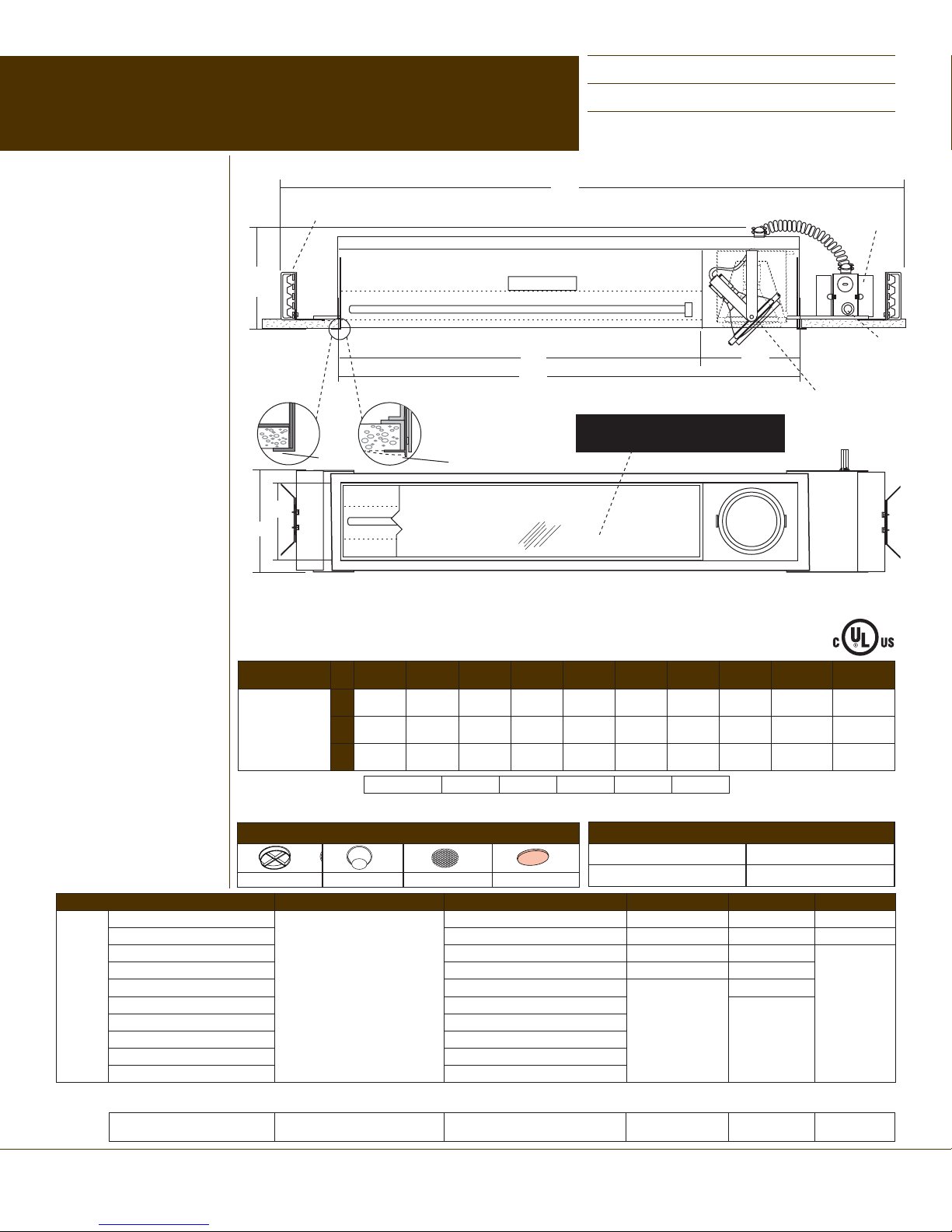

COMBOLIGHT® COMBO CLASSIC RECESSED

LAMP GROUP 3 - CONFIGURATION “I”

ONE (1) Halogen or Metal Halide lamp - ONE (1) Fluorescent lamp

New Construction Recessed Housing - Trim or Trimless

ORDERING EXAMPLE:

= One PAR38 Metal Halide 70W lamp with One BIAX® 40W Fluorescent • Black Interior • White Trim • 120 volts

CR338M70 IBX40 BK WH 120

Fluorescent >> BX40 BX50 PLL80 PLT26 PLT32 PLT42 T528 T535 T5HO39 T5HO54

Lamp Group 3

A34.49” 34.49” 34.49” 16.99” 17.49” 18.49” 57.99” 69.99” 45.99” 57.99”

B46.29” 46.29” 46.29” 28.79” 29.29” 30.29” 69.79” 81.79” 57.79” 74.79”

C25.50” 25.50” 25.50” 8.00” 8.50” 9.50” 49.00” 61.00” 37.00” 49.00”

RSA LIGHTING®

RSA LIGHTING LLC 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311

TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com

SPECIFY - I

380º x 45º locking

angular adjustment

45º visual cut-off

Dual Fluorescent lamp cell

w/ integral ballast accessible

from below

Integral reflector

Butterfly Brackets for

Black Iron Mounting

Thermal Protector

Aromat® Electronic

Metal Halide

Ballasts

0.75" Trim

8.90"

10.38"

10.75"

8.80"

Ceiling compund

is applied right

to the edge of the

fixture opening

Must specify a diffuser or louver

for fluorescent cell. See below.

Ballast

Optional Accessories - See RSA Combo Classic accessory page for details.

Baffle Snoots Louvers Lenses

Fluorescent Diffusers and Louvers - Please specify

❑ TWD - Textured White Diffuser ❑ CB1 - 2” Parabolic Louver

❑ MPD - Conical Prism Diffuser ❑ CB2 - 1” Parabolic Louver

Custom configurations are available with Combo Classic fixtures.

Also available with T8 fluorescent lamps. Consult RSA for details

DESCRIPTION:

An adjustable recessed fixture

suitable for multiple downlighting

applications with one point of elec-

trical entry. Mixes the use of metal

halide lamps with fluorescent

lamps. Powder coat finish on hous-

ing & lamp assembly.

CONSTRUCTION:

Housing, Plaster Frame & Trim

Assembly: 18 gauge CRS. J-Box

Assembly: 16 gauge CRS (galva-

nized). Fixture is offered with a .75”

ceiling trim or as a trimless fixture.

Can accommodate 0.50” to 1.00”

ceiling thickness.

LAMP ASSEMBLY:

One Halogen or Metal Halide lamp

cell with one fluorescent lamp cell.

Can accept up to two optical

accessories. 380º x 45º locking

lamp adjustment. Provides 45º

visual cut-off.

SYSTEM PROTECTION:

Thermal protection provided to

guard against overheating, and

misuse of insulation over and

around fixture. Vent holes in hous-

ing provide cooler operation

ELECTRICAL:

Fixture is two circuit.

Circuit 1: Integral Aromat® elec-

tronic metal halide ballasts for

metal halide lamps. Halogen lamps

are line voltage.

Circuit 2: Integral electronic bal-

lasts for fluorescent lamps.

Lutron® dimming ballasts avail-

able upon request.

Junction box is UL listed for

through branch wiring, for 8 #12,

90°C supply conductors or 60°C for

end of run (access above ceiling

not required).

Made in the USA.

Item # / Lamp Type Configuration Fluorescent Lamp Cell Interior Finish Trim Finish Voltage

Lamp

Group 3

CR338 - PAR38 120V I - One Halogen or Metal

Halide lamp cell with One

Fluorescent lamp cell

BX40 - 40W BIAX® BK - Black BK - Black 120 - 120 Volts

CR338M70 - PAR38MH 70W BX50 - 50W BIAX® WH - White WH - White 277 - 277 Volts

CR338M100 - PAR38MH 100W PLL80 - 80W PL-L S - Silver S - Silver

PLT26 - 26W PL-T PT - Custom PT - Custom

PLT32 - 32W PL-T TR - Trimless

PLT42 - 42W PL-T

T528 - 28W T5

T535 - 35W T5

T5HO39 - 39W T5HO

T5HO54 - 54W T5HO

T8 lamps also available
