Overview
The 460BSPBS-N70PB gateway connects a BACnet/IP Client with a Profibus DP Controller. By following
this guide, you will be able to configure the 460BSPBS-N70PB gateway.
For further customization and advanced use, please reference the appendices located on the CD or
online at: http://www.rtautomation.com/product/460-gateway-support/.
If at any time you need further assistance, do not hesitate to call Real Time Automation support.
Support Hours are Monday-Friday 8am-5pm CST
Toll free: 1-800-249-1612
Email: support@rtautomation.com
Real Time Automation, Inc.
8
1-800-249-1612
Hardware Platforms
The 460 Product Line supports a number of different hardware platforms. There are differences in how
they are powered, what serial settings are supported, and some diagnostic features supported (such as
LEDs). For these sections, be sure to identify the hardware platform you are using.
To find which hardware platform you are using:
1) Look on the front or back label of the unit for the part number.
2) On the webpage inside the gateway, navigate to the dropdown menu under Other and select
Utilities. Click the Listing of Revisions button. The full part number is displayed here.
Once you have the full part number, the platform will be the number following the “-N”:
Real Time Automation, Inc.
9
1-800-249-1612
Hardware –N70PB
Powering the Gateway
1) Connect a 12-24 VDC power source to the gateway:
a) Use Barrel Connector with Center (+) Outer Shell (-) OR
b) 2-Pin Terminal power connection with Red Wire = (+) Black Wire = (-) NOT BOTH
Real Time Automation, Inc.
10
1-800-249-1612
Port Configuration

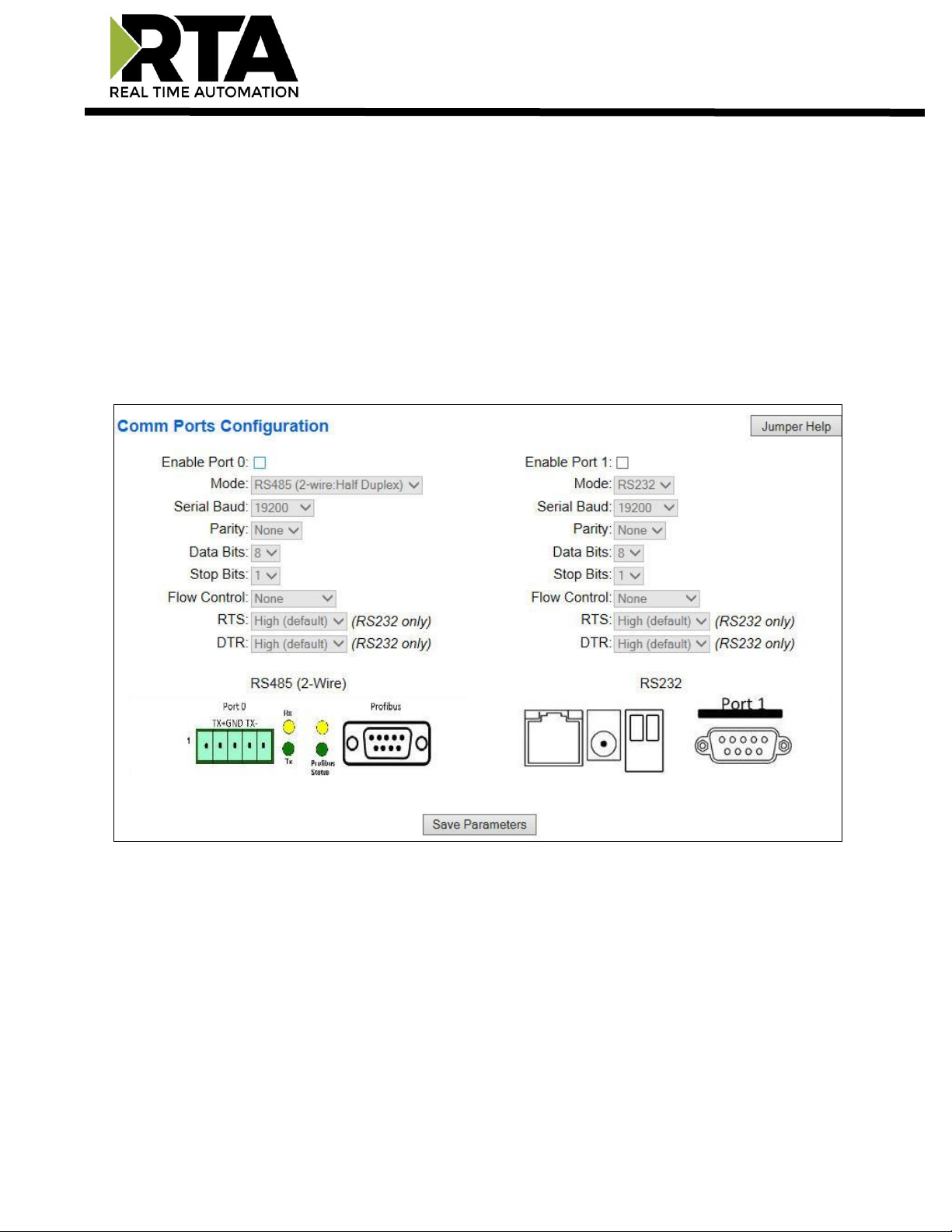

The Port Configuration page is where you set port specific parameters. These settings must match the
settings of the device(s) that you are connecting to.
When you have completed your port configuration, click the Save Parameters button.
Note: The PROFIBUS port is NOT configurable. The only configuration that the PROFIBUS port requires is
the Slave Address on the PROFIBUS Slave Configuration page.
Inhaltsverzeichnis
Andere RTA Tor Handbücher
RTA
RTA 460MRSBM-NNA4 Technisches Datenblatt
RTA
RTA 460ETCBC-N2E Technisches Datenblatt
RTA
RTA 460MSUSB-NNCU Bedienungsanleitung
RTA
RTA 460BMDFM-N34 Technisches Datenblatt
RTA
RTA 460ESMS-NNA4 Technisches Datenblatt
RTA
RTA 460BC-NNA4 Technisches Datenblatt
RTA
RTA 460ETCBS-N34 Technisches Datenblatt
RTA
RTA 460PSSC-N700 Technisches Datenblatt
RTA
RTA 460ESMS-NNA1 Technisches Datenblatt
RTA
RTA 460PBSTCP-N70PB Technisches Datenblatt
RTA
RTA 460BSA-N700 Technisches Datenblatt
RTA
RTA 460BMUS-NNA1 Technisches Datenblatt
RTA
RTA 460ESMRS-N2EW Technisches Datenblatt
RTA
RTA 460ESTCP-N700 Technisches Datenblatt
RTA
RTA 460ESDFM-N2EW Technisches Datenblatt
RTA
RTA 460MSDFM-NNA1 Technisches Datenblatt
RTA
RTA 460BSTCP-NNA4 Technisches Datenblatt
RTA
RTA 460PSDFM-NNA1 Technisches Datenblatt
RTA
RTA 460TCPA-NNA4 Technisches Datenblatt
RTA
RTA 460ESSC-NNA4 Technisches Datenblatt
Beliebte Tor Handbücher anderer Marken
LST
LST M500RFE-AS Bedienungsanleitung
Kinnex
Kinnex Media Gateway Bedienungsanleitung
2N Telekomunikace
2N Telekomunikace 2N StarGate Bedienungsanleitung
Mitsubishi Heavy Industries
Mitsubishi Heavy Industries Superlink SC-WBGW256 Bedienungsanleitung
ZyXEL Communications
ZyXEL Communications ZYWALL2 ET 2WE Bedienungsanleitung
Telsey
Telsey CPVA 500 - SIP Bedienungsanleitung
HMS
HMS Netbiter EasyConnect EC150 Bedienungsanleitung
Huawei
Huawei EchoLife HG620 Bedienungsanleitung
AT&T
AT&T U-verse 3801 Gebrauchs- und Pflegehandbuch
Logic IO
Logic IO RTCU MX2 turbo Bedienungsanleitung
Suttle
Suttle MediaMAX MXM-521 Bedienungsanleitung
Rosonix Technology
Rosonix Technology RSG-3000 Bedienungsanleitung
