1Introduction

Product Overview1.1

The LAN17255HR is designed to provide five Gigabit Ethernet ports for expanding the networking capabilities of any system. The board can

be used either in a PC/104-Plus system or as a standalone module. In a stack it gets power from either the PCI bus, ISA bus, os a power

connector. It provides five RJ45 ports with auto-configuration so any of the ports can be upstream or downstream. This board is compatible

with all PC/104, PC/104-Plus, and PCI-104 cpuModules.

Board Features1.2

BroadCom BCM53115 Gigabit Ethernet Switch:

o5 Full Duplex Unmanaged Gigabit Ethernet Ports

Auto configuration means any of the ports can be an uplink or downlink

oIndustrial Temperature rated: -40 to +85 C

PC/104, PC/104-Plus, or PCI-104

oPCI and ISA Buses are used as a pass through interfaces on the LAN17255HR and only provide power to the module.

Ordering Information1.3

The LAN17255HR is available with the following options:

Table 1: Ordering Options

Part Number

Description

LAN10255HR

5 port Gigabit Ethernet Switch No Bus Connectors

LAN16255HR

5 port Gigabit Ethernet Switch PC/104

LAN17255HR

5 port Gigabit Ethernet Switch PC/104-Plus

LAN18255HR

5 port Gigabit Ethernet Switch PCI-104

IDAN-LAN10255HR

5 port Gigabit Ethernet Switch in IDAN enclosure No Bus Connectors

IDAN-LAN16255HR

5 port Gigabit Ethernet Switch in IDAN enclosure PC/104

IDAN-LAN17255HR

5 port Gigabit Ethernet Switch in IDAN enclosure PC/104-Plus

IDAN-LAN18255HR

5 port Gigabit Ethernet Switch in IDAN enclosure PCI-104

The Intelligent Data Acquisition Node (IDAN™) building block can be used in just about any combination with other IDAN building blocks to

create a simple but rugged 104™ stack. This module can also be incorporated in a custom-built RTD HiDAN™ or HiDANplus High Reliability

Intelligent Data Acquisition Node. Contact RTD sales for more information on our high reliability systems.

RTD Embedded Technologies, Inc. | www.rtd.com 7LAN17255HRHR User’s Manual

Contact Information1.4

1.4.1 SALES SUPPORT

For sales inquiries, you can contact RTD Embedded Technologies sales via the following methods:

Phone: 1-814-234-8087 Monday through Friday, 8:00am to 5:00pm (EST).

E-Mail: [email protected]

1.4.2 TECHNICAL SUPPORT

If you are having problems with you system, please try the steps in the Troubleshooting section of this manual.

For help with this product, or any other product made by RTD, you can contact RTD Embedded Technologies technical support via the

following methods:

Phone: 1-814-234-8087 Monday through Friday, 8:00am to 5:00pm (EST).

E-Mail: [email protected]

RTD Embedded Technologies, Inc. | www.rtd.com 8LAN17255HRHR User’s Manual

2Specifications

Operating Conditions2.1

Table 2: Operating Conditions

Symbol

Parameter

Test Condition

Min

Max

Unit

Vcc5

5V Supply Voltage

4.75

5.25

Operating Temperature

-40

+85

Storage Temperature

-55

+125

Relative Humidity

Non-Condensing

90%

MTBF

Mean Time Before Failure

30C

TBD

Hours

Electrical Characteristics2.2

Table 3: Electrical Characteristics

Symbol

Parameter

Test Condition

Min

Max

Unit

Power Consumption

Vcc5 = 5.0V

1.25

Icc5

5V Input Supply Current

Active

250

RTD Embedded Technologies, Inc. | www.rtd.com 9LAN17255HRHR User’s Manual

3Board Connection

Board Handling Precautions3.1

To prevent damage due to Electrostatic Discharge (ESD), keep your board in its antistatic bag until you are ready to install it into your system.

When removing it from the bag, hold the board at the edges, and do not touch the components or connectors. Handle the board in an antistatic

environment, and use a grounded workbench for testing and handling of your hardware.

Physical Characteristics3.2

Weight: Approximately 55 g (0.12 lbs.)

Dimensions: 90.17 mm L x 95.89 mm W (3.550 in L x 3.775 in W)

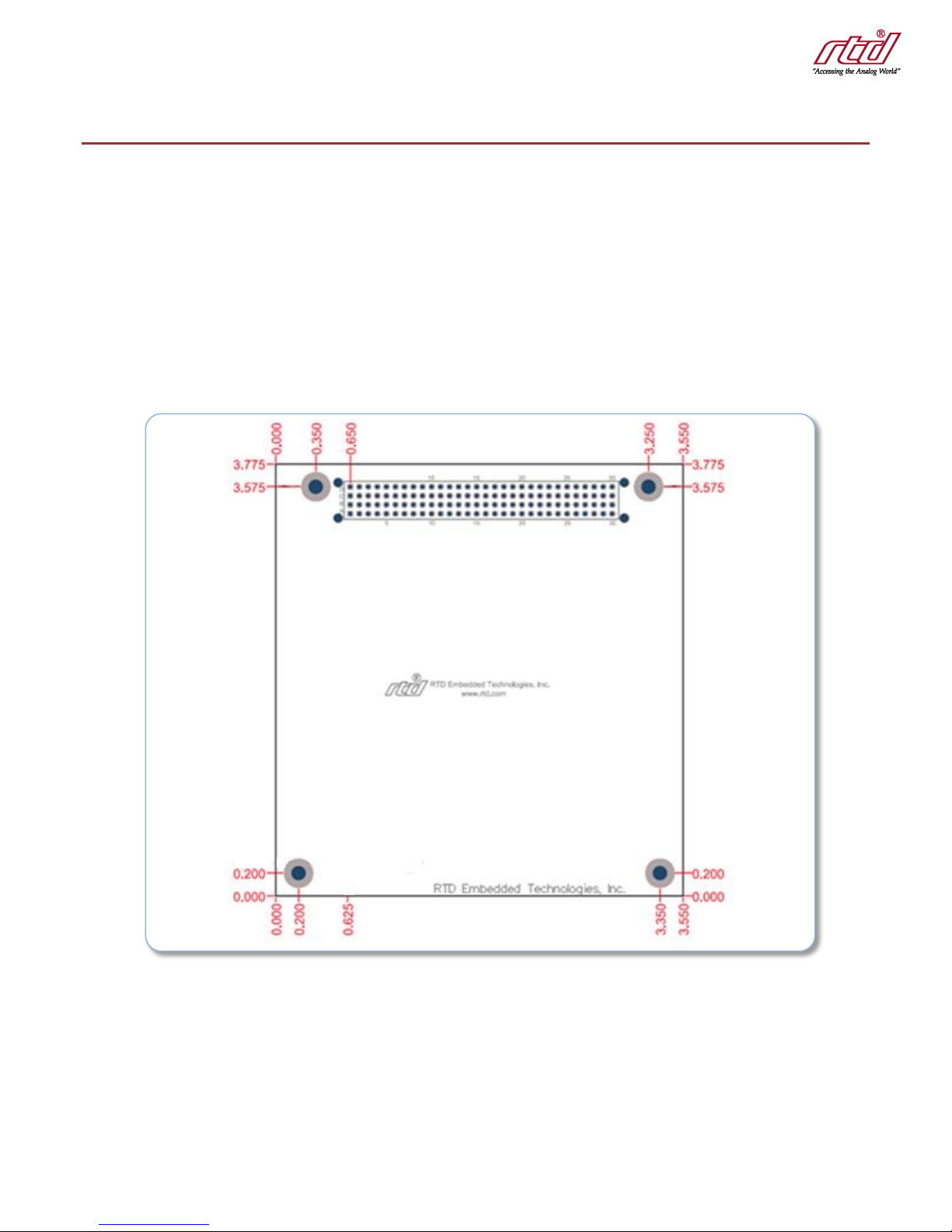

Figure 1: Board Dimensions

RTD Embedded Technologies, Inc. | www.rtd.com 10 LAN17255HRHR User’s Manual

Connectors and Jumpers3.3

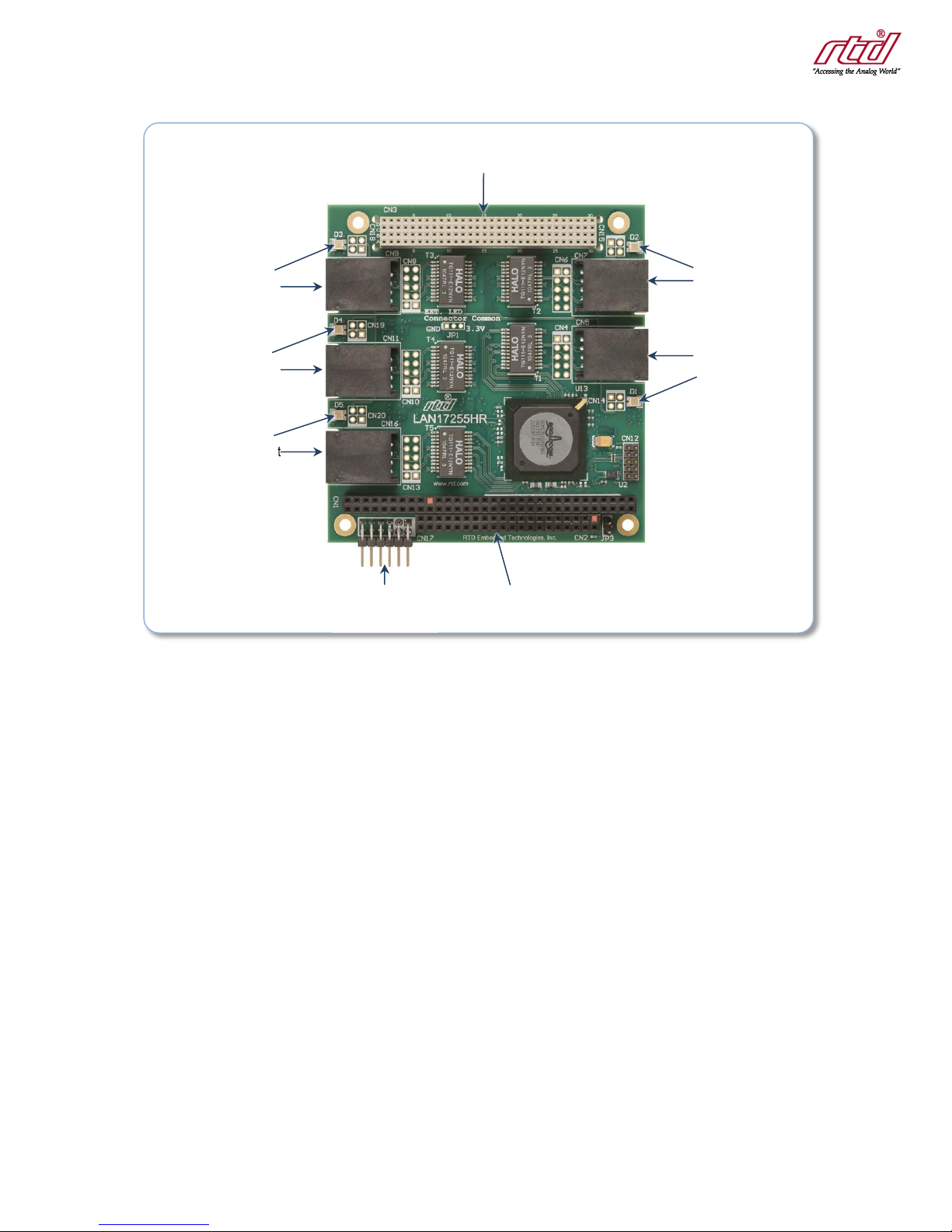

Figure 2: LAN17255HR Board Connections

3.3.1 EXTERNAL I/O CONNECTORS AND JUMPERS

CN1 & CN2: PC/104 ISA bus

CN3: PCI-104 PCI bus

CN5, CN7, CN9, CN11, & CN16: RJ-45 connectors for Ethernet

CN4, CN6, CN8, CN10, & CN13: 2x5 0.1” DIL connector not populated in standard product. Used for bringing out the Ethernet ports

in IDAN, HiDAN, and HiDANplus systems.

CN14, CN15, CN18, CN19, & CN20: External LED connectors

JP1: Power/ground selector for external LED connectors CN14, CN15, CN18, CN19, & CN20

CN17: Power connector for standalone operation

CN12 & JP3: Factory use only. Leave open.

3.3.2 RJ45 TWISTED PAIR ETHERNET CN5, CN7, CN9, CN11, AND CN16

Connectors CN5, CN7, CN9, CN11, and CN16 are for UTP (Unshielded Twisted Pair) wiring normally used for 10/100/1000 Base-T Ethernet.

It is the default factory installed twisted pair connector on the board. The following table gives the pin out of CN5, CN7, CN9, CN11, and CN16.

CN5 Switch Port

Link/ACT LED

CN11 Switch Port

Link/ACT LED

CN16 Switch Port

Link/ACT LED

CN9 Switch Port

CN17

Power Input

CN1 & CN2: PC/104 Connector

CN3: PCI-104 Connector

Link/ACT LED

CN7 Switch Port
