Rugged Computing ATLAS slim 14 Bedienungsanleitung

Rugged Industrial

Portable Computer

System Assembly Manual

A Technical Manual for System Integrators and Service

Technicians

The information contained in this document is believed to be accurate. However, no

responsibility is assumed for its use, nor for any infringements of patents or other rights

of third parties which may result from its use. This information is subject to change

without notice.

This manual is divided into 5 parts:

1. Getting Started

2. Opening to Chassis

3. Assemble the System

4. Using the System Controls

5. Appendix

Each part may be referenced individually, however, it is highly recommended for first

time users to go through all parts sequentially to obtain an overall understanding of the

system.

CONTENTS

Getting Started………………………………………………………………………………..4

Before you Start………………………………………………………………………………..5

Precautions……………………………………………………………………………………..6

Power Connections…………………………………………………………………………..6

Ventilation……………………………………………………………………………………..6

Care for the LCD……………………………………………………………………………...6

Tools and Supplies Needed………………………………………………………………...…7

Subassembly Contents…………………………………………………………………………7

Parts Contents…………………………………………………………………………………..7

Identifying Parts and Controls…………………………………………………………………8

Opening the Side Access Covers……………………………………………………………8

Removing Side Covers…………………………………………………..……………………..8

Slim Model Side Views…….. …………………………………...……………………………..8

Front View………………………………………………………………………………..…….10

Detaching the Keyboard………………………………………………………………………11

Opening the Chassis……………………………………………………………………...…12

Removing the Back Cover……………………………………………………………………13

Identifying the Internal Parts……………………………………………………………….....14

Removing the Drive Carriers…………………………………………………………………14

Removing the Power Supply…………………………………………………………………16

Removing the PICMG backplane board…….…………………………………………17

Removing the Slot Positioner metal bracket……………………………………………18

Assemble the System…………………………………………………………………….....19

Installing the PICMG and CPU card………………………………………………….…19

Installing CPU card with the PICMG backplane into the case……………………….....20

Installing the CPU card stabilizer…………………………………………………………22

Installing the ATX Enable cable……………….……………………………………22

Installing the interface card……………………………………………………………….24

Installing the interface card Support……………….…………………………………….25

Installing the Power Supplier And All Cables From CPU card……………………………27

Installing the Drive Assembly…………………………………………………………………29

Installing Parallel and Serial connector……………………………………...………………33

Keep Cleanness Area to prevent conflict with back Fan………………………….……34

Cover the Back case…………………………………………………………………….……35

Using the System Controls………………………………………………………………..36

Starting your System…………………………………………………………………………37

OSD Controls…………………………………………………………………………………37

Adjusting the OSD Parameters……………………………………………………………....38

Appendix……………………………………………………………………………………….39

Specifications…………………………………………………………………………………40

General Features……………………………………………………………………………40

Display Selection……………………………………………………………………………40

Environment…………………………………………………………………………………40

Dimensions & Weight………………………………………………………………………40

Troubleshooting Techniques…………………………………………………………………41

1. Getting Started

Before you Start………………………………………………………………………………....5

Precautions………………………………………………………………………………………6

Power Connections……………………………………………………………………………6

Ventilation…………………………………………………………………………………...….6

Care for the LCD………………………………………………………………………………6

Tools and Supplies Needed……………………………………………………………………7

Subassembly Contents…………………………………………………………………………7

Parts Contents…………………………………………………………………………………7

Identifying Parts and Controls…………………………………………………………………8

Opening the Side Access Covers……………………………………………………………8

Removing Side Covers………………………………………………………………………8

Side View…………………………………………………………………………………….…10

Front View……………………………………………………………………………………...11

Detaching the Keyboard………………………………………………………………………11

Before You Start

The major component of the subassembly is the chassis. The chassis comes pre-

assembled with:

• An Active Matrix LCD

• LCD Controller

• An PICMG backplane board with 2 PCI slots ( one 338mmX 118 , one half

size 175mm X 118) or 1 ISA((Max length 338 X 118mm)

• Power Supply

• Keyboard

• Ventilation fans

• Internal Speaker

To complete the System, you must add a PICMG CPU board, and peripheral devices.

Before adding these devices, it is important to follow certain basic safety precautions.

You should become familiar with the chassis both externally and internally. And you

should also have the right tools available to you.

Precautions

Power Connections

Use the Supplied Power Cord

The subassembly is shipped with a power cord compatible with the AC wall outlet

in your region.

Power Supply Type

Before plugging in the power cord, examine your power supply to see if you have

an autosensing or non-autosensing power supply.

Autosensing power supplies will automatically adjust to the AC outlet voltage. A

non-autosensing power supply comes with a voltage selector switch located near

the AC power connector. Make sure it is set to the appropriate voltage setting for

your power outlet.

1U Power Supply Switch

The power supply shipped with the chassis may or may not have an ON/OFF

switch. If your power supply has an ON/OFF switch, you must first press the

switch to the ON position to use power up/down button located on the front.

Note: The power up/down button located on the front of the chassis DOES NOT

turn off AC power. You must unplug the AC power cord from the AC outlet or the

chassis to remove AC power from your system.

Ventilation

The chassis comes with one intake fan, one exhaust fan and one power supply

exhaust fan.Never block any of the ventilation openings while the system is

operating. Always leave enough room around the chassis to allow adequate air

flow.

Care for the LCD

The chassis comes with a pre-assembled active matrix LCD. Liquid crystal

displays are made of glass which will break or crack if mishandled. During

system assembly, keep the keyboard latched to the chassis. The keyboard

housing is constructed of metal and provides front impact protection for the LCD

during transportation.

Tools and Supplies Needed

Before beginning your work, make sure you have the following tools and supplies

available:

• A #2 Phillips (cross head) screwdriver.

• An anti-static wrist strap (recommended).

Subassembly Contents

The subassembly consists of:

• This subassembly guide.

• Chassis with pre-assembled LCD, LCD controller, power supply,

cooling fans, internal speaker and keyboard with integrated pointing

device.

• An PICMG backplane board with 2 PCI slots or 1 ISA slot

• Power cord

• Carrying case

• Parts for installing the motherboard and drives

See Appendix for technical specifications.

Parts Contents

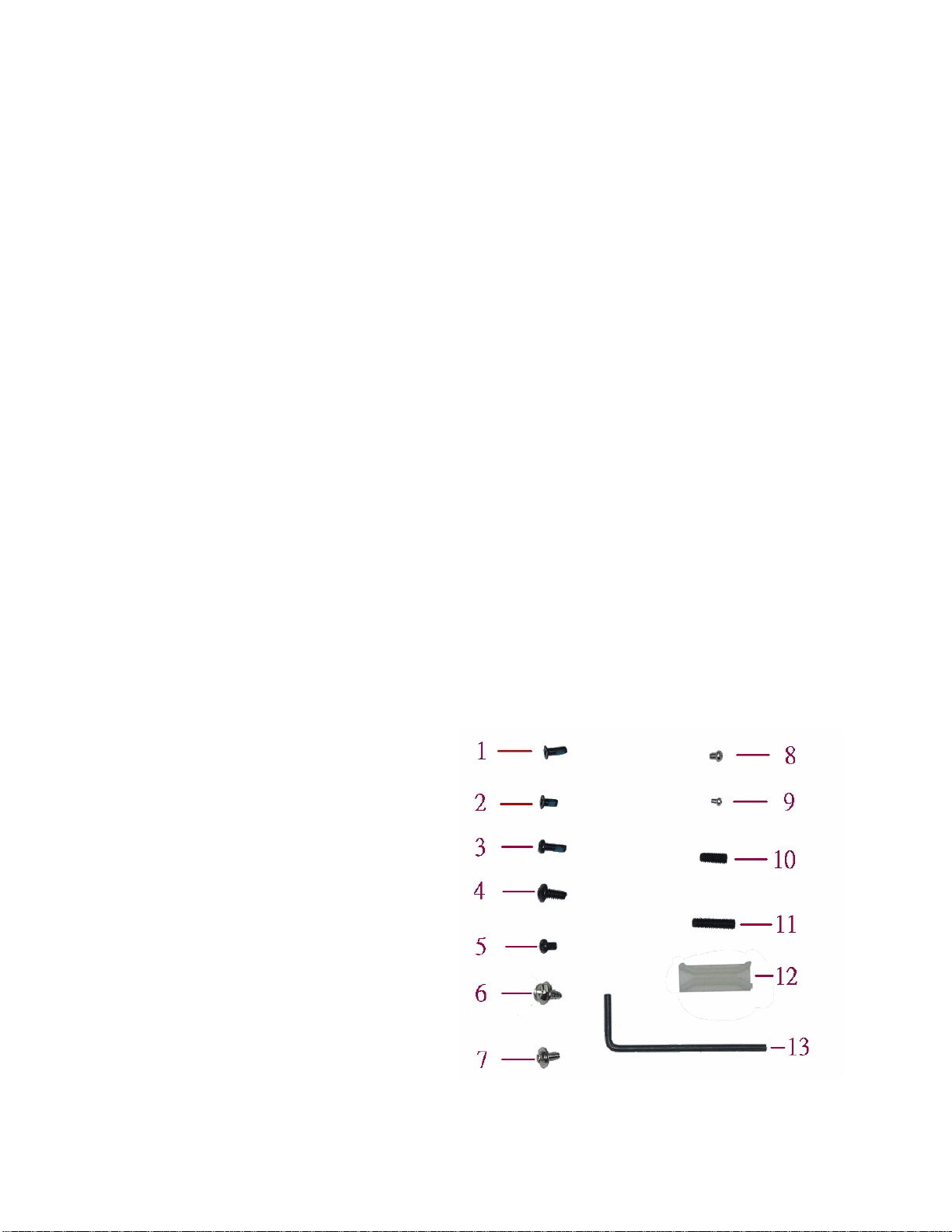

The subassembly parts kit

contains the following

hardware for installing

boards and drives.

Type# Specification

1. M3x0.5x8 Nylok®

2. M3x0.5x6 Nylok ®

3. M3x0.5x8 Nylok®

4. #6 – 32x10

5. M3x0.5x4

6. #6 – 32x6 (w/washer)

7. M3x0.5x6 (w/washer)

8. M2.6X3

9. M2X3

10. M4x0.7x8

11. M4x0.7x16

12. Interface card Support

13. Hexagon Spanner

Identifying Parts and Controls

Opening the Side Access Covers

The side access covers provide side impact protection for the I/O ports and drive

bays. The access covers must be opened to access I/O connectors.

Turn the thumbscrew in the counter-clockwise direction to open the access

covers. The covers are hinged to the chassis and will swing open.

Side Views

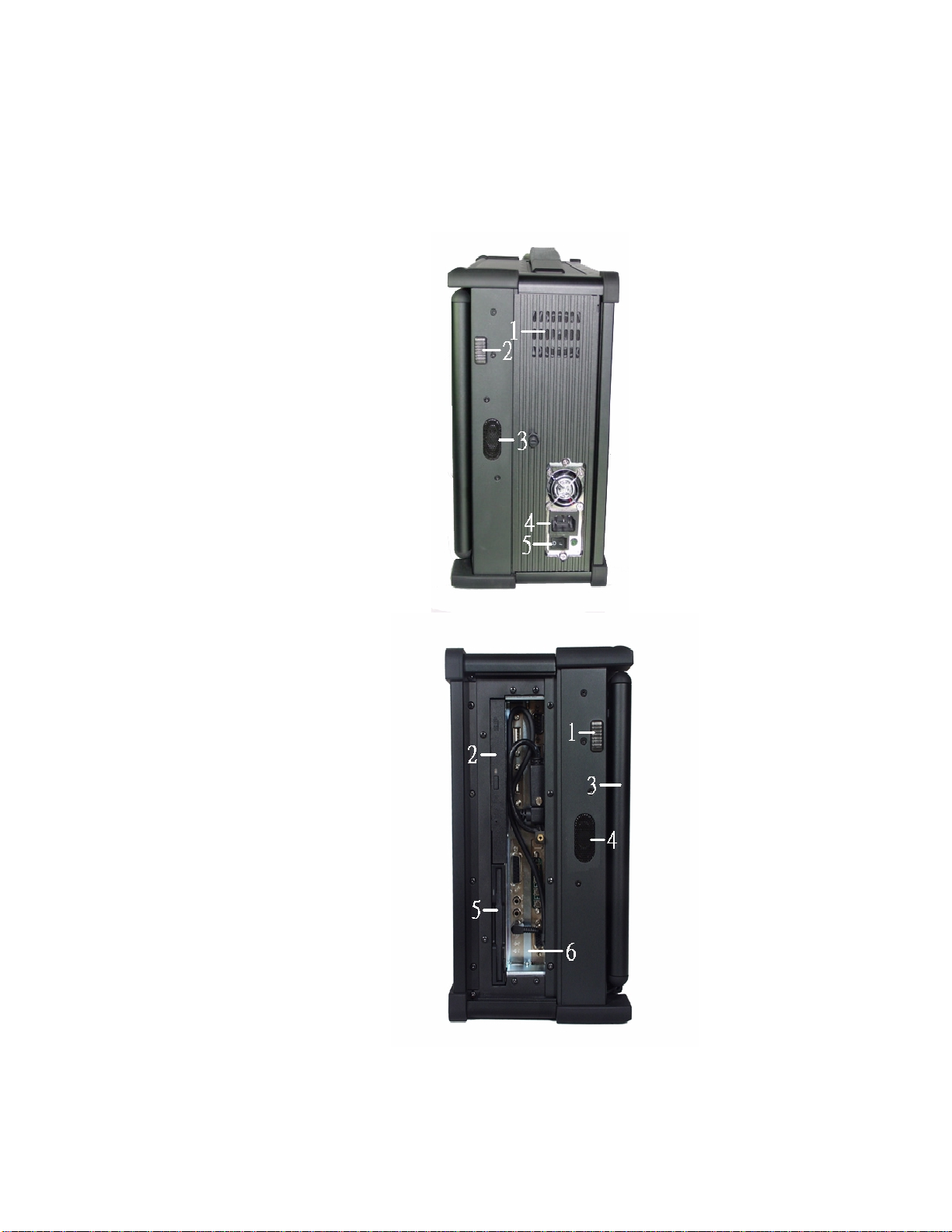

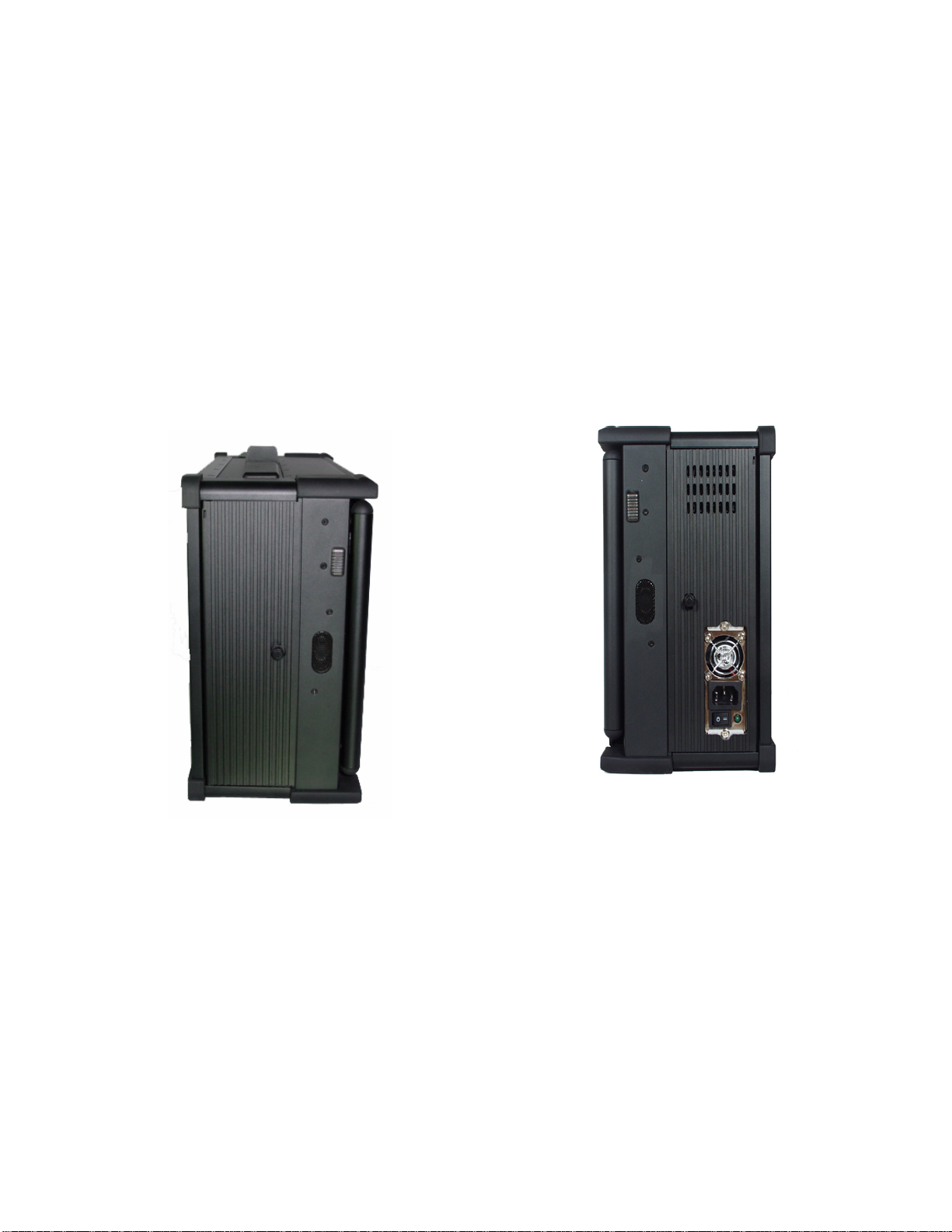

Use the photos below to identify the components and I/O ports that are accessible

from the two sides of the chassis. The illustration shows the external connectors

and components of a completely assembled system. Your subassembly has only

knockout holes instead.

On the left side of the chassis you

will find the following:

1. Filtered Intake Fan

2. Keyboard latch

3. Internal Speaker

4. Power connector

5. External Power Switch

On the right side of the chassis

you will find the following:

1. Keyboard latch

2. Slim CD ROM Drive Bay

3. Keyboard

4. Internal Speaker

5. 3.5” FDD Drive

6. Expansion slot outlet
