RunCam Swift Bedienungsanleitung
RunCam Swift
600TVL VDC 5-17 D-WDR
Mini FPV Camera Horizontal FOV 90°
28mm
18mm
26mm
26mm
30mm
* Up Interfaces version * Down Interfaces version
Connection
For OSD setting
①
Monitor
Videoout
Powerin 5D-OSD
* Interfaces connection
Connection
For FPV
②
Transmitter
GND
Video
Power in
Power
* Unplug the 5D-OSD menu cable after OSD setting.
* Interfaces connection
SETUP EXPOSURE
SHUTTER
BRIGHTNESS 050
AGC
DWDR
RETURN
AUTO
ON
RET
OSD Menu
CAM TITLE ON
EXPOSURE
WHITE BAL ATW1
BLC
AUTO
BACKLIGHT
DAY＆NIGHT
ENGLISH
DPC
IMAGE ADJ
LANGUAGE
RESET
EXIT
·
·
CAM TITLE
(ON/OFF)
·
·
LANGUAGE (English/中文)
·
·
DPC (Cover the lens then press enter key)
·
·
SHUTTER
(AUTO / 250-100000 / FLK)
·
·
BRIGHTNESS (50 / 0-255)
·
·
DWDR (ON:58 0-63 / OFF)
·
·
WHITE BAL (ATW1 / ATW2 / AWC SET /
MANUAL:MANUAL,INDOOR,OUTDOOR)
·
·
EXPOSURE
·
·

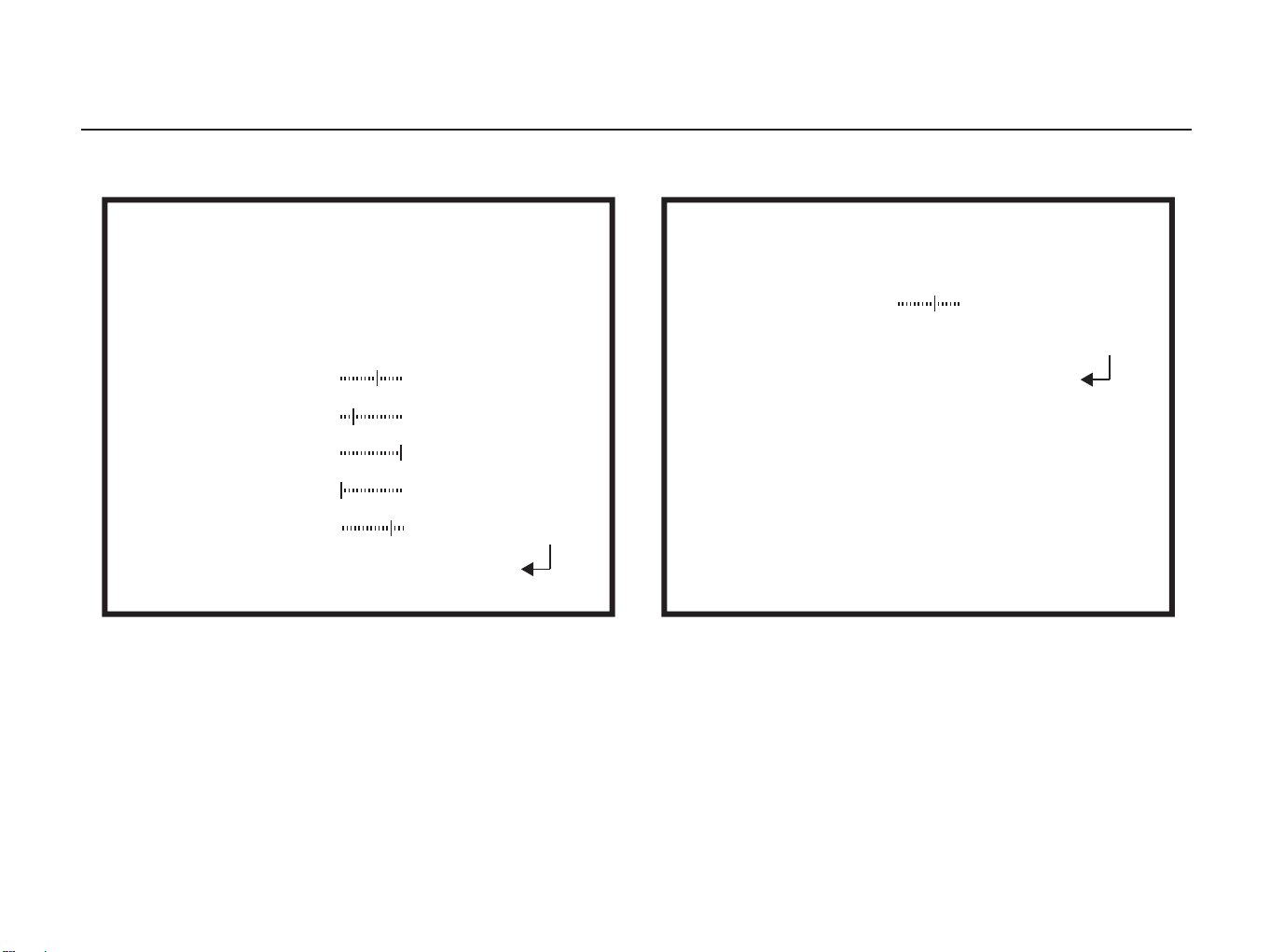

MAIN MENU
144
003
015
000
012
BLC
AREA SEL
AREA STATE
GAIN
HEIGHT
WIDTH
LEFT / RIGHT
TOP / BOTTOM
RETURN
AREA1
ON
RET
HLC
LEVEL
MODE
RETURN
200
ALL DAY
RET
OSD Menu
·
·
AREA SEL
(AREA1/AREA2)
·
·
BACKLIGHT （
BLC / HLC / OFF
)
·
·
GAIN (144 / 0-255 )
·
·
HEIGHT (3 / 0-3)
·
·
LEVEL
(200 / 0-255)
·
·
MODE (ALL DAY / NIGHT ONLY )
·
·
WIDTH (15 / 0-15)
·
·
LEFT / RIGHT (0 / 0-3)
·
·
TOP / BOTTOM (12 / 0-12)
D＆N AUTO
D N LEVEL 144
SEC
112
SEC
3
1
RET
RET
D＆N B＆W
BURST
IR SMART
IR LEVEL
RETURN
OFF
ON
HIGH
D N DELAYL
N D LEVEL
N D DELAY
RETURN
OSD Menu
·
·
BURST
(OFF/ON)
·
·
IR SMART (ON/OFF)
·
·
IR LEVEL (HIGH/LOW)
·
·
DAY ＆NIGHT
（AUTO / COLOR / B/W /EXT)
·
·
DAY NIGHT LEVEL (144 / 0-157)
·
·
DAY NIGHT DELAY (3 / 1-30)
·
·
NIGHT DAY LEVEL (112 / 0-255)
·
·
NIGHT DAY DELAY (1 / 1-30)
RET
RET
RETURN
FONT COLOR
FONT 003
ID＆TITLE 003
IMAGE ADJ
LENS SHAD
2DNR
MIRROR
FONT COLOR
CONTRAST
SHARPNESS
DISPLAY
NEG IMAGE
RETURN
OFF
OFF
OFF
146
026
CRT
ON
OSD Menu
·
·
IMAGE ADJ
·
·
LANS SHAD
(OFF/ON:29 0-255)
·
·
CONTRAST (146 / 0-255)
·
·
SHARPNESS (26 / 0-31)
·
·
DISPLAY (CRT/LCD/USER)
·
·
FONT
(3 / 0-15)
·
·
ID＆TITLE (3 / 0-15)
Model RunCam Swift
Image Sensor 1/3 SONY SUPER HAD II CCD
Horizontal Resolution 600TVL
Lens 2.8mm(Default) 2.1mm 3.6mm
Signal System PAL/NTSC
OSD SET YES
>60dB(AGC OFF)
YES
YES
0.01Lux/1.2F
S/N Ratio
Electronic Shutter Speed PAL: 1/50~100,000; NTSC: 1/60~100,000
Auto Gain Control(AGC)
Back light compensation (BLC)
Min. Illumination
WDR D-WDR
DNR 2DNR
Day/ Night Auto/Color/B&W
Power DC 5 to 17V
Net weight 12g
Dimensions 26mm * 26mm*28mm
www.runcam.com
