RunCam Sparrow Bedienungsanleitung
RUNCAM
USER MANUAL
Sparrow

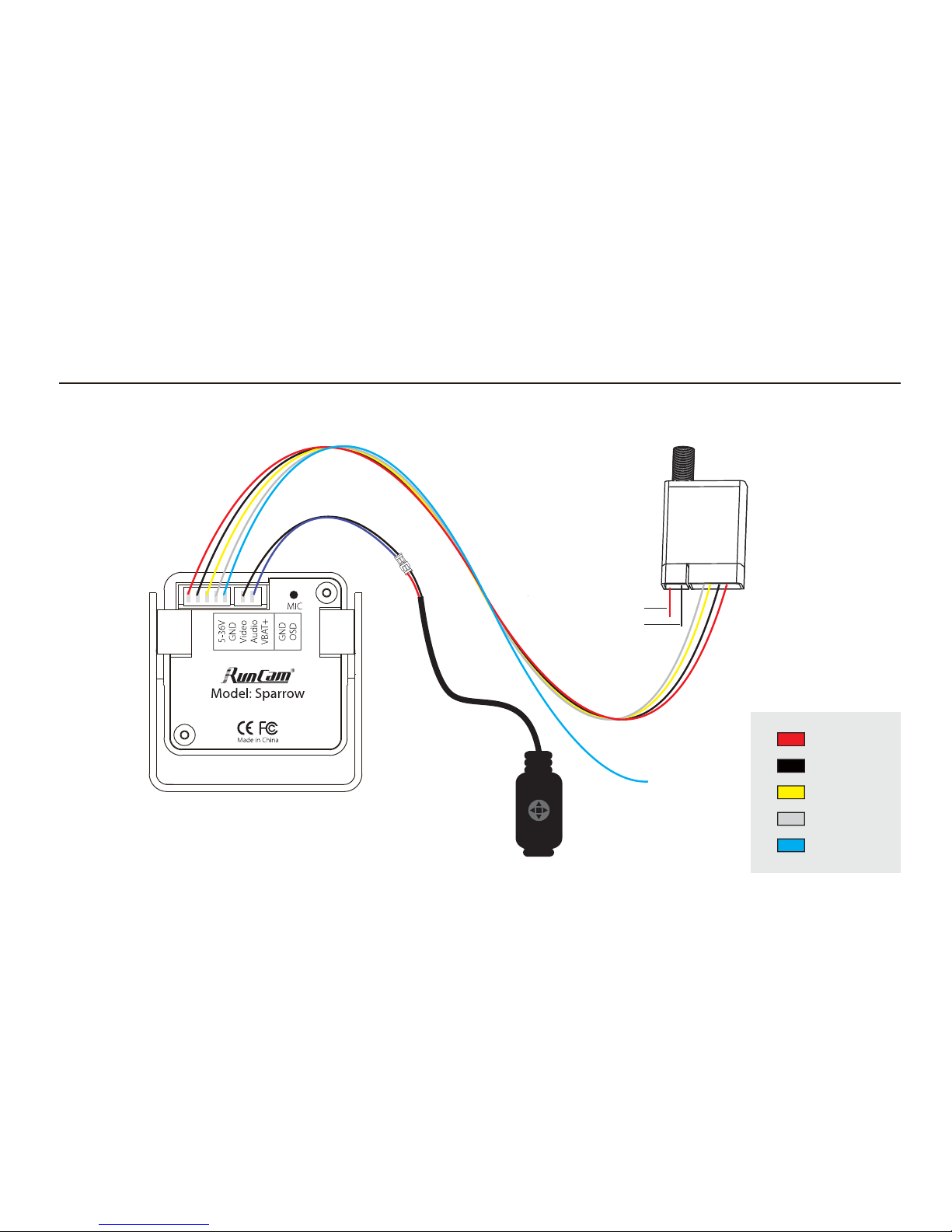

Connection
UP
UP
DOWN
DOWN
L R
Transmitter
5D-OSD menu cable
2 pin extension cord
Power in
GND
To VBAT+
* Unplug the 5D-OSD menu cable after OSD setting.
5-36V in
GND
Video out
Audio out
VBAT+

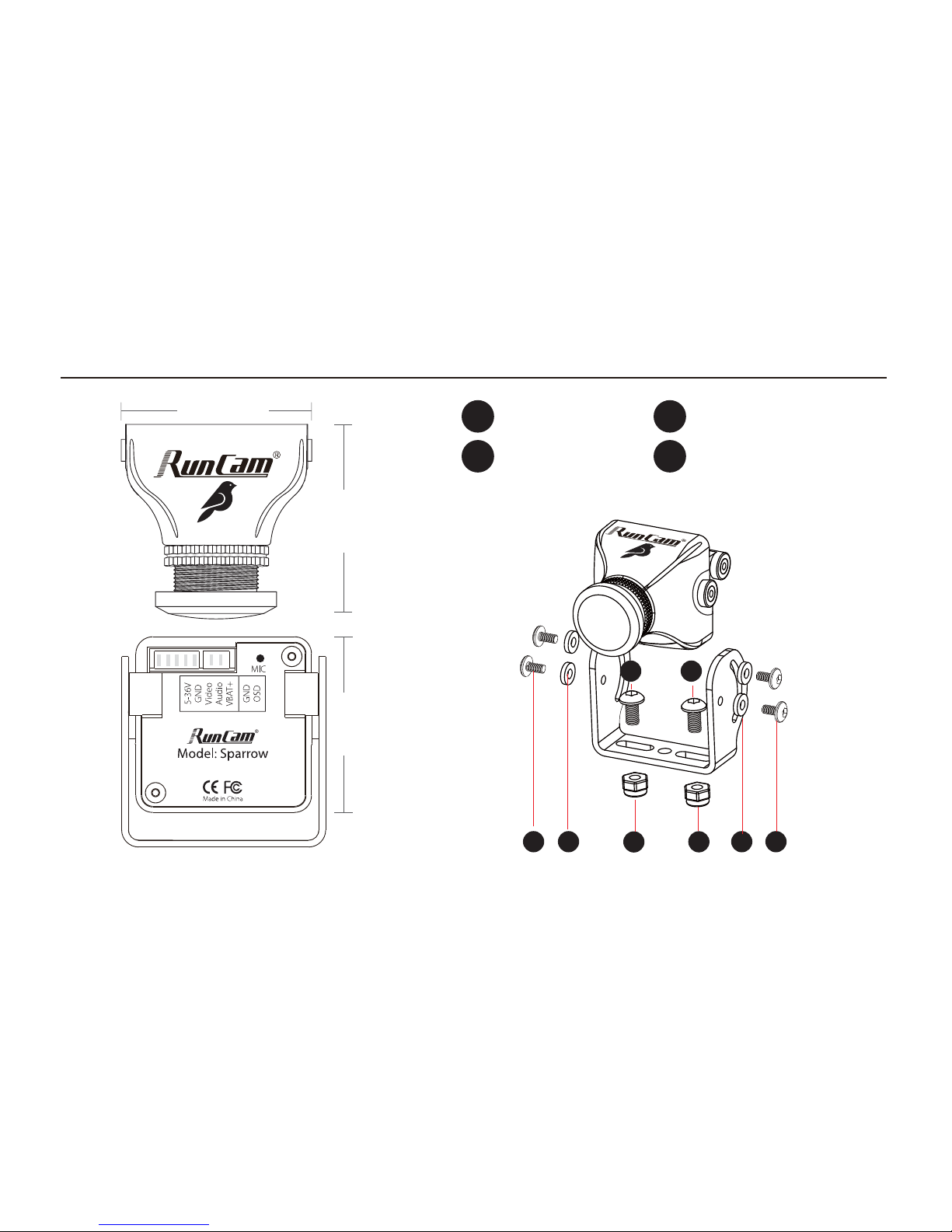

Dimensions & Installation
11 4
2 2
3 3
1
Nylon Gaskets
2
M2 Screws
3
M3 Screws
4
M3 Non-slip Nuts
4
28mm
28mm
26mm
·
·
Quick settings:
Long press the LEFT/DOWN/RIGHT button
for 2 seconds to activate the VOLTAGE/PILOT
/TIMER, then you can use the UP, DOWN,
LEFT and RIGHT buttons to move it to the
appropriate location on the screen, and press
the CENTER button to exit.
·
The OSD displays by default the input voltage of
the camera. If the VBAT + cable is connected to
the battery's positive side, it displays the battery
voltage instead.
OSD Menu
·
·
Press and hold the RIGHT button for 2 seconds
to select the voltage
·
·
Press and hold the CENTER button for 2 seconds,
the voltage starts to flash, now you can adjust the
Voltage:
·
·
Reduce (LEFT button) or increase (RIGHT button)
0.1V each press. Maximumadjustment range: ± 1v
·
·
After adjustment, press the CENTER button to
select the voltage, then press it again to save and
exit.
16.8v RunCam 01:08
·
·
Voltage Calibration
OSD Menu
OSD Setting: Press and hold the UP button for 2 seconds to enter OSD setup menu.
·
·
PILOT: ON/OFF
·
·
TIMER: ON/OFF
·
·
VOLTAGE: ON/OFF
·
·
BASELINE: OFF/1-9
·
·
EXIT: Save the current settings and exit
·
·
Customize the PILOT name: Use the UP, DOWN,
LEFT and RIGHT buttons to navigate through the
letters and confirm with the CENTER button.
RunCam
ON
ON
ON
OFF
VOLTAGE
PILOT
TIMER
EXIT
BASELINE
DEFAULT
1234567890ABCDEFG
HIJKLMNOPQRSTUVWX
YZabcdefghijklmno
pqrstuvwxyz.-:/@
Camera Menu
·
·
EXPOSURE
AT W1
AUTO
·
·
EXPOSURE (
STD
/ BLC )
·
SHUTTER MODE
AUTO
/ MANUAL 1/25-100000
·
·
AWB (
ATW1
/ USER / PUSH)
EXPOSURE
SHUTTER MODE
AGC
AWB
IMAGE ADJ
PREV NEXT SAVE EXIT
STD
·
·
STD
·
·
BRIGHTNESS ( LOW /
MIDDLE
/ HIGH)
MIDDLE
STD
BRIGHTNESS
RETURN
Camera Menu
·
·
AGC
·
·
MODE (
ON
/ OFF )
·
·
INTENSITY ( LOW /
MIDDLE
/ HIGH )
ON
AGC
MODE
MIDDLEINTENSITY
RETURN
·
·
IMAGE ADJ
RETURNNEXT
IMAGE ADJ
SHARPNESS
HDNR
CONTRAST
SATURATION
R GAIN
60/100
65/100
60/100
45/100
65/100
·
·
SHARPNESS
(
60
/ 0-100 )
·
·
HDNR ( 65 / 0-100 )
·
·
CONTRAST ( 65 / 0-100 )
·
·
SATURATION ( 60 / 0-100 )
·
·
R GAIN ( 45 / 0-100 )
Camera Menu
·
·
G GAIN ( 45 / 0-100 )
·
·
B GAIN ( 45 / 0-100 )
RETURNNEXT
IMAGE ADJ
G GAIN
B GAIN
45/100
45/100
·
·
IMAGE ADJ
·
·
DAYNIGHT
·
·
DAYNIGHD ( EXT/COLOR/BW/AUTO GEN )
DAYNIGHT
SYSTEM
BAD PIXEL
PRIVACY MASK
HLC
PREV NEXT SAVE EXIT
EXT
·
·
SYSEM / BAD / BAD PIXEL / PRIVACY MASK
/ HLC ( No need to set )
Camera Menu
·
·
WDR
EXIT
MIDDLE
WDR
PREV NEXT SAVE
·
·
WDR ( LOW / MIDDLE / HIGH )
·
·
SYSTEM
RETURN
MIDDLE
PAL
NO
MIDDLE
NEXT
SYSTEM
TV BRIGHT
TV SYSTEM
LANG ENG
RELOAD FTY
TV GAMMA
·
·
RELOAD FTY ( NO / YES )
·
·
TV GAMMA ( LOW / MIDDLE / HIGH )
·
·
TV BRIGHT ( LOW / MIDDLE / HIGH )
·
·
TV SYSTEM ( PAL / NTSC )
·
·
LANG ( ENG / 简 / 日本语 )
Parameters
Model
Image Sensor
Horizontal Resolution
Lens
Signal System
S/N Ratio
Electronic Shutter Speed
Auto Gain Control (AGC)
Min. Illumination
WDR
DNR
Day/Night
Power
Net Weight
Dimensions
RunCam Sparrow
1/3" CMOS Sensor
700TVL
2.1mm FOV150° / 16:9
NTSC/PAL Switchable on OSD menu
Integrated OSD Yes
Integrated MIC Yes
Camera Menu Yes
>50dB (AGC OFF)
LOW / MIDDLE / HIGH
PAL: 1/25~100,000; NTSC: 1/30~100,000
LOW / MIDDLE / HIGH
Yes
EXT / COLOR / BW / AUTO GEN
DC 5-36V
Working Current 12V@80mA / 5V@180mA
14g
L28mm*W26mm*H25mm
