Sachtler Video 18 Plus Bedienungsanleitung

Video 18 Plus

Video 20 Plus

Bedienungsanleitung

Manual

Fluid Head

Hydrokopf

Version: 1.5/09/02

Ausgabedatum / Issue date: 04/04

Bestellnr. / Order no.: sko13t180a

sachtler GmbH & Co. KG

Gutenbergstrasse 5 Postfach / P.O.BOX 1648

D-85716 Unterschleissheim D-85706 Unterschleissheim

Germany Germany

Telefon: (+49) 89 32 15 82 00

Telefax: (+49) 89 32 15 82 27

E-Mail: contact@sachtler.de

Homepage: http://www.sachtler.com

- I -

Inhaltsverzeichnis / Table of contents

Inhaltsverzeichnis

1 Safety instructions................................................................1

2 Operating elements..............................................................1

3 Operation..............................................................................2

3.1 Levelling of the fluid head............................................2

3.2 Mounting of the camera and / or plate.........................2

3.3 Positioning of the camera.............................................3

3.4 Setting of the damping.................................................4

3.5 Brakes..........................................................................4

3.6 Change of the batteries ...............................................4

4 Technical specifications........................................................5

5 Warranty...............................................................................5

Table of contents

1 Sicherheitshinweise..............................................................7

2 Bedienelemente....................................................................7

3 Betrieb..................................................................................8

3.1 Nivellieren des Hydrokopfes.........................................8

3.2 Entnehmen und Einsetzen der Kamera(platte)............8

3.3 Einstellen der Kamerabalance.....................................9

3.4 Einstellen der Dämpfung............................................10

3.5 Bremsen.....................................................................10

3.6 Austausch der Batterien.............................................11

4 Technische Daten...............................................................11

5 Garantie..............................................................................12

Bedienungsanleitung

Video 18 Plus

Video 20 Plus

- II -

- 1 -

Video 18 Plus

Video 20 Plus

Manual

1 Safety instructions

➪When placing the camera plate, make sure not to hold

fingers within the range of the locking lever, since it will snap

back.

➪When the camera is mounted, the clamping screw of the

fluid head must only be released if camera and tripod are

secured against falling over.

➪When releasing the vertical brake or the clamping for the

balance plate ensure that the camera is secured against any

sudden movement.

➪Before transport reset fluid damping to “0”.

➪Don´t change drag while you are panning or tilting.

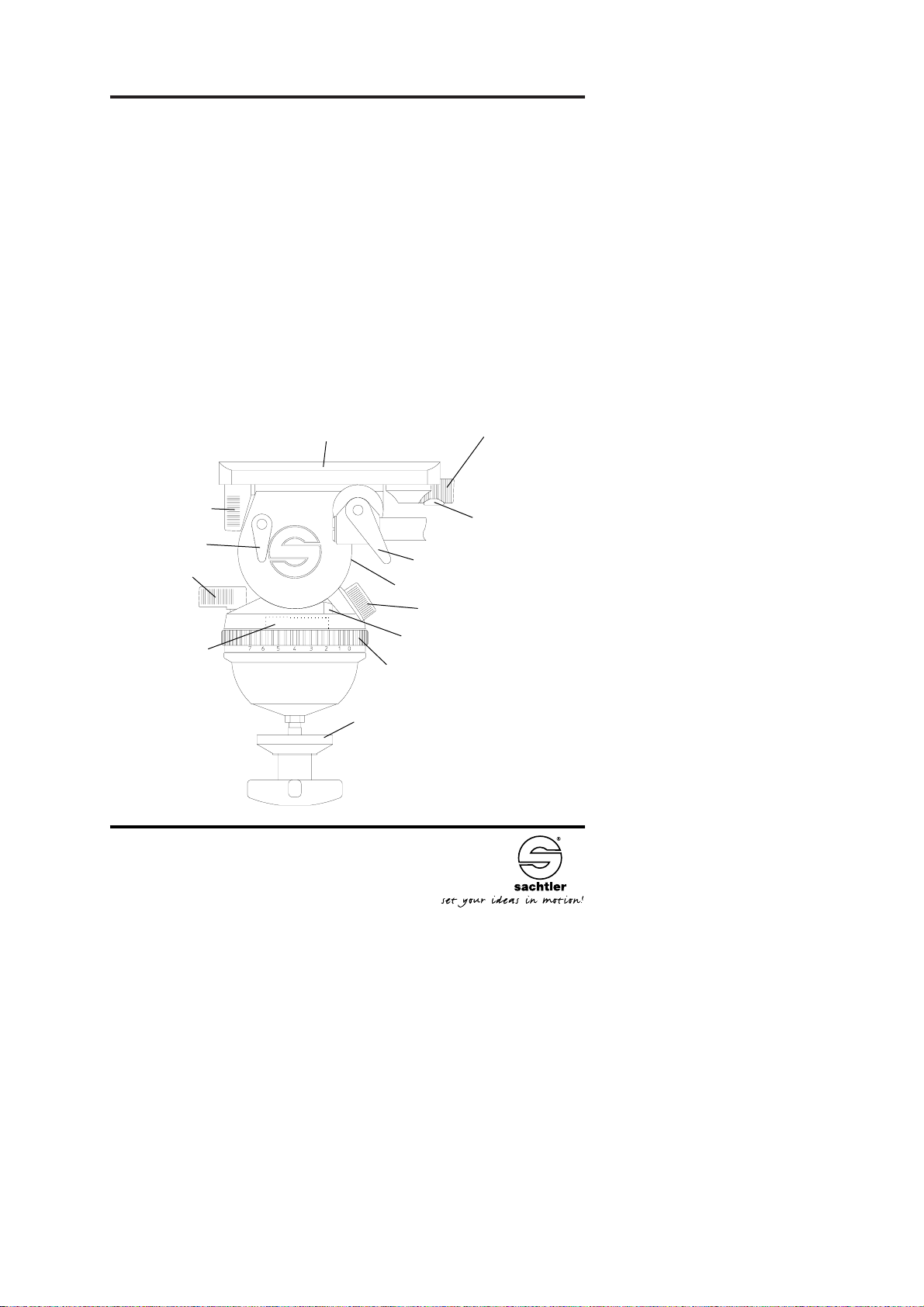

2 Operating elements

Horizontal setting of fluid damping

Vertical brake

Lock of the sliding

balance plate

Locking lever of Touch &Go

system

Vertical setting of fluid damping

Counterbalance knob

Touch Bubble

Horizontal brake

Battery holder of the

bubble illuminator

Clamping screw of

the fluid head

Safety lock of

Touch & Go

system

VIDEO 18/20 plus

Clamping lever of pan arm

Camera plate

Manual

Video 18 Plus

Video 20 Plus

- 2 -

3 Operation

3.1 Levelling of the fluid head

Apply the vertical brake and hold the camera with one

hand. Open the clamping screw of the fluid head and move

the head in such a way, that the bubble moves into the

level´s black circle.Tighten the clamping screw firmly.

Touch Bubble

The Video 18 Plus and the Video 20 Plus have a self illumi-

nating Touch Bubble which allows easy levelling even under

unfavourable lighting conditions.

The illumination is activated by strong tapping on the bub-

ble. Depending on the force applied the bubble will glow up

to 45 seconds.

3.2 Mounting of the camera and/or plate

The Video 18 Plus and the Video 20 Plus are delivered with

the Touch & Go camera quick locking system.

➪Apply the horizontal and vertical brake.

➪Hold the camera and/or plate with one hand.

➪Grasp the locking lever with your thumb and index and

pull down the red safety button.

➪Move the locking lever as far as possible to the left and

take out the camera and/or plate.

➪Attach the camera plate to the tripod adaptor plate

(camera accessory) around the camera’s centre of

gravity.

➪By mounting the camera and/or plate again it will lock

automatically and the locking lever will snap back

audibly into its initial position.

- 3 -

Video 18 Plus

Video 20 Plus

Manual

3.3 Positioning of the camera

➪Hold the camera by securing the pan arm. Apply the

horizontal brake and release the vertical brake.

➪Turn the counterbalance knob to position 5

(Video 18 Plus) or position 7 (Video 20 Plus) and see

that the springs engage by tilting the camera through

the horizontal position.

➪Turn the vertical drag setting to “0” position.

➪Should the camera be extremely front or back heavy

the following procedure has to be performed: Hold the

camera in a horizontal position by securing the pan

arm. Open the lock of the sliding balance plate (push

back red lever underneath the balance plate as far as

possible). Compensate for a backheavy setup by sliding

the balance plate forwards and for a frontheavy setup

by sliding backwards.

➪Lock the balance plate by pulling the red lever into its

initial position.

➪Turn the counterbalance knob to that number which

best compensates for the weight of the camera, i.e. for

as little movement upward or downward in any position.

➪Standing to the side of the camera hold the tripod

adaptor plate from underneath to perform the fine

adjustment. Open the lock of the sliding balance plate

(push back red lever underneath the balance plate as

far as possible). By sliding slightly forward and back-

ward you will find the position in which the camera will

remain in the horizontal position.

➪Lock the balance plate by pulling the red lever into its

initial position.

➪Select the damping level for your tilt movement via the

vertical setting. In the correctly chosen position the

camera should not perform any independent tilt move-

ments from drag position “3” upwards.

Manual

Video 18 Plus

Video 20 Plus

- 4 -

➪Please note: A lower counterbalance setting becomes

immediately effective in any tilt position. An increase of

the counterbalance setting will only be effective in the

horizontal position (Springs must click in audibly).

➪If you can’t manage to centre the camera, you should

move the camera plate to a different position on the tri-

pod mounting adaptor.

3.4 Setting of the damping

The Video 18 Plus and the Video 20 Plus are equipped with

seven damping levels horizontally and vertically and a zero

setting.

By turning the vertical setting and the horizontal setting one

selects the desired level of the fluid damping.

Turn the setting ring to “0” in order to switch off the dam-

ping completely. Make sure that you always turn the setting

to the next indexed position. Engage the retainer pins by

slowly panning or tilting the camera.

ATTENTION: Panning or tilting the camera with settings

between the indexed positions can damage the retainer

pins and/or disks.

If you set the setting rings on the same index number

(e. g. “3”) the degree of the horizontal and vertical damping

is identical and thus enabling precise diagonal panning

movements without jerks and vibrations.

3.5 Brakes

The horizontal brake applies the lock for the pan and the

vertical brake for the tilt movement. Both brakes are vibra-

tionless and can be used during shooting.

3.6 Change of the batteries

The illumination is powered by three standard type button

cells (625 U or LR9) located in the battery holder, which

can be opened with a sharp object such as a screwdriver.

- 5 -

Video 18 Plus

Video 20 Plus

Bedienungsanleitung

Make sure to insert the new batteries according to the

“plus” and “minus” symbols as indicated in the covering

plate.

The batteries last for about 2000 illumination cycles.

4 Technical specifications

Counterbalance:

Balance plate:

Grades of drag:

Tilt angle:

Panning range:

Temperature range:

Weight:

Max. load:

Camera fitting:

Tripod fitting:

Pan bars:

Battery:

Video 18 Plus

4 kg to 20 kg (9 lb to 44 lb)

70 mm sliding range

7 horizontally,

vertically and 0

± 90°

360°

-40°C (40°F) to

60°C (140°F)

3.1 kg (6.8 lb)

20 kg (44 lb)

Touch & Go camera plate 16

with 1/4” and 3/8” screws

100 mm balll (flat base con-

verter optional)

two, diameter 18/22 mm

(0.71 / 0.87”), length 350 to

520 mm (13.8 - 20.5”)

Bubble: 3 x 625 U or LR9

5 Warranty

Warranty expires if:

➪the fluid head was operated improperly or not in line with the

specified technical data, or

➪the head housing was opened by unauthorised personnel.

We reserve the right to make changes based on technical

advances.

Video 20 Plus

7 kg to 27 kg (15 lb to 59 lb)

110 mm sliding range

7 horizontally,

vertically and 0

± 90°

360°

-40°C (- 40°F) to

60°C (140°F)

3.5 kg (7.7 lb)

25 kg (55 lb)

Touch & Go camera plate 16

with 1/4” and 3/8” screws

100 mm balll (flat base con-

verter optional)

two, diameter 18/22 mm

(0.71 / 0.87”), length 350 to

520 mm (13.8 - 20.5”)

Bubble: 3 x 625 U or LR9

Bedienungsanleitung

Video 18 Plus

Video 20 Plus

- 6 -
