Safco 8921 Bedienungsanleitung

Insert the A Lower Post into

the B Base and fasten with

the C Bolt (fully threaded)

from the underside of the

Base.

MODEL NUM-

BER 8921

8921-37: 1 of 2; 06/02

TOOLS REQUIRED: Phillips Screwdriver, Flat Screwdriver

Adjustable Speaker Stand

ASSEMBLED UNIT

MODEL 8921

For questions or concerns, please call

Safco Consumer Hot Line 1-800-664-0042

available Monday-Friday 8:00 AM to 4:30 PM (Central Time)

(English-speaking operators)

ASSEMBLY INSTRUCTIONS

Safco Products Company, New Hope, MN 55428

Lower Post 1 8921-04

Base 1 8921-05

Bolt (fully threaded) 1 8921-27

Upper Post 1 8921-03

Knob, Long Stem 2 8921-25

Adjustment Bracket 1 8921-02

Retaining Bracket 1 8921-09

Top Platform 1 8921-01

Small Screw 6 8921-22

Paper Stop/Pencil Ledge 1 8921-08

Pivot Bolt 1 8921-23

Nut 1 8921-24

Star Washer 1 8921-21

Knob, Short Stem 1 8921-26

LETTER

CODE DESCRIPTION QTY. PART NO.

PARTS LIST

Sort and count your parts!

When ordering replacement parts, please specify color.

Insert the D Upper Post into

the Lower Post, line up the

holes in one post with the

holes in the other post at an

appropriate height, and fasten

with two E Knobs with Long

Stems.

USE TWO HOLES

Align the hole in the Adjustment Bracket with the

top hole in the Upper Post; then insert the K Pivot

Bolt through the holes. Fasten with the L Nut, but

do not overtighten (the Top Platform must be able

to tilt freely).

Place the M Star Washer onto the stem of the

N Knob with Short Stem, and screw the Knob

through the slot in the Adjustment Bracket and into

the hole in the Upper Post.

8921-37: 2 of 2; 06/02 Safco Products Company, New Hope, MN 55428

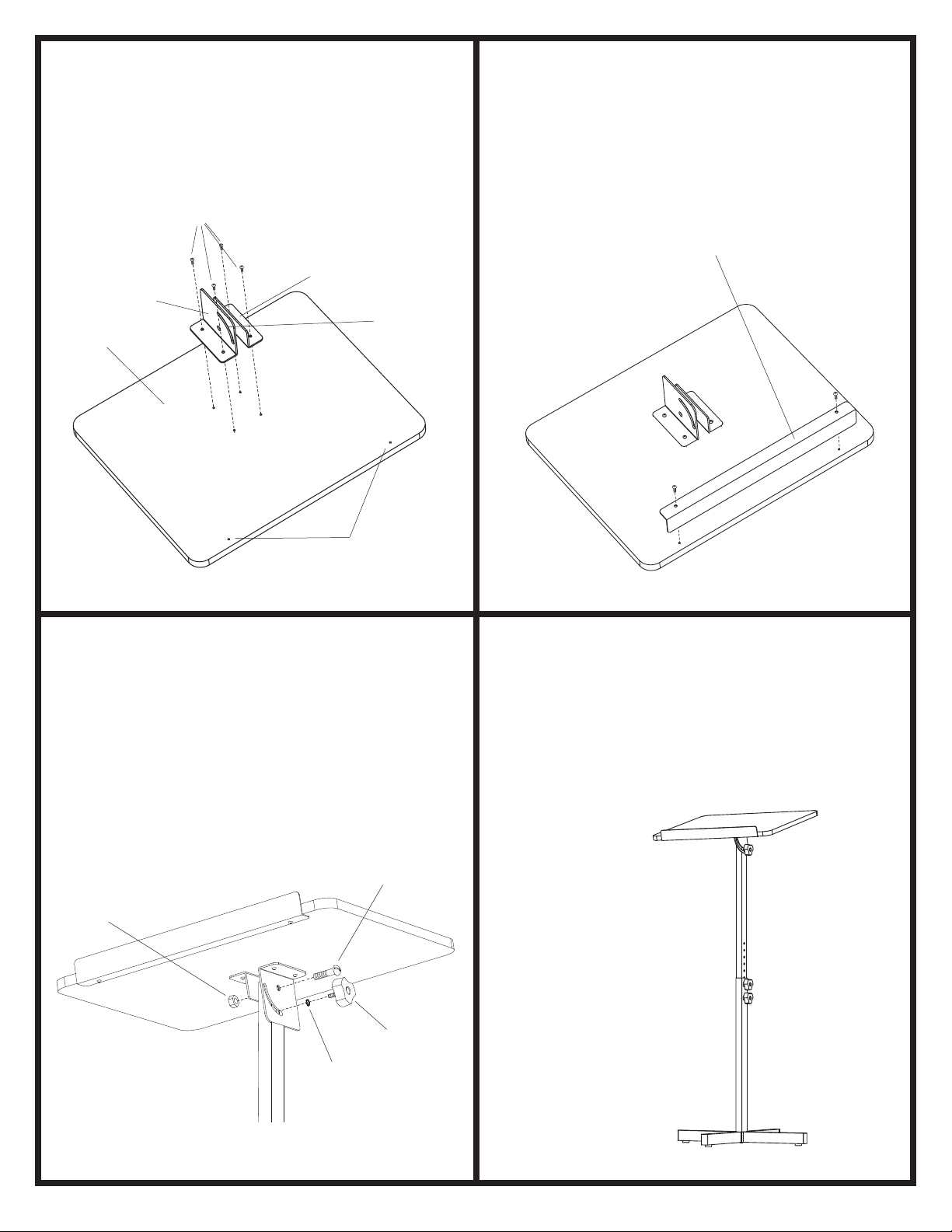

Attach the F Adjustment Bracket and the G

Retaining Bracket to the H Top Platform, using

four I Small Screws. Be sure that the slot of the

Adjustment Bracket is facing the two small holes

along the front edge of the Top Platform.

3Attach the J Paper Stop/Pencil

Ledge to the Top Platform, using the

two remaining Small Screws.

5Level the unit using the levelers on the

Base.

Adjust the height by removing the

two Knobs, aligning the Posts to the

desired height, and reinserting the

Knobs.

Loosen the uppermost Knob, adjust

the Top Platform angle, and retighten.

SMALL HOLES

SLOT
