Salamander Designs - Electric Lift Wall Display Stands 55” www.salamandercommercial.com 501-673 [6.22] page 1 of 24

ADA

COMPLIANT

SOLUTIONS

fps2W/el/CS/55/gg

Electric Lift Wall Stand

Designed for Cisco Webex Board Pro 55”

user manuAl

Salamander Designs - Electric Lift Wall Display Stands 55” www.salamandercommercial.com 501-673 [6.22] page 2 of 24

PARTS

ID QTY PART NUMBER DESCRIPTION

(1) PHK-740 (bag) Display Mounting Fastener Set - Metric

A (4) 301-770 M10 x 16mm

B (4) 301-462 Shoulder Washer

C (1) 401-171 6mm Hex Wrench

D (2) 301-015 5/16” x 1/2” Bolt

E (4) 301-010 5/16” x 3/4” Bolt

H (3) 300-485 1/4-20 x 1/2” Button head socket cap screws

I(2) 400-120 Velcro cinch strap with logo

J (3) 400-125 Black one-wrap strap x 200mm

K (6) 300-468 1/4 Flat washer

L (4) 300-470 5/16” at metal washer

M (4) 400-010 Black 5” cable ties

N (1) 400-060 3/16” hex key - long arm

O (1) 400-080 5/32” hex key

P (1) 400-070 1/8” hex key

Q (2) Mounting Rail

R (2) Leveler Foot

S (4) 301-730 Lag screw 5/16” x 2.5

T (4) 301-055 Plastic wall anchor

U (4) 301-730 Washer 5/16” at washer

V (2) 305-078 Display Interface Brackets - 55”

(1) PHK-735 (bag) Wall mount screw set

STU

Salamander Designs - Electric Lift Wall Display Stands 55” www.salamandercommercial.com 501-673 [6.22] page 3 of 24

warnings [English]

WARNING! Failure to comply with these instructions

may result in accident involving serious personal injury.

Failing to follow these instructions can result in the

product being damaged or being destroyed or voiding

of the warranty.

WARNING! For use with video monitors weighing

200lbs (90kg) or less. Use with heavier televisions

may result in instability causing tip over resulting

in death or serious injury.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical furnishing, basic precautions should always be followed, including the following:

WARNING – Keep hands away from moving parts while operating device.

CAUTION! Manage cables carefully. Use cable ties to keep wires away from moving parts.

WARNING – Children must be under surveillance to ensure that they do not operate, touch,

climb, or play with the product.

CAUTION! When relocating the device, set to lowest position and use handle to move

and position the device.

WARNING – To reduce the risk of burns, re, electric shock, or injury to persons:

• For indoor use in dry locations only.

• For commercial use.

• Disconnect power when installing, relocating or before servicing.

• Unplug from outlet before putting on or taking o parts.

• Close supervision is necessary when this furnishing is used by, or near children,

invalids, or disabled persons.

• Use this device only for its intended use as described in these instructions.

Do not use attachments not recommended by the manufacturer.

• Protect the power cord from being walked on or pinched.

• Keep the cord away from heated surfaces.

• Never drop or insert any object into any opening.

• Do not operate where aerosol (spray) products are being used or where

oxygen is being administered.

• The device shall not be exposed to dripping or splashing and that no objects

lled with liquids, such as cups or vases, shall be placed on the furnishing.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Never operate the device if it has a damaged cord or plug, if it is not working properly,

if it has been dropped or damaged.

• If the device makes unusual noise or smells, switch o the mains voltage immediately.

Return the device to a service center for examination and repair.

Electrical Specications:

Input: 90V - 240V ~, 48 Hz - 63HZ

Operation: 10% Max 2min./18min.

Salamander Designs - Electric Lift Wall Display Stands 55” www.salamandercommercial.com 501-673 [6.22] page 4 of 24

Duty Cycle of the motor control system:

The duty cycle is 10% ~ 6 min./ hour or max. 2 min. of continuous use, irrespective of the load.

This must NOT be exceeded as this will result in a superheating of the motor. Exceeding the duty

cycle will result in a dramatic reduction of the life of the system.

The motor control system range contains the following components:

• 1 control box

• 2 Telescoping actuators

• 1 exchangeable main power cable

• 2 motor cables

• 1 Wired remote control

Troubleshooting / Initialization of the motor control system

If motor control system malfunctions follow these steps;

The system is initialized by pressing the down button once or twice and holding it down until unit runs

into end stop, it will then automatically run approx. 3 mm out again and hereafter slowly running in

again. Only release the down button when the movement has completely stopped. If the key is released

before the sequence is completed then the initialization is interrupted and must be started again from

the beginning. It is sometimes necessary to press the down button twice to start the initialization

this is because the system can be in dierent modes when the initialization starts.

WARNING: Risk of Electric Shock – Connect the device to a properly grounded outlet only. Do not

defeat the safety purpose of the polarized type plug. A polarized plug has two blades with one wider

than the other. If the provided plug does not t into your outlet, consult an electrician for replacement

of the obsolete outlet. Do not use a plug adapter that defeats the polarized feature of the AC plug.

WARNING: Do not overload the wall outlet where this device is being connected. Do not overload this

device. Ensure the total load to this device does not exceed that which is listed in the specications

section of this manual.

Maintenance

• DANGER – To reduce the risk of electrical shock: Always unplug this device from

the electrical outlet before cleaning.

• Clean dust and dirt with a dry cloth, on the outside of the system at appropriate

intervals and inspect for damage.

• Inspect the connections, cables, and plugs and check for correct functioning

as well as video monitor xing points.

Repairs

• Refer all servicing to qualied service personnel. Servicing is required when the device

has been damaged in any way, such as power-supply cord or plug is damaged, liquid

has been spilled or objects have fallen into the device, the device has been exposed

to rain or moisture, does not operate normally, or has been dropped.

• There are no user-serviceable components within this device. Removal of

the cover from this device may present a shock hazard, and void the warranty.

Accessories and Spare Parts

Please contact your nearest Salamander Designs dealer or www.salamandercommercial.com

Salamander Designs - Electric Lift Wall Display Stands 55” www.salamandercommercial.com 501-673 [6.22] page 5 of 24

ASSEMBLY

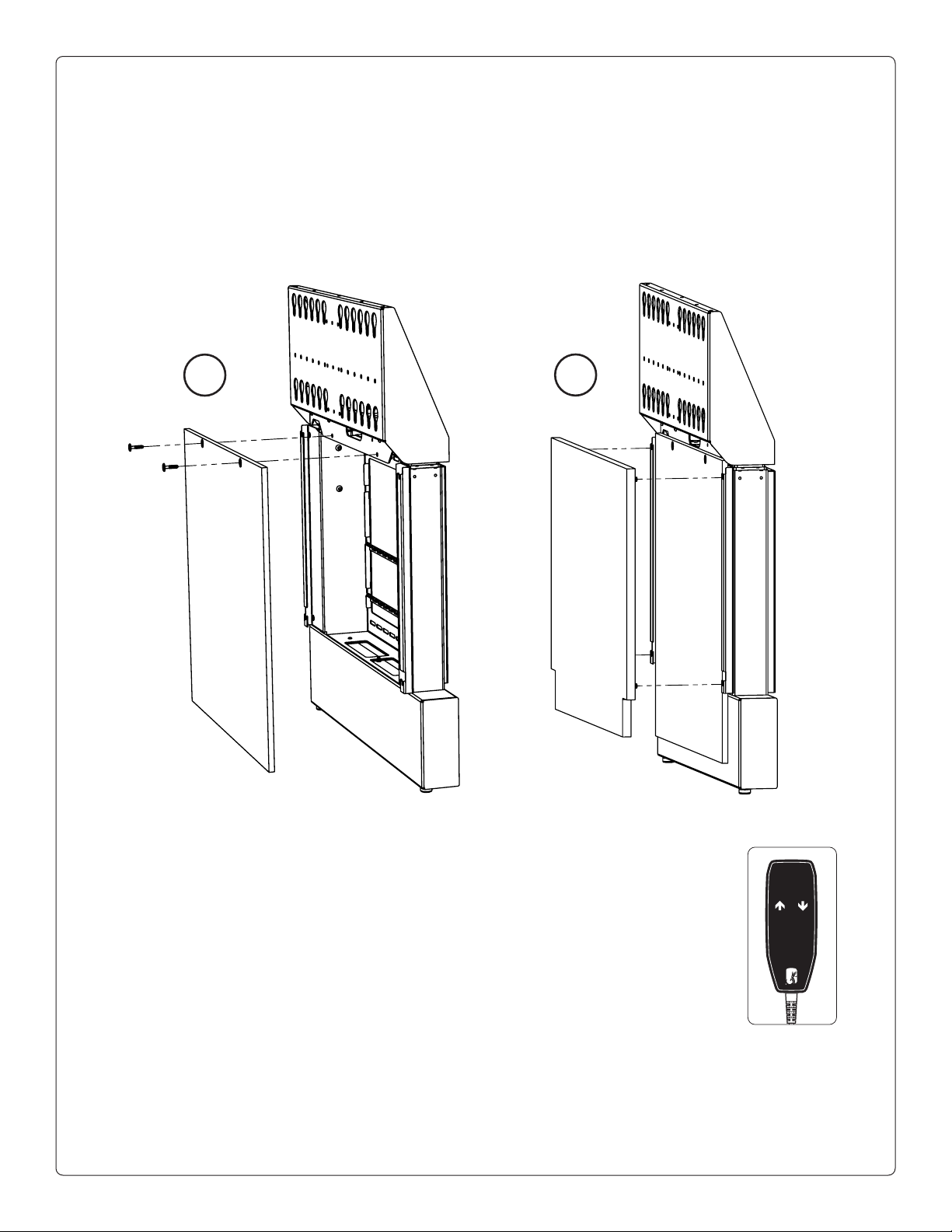

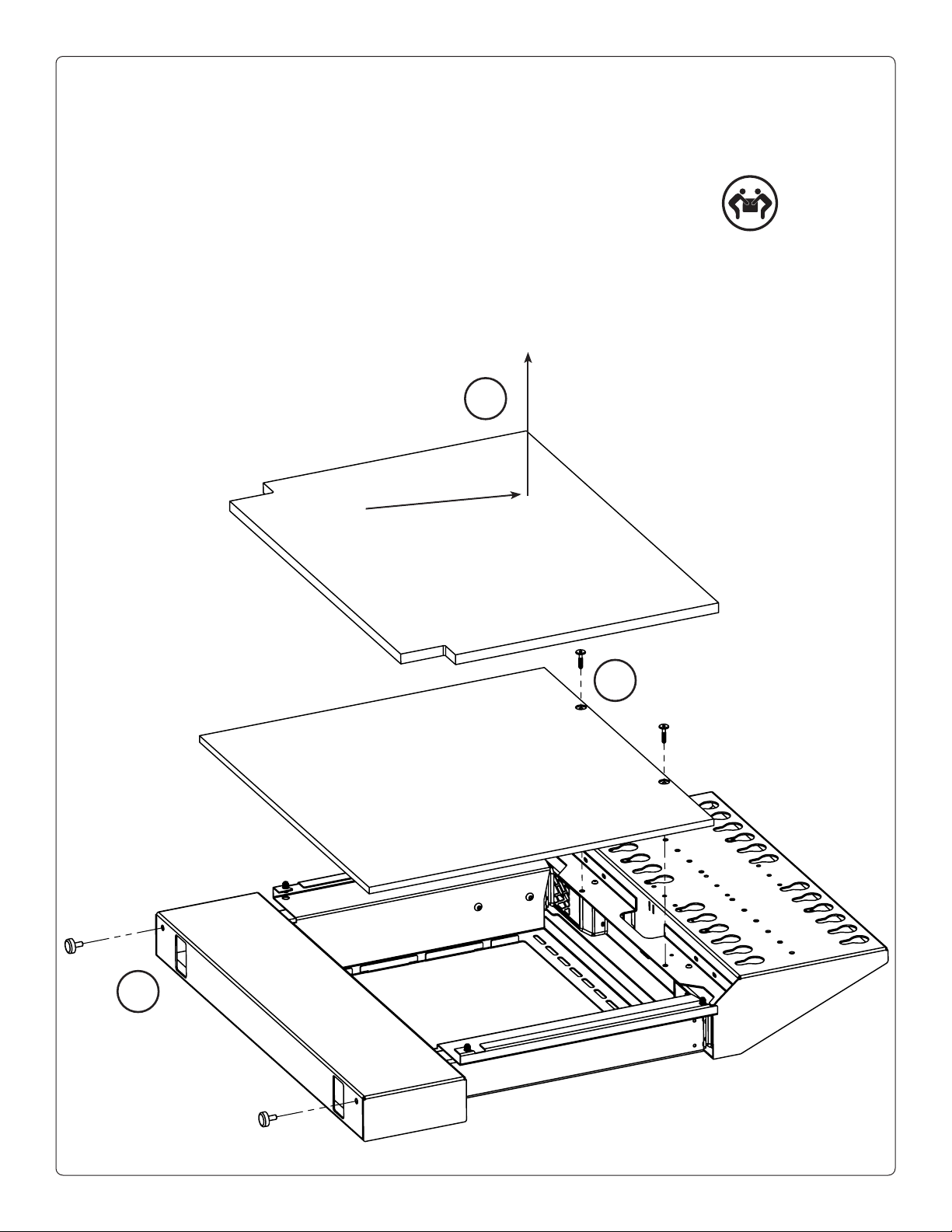

Unbox & remove panels

Lay at on oor

1. Slide outer panel away from base and then up and o the unit.

2. Remove inner panel by unscrewing it from stand (save screws).

3. Install leveler feet

Salamander Designs - Electric Lift Wall Display Stands 55” www.salamandercommercial.com 501-673 [6.22] page 6 of 24

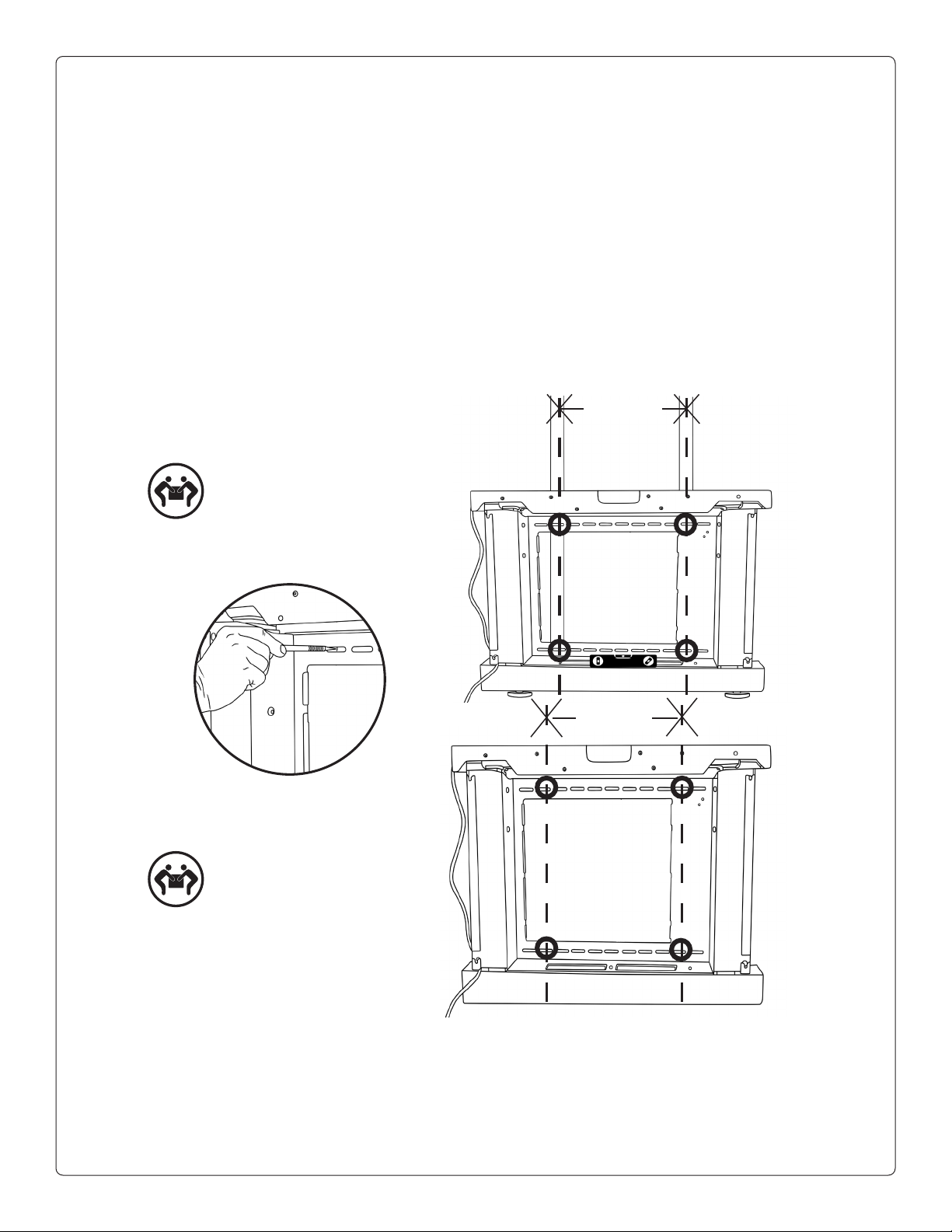

Locating your mount

WARNING: IMPROPER INSTALLATION CAN LEAD TO SERIOUS PERSONAL

INJURY OR DAMAGE TO EQUIPMENT! It is the installers responsibility to make

sure the structure to which the unit is being installed is capable of supporting the

load. The product is designed for installation to 2x4 wood stud or masonry not

un-reinforced metal studs.

WOOD CONSTRUCTION: locate two framing studs (minimum of 16” (405 mm) apart)

at the desired location using a stud nder device. Use 3/16” (5mm) bit and drill holes

2.5” (64mm) deep.

MASONRY: a minimum width of 16” (405 mm) is required between fasteners.

Use 3/8” (10mm) bit and drill holes 2.5” (64mm) deep.

A. Using a level, adjust leveler feet until unit is level.

B. For wood studs, use stud nder. Mark hole position.

16” min.

MASONRY

WOOD STUDS

16” min.

Salamander Designs - Electric Lift Wall Display Stands 55” www.salamandercommercial.com 501-673 [6.22] page 7 of 24

Mount stand to wall

Drill Wall Hole:

Set stand aside and drill holes for 5/16” lag screws (S).

WOOD CONSTRUCTION: Use 3/16” (5mm) bit and drill holes 2.5” (64mm) deep.

MASONRY: Use 3/8” (10mm) bit and drill holes 2.5” (64mm) deep.

Reposition stand and secure unit to wall using the four lag screws (S) and washers

(L) supplied and a 1/2” (or 13mm) driver to tighten. For masonry, install lag

shields (T) prior to bolting in position.

Salamander Designs - Electric Lift Wall Display Stands 55” www.salamandercommercial.com 501-673 [6.22] page 8 of 24

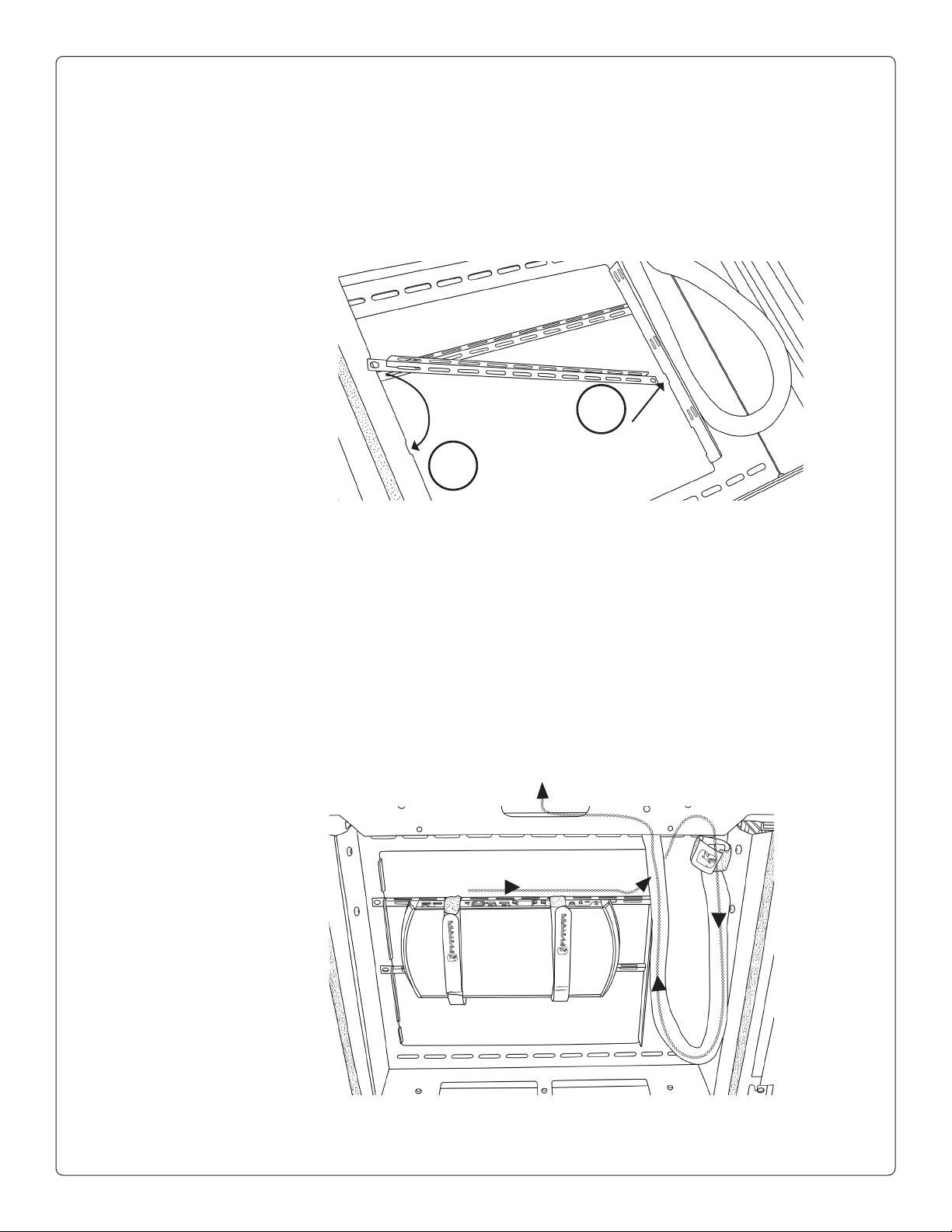

Route Cables from Display to Stand

Manage cables carefully. Use cable ties to keep wires away from pinch points.

Route cables between the back of display and the hole on the front of stand.

Use supplied split loom cable manager to route cables.

Install Mounting Rails & Velcro Straps

Mount supplied rails (Q) to stand. The velcro straps (I & J) can be used on this rail.

Salamander Designs - Electric Lift Wall Display Stands 55” www.salamandercommercial.com 501-673 [6.22] page 9 of 24

Operation: Remote Control

• Hold down the “down” button to initialize unit.

• Up button will raise display to presentation mode

• Down button will lower display to transport mode.

Troubleshooting

• Double check that power cord is rmly plugged into power supply

• Hold down the “down” button continuously for several seconds to reset unit

• More troubleshooting and repair information found on page four of this manual

1. Re-install the inner panel using 2 screws removed in rst step.

2. Re-install panel by aligning all 4 screws protruding from panel through

the keyhole shapes on stand. Note: Outer panel may be secured

in place by tightening the fasteners on the backside of the panel.

Salamander Designs - Electric Lift Wall Display Stands 55” www.salamandercommercial.com 501-673 [6.22] page 10 of 24

LIMITED WARRANTY FOR COMMERCIAL VIDEO DISPLAY STANDS AND MOUNTS

Salamander is proud to stand behind our products with industry-leading warranties. Should you ever encounter

any problem with your Salamander product, let us know. We are here to make it right. 1.800.535.5659 - 860.761.9500

Full warranty including limitations and warranty claim information may be found at:

www.salamandercommercial.com/warranty

Display Installation

1a. Install display bracket using

“A” (4) M10 x 16mm bolts

1b. Install shoulder washers to the

display brackets using “D” (4)

5/16-18 bolts

Two people are needed to install the display on the stand using the supplied Cisco lifting handles.

Position shoulder washers and screw into the “key hole” slot as shown and continue holding dis-

play. Then Immediately use “D” (2) 5/16 x 1/2 screws to ax the mounting brackets to the bracket

as shown. Tighten all screws rmly. Cisco lifting handles can be removed after installation.

Tip: With larger screens it is more

accessible to install locking screws

with the stand all the way down and

standing on a ladder.

A A

1a 1a
