Salamander FPS1XL Bedienungsanleitung
XL Fixed Height, Mobile Stand Designed for 85” Surface Hub 2S www.salamandercommercial.com 501-692/MS [10.22] page 1 of 21
CAPACITY
Supports most displays up to 400 lb (181 kg)
FPS1XL/FH/MS/GG
XL Fixed Height, Mobile Stand
Designed for 85” Surface Hub 2S
USER MANUAL
FPS1XL/FH/MS/GG
E479586
ADA
COMPLIANT
SOLUTIONS
XL Fixed Height, Mobile Stand Designed for 85” Surface Hub 2S www.salamandercommercial.com 501-692/MS [10.22] page 2 of 21

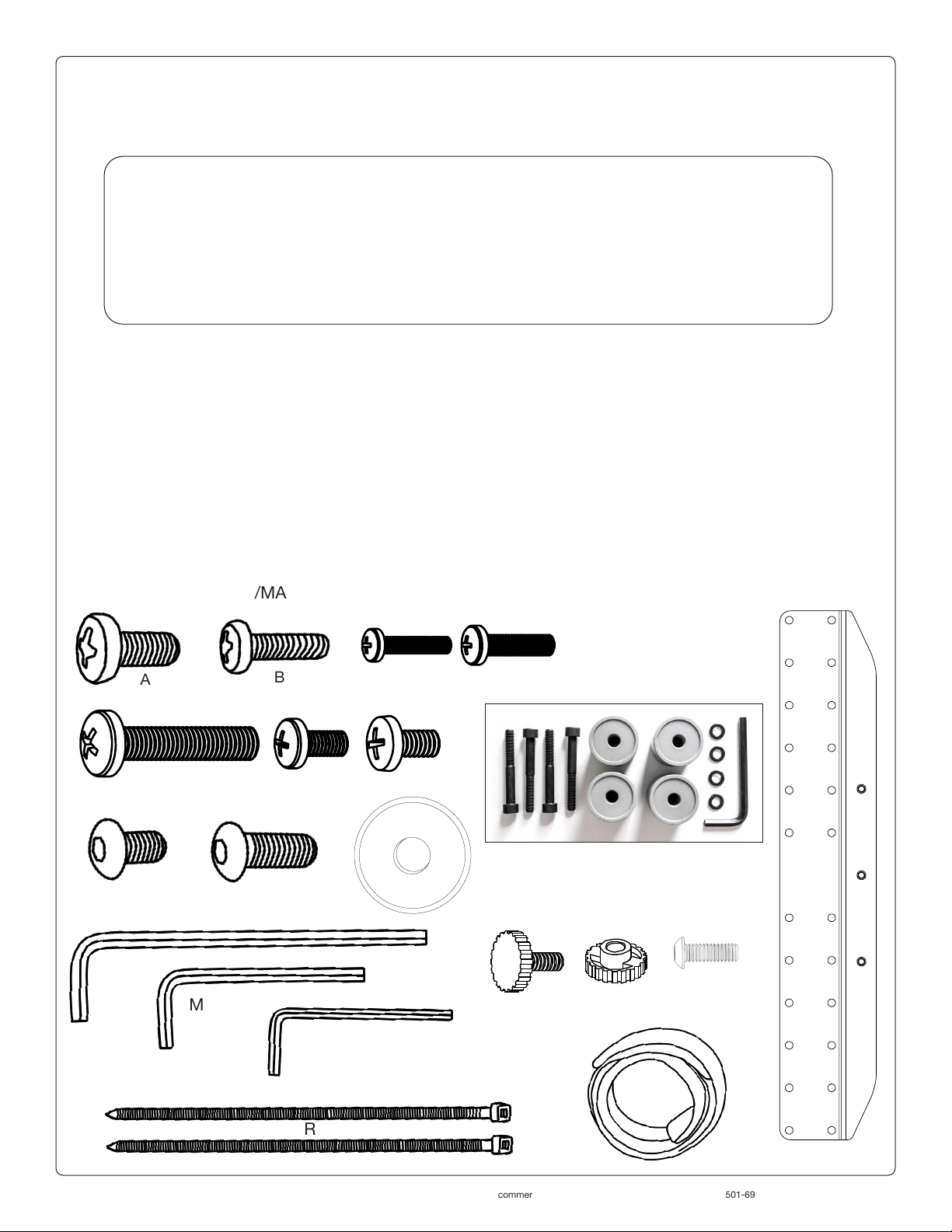

PARTS
ID QTY PART NUMBER DESCRIPTION
(1) PHK-740 (bag) Display Mounting Fastener Set - Metric
A (4) 301-695 M8 x 16mm Pan phillips screw
B (4) 301-710 M6 x 20mm Pan phillips screw
C (4) 301-720 M4 x 20mm Pan phillips screw
D (4) 301-715 M5 x 20mm Pan phillips screw
E (4) 301-700 M8 x 30mm Pan phillips screw
F (4) 301-735 M8 x 40mm Pan phillips screw
G (4) 302-281 M6 x 14mm Pan phillips screw
H (11) 301-015 5/16-18 x 1/2” Button Head Screw
I(17) 301-010 5/16-18 x 3/4” Button Head Screw
J (4) 301-462 Keyhole Shoulder Washers
K (2) 305-061/GT Display Interface Brackets
L (1) 400-060 3/16” Hex Wrench - Long Arm
M (1) 400-080 5/32” Hex Wrench
N (1) 400-070 1/8” Hex Wrench
O (2) Thumb Nut Rack Gear Attachment
P (2) Thumb Screw Rack Gear Attachment
Q (4) 300-518 1/4-20 x 3/8”
R (4) 400-010 Cable Ties
S (3) 400-125 Velcro Cinch Strap
(1) CA/MAC5 Spacer Kit
S
K
OP
R
Q
J
L
HI
M
N
301-720 301-715 301-700 301-735 300-485302-281
AB
301-720 301-715 301-700 301-735 300-485302-281
C D
E F G
Spacer Kit
XL Fixed Height, Mobile Stand Designed for 85” Surface Hub 2S www.salamandercommercial.com 501-692/MS [10.22] page 3 of 21

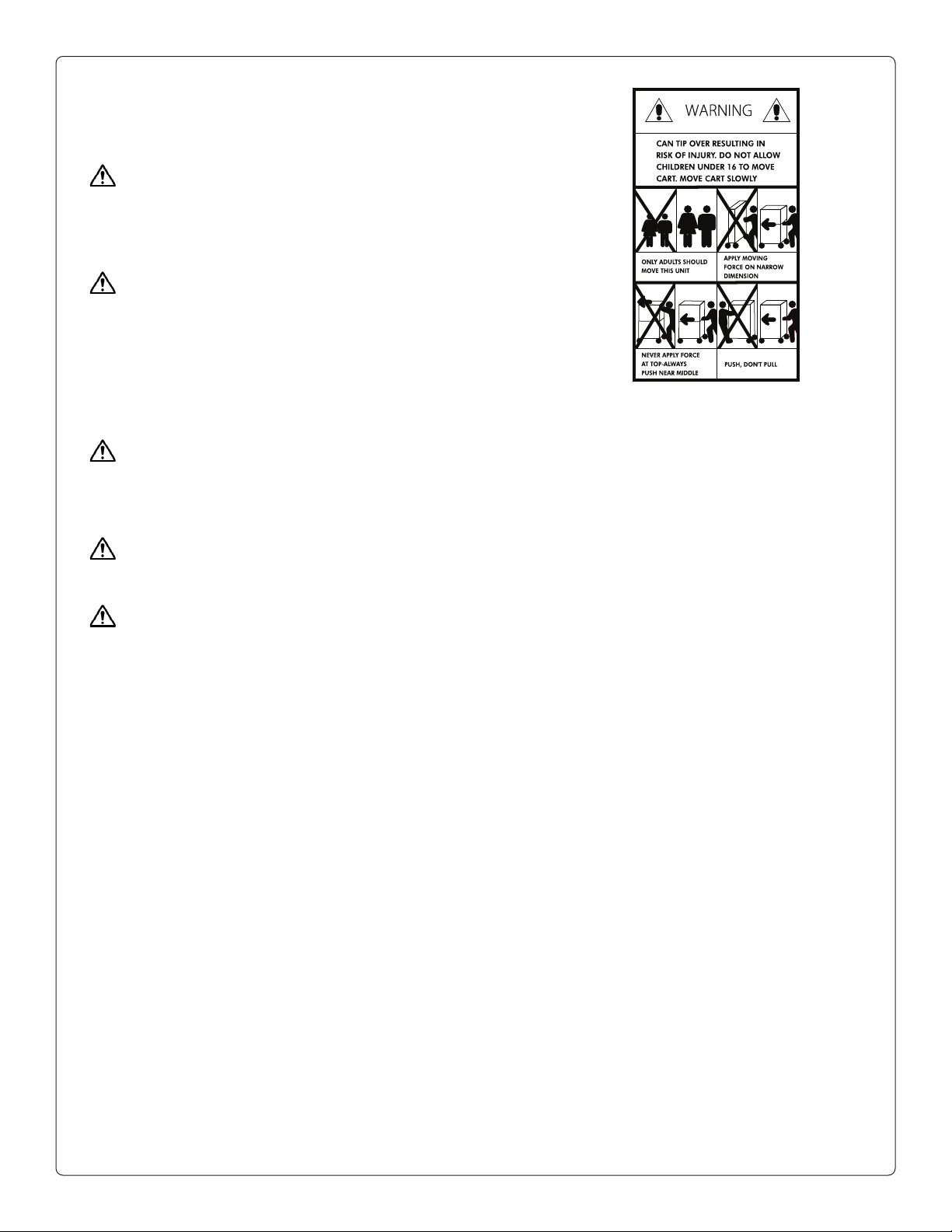

warnings [English]
WARNING! Failure to comply with these instructions
may result in accident involving serious personal injury.
Failing to follow these instructions can result in the
product being damaged or being destroyed or voiding
of the warranty.
WARNING! For use with video monitors weighing
400 lbs (181 Kg) or less. Use with heavier televisions
may result in instability causing tip over resulting
in death or serious injury.
IMPORTANT SAFETY INSTRUCTIONS
WARNING – Children must be under surveillance to ensure that they do not operate, touch,
climb, or play with the product.
CAUTION! When relocating the device, and use handle to move and position the device.
Maintenance
• Wipecleanwithadampcloth.
Repairs
• Referallservicingtoqualiedservicepersonnel.Servicingisrequiredwhenthedevice
has been damaged in any way, such as the device has been exposed
to rain or moisture, does not operate normally, or has been dropped.
Accessories and Spare Parts
Please contact your nearest Salamander Designs dealer or www.salamanderdesigns.com/commercial
SAVE THESE INSTRUCTIONS
XL Fixed Height, Mobile Stand Designed for 85” Surface Hub 2S www.salamandercommercial.com 501-692/MS [10.22] page 4 of 21
UNBOX & INSTALL LEGS
Empty box and arrange the four L shaped package inserts in the bottom
of the box as shown below.
Replace the box top. Remove Upper and Lower Rear Covers and position the
Header Wall face up on the end of the closed box where the L shaped package
inserts are reinforcing the box. Position the Header Wall as shown to allow
assembly of Legs.
ASSEMBLY
Emptybox and arrange the four L shaped package inserts in the bottom of the box as shown.
Replace the box top. Remove Upper and Lower Rear Covers and position the Header Wall face up
on the end of the closed box where the L shaped package inserts are reinforcing the box. Position
the Header Wall as shown to allow assembly of Legs.
Replace the box top. Remove Upper and Lower Rear Covers and position the Header Wall face up
on the end of the closed box where the L shaped package inserts are reinforcing the box. Position
the Header Wall as shown to allow assembly of Legs.
XL Fixed Height, Mobile Stand Designed for 85” Surface Hub 2S www.salamandercommercial.com 501-692/MS [10.22] page 5 of 21

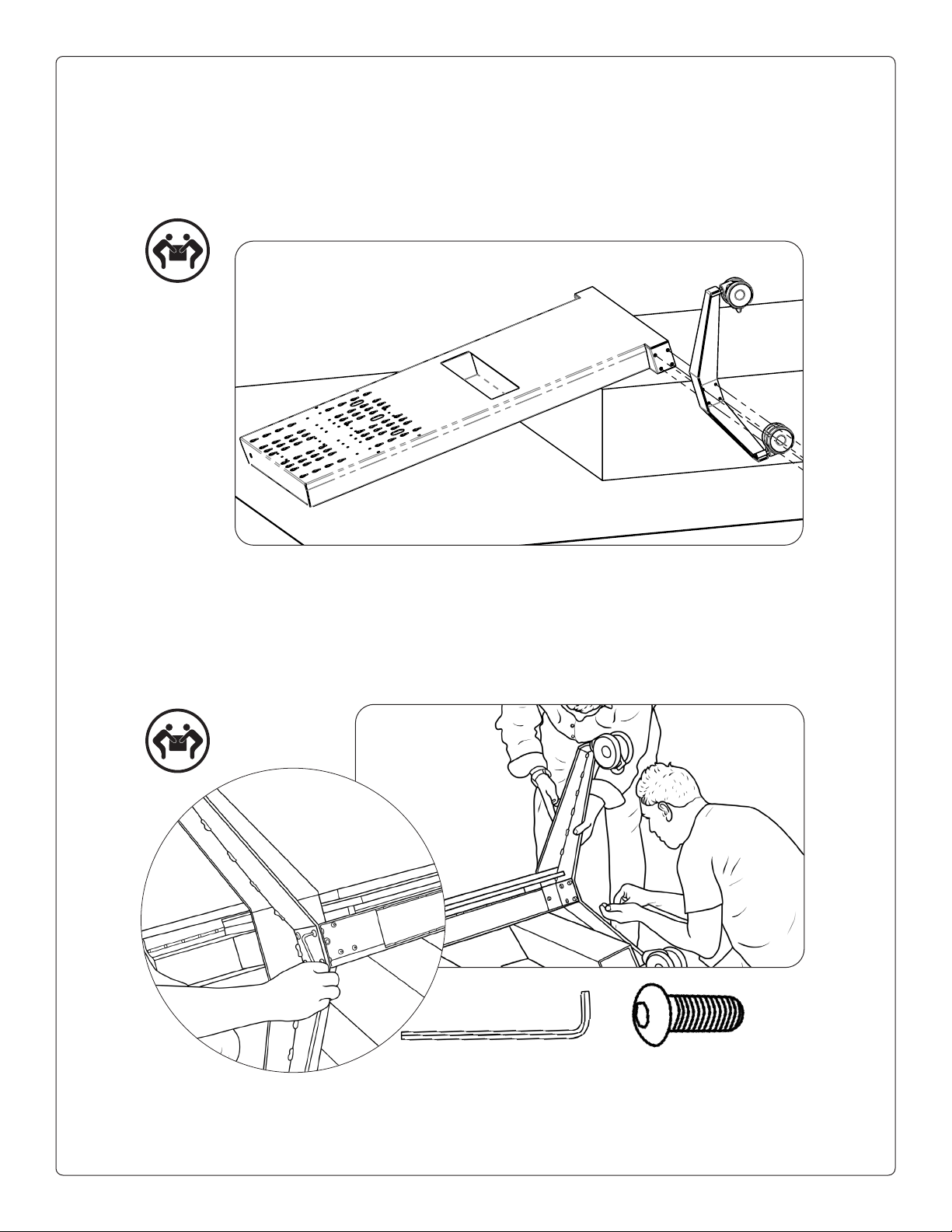

INSTALL LEGS
Thereare6“I”screwsperleg.Thefth&sixthscrewisinstalledonthetop
of the leg as shown above.
Install legs by having one person hold leg and other person fasten with “I”
screws. Please note that the leg has a long side and short side - the long side with
caster brake faces the front of the unit.
After legs have been securely fastened to stand, use two-people lift to stand
to upright position.
Using four 5/16 - 18 x .75 Button Head Screws, attach the first Leg to the Stand in the orientation shown,
with the longer Leg containing the caster brake facing forward. Repeat these steps to attach the second Leg.
Once both Legs are securely fastened to the Stand, use two people to lift the Stand to the upright position.
I x 12
L
display installation
Attach Brackets to Display
Check depth of screw threads in display before inserting screws. Inserting a screw that
is longer than the hole could result in damage to display. Depthcanbeconrmedby
insertinghexwrenchintoholeandmarkingitslengththenconrmingthislengthis
sucientbycomparingittothescrewyouareusing.
Install interface mounting brackets (K) onto display as shown using supplied
Phillipsscrews(A-G)orscrewsspeciedbythedisplaymanufacturer.Hand tighten rst
to conrm thread and depth match.Note:Axdisplaybrackets“Ears-Out”asshown.
Touch Presenter Motorized Mobile Stand
Ears out
XL Fixed Height, Mobile Stand Designed for 85” Surface Hub 2S www.salamandercommercial.com 501-692/MS [10.22] page 7 of 21
Atach Display to Stand
Using four (I) screws, attach four Keyhole Shoulder Washers (J) as shown.
Using six “H” Button head Screws, attach the Display Beam to the Display Bracket.
Using four 5/16 - 18 x 3/4 Button Head Screws, attach
four Keyhole Shoulder Washers as shown.
Attach screws to Display Header
1/4"
Loosely attach four "D" screws to Display Header in the locations shown below left. Leave approximately 1/4"
space between the screw head and the Display Header surface as shown below right.
I
J x 4
I x 4
H x 6
XL Fixed Height, Mobile Stand Designed for 85” Surface Hub 2S www.salamandercommercial.com 501-692/MS [10.22] page 8 of 21
Two people are needed to install the display on the stand. Insert the
four Keyhole Shoulder Washers through the four Keyhole slots and
then use four “H” Button Head Screws to permanently attach the Display
BeamandDisplayunittothestand.ReplaceUpper&LowerRearCover.
Two people are needed to install the display on the stand. Insert the four "D" screws through the four
"Keyhole Slots" and while still supporting the display, attach four "C" screws in the locations shown below.
Tighten all six screws to complete the display installation.
H x 4
XL Fixed Height, Mobile Stand Designed for 85” Surface Hub 2S www.salamandercommercial.com 501-692/MS [10.22] page 9 of 21
Attach Gear
Usingthestraps“S”andorthumbscrew/nut“O&P”attachyourgear.
P x 2
O x 2
XL Fixed Height, Mobile Stand Designed for 85” Surface Hub 2S www.salamandercommercial.com 501-692/MS [10.22] page 10 of 21
Save These Instructions
LIMITED LIFETIME WARRANTY
Salamander Designs Ltd. Limited Lifetime Warranty on Furniture and Seating products are guaranteed to be free from defects in design, material
and workmanship, given normal use and proper care in a normal single shift Commercial environment, with the exceptions noted below. Salamander
will repair or replace, at its discretion without charge to the original purchaser, any product or part thereof which fails as the result of such defects
during the warranty period. The repair or replacement will not exceed the original purchase price. Salamander assumes no responsibility for repairs
toproductsthatresultfromusermodications,attachmentstoaproduct,misuse,abuse,alteration,ornegligentuse.Exceptasstatedabove,
Salamandermakesnoexpressedorimpliedwarrantiesastoanyproduct,and,inparticular,makesnowarrantyofmerchantabilityortnessfor
anyparticularpurpose.Salamandershallnotbeliableforconsequentialorincidentaldamagesorcommerciallossarisingfromanyproductdefect.
Furniture Warranty Limitations
Frame - Lifetime
Wood Components - 7 Years
Casters - 7 Years
For a complete Warranty, please visit www.salamandercommercial.com

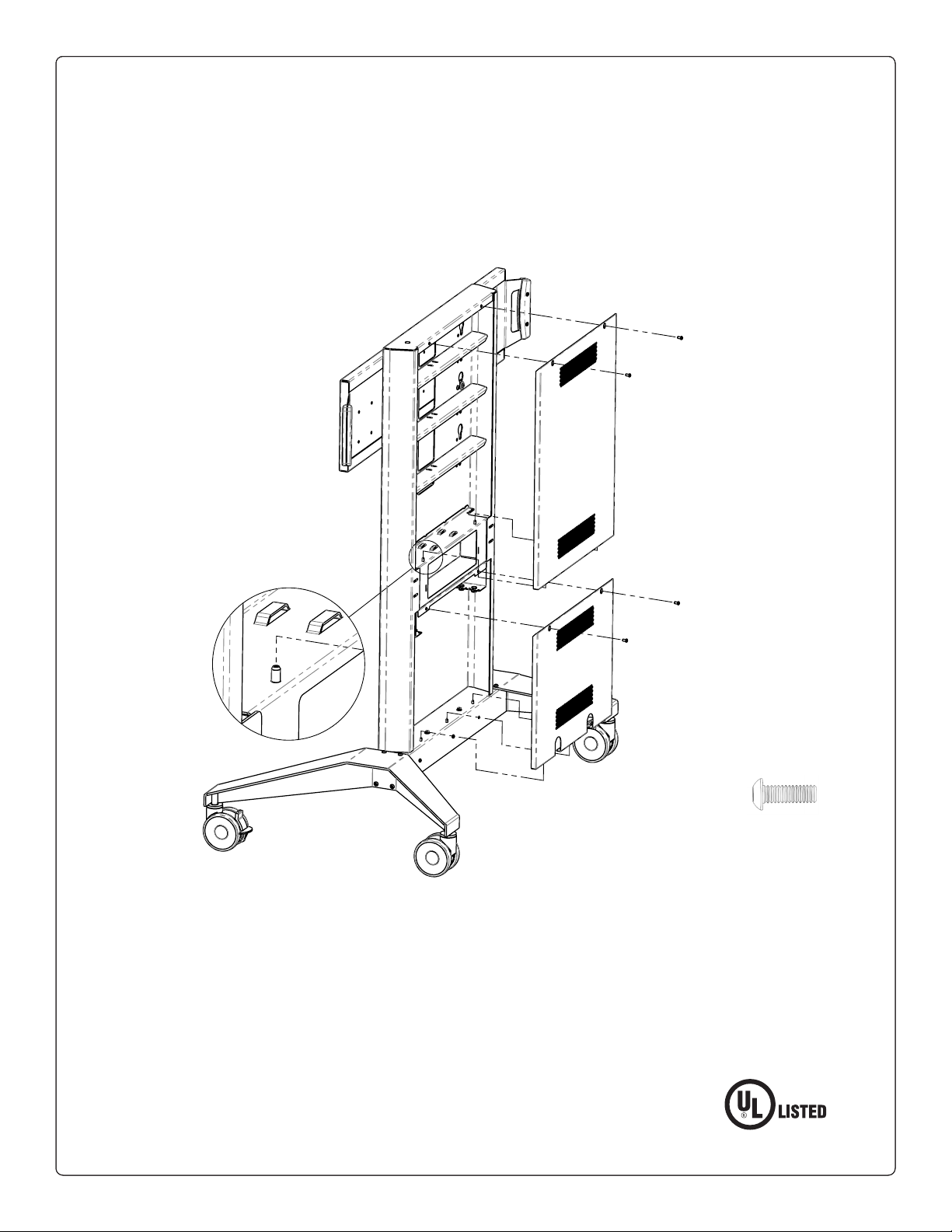

Attach Rear Panels
InstalltheUpperandLowerRearPanelsbyrstplacingthealignmentpins
on the stand through the alignment holes on the Upper and Lower Rear Panels
and then attach the Panels using four “Q” screws.
Install the Upper and Lower Rear Panels by first placing the alignment pins on the stand
through the alignment holes on the Upper and Lower Rear Panels and then attach the
Panels using four "K" screws.
Q x 4
FPS1XL/FH/MS/GG
E479586
