F70 Clips - Locking devices
11
97
6
51 23
111
59 23
7

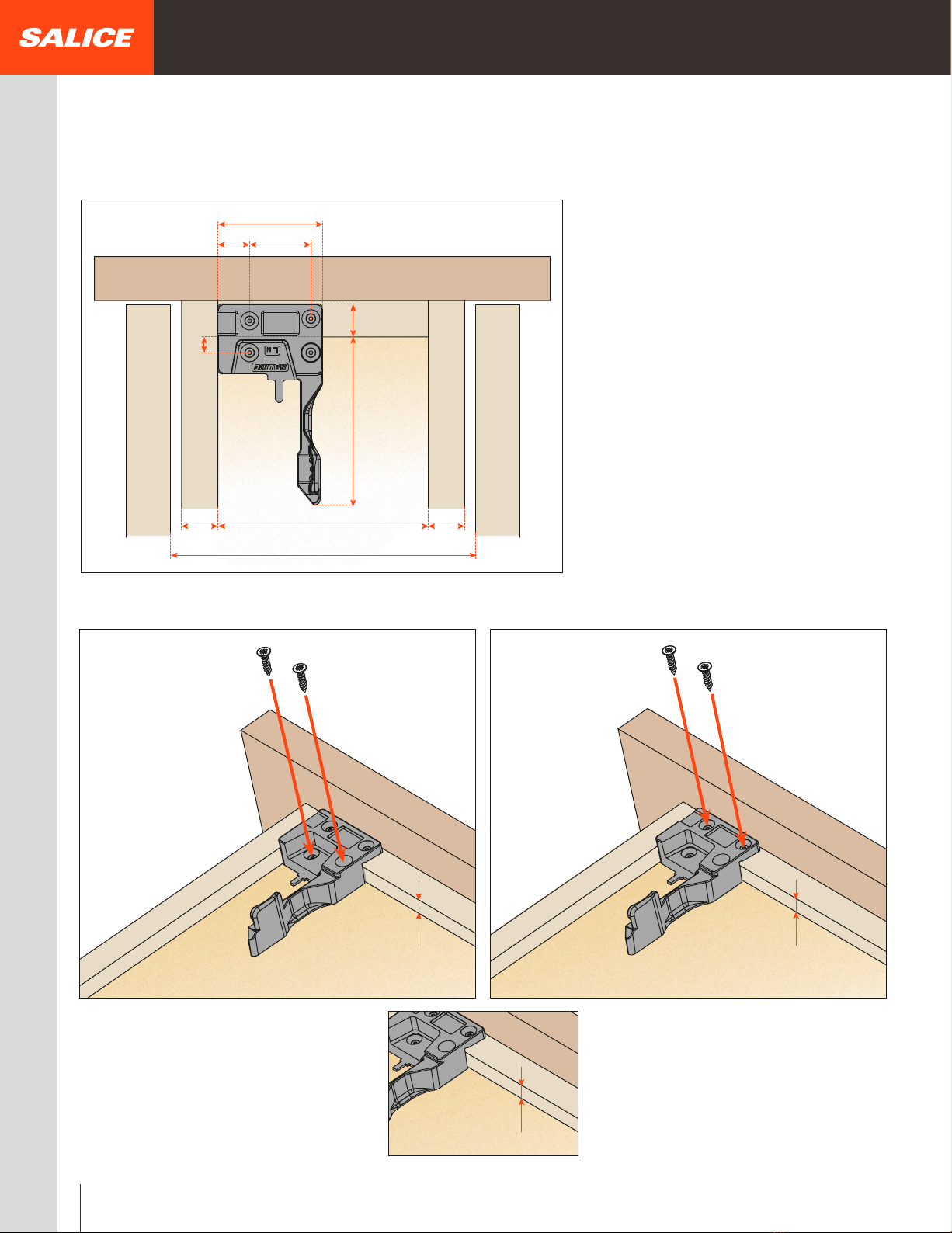

F70 Locking devices - Standard mount - side and depth adjustments
- Dual metal/plastic construction
- For all F70 runner versions
- Tool free lateral and depth adjustments
- Pre-drilling recommended ø 2.5 mm (3/32”)
Use drilling template for accurate installation of the clips,
see page 35.
Fix with screws
as indicated
(recommended
# 6 x 5/8”)
Fix with screws
as indicated
(recommended
# 6 x 5/8”)
Assembly to the bottom Assembly to the sub-front drawer member
AFCGXX3B
PACKAGING
2 boxes = 100 pcs right and 100 pcs left
12
47.5 30
97
111 14.5
13
13
- Dual metal/plastic construction
- For all F70 runner versions
- Tool free lateral and depth adjustments
- Height of the sub front must be 13 mm (1/2”)
- Pre-drilling recommended ø 2.5 mm (3/32”)
Use drilling template for accurate installation of the clips,
see page 35.
Height of the sub front must be 13 mm (1/2”).
Fix with screws
as indicated
(recommended
# 6 x 5/8”)
Assembly to the sub-front drawer member
AFCGX43B
PACKAGING
2 boxes = 100 pcs right and 100 pcs left
F70 Locking devices - Vertical mount - side and depth adjustments
13
13
13
13
13
152.4 (6")
MINIMUM WIDTH
46.2
14 27
7
75 14.5
110.4
16 16
Height of the sub front must be 13 mm (1/2”).
F70 Locking devices - Narrow drawer clip
AFCEX43B
PACKAGING
2 boxes = 100 pcs right and 100 pcs left
Assembly to the bottom Assembly under the sub-front drawer member
- For use with narrow drawers
- For all F70 runner versions
- Height of the sub front must be 13 mm (1/2”)
Fix with screws
as indicated
(recommended
# 6 x 5/8”)
Fix with screws
as indicated
(recommended
# 6 x 5/8”)
Use drilling template for accurate installation
of the clips, see page 36.
Use drilling template for accurate installation
of the clips, see page 36.
13
13
14
Drawer removal
Standard and vertical mount
Position hands under the front of the drawer and press on the orange levers, as indicated in the drawing, sliding
the drawer out of the cabinet.
Narrow drawer clip
Position hands under the front of the drawer and press on the black levers, as indicated in the drawing, sliding
the drawer out of the cabinet.
15
1.5 mm
1.5 mm
1.5 mm
1.5 mm
Rotate the white wheel (see drawing) towards the front of the drawer to adjust left.
This operation is tool free.
For side adjustment, it is recommended that both the adjusters on the clips are in the same direction, in order to maintain the correct alignment
and function of the runners.
Side adjustment +/- 1.5 mm
Rotate the white wheel (see drawing) towards the back of the drawer to adjust right.
This operation is tool free.
16
+3
-3 +3
-3
Depth adjustment +/- 3 mm
Rotate the white wheel (see drawing) towards the ouside of the drawer to increase the gap between the front and the side.
This operation is tool free.
Rotate the white wheel (see drawing) towards the inside of the drawer to reduce the gap between the front and the side.
This operation is tool free.
17
Height adjustment + 2.5 mm
Press the lever towards the back of the drawer to achieve the height adjustment.
This operation is tool free.
+ 2.5 mm
+ 2.5 mm
+
-
=
=
18
1
1
2
2
Drawer back preparation, see page 9.
AGLRXX3F
tilt adjustment lever, see page 37.
Assembly of tilt adjustment levers (optional)
Tilt adjustment + 3 mm
Open the drawer (1) and press the lever towards the back of the
cabinet (2) to achieve the adjustment.
Maximum 3 mm (1/8”) rise of drawer back (tool free).
Pull out the drawer and remove the plastic insert, both right and left. Insert the tilt adjustment levers, both right and left.
Rotate the lever to adjust.
19
