Salto XS4 Mini Bedienungsanleitung

227250-ED. 31/03/2023

Installation Guide

XS4 Mini For Australian mortise locks

All contents current at time of publication.

SALTO Systems S.L. reserves the right to change availability of any

item in this catalog, its design, construction, and/or materials.

1/4

2023 SALTO Systems S.L.

SALTO recomienda utilizar cerraduras con un pregiro maximo de 4º.

U i 3

m d ffc t s h r series

Outside

Inside

Mortise Lock not included

Cerradura de embutir no incluida

ExteriorInterior

Eng

Installation guide

Guía de instalación

Eng

SALTO recomends the use of a mortise lock, with a maximum 4º pre-turn

O20 MIN.

Eng

TORX20

3 mm

Select handing

Seleccione mano

Eng

4°

Max.

t > 80

FOR "Z" HANDLE SEE PAGE 4

CON MANILLA "Z" VER PAGINA 4

TORX 20 (X1)

TORX 10 (X1)

TORX 20 (X4)

ALLEN 3 (X2)

61.5

50 78

128

23.5

Only for door thickness t > 80 mm

Solo para grosores de puerta t > 80 mm

Eng

PZ (X2)

BOLT (X2

)

MODEL: ELECTRONIC INFO. E30M

227250-ED. 31/03/2023

Installation Guide

XS4 Mini For Australian mortise locks

All contents current at time of publication.

SALTO Systems S.L. reserves the right to change availability of any

item in this catalog, its design, construction, and/or materials.

2/4

2023 SALTO Systems S.L.

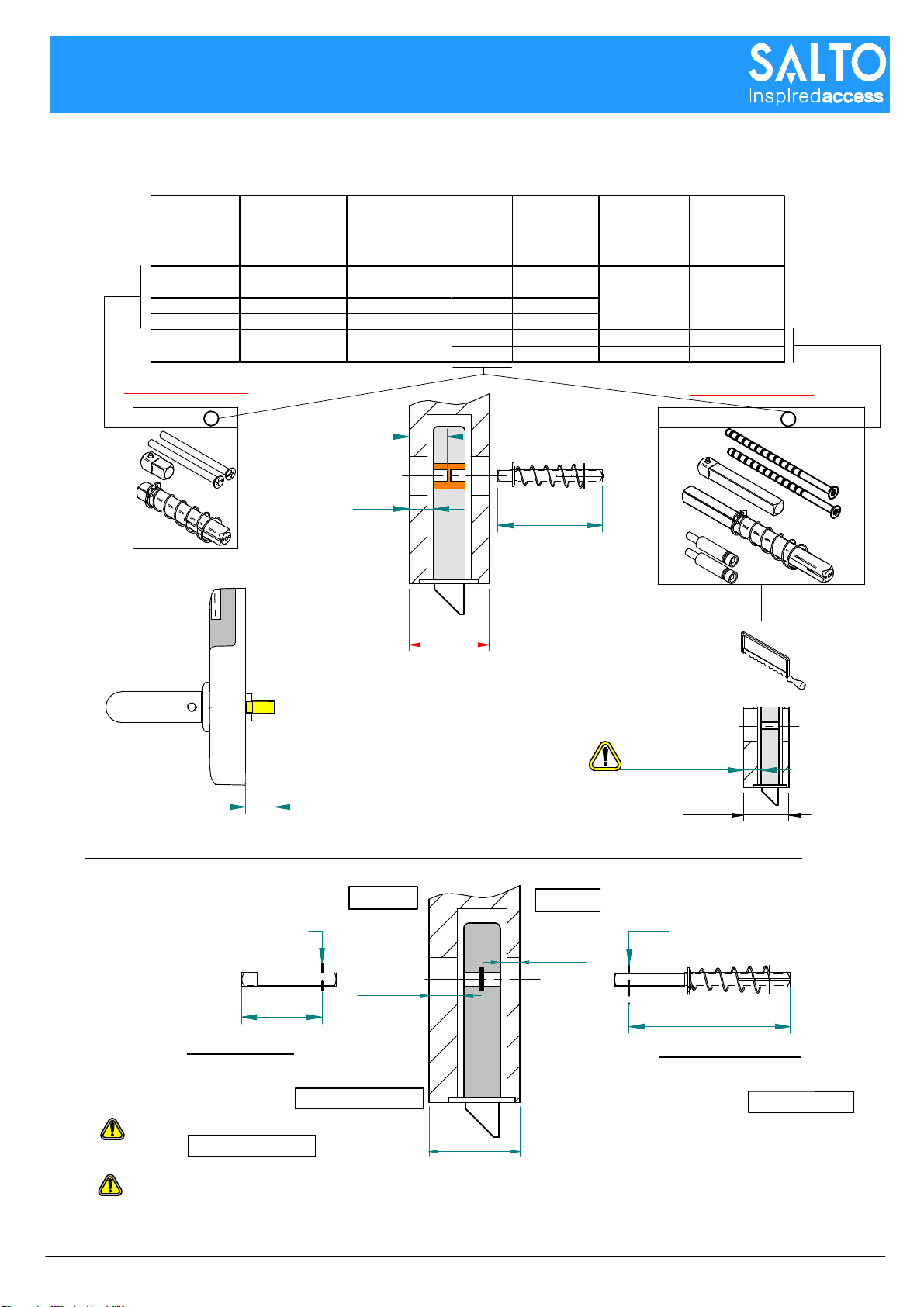

Spindles preparation from 50 to 90mm door thickness (t=REF.9 | t=REF. 1) (Rebated doors allowed):

OUTSIDE INSIDE

Co Ci

OUTSIDE SPINDLE

1.-

Co:

Measure from the outside door face

to mortise lock case

2.- Cut Outside Spindle*

-> Lo= Co+5.5mm

INSIDE SPINDLE REF. 1

1.-

Ci:

Measure from the inside door face

to mortise lock case

2.- Cut Inside Spindle

-> Li= Ci+35mm

Cut from here

50<P<90mm

*NOTE: This cut for the Outside Spindle must be

done with accuraccy of ±1mm

SP01840- xSP01840- x

-> Lo= Co+7.5mm

WITH COVER PLATE ->

SPLIT SPINDLE 7.6 KIT

Split Spindle depending Spindle´s "Fo" Mesure

SPLIT SPINDLE 7.6 KIT

Co Fi

Necessary to cut to mesure

Spindle

Projection

Needed Spindle

Length

Co t

REF.

Split Spindle

7.6 Kit

Inside Spindle

Door Thickness

(Orientative)

14.5 mm 15-17.5 mm 9-11.5 2 SP01840-2

17 mm 17.5-20 mm 11.5 - 14 mm A SP01840-A

19.5 mm 20-22.5 mm 14 - 16.5 mm B SP01840-B

22 mm 22.5-25 mm 16.5 - 19 mm 5 SP01840-5

9 SP01841-9 53 mm

47 - 70 mm

1 SP01841-1 70-105 mm

67 - 90 mm

32 - 50 mm

53mm

16 - 58.5 mm 16.5 - 59 mm 10.5 - 54.5 mm

>80mm

MIN. 25 mm

OUTSIDE INSIDE

For door thickness(t)

227250-ED. 31/03/2023

Installation Guide

XS4 Mini For Australian mortise locks

All contents current at time of publication.

SALTO Systems S.L. reserves the right to change availability of any

item in this catalog, its design, construction, and/or materials.

3/4

2023 SALTO Systems S.L.

AT THIS POINT DO NOT

CLOSE THE DOOR

PROGRAM THE LOCK FIRST

NO CIERRE LA PUERTA.

PROGRAME LA CERRADURA

Eng

NOT OK

8 mm.

*ø8 *ø9

click!

Installation

Instalación

Eng

MIN.

20 mm.

LR03

AAA

TORX10

FOR "

Z" HANDLE SEE PAGE 4

CON MANILLA "Z" VER PAGINA 4

3 mm

227250-ED. 31/03/2023

Installation Guide

XS4 Mini For Australian mortise locks

All contents current at time of publication.

SALTO Systems S.L. reserves the right to change availability of any

item in this catalog, its design, construction, and/or materials.

4/4

2023 SALTO Systems S.L.

Battery replacement

Sustitución de las pilas

Eng

Details for installation with "Z" handle

Detalles para una instalación con manilla "Z"

Select handing

Seleccione mano

Eng

TORX20 3 mm

AT THIS POINT DO NOT

CLOSE THE DOOR

PROGRAM THE LOCK FIRST

NO CIERRE LA PUERTA.

PROGRAME LA CERRADURA

Eng

NOT OK

click!

LR03

AAA

TORX10

Battery replacement with "Z" handle

Sustitución de las pilas con manilla "Z"

Eng

Installation with "Z" handle

Instalación con manilla "Z"

Eng

TORX10

567
