Salus ERT 52 Bedienungsanleitung

Instruction Manual

Model no. ERT 52

EN Programmable room-thermostat

Select Cancel

All manuals and user guides at all-guides.com

all-guides.com

2GB

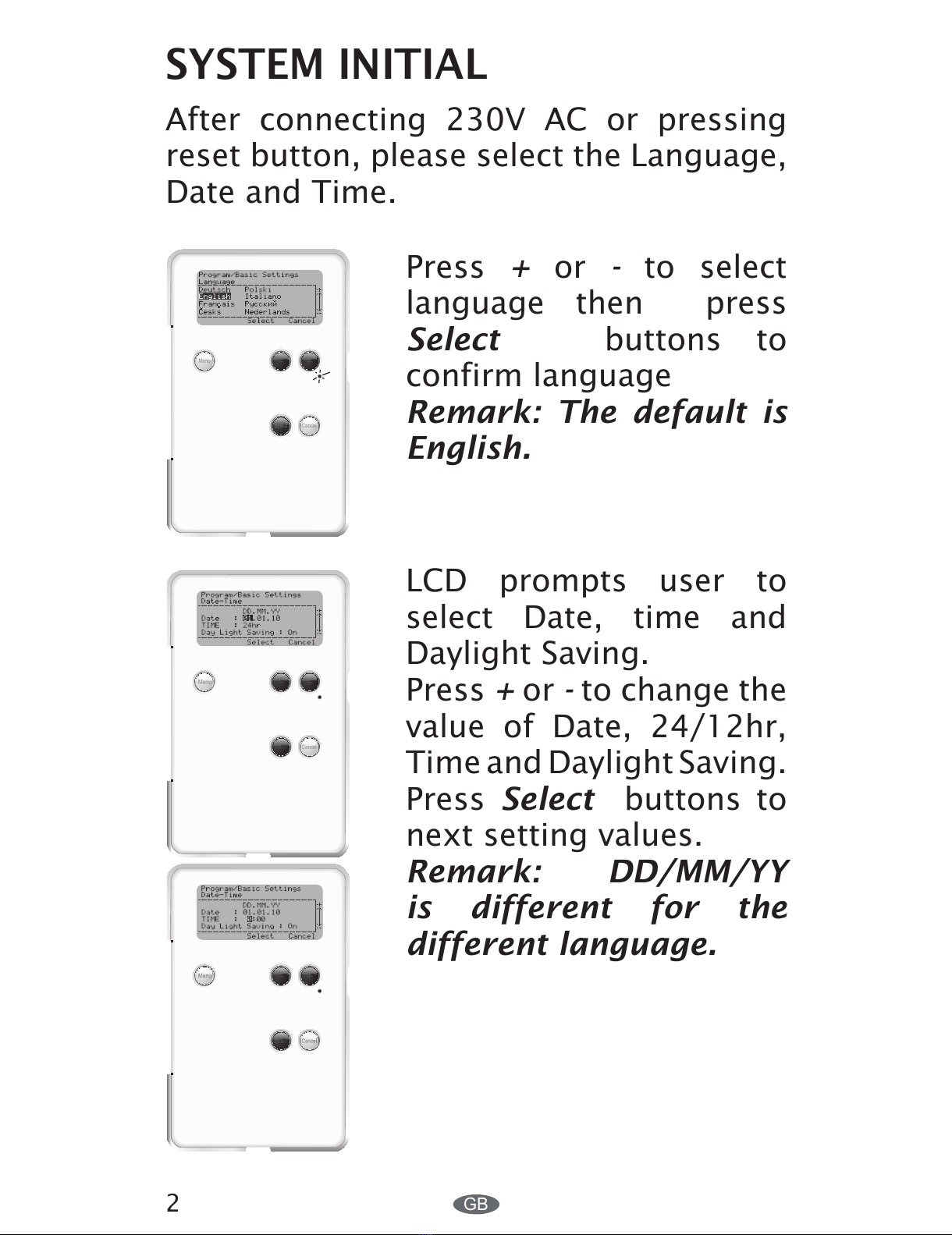

SYSTEM INITIAL

After connecting 230V AC or pressing

reset button, please select the Language,

Date and Time.

Cancel

Select

Cancel

Select

Press +or -to select

language then press

Select buttons to

confirm language

Remark: The default is

English.

LCD prompts user to

select Date, time and

Daylight Saving.

Press +or -to change the

value of Date, 24/12hr,

Time and Daylight Saving.

Press Select buttons to

next setting values.

Remark: DD/MM/YY

is different for the

different language.

All manuals and user guides at all-guides.com

NAVIGATION

In the normal display,

press any key to activate

the display and turn on

the backlight. Access the

Main Menu by pressing

the Menu Button.

Navigate through the

menu by pressing –for

lower and +for higher

entries.

Enter the selected topic

by pressing the select

Button or leave to the

previous menu without

any changes by pressing

cancel.

Select Cancel

All manuals and user guides at all-guides.com

4GB

BASIC OPERATION

Change Display

The Change Display-Menu

offers the Full Screen,

Selected Screen and Basic

Screen view.

Change Profile

In the Change Profile-Menu

you can choose between

the Family, Single, Office,

Name 1 and Name 2

Profile.

Change Holiday

In the Change Holiday-

Menu you can make your

holidays settings and turn

them On or Off.

Select Cancel

All manuals and user guides at all-guides.com

BASIC OPERATION

Program On/Off

In the Program-Menu

you can choose between

Program or Manual

operation mode.

Key Lock

By pressing the –and +

button for a few seconds,

a Key Lock can be activated

to protect the device from

failure operation.

Manual operation

By pressing the –or +buttons,

the manual operation mode

will be activated. Current

Programs will be overwritten

until the next daytime starts.

Select Cancel

All manuals and user guides at all-guides.com

6GB

PROGRAM-MENU

Program Menu

To access the program-

menu, open the hatch

and press –button twice

and then press select and

cancel at the same time for

a few seconds.

Basic Settings

Enter the Basic Settings-

Menu to adjust Date/Time

(24, 12 hrs), Language and

Maintenance settings.

Temp. Zones

Enter the Temp. Zones-

Menu to adjust the

temperatures of the

Comfort, Standard and

Reduced zones.

Select Cancel

All manuals and user guides at all-guides.com

all-guides.com

Profile

Enter the Profile-Menu to

adjust the detailed settings

of the Family, Single,

Office, Name 1 and Name

2Profiles.

The three temperature zones can be

allocated to the six day times. If you modify

a temperature zone, the temperature-

settings within the profiles will change

as well. The zones are preinstalled with

these temeratures:

Comfort 24°C Standard 20°C Reduced 16°C

Select Cancel

Daytimes Time Family Single Office Name 1 Name 2

Early Morning 06:00 - 08:00 Comfort Comfort Comfort Comfort Comfort

Morning 08:00 - 12:00 Standard Standard Standard Standard Standard

Noon 12:00 - 14:00 Comfort Comfort Comfort Comfort Comfort

Afternoon 14:00 - 18:00 Standard Standard Standard Standard Standard

Evening 18:00 - 23:00 Comfort Comfort Comfort Comfort Comfort

Night 23:00 - 06:00 Reduced Reduced Reduced Reduced Reduced

Early Morning 06:00 - 08:00 Comfort Comfort Comfort Comfort Comfort

Morning 08:00 - 12:00 Standard Standard Standard Standard Standard

Noon 12:00 - 14:00 Comfort Comfort Comfort Comfort Comfort

Afternoon 14:00 - 18:00 Standard Standard Standard Standard Standard

Evening 18:00 - 23:00 Comfort Comfort Comfort Comfort Comfort

Night 23:00 - 06:00 Reduced Reduced Reduced Reduced Reduced

Mon - Fri

Sat - Sun

All manuals and user guides at all-guides.com

8GB

Heat/Cool

Enter the Heat/Cool-Menu

to activate the Heat or Cool

function of the device.

Control

Enter the Control-Menu

to make changes on the

Span, Communicate,

Frost*, Output ,VP and

Temperature Offset

settings.

* Thermostat serves as

protection against frost and

keeps temperature constant

at 5°C.

Select Cancel

Communicate :

NSB On = Night Setback On

NSB Off = Night Setback Off

Com Off = Heat/Cool + Night

Setback Off

Com 4ºC = Heat/Cool + Night

Setback 4ºC

Com 2ºC = Heat/Cool + Night

Setback 2ºC

All manuals and user guides at all-guides.com

Com signal control not only Night

Setback, but also Heat/ Cool selection to

the slaves

Note : If you install ERT 22 or 32 in your

system, ERT 52 can control them via the

communication terminal.

The Heat/Cool and the Setback 2ºC

or 4ºC can be selected by ERT 52

via communication terminal. At this

moment, the original settings of Heat/

Cool and setback of ERT 22 and ERT 32

will be overridden by ERT 52.

All manuals and user guides at all-guides.com

10 GB

Purpose and correct use:

The ERT 52 room thermostat is an

electronic digital temperature control

system for electrical control of hot-water

and heating systems, and functions as a

trigger for electro-thermal actuators or

other electrical devices

It may be used only in dry and closed

rooms. Relative air humidity in the room

may not exceed 95%.

This thermostat may be installed only

by qualified electricians in accordance

with these fitting instructions. These

professionals are responsible for

observing existing standards and

regulations.

Installation must always be implemented

while device is disconnected from

the mains, with due regard for safety

regulations.

The thermostat must be positioned so

that it is not covered by net curtains,

furniture or other objects. The control unit

must not be installed in the immediate

vicinity of heat sources either (e.g. lights,

fireplaces, direct sunlight, etc), and

should not be impaired by draughts.

Only in this way will room temperature

be detected with precision, with exact

control being implemented accordingly.

Important: disconnect thermostat from

mains before opening.

All manuals and user guides at all-guides.com
