Salus VS30W Bedienungsanleitung
Digital Thermostat
Models: VS30W and VS30B
INSTALLER / USER MANUAL
iT600 VS30W - VS30B Installer - User Manual 014_Layout 1 16/07/2014 14:38
02 VS30W and VS30B Installer Manual
Contents
VS30
1 x Installer / User manual
4x AAA Batteries
Digital Thermostat
Models: VS30W and VS30B
INSTALLER / USER MANUAL
Fixing screws
Contents
Box Contents
Introduction
Product Compliance
Installation
User Guide
Parameter Settings
Installers Notes
Warranty

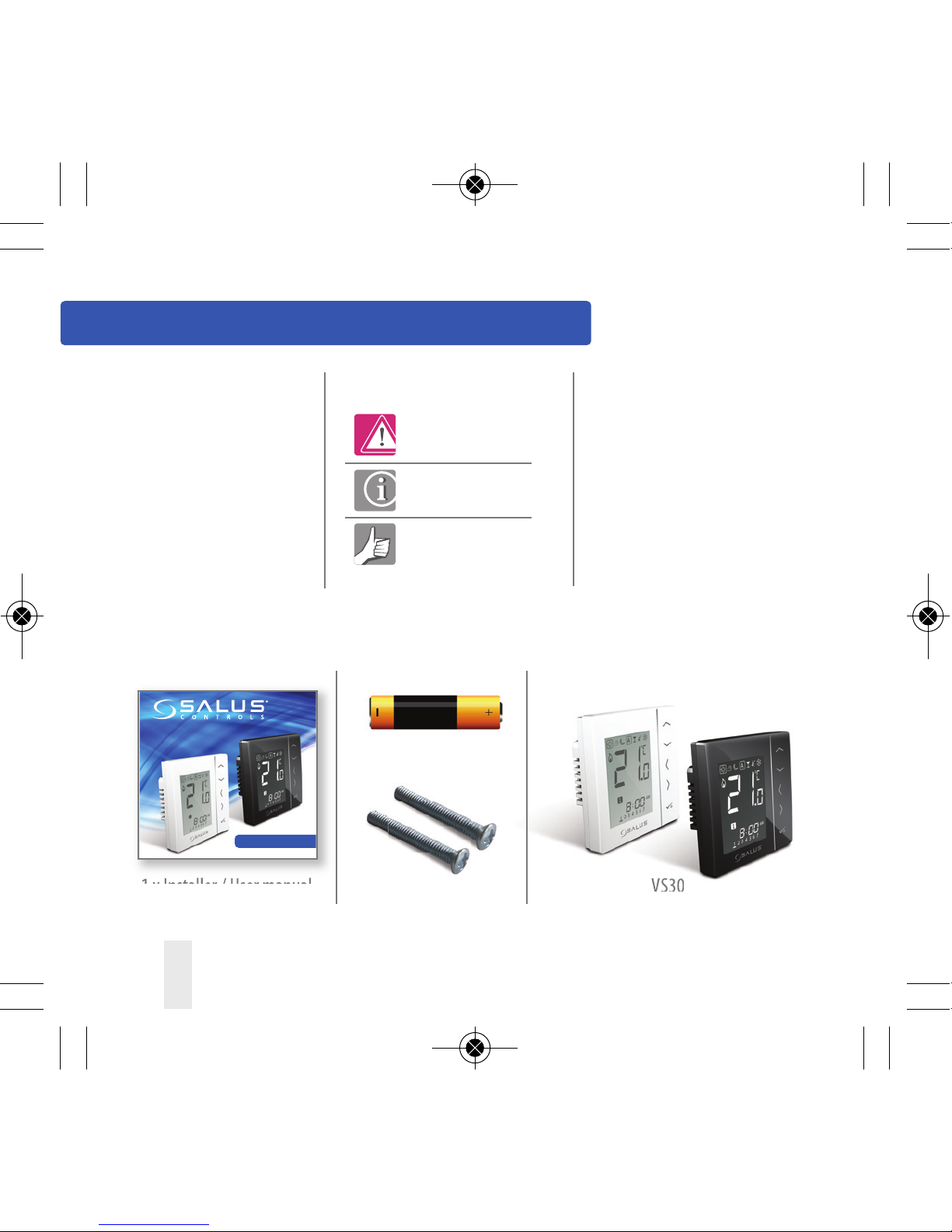

Box Contents
Icons used in this manual:
Safety
Important info
Your benet
For latest PDF installation
guide please go to
www.salus-controls.com
iT600 VS30W - VS30B Installer - User Manual 014_Layout 1 16/07/2014 14:38
Product Compliance & Safety Information
INTRODUCTION
Thank you for purchasing the room thermostat
VS30. The VS30 is a 230V digital thermostat
which oers simple temperature control of your
heating system.
By purchasing theVS30 you have decided on a
digital room thermostat which allows you to
adjust surface heating appliances individually,
such as underoor, wall or panel heating.
A clear energy saving is possible by reducing
temp.
Product Compliance
This product is CE compliant and meets the
following EC Directives Electro-Magnetic
Compatibility Directive 2004/108/EC
Low voltage Directive 2006/95/EC
Safety Information
Use in accordance with the regulations.
TheVS30 is to be used for room
control of hot water heating systems
inside the house.
Installation
This product must be tted by a competent
person, and installation must comply with the
guidance, standards and regulations applicable
to the city, country or state where the product
is installed. Failure to comply with the
requirements of the relevant guidance,
standards and regulations could lead to injury,
death or prosecution.
Always isolate the AC mains supply
before installing or working on any components
that require 230V AC 50Hz supply.
We hope you enjoy this product...
VS30W and VS30B Installer Manual 03
iT600 VS30W - VS30B Installer - User Manual 014_Layout 1 16/07/2014 14:38
Product Compliance & Safety Information
Sources of danger
The thermostat must be disconnected from mains
supply before removing the cover.
230V AC
Emergency
Switch o the voltage to the indivdual thermostat
wring centre or complete system.
Installer parameter settings
TheVS30 is equipped
with installer parameter section.
This must only be entered
by the installer or competent
person. Changing these parameters
can have a serious eect on
your heating system. See page 41.
For the installer
Please enter any parameter
changes in the installer notes section.
04 VS30W and VS30B Installer Manual
iT600 VS30W - VS30B Installer - User Manual 014_Layout 1 16/07/2014 14:38
Installation –Terminal Connections
Understanding your terminal connections
Rear of VS30
Power Terminals 230 Vac
Used for supplying power to the
unit and switched output.
NSB (Night Set Back) Connection
Used for a 230V output to other
thermostat. See page 8.
Sensor Terminals (Optional)
Can be used for external AIR
or Floor sensor.
1
3
3 2 1
2
VS30W and VS30B Installer Manual 05
INSTALLATION
iT600 VS30W - VS30B Installer - User Manual 014_Layout 1 16/07/2014 14:38
Installation –Thermostat Mounting
1
3
2
60mm
Wall Mounting
For wall mounting, mark and
mount the rear case to the wall.
The VS30 is suitable for wall boxes
with a centre hole distance of : 60mm
Gently remove front housing.
06 VS30W and VS30B Installer Manual
Gently remove front housing.
Only for ush
mounting boxes
with horizontal
xing holes.
iT600 VS30W - VS30B Installer - User Manual 014_Layout 1 16/07/2014 14:38
Installation –Thermostat Mounting
Not to be positioned on an exterior wall.
130cm
Mounting position and installation
To ensure trouble free operation and ecient control, theVS30 room thermostat is best positioned
in a draft free area, and at 130cm from the oor. Do not position the thermostat near any heat
source, behind curtains, direct sunlight or an area of high humidity.
VS30W and VS30B Installer Manual 07
INSTALLATION
iT600 VS30W - VS30B Installer - User Manual 014_Layout 1 16/07/2014 14:38
08 VS30W and VS30B Installer Manual
S2
S1
NSB
SL
L
N
S2
S1
NSB
SL
L
N
Sensor Terminal (optional)
Sensor Terminal (optional)
Night set back output
Load (Thermal Actuators)
Live 230V AC 50Hz
Neutral
LN
Wiring Centre
Thermal
Actuator
Optional SALUS
Sensor
Installation –Terminal Connections
L N
NSB for other
thermostats
Output
iT600 VS30W - VS30B Installer - User Manual 014_Layout 1 16/07/2014 14:38
Installation –Terminal Connections
Power Terminals
NSB (Night Set Back) Connection
Sensor Terminals (if applicable)
You are ready to secure the rear housing to the wall box
Check that the wiring is completed for:
1
2
3
Please use the screws provided
Ensure the orientation arrow
is pointing upwards.
VS30W and VS30B Installer Manual 09
INSTALLATION
iT600 VS30W - VS30B Installer - User Manual 014_Layout 1 16/07/2014 14:38
Installation –Thermostat Mounting
1
Fit the front housing to the rear housing
Align the front housing
at the top edge.
2Lightly press until you
hear a positive click.
Ensure the pin connections are aligned
10 VS30W and VS30B Installer Manual
iT600 VS30W - VS30B Installer - User Manual 014_Layout 1 16/07/2014 14:39
