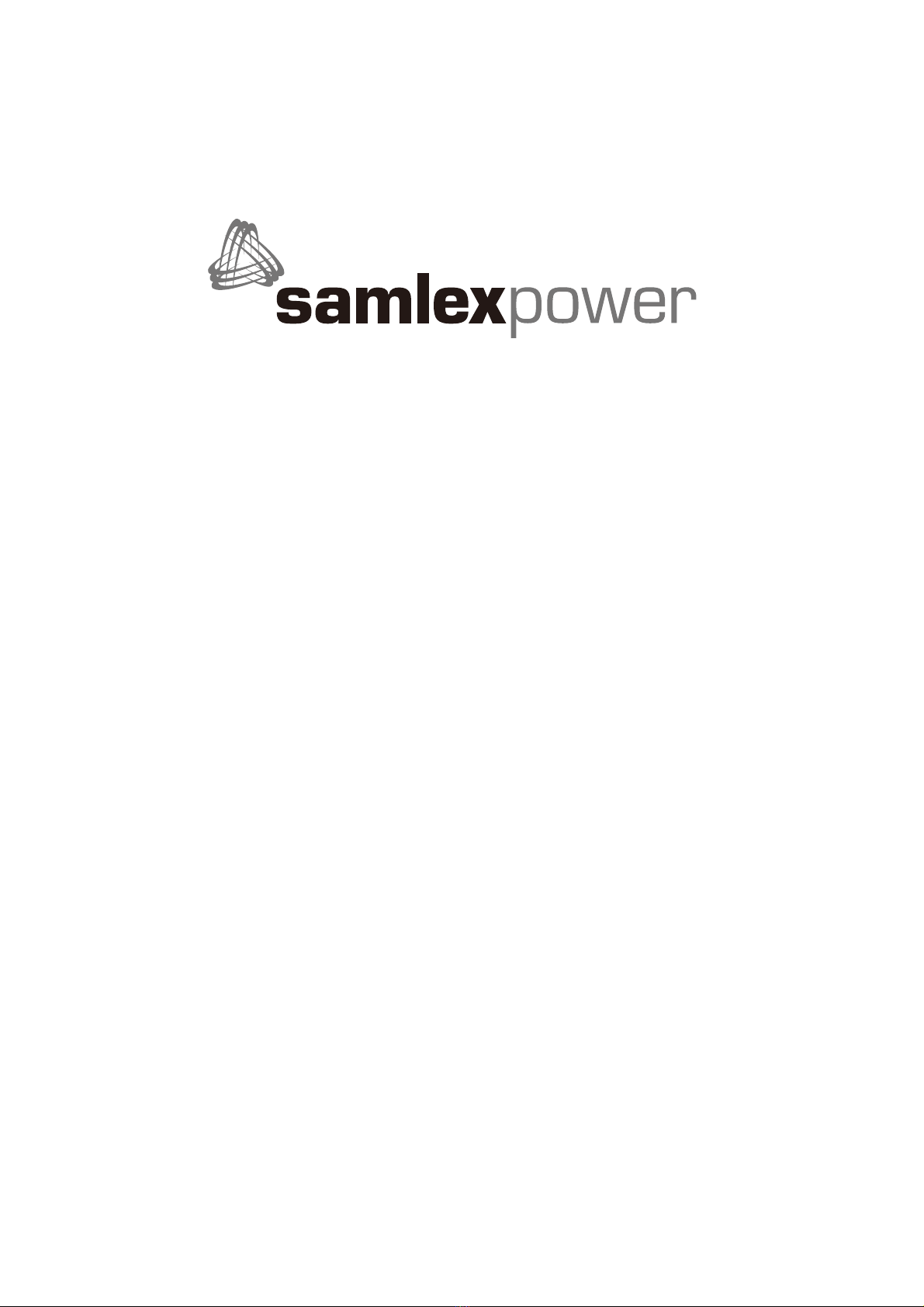

Samlexpower SA-2000K-112 Bedienungsanleitung

SA-2000K Series

Pure Sine Wave Inverter

User’s Manual

www.samlexpower.com

Table of Contents

1. Important Safety Information.……………………………………………… 1

1-1 General Safety Precautions…………………………………………… 1

1-2 Battery Precautions………………………..………………………….. 1

2. Features………………………………………………………………………...2

2-1 Application………………………………………………………………. 2

2-2 Electrical Performance………………………………………………… 3

2-3 Mechanical Drawings………………………………………………….. 4

3. Introduction……………………………………………………………………5

3-1 Front Panel operation….……………………………………………... 5~8

3-2 Rear Panel operation.………………………………………………… 9~10

3-3 Protection Features…………………………………………………… 10

3-4 Installation………………………………………………………………. 11

3-5 Making DC Wiring Connections ……………………………………... 12~14

3-6 AC Safety Grounding………………………………………………….. 15

3-7 Inverter Operation……………………………………………………… 16

4. Troubleshooting guide………………………………………………………17

5. Maintenance…………………………………………………………………… 18

6. Warranty……………………………………………………………………….. 18

www.samlexpower.com

1. Important Safety Instructions

WARNING!

Before using the Inverter, read and save the safety

instructions.

1-1. General Safety Precautions

1-1-1. Do not expose the Inverter to rain, snow, spray, bilge or dust.

To reduce risk of hazard, do not cover or obstruct the ventilation

openings. Do not install the Inverter in a zero-clearance compartment.

Overheating may result.

1-1-2. To avoid a risk of fire and electronic shock, make sure that existing

wiring is in good electrical condition and not undersized.

Do not operate the Inverter with damaged or substandard wiring.

1-1-3. There are some components in the inverter that can cause arcs and

sparks.

To prevent from fire or explosion, do not put batteries, flammable

materials, or anything that is not ignition–protected around the inverter.

1-2. Precautions When Working with Batteries

1-2-1. If battery acid contacts skin or clothing, you should wash it out with

soap and water immediately. If battery acid contacts your eyes, you

should wash it out with cold running water for at least 20 minutes and

get medical attention immediately.

1-2-2. Never smoke or create a spark or flame in the vicinity of the battery or

the engine.

1-2-3. Do not drop a metal tool on the battery. The resulting spark or

short-circuit on the battery of other electrical part may cause an

explosion.

1-2-4. Remove personal metal items such as rings, bracelets, necklaces,

and watches when operating with a lead-acid batteries.

Doing so may cause short circuit and very high temperature, which can

melt metal items and even burn you.

www.samlexpower.com

2. Features

Pure sine wave output (THD < 3%)

Output frequency：50 / 60Hz switch selectable

Input & output fully isolated

Power Saving Mode to conserve energy

High efficiency 89~94%

Can drive highly reactive & capacitive loads at start up

Tri-Color indicators show input voltage & output load level

Loading controlled cooling fan

Advanced microprocessor

Protection：Input low voltage Overload Short circuit

Low battery alarm Input over voltage Over temperature

2-1. Application

2-1-1. Power tools – circular saws, drills, grinders, sanders, buffers, weed

and hedge trimmers, air compressors, etc.

2-1-2. Office equipment – computers, printers, monitors, fax machines,

scanner, etc.

2-1-3. Household appliances – vacuum cleaners, fans, fluorescent and

incandescent lights, shavers, sewing machines.

2-1-4. Kitchen appliances – coffee makers, blenders, ice markers, toasters,

etc.

2-1-5. Industrial equipment – metal halide lamp, high – pressure sodium lamp,

etc.

2-1-6. Home entertainment electronics – television, VCRs, video games,

stereos, musical instruments, satellite equipment, etc.

2-2. Electrical Performance

SpecificationModel No.

Item SA-2000K-112 SA-2000K-124

Continuous Output Power 2000W

Maximum Output Power 2200W

Surge Rating (Max) 4000W

Input voltage 12V 24V

OutputVoltage 100 / 110 / 120V +/- 5%

Frequency

(Switch Selectable) 50 / 60Hz +/-0.05%

OutputWaveform Pure Sine Wave (THD < 3% )

Efficiency (full load) Max. *1 89.0% 92.0%

No Load Current Draw (Max) 2.8A 1.5A

Power Save Mode Current Draw (Max) 0.60A 0.30A

Input Voltage Regulation 10.5-15

VDC

21.0-30

VDC

InputLevel Indicator

Red / Orange / Green LED

Load Level Indicator

Failure Indicator Red LED

Protection Overload, Short Circuit, Reverse Polarity(Fuse),

Over / Under Input Voltage, Over Temperature.

Remote Control Unit S-R6 / S-R8 Optional

Safety Certification Meets UL458 EN60950-1

EMC FCC Class A

EN55022: 1997

EN55024: 1997

EN61000-3-2: 1998

EN61000-3-3: 1995

e-mark

e13

22846

Operating Temperature Range 0 - 40℃

Storage Temperature Range -30℃to 70℃

CoolingLoading controlled cooling fan ( 65℃ON , 45℃

OFF)

Dimensions422(L)*208(W)*166(H)mm / 16.6(L)*8.18(W)*6.53(H)

Inch

Weight 9 kg / 19.8 Lbs.

Note: The specifications are subject to change without notice.

*1. This test condition is at normal DC input (13.5V) and Temperature 25℃.

www.samlexpower.com

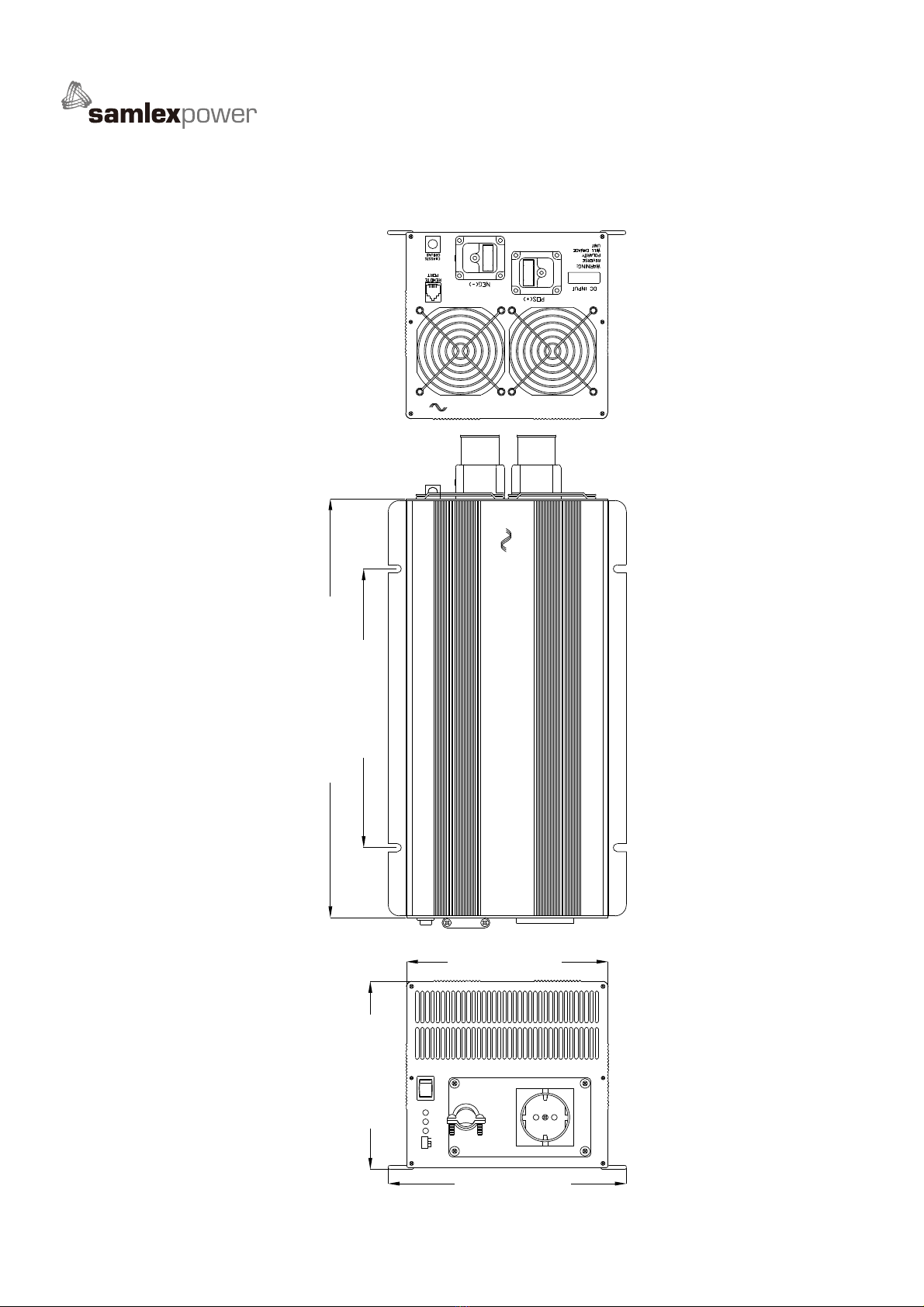

2-3. Mechanical Drawings

245.00 [9.65]

SA-2000K 368.00 [14.49]

Pure Sine Wave Power Inverter

165.25 [6.51]

209.00 [8.23]

AC OUTPUT

PURE SINE WAVE INVERTER

S4 FREQ.

S3 PWR.

SAV.

O I

0REMO.

LOAD

LEVEL

STATUS

INPUT

LEVEL

OFF

177.00 [6.97]

2000W

3000W

www.samlexpower.com

3. Introduction

This power inverter series is one of the most advanced line of mobile AC power

systems. To get the most effective power inverter, it must be installed and used

properly.

Please read the instructions of this manual before you install and operate

this model.

3-1. Front Panel Operations

3-1-1. Front view

3-1-2. ON / OFF/ REMOTE (Main) switch

a. Before installing the inverter, you need to ensure the main switch

must be “OFF”.

b. Before using the remote unit, you need to ensure the main switch

must be “REMOTE”.

SA-2000K

FREQ.

PWR.

SAV.

LOAD

LEVEL

STATUS

INPUT

LEVEL

AC OUTPUT

PURE SINE WAVE INVERTER

REMO.

OFF

www.samlexpower.com

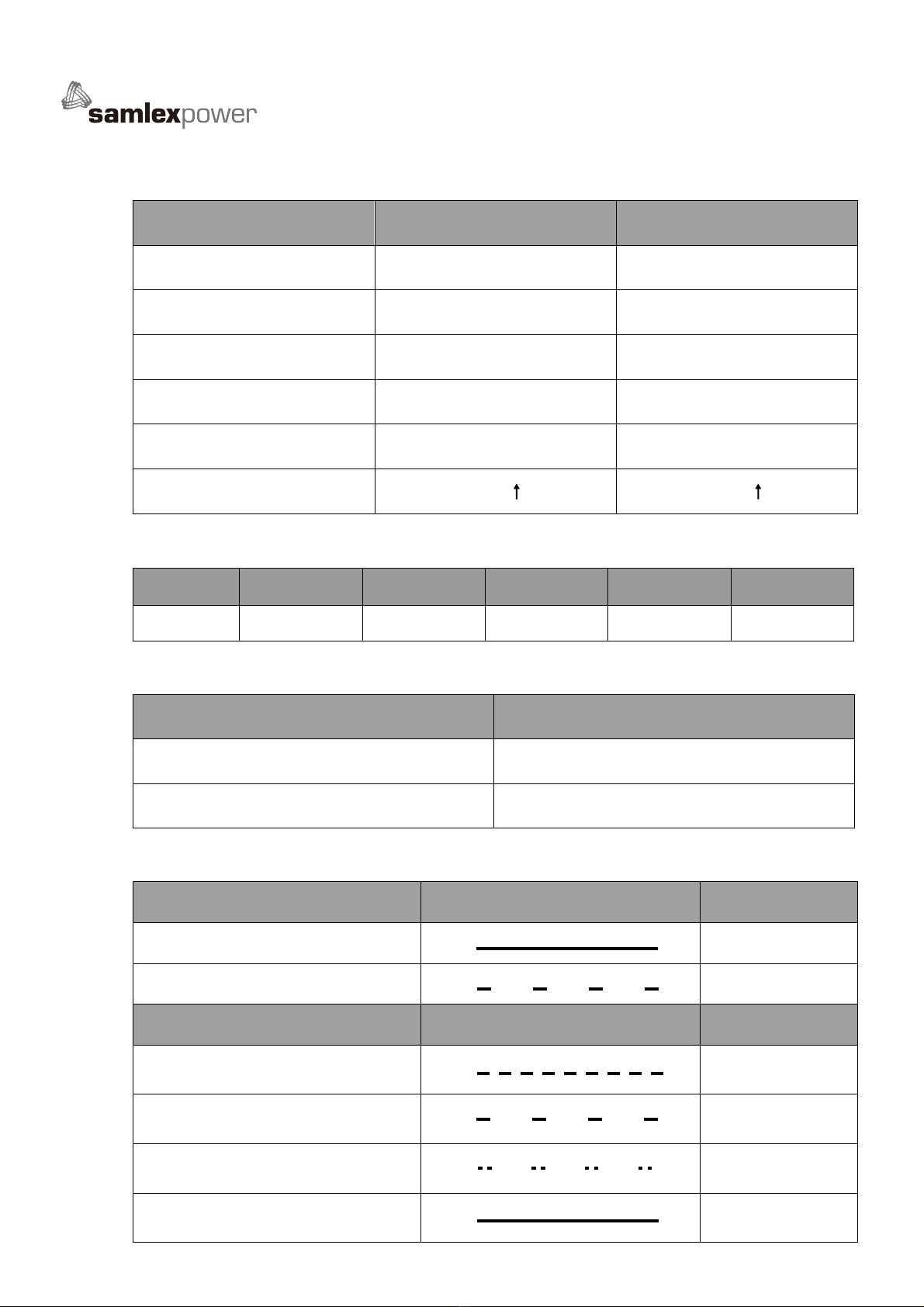

3-1-3. Input Level：Displays Input Voltages

LED Status DC 12V DC 24V

RED Slow Blink 10.3~10.6 20.5~21.2

RED10.6~11.021.2~21.8

ORANGE 11.0~12.1 21.8~24.1

GREEN 12.1~14.2 24.1~28.6

ORANGE Blink 14.2~15.0 28.6~30.0

OVER RED Blink 15.0 30.0

3-1-4. Load Level：Displays AC Loads (Watts)

LED status DARK GREEN ORANGE RED RED BLINK

SA-2000K0~ 160W 160 ~ 660W 660 ~ 1500W 1500 ~ 1920W Over 1920W

3-1-5. AC Frequency：Selected by “S4” Dip Switch

Frequency S4

50 HZ OFF

60 HZ ON

3-1-6. Status：Displays Power & Fault Status

Green LED LED Signal Status

Solid Power OK

Slow Blink Power Saving

Red LED LED Signal Status

Fast Blink Over Voltage

Protection (OVP)

Slow Blink Under Voltage

Protection (UVP)

Intermittent Blink Over Temperature

Protection (OTP)

Solid Over Load

Protection (OLP)

www.samlexpower.com

3-1-7. Power Saving Mode: Power Saving Mode is adjustable and

set by the Dip Switches, S1, S2 and S3 on the front panel.

Example: With the watt setting at 15W, a 15W↑load will make the

inverter operate normally, a 15W↓load will enter into the Power

saving mode.

SA-2000K S1 S2 S3

DISABLEOFFOFFOFF

40W ON OFFOFF

80WOFF ON OFF

125W ON ON OFF

170WOFFOFF ON

210W ON OFF ON

245WOFF ON ON

280W ON ON ON

www.samlexpower.com

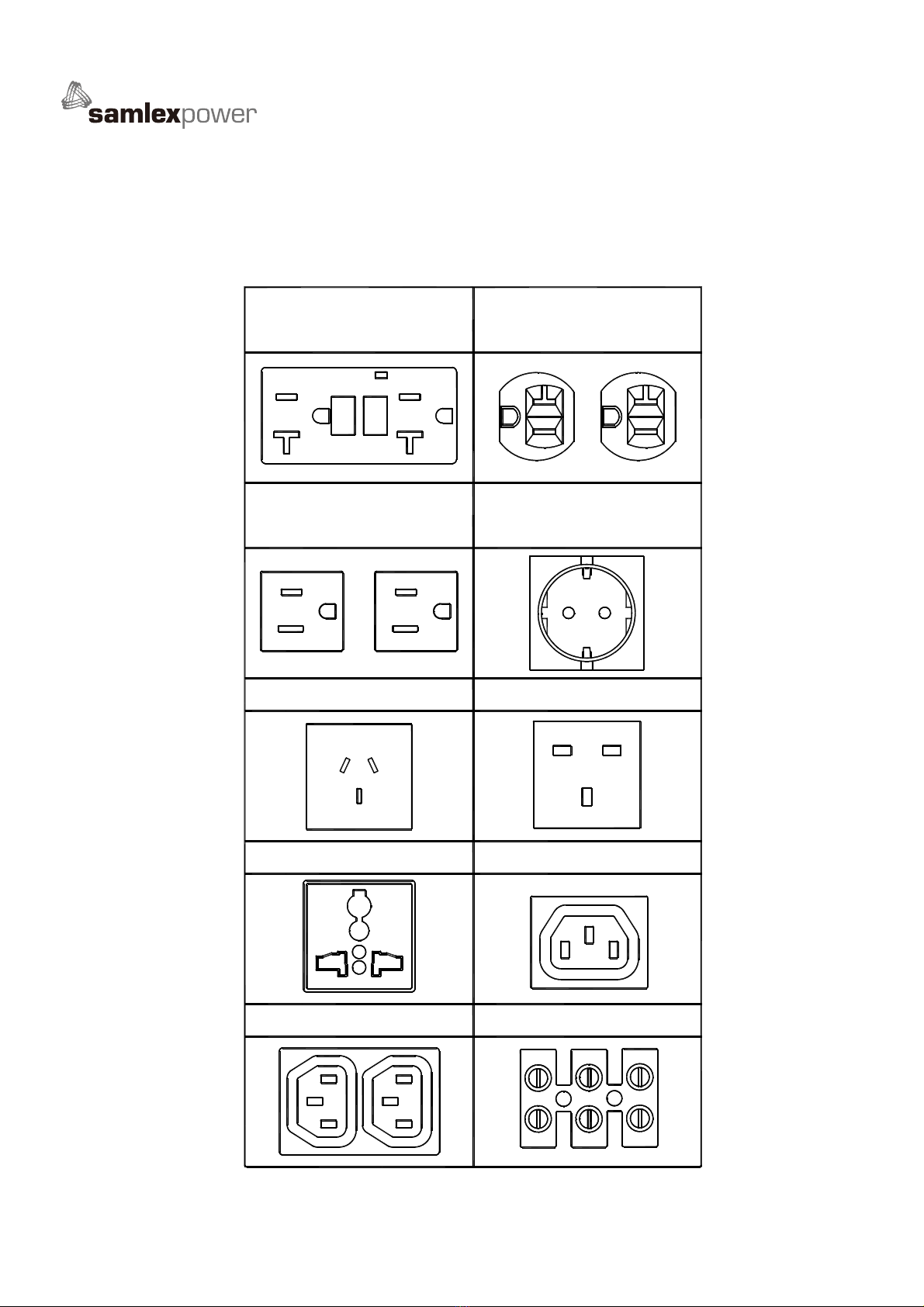

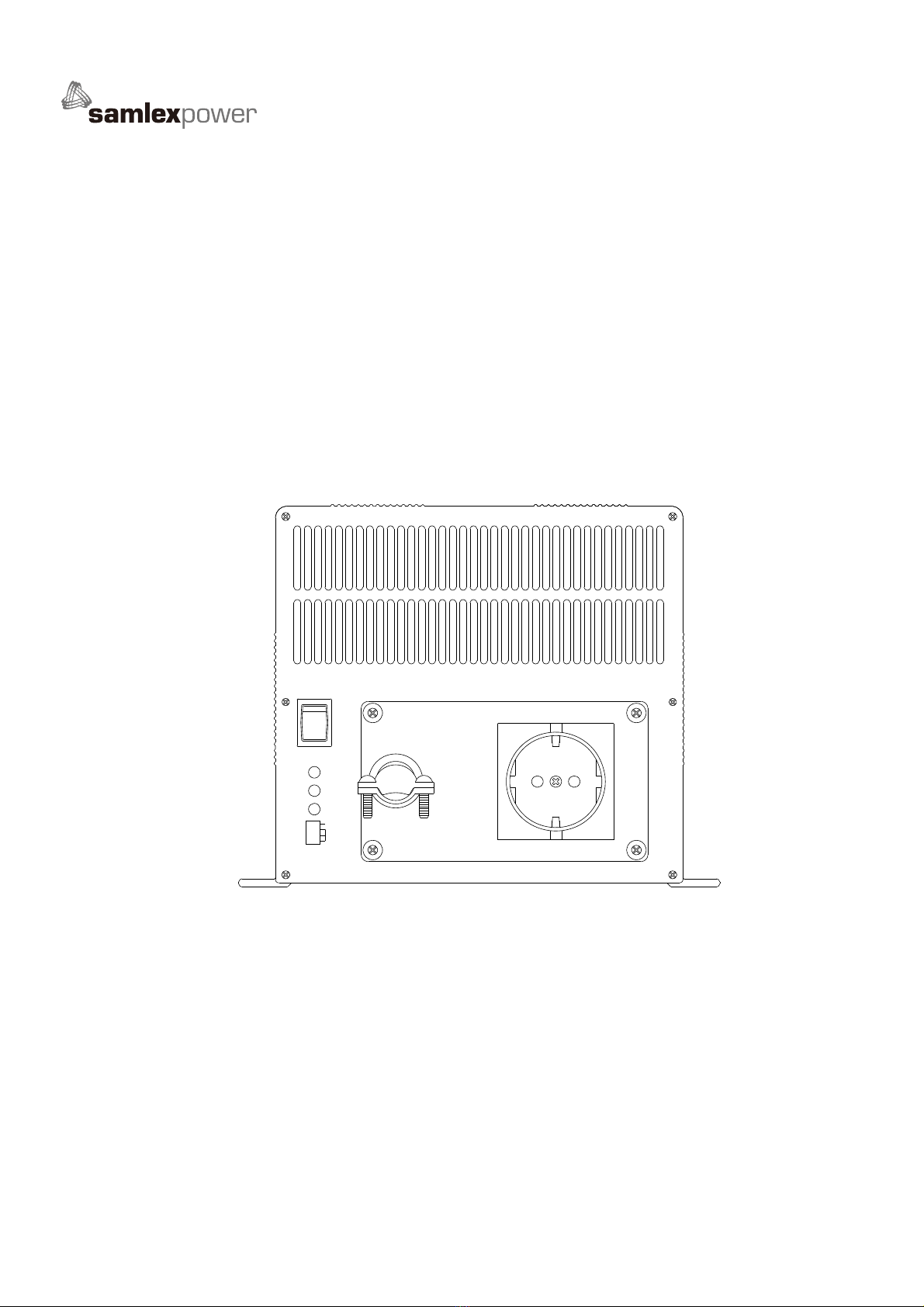

3-1-8. AC outlets

North American Ground Fault Circuit Interrupter (GFCI) with Duplex

NEMA5-20 receptacles is provided as a standard supply. Other types

have to be ordered specifically.

Australia / New Zealand

IEC-2

Universal

HARD WIRE

United Kingdom

IEC-1

North American Ground fault

Circuit Interrupter (GFCI) with

duplex NEMA5-20R receptacles

North American

NEMA5-20R

Continental European

North American

NEMA5-15R
