English _1

ALL-IN-ONE SECURITY SYSTEM

Quick Start Guide

KIT MODEL

SNK-D85121BF

NVR MODEL

SNR-D5401

Thank you for purchasing the NVR Security System.

Follow the simple steps in this guide to set up and start using your new system.

If you have any questions or need help installing your new product, please contact our free technical support.

Telephone: 1-877-349-3149

9am - 9pm EST, Monday - Friday

Web: www.samsungsv.com

❒Front

❒Back

`The appearance of power adaptor differs depending on sales region.

Part Name Function

1e-SATA Connect to e-SATA HDD

2VGA Output Connect to VGA monitor

3AUDIO OUT No Function

4LINE IN No Function

5LAN Port LAN Port for POE Power supply

6Power Switch On/Off

7Power Supply Connect to power cable

8USB USB port for upgrade or backup

9HDMI Port Connect to HDMI monitor

0WAN Port WAN port for internet

e-SATA

HDMI

Power Switch

34 2 15

890

2_ English

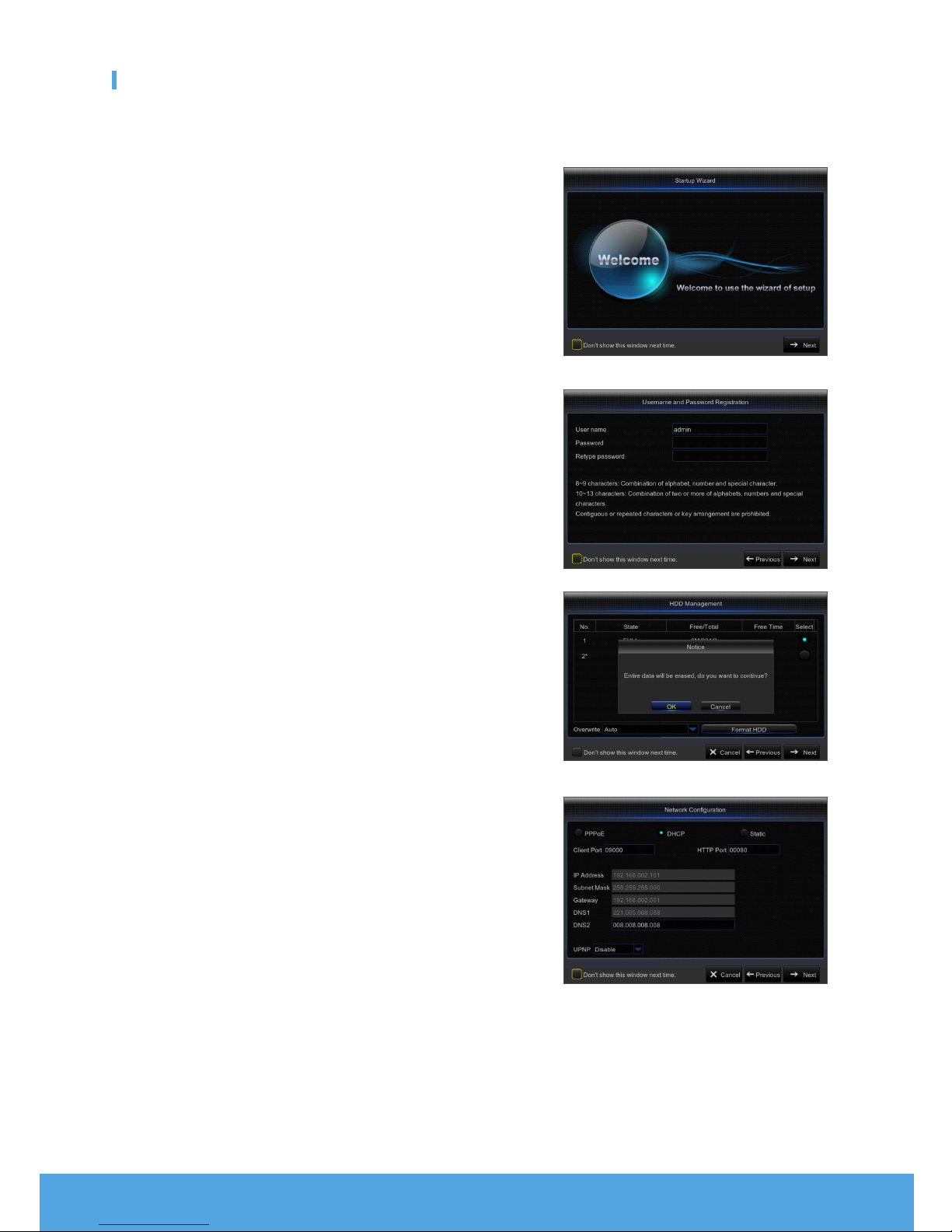

Startup Wizard

After the NVR Startup is completed, the Startup wizard will be displayed. If you do not want to make any additional changes to your

settings when it reboots, check “To disable Startup Wizard after reboot”.

Wizard setting menu includes：Homepage, Network setup, IPC setup, Record Schedule and hard disk maintenance.

• Homepage

• Admin password setting

• Hard drive management

• Network setup

• IPC setup

• Video recording Schedule

• General system configuration

• E-mail setting

• DDNS setting

Set Admin Password

Please create a username and password for your NVR. Password MUST

be 8~13 characters long. When password is 8~9 characters long, it

should be with at least a combination of letters, digits and special sym-

bols. If it is 10~13 characters long, it should be with at least a combination

of two types of characters. 4 or more contiguous or repeated characters

or key arrangement are prohibited, for example 1111, 1234, abcd, qwerty.

Retype password: Re-enter the password set above.

Hard Drive Management

New hard drive(s) connected must be formatted before use. Upon

connection, it will indicate to format new hard drive. Click on “Select” to

select the unformatted hard drive. Click on “Format HDD” to pop up the

user login window and enter the password to log in. A notice window will

indicate “Entire Data Will Be Erased. do You Want To Continue?”. Click

“OK” to format the disk. When the progress bar is complete, the format-

ting process is completed.

Network setup

In DHCP mode, the router will automatically allocate IP address to the

NVR. If the NVR fails to obtain an IP address, refer to the NVR Router

Guide. If the problem still cannot be resolved, contact technical support.

English _3

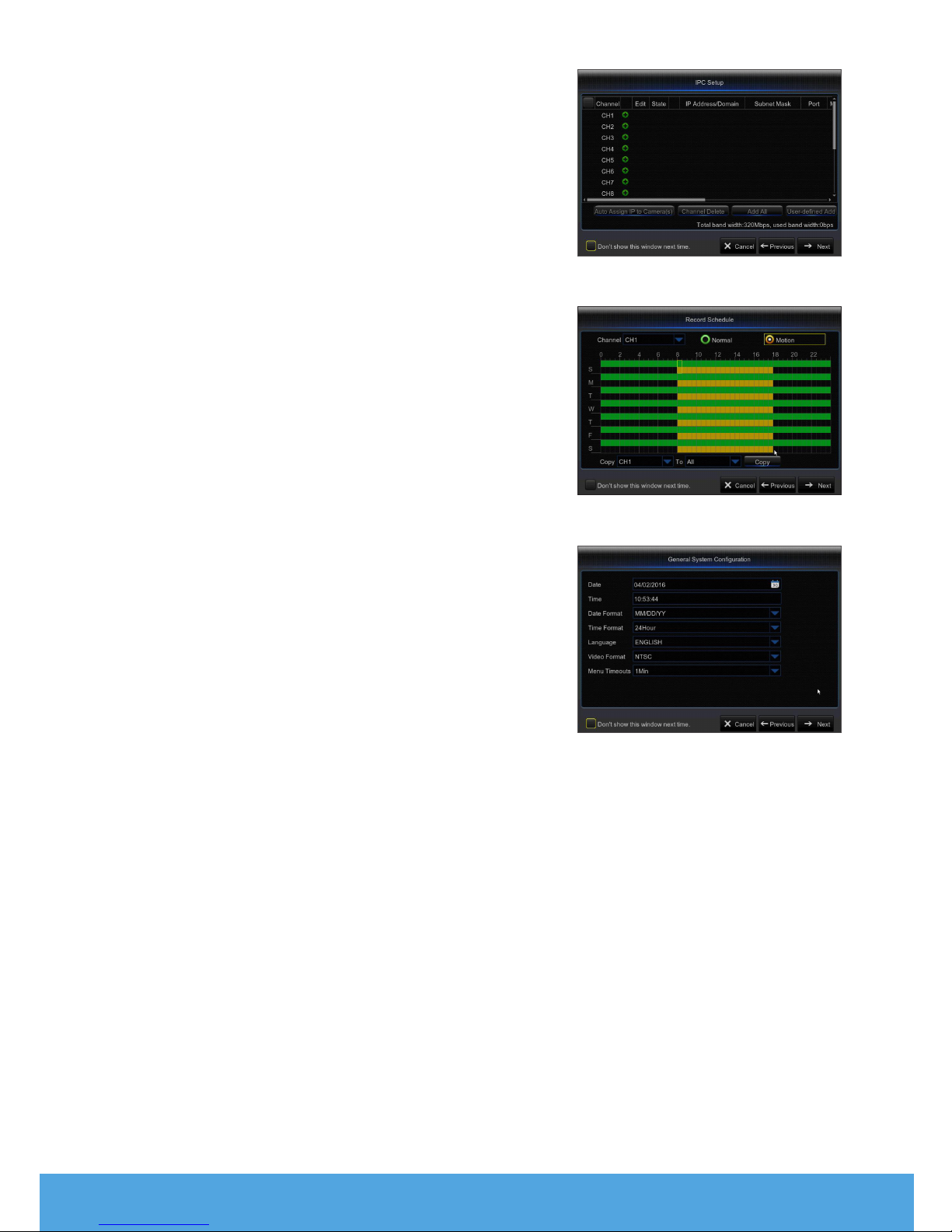

IPC Setup

User may add and delete IPC.

Video Recording Schedule

Select the channel and the date to be set. One week’s schedule can be

set. The record “schedule” of the current channel can be copied to any

other channel or all channels.

M`If there is no color in the record menu and record search, there is no recording

saved.

`“Green” stands for normal record and “yellow” stands for motion record.

General System Configuration

You can set date, time, date format, time format, language, video format

and menu timeouts.

4_ English

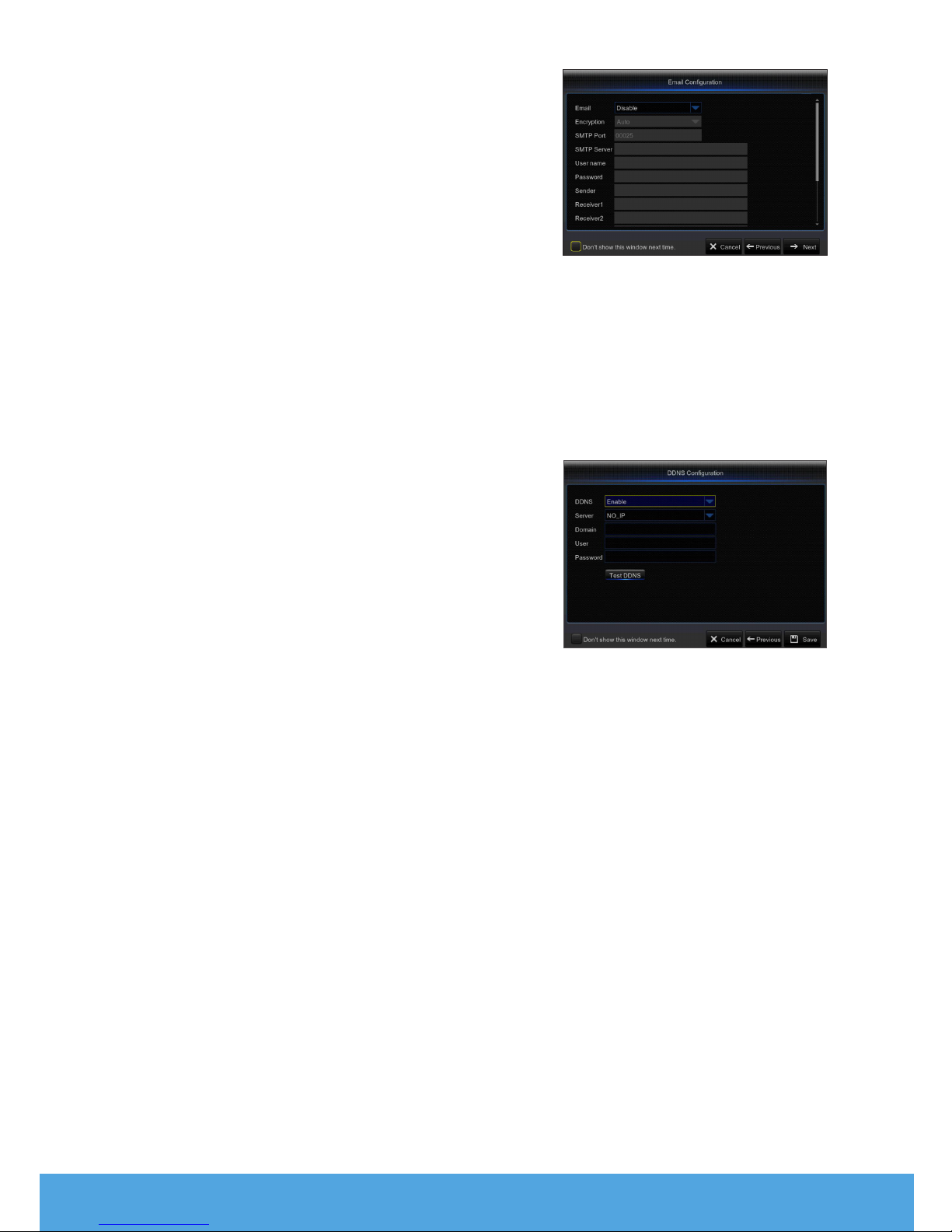

Email Setting

Receive or Send NVR alarm email and set parameters like email address,

SSL, email enable, and interval.

• Encryption: Disable, SSL, TLS and Auto optional. Auto means it can

detect the encryption type automatically. It is recommended to set the

encryption type as Auto.

• SMTP Port: Mail sending port used by SMTP (Simple Mail Transfer

Protocol). Server is generally Port 25 or Port 465 when SSL is used by

Gmail.

• SMTP Server: Enter the address of the server for the mailbox in use.

• User Name: Enter a server to connect to. For example, email “aaa@

gmail.com” should correspond to server “smtp.gmail.com”

• Password: Enter the password of the SMTP server user.

• Sender Address: Sender’s email address, which must correspond to the server used. For example, email “aaa@gmail.

com” should correspond to server “smtp.gmail.com”.

• Receiver 1/2/3: Recipient’s mail address, used to receive alarm image and message from NVR side. If system alarms

continually and sends email images frequently, save the images to another location or remove them, so as to avoid

excessive space occupation and thereby affect your normal use of mailbox.

• Time Interval: A mail will be sent every three minutes by default. If the time interval for mail notification is set too short,

email server may deem mails as junk mails, so they cannot be transferred normally.

• Click on “Test Email”. If connection succeeds “Test E-mail” will be sent out.

DDNS SETTING

User may set DDNS under network type of PPPoE/Static/DHCP after ap-

plying dynamic domain service. User may remotely access NVR through

domain by using browser in the form of http://applied domain: mapped

HTTP port number when using DDNS domain name to access NVR.

• Server address: Select dynamic domain name server provider.

Available domain name servers (HANWHA-SECURITY, DDNS_3322,

DYNDNS, NO_IP, CHANGEIP, DNSEXIT)

• Domain name: Dynamic domain name of the host obtained from

dynamic domain name service provider upon registration, for example,

nvr2016.no-ip.org.

• User Name: The user name registered upon application for dynamic

domain name.

• Password: The password set upon registration.

• Click on “Test DDNS”. If connection is made, it will indicate “DDNS Test is Successful!”. Perform remote access to the

NVR by using dynamic domain name, for example, http://ddns.hanwha-security.com/snb5000: HTTP port number (e.g.

19010)

Click on “Save” to finish setting of startup wizard.

English _5

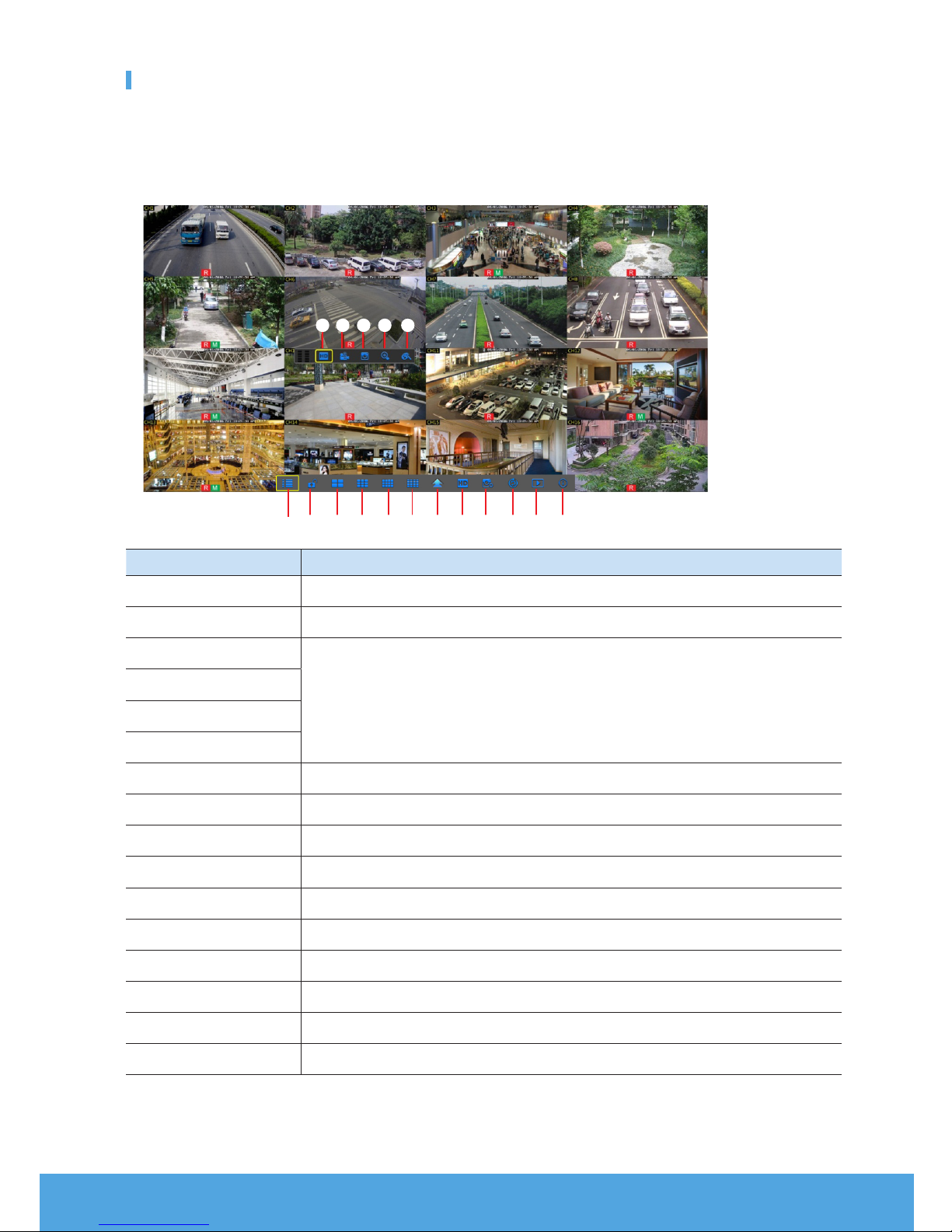

Popup Menu

After completing the system initialization, right click on your mouse on the preview interface or slide the mouse to the bottom of

screen to open the Pop-up Menu. Here, you could set parameter settings and switch betweenMain Menu, Multi-Pics, Record

Search, Sequence and Streams.

The options in the pop-up menu mayvaryaccording to different parameter settings. The options in the menu will be explained in

detail in the following chapters.

Component Name Function

1Main Menu Access the main menu.

2Manually Lock Screen Sign out or access sign-in page.

34-Channel Layout

Display four channels of video/ Display nine channels of video/Display twelve channels of video/ Display sixteen

channels of video

49-Channel Layout

512-Channel Layout

616-Channel Layout

7More Layout Display more channels of video.

8Stream Switch Switch between Main Stream and Sub Stream.

9View Image Quality Switch among Realtime, Balanced and Smooth.

0SEQ Start or stop SEQ.

!Playback Replay video recorded.

@Information System Information.

#Record Enable or disable manual recording.

$Instant Playback Display channel name Quick playback of video of last 5 minutes

%Zoom Hold and drag mouse cursor to select a frame of current video to zoom in

^Color Adjust the color of video

1 2 3 4 5 6 7 8 9 0 ! @

#8 $ % ^

6_ English

Main Menu Guide

Parameter

Record Search

Device

System

Advanced

Shutdown

Display

Record

Network

Alarm

General

HDD

Events

General

Users

Log

Info

Events

Maintain

IP Channels

Record

Network

Live

Record Schedule

Switch

Output

Mainstream

Image control

Substream

Email Schedule

Privacy Zone

Mobliestream

DDNS

Motion

General

DST

NTP

Main Menu

Info

Channel Info

RTSP

Record Info

English _7

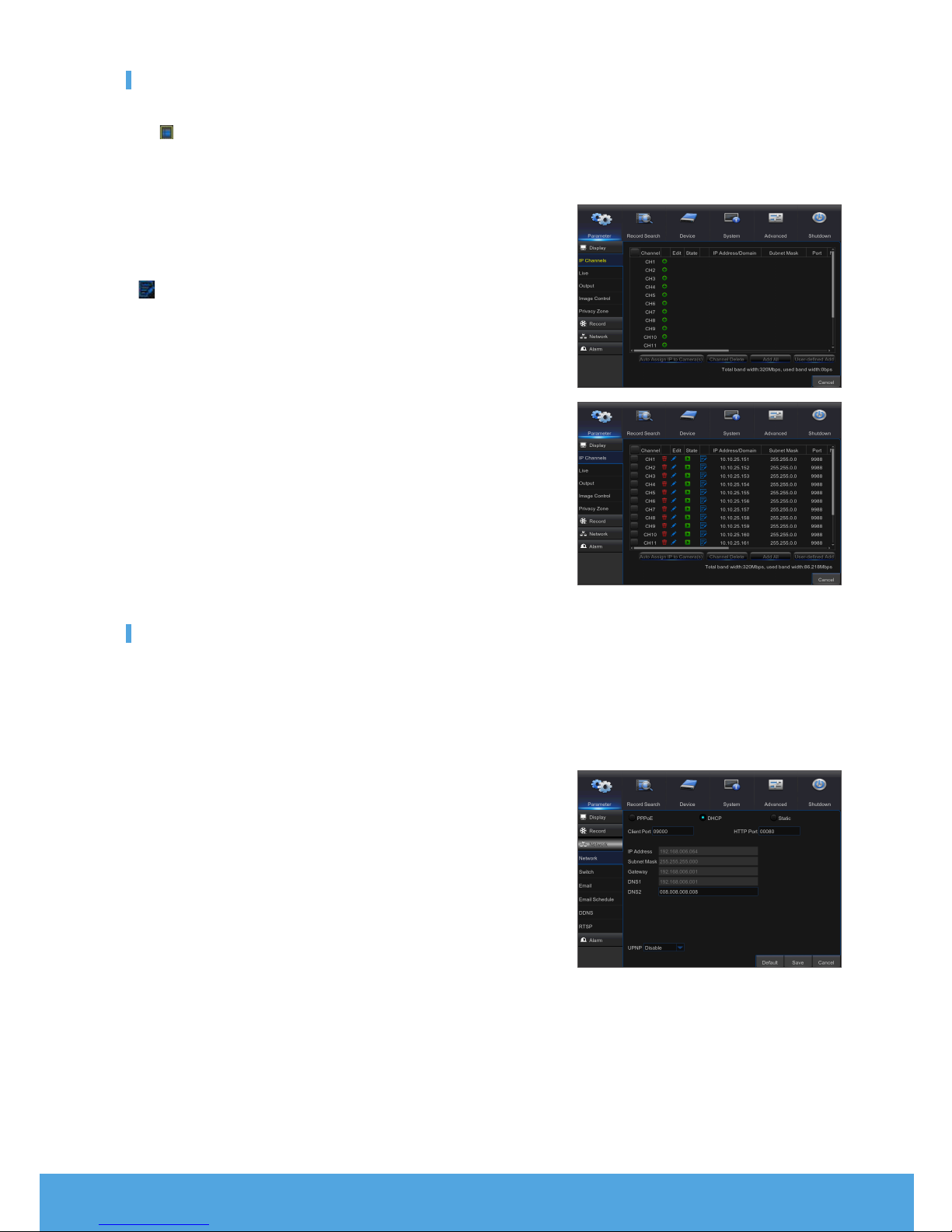

Main Menu

To enter the main menu screen, left click on the mouse on LIVE mode or press the [Menu] button on remote controller. You can also

click [ ] icon on the toolbar to enter the main menu screenas shown in Picture on the left.

Menu will be locked if left idle and you will have to enter the password again.

In Main Menu mode, you can changesettings for Parameter, Record Search, Device, System, Advanced and Shutdown.

Go to “Main Menu” ; “Parameter” ; “Display” ; “IP Channels” to enter into the interface.

• Channel : IPC camera channel.

• Edit : Modify the name of IPC and location of channel name, change to other

IPC or protocols, etc.

• State : Status of IPC, on-line or off line

• : Modify IP address of IPC.

• IP Address/Domain : IP address of the IPC connected.

• Subnet Mask : Subnet mask of IPC.

• Port : Client port of IPC.

• Manufacturer : Manufacturer of IPC.

• Device type : Device Type of IPC.

• Protocol : Access protocol for IPC connected to NVR.

• MAC Address : MAC address of IPC.

• Software Version : Current firmware version of IPC.

• Auto Assign IP to Camera(s) : Auto Assign IP to IPC.

• Channel Delete : Select one channel and click Channel Delete to delete IPC.

• Add All : Add All IPC.

• User-defined Add : To add the IP cameras as user defined.

Network

Go to “Main Menu” ; “Parameter” ; “Network” to enter into the interface.

Select the type of network connection (PPPoE, DHCP, Static) and set Port, then user may remotely control the monitoring,

recording, playback or backup of the NVR through the network.

Take DHCP as an example. In this mode, the router automatically assigns IP address for the NVR. After restarting the NVR or DHCP

server, the IP address obtained by the NVR may be different. As a result, user should check the IP address and port number for

each remote access of the NVR. The operation procedure is as follows:

Select DHCP, click Save and refresh the NVR. Input Client Port and HTTP

Port (the two values must not be the same).

Set obtained IP address of the NVR and the mapping port.

Remotely visit the NVR by IP address: http://Public network IP: HTTPport

number (such as 00080)

`For PPPoE, Static and DHCP, after setting IP address of NVR, the extranet port shall be

mapped on the router before visiting NVR through public network.

M`Save after setting to make effective. If there are multiple NVR in a LAN, make sure their

MAC addresses are different.

8_ English

Web Application Manager

❒Download and Installation of Plugin.

Windows 7 : You may need to setup the user authority for the remote controlor you may not beable to back-up your hard drive or record.

Windows Vista : Start ; Setup ; Control Panel. Set user authority in control panel shown on the picture below. Remove the check

“√” in front of the option “Use UAC to help protect your computer” and click OK to confirm.

WIN7

Vista

M`If the web plugin is not downloaded successfully, please check if your browser’s safety level or

firewall setting is too high. Please open IE browser ;[Menu Bar] Tools ;Internetoptions ;

Security ;Internet ;Custom level ;Enable the following options.

Download and installation of plugin for IE

Run your web browser as administrator and input the IP address and HTTP port

of NVR, such as: http://192.168.1.200:80.

English _9

Save plug in, and then click Install on pop-up box of the Setup-Webplugin to

install. Restart the browser, and then enter the NVR IP address plus HTTP port,

such as http://192.168.1.200:80, to log in.

Download and Installation of plug in for Safari

Input the IP address and HTTP port on Safari, such as http://192.168.1.200:80,

and thenclick download to download the plug in. Click Download icon to have the

plug-in ‘WebPluginN.dmg’ downloaded.Double click ‘WebPluginN.dmg’. Double

click ‘SurveillanceClient.pkg’and then click Continue and Install. Enter user name

and password to install, thenclick Close to finish installation. Restart the browser,

and then enter the NVR IP address plus HTTP port, such as

http://192.168.1.200:80, to log in.

M`The above instructions are for first time installations. You can use the same plug-in for IE

and Google Chrome. If plug-in for windows OS was installed on IE or Google Chrome once,

you need to use IE which needs to be run as administrator.Use Google Chrome to log in to

NVR.

If you use Google Chrome to log in, please use Version 41 or lower. If you use V42 to V44 to

URL bar of Google Chrome to find and enable NPAPI. Please note that it doesn’t support

V45 or above.

When you do a firmware upgrade, you have to re-download and re-install the plug-in. Based

on different situations, it may not be able to install the plug-in through browsers. In this

case, please copy and install the plug in on the CD attached(Web_plugin_Windows_YYYY_

MM_DD.exefor Windows system, and SurveillanceClient_Mac_YYYY_MM_DD.dmg for

Mac).

10_ English

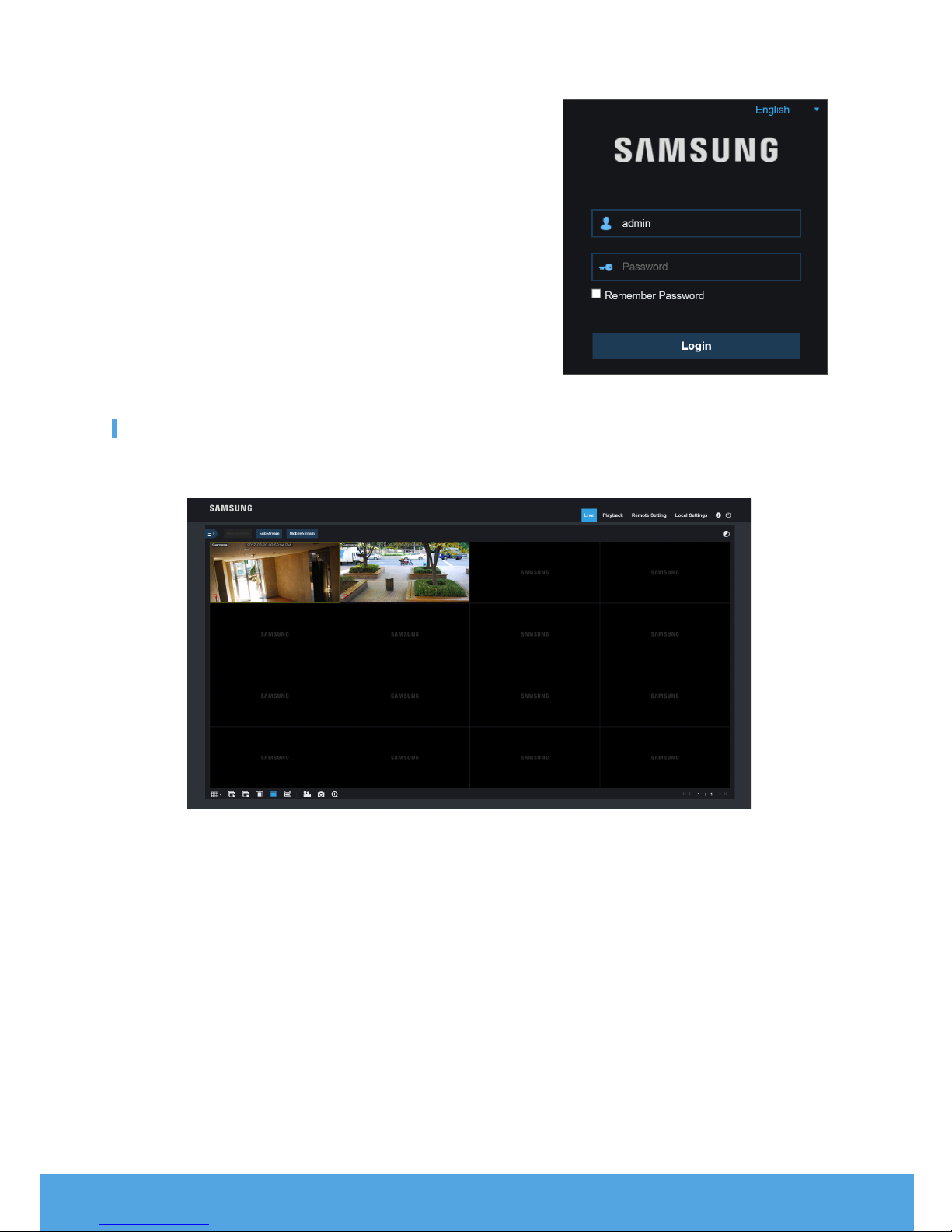

❒View NVR Remotely Through Browsers

After the plug-in isinstalled and the IP address and HTTP port is entered, you can

go to the following log in interface. Enter the username and password you created

on the local NVR, then select Sub Stream or Mobile Stream (In general, select Sub

stream for intranet and Mobile stream for extranet), and select language. Click

‘Open All Channels Preview’ to open all live pictures. Press Login to visit NVR

remotely.

Live Interface

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Wisenet Sicherheitssystem Handbücher

Samsung Wisenet

Samsung Wisenet SDH-B73023BF Bedienungsanleitung

Beliebte Sicherheitssystem Handbücher anderer Marken

Inner Range

Inner Range Concept 2000 Bedienungsanleitung

Climax

Climax Mobile Lite R32 Montageanleitung

CADDX

CADDX NX-6 Bedienungsanleitung

FBII

FBII XL-31 Series Bedienungsanleitung

Johnson Controls

Johnson Controls PENN Connected PC10 Bedienungsanleitung

Aeotec

Aeotec Siren Gen5 Bedienungsanleitung

Blaupunkt

Blaupunkt SA 2700 Bedienungsanleitung

IDEAL

IDEAL Accenta Betriebsanleitung

AJAX

AJAX DoubleButton Bedienungsanleitung

Swann

Swann SW-P-MC2 Bedienungsanleitung

Ecolink

Ecolink Siren+Chime Bedienungsanleitung

Digital Monitoring Products

Digital Monitoring Products XR150 Bedienungsanleitung

EDM

EDM Solution 6+6 Wireless-AE Bedienungsanleitung

Highway Safety Group

Highway Safety Group EA401 Bedienungsanleitung

Siren

Siren LED GSM Bedienungsanleitung

Detection Systems

Detection Systems 7090i Montageanleitung

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Bedienungsanleitung

Siemens

Siemens FDM273 Bedienungsanleitung
