SERVICE Manual

CONTENTSAIR CONDITIONER

11. Precautions

12. Product Specifications

13. Installation and Operating

Instructions

14. Disassembly and Reassembly

15. Troubleshooting

16. Exploded Views and Parts List

17. Block Diagram

18. PCB Diagram

19. Wiring Diagram

10. Schematic Diagram

DB98_04511A(2)-CO 2/18/03 4:08 PM Page 3

ROOM AIR CONDITIONER

AW0801B AW1001B

AW1201B AW1801B

1. Precautions

Samsung Electronics 1-1

1. Precautions

1. Warning: Prior to repair, disconnect the

power cord from the circuit breaker.

2. Use proper parts: Use only exact

replacement parts. (Also, we recommend

replacing parts rather than repairing them.)

3. Use the proper tools: Use the proper tools

and test equipment, and know how to use

equipment may cause problems later-

intermittent contact, for example.

4. Power Cord: Prior to repair, check the

power cord and replace it if necessary.

5. Avoid using an extension cord, and avoid

tapping into a power cord. This practice

may result in malfunction or fire.

6. After completing repairs and reassembly,

check the insulation resistance.

Procedure: Prior to applying power, measure

the resistance between the power cord and the

ground terminal. The resistance must be

greater than 30 megaohms.

7. Make sure that the grounds are adequate.

8. Make sure that the installation conditions

are satisfactory.

Relocate the unit if necessary.

9. Keep children away from the unit while it is

being repaired.

10. Be sure to clean the unit and its surrounding

area.

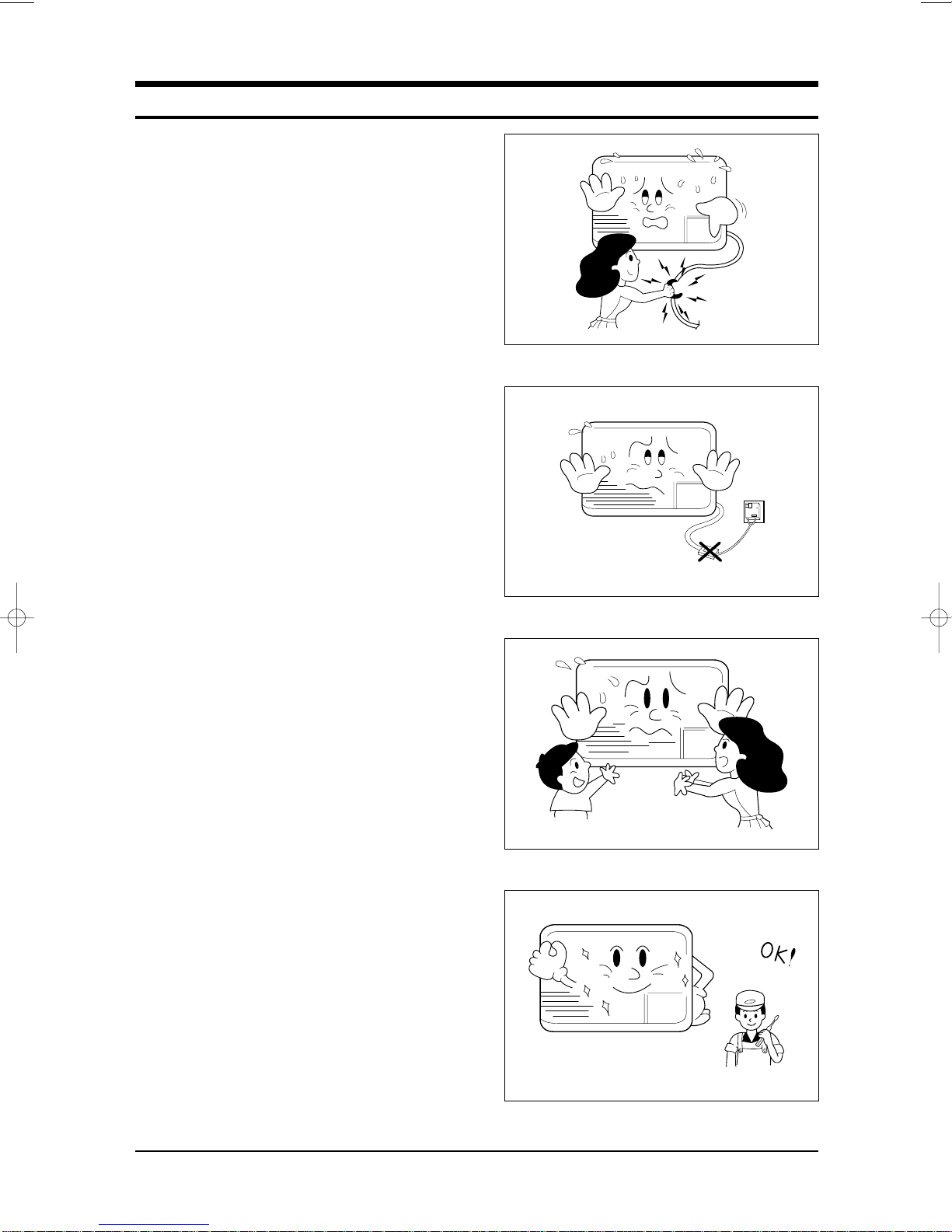

Fig. 1-1 Avoid Dangerous Contact

Fig. 1-2 No Tapping and No Extension Cords

Fig. 1-3 No Kids Nearby!

Fig. 1-4 Clean the Unit

DB98_04511A(2)-1 2/18/03 4:09 PM Page 1-1

2.Product Specifications

2-1 Table

Item Unit of

Measure AW0801B AW1001B AW1201B AW1801B

Type WINDOW

Dimension:

(Width×Height×Depth) mm 520×345×485 600×394×595 660×425×730

Voltage Volt 115 115 115 230-208

Phase - SINGLE

Frequency Hz 60 60 60 60

Operation Current A 7.4 9.7 11.7 8.2/8.9

Power Consumption W 820 1070 1270 1850/1800

Refrigerant Type FREON R22

Refrigerant Change g 390 480 1040 800

Capacity BTU/h 8000 10500 12400 17900/17400

EER BTU/h.W 9.8 9.8 9.8 9.7/9.7

Net Weight Kg 29 43 43 63

Condenser Row 2×15 2×17 2×17 3×19

Condenser Fan Type Propeller Fan

Evaporator Row 2×11 2×12 3×12 3×11

Evaporator Fan Type Blower

Fan Motor MODEL YSLA-40-6-0001 YGN60-6B YGN60-6B YSK160-6A

Compressor(Rotary) MODEL 44A080HU1EB 44B102HX1EF 44B124HX1EL 48D80IU1EH

Overload Protect - MRA12083-12008 MRA12109-12007 MRA98693-12007 MRA12046-12007

Compressor Capacitor μF/VAC 35/370 40/370 50/370 35/450

Fan Motor Capacitor μF/VAC 8/450 15/250 15/250 6/450

Fan Speed RPM 1020/980/930 890/850/800 890/850/800 1050/1000/960

Thermo Control - THERMISTOR

Samsung Electronics 2-1

MEMO

2-3 Samsung Electronics

DB98_04511A(2)-1 2/18/03 4:09 PM Page 2-4

2-2 Dimensions

2-2-1 Main Unit

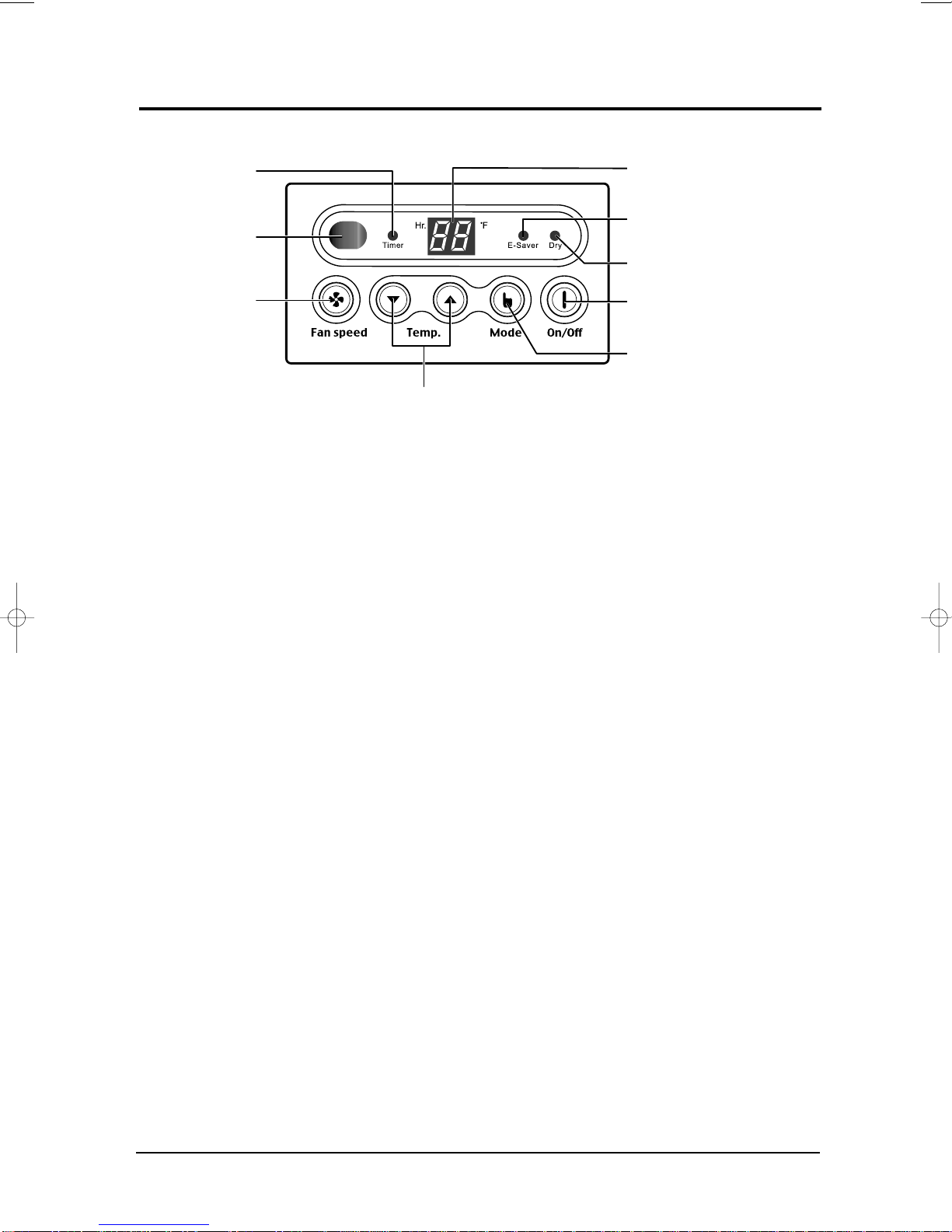

2-2-2 Remote Control

2-2 Dimensions

2-2-1 Main Unit

2-2-2 Remote Control

2-2 Dimensions

2-2-1 Main Unit

2-2-2 Remote Control

2-2 Dimensions

2-2-1 Main Unit

2-2-2 Remote Control

2-2 Dimensions

2-2-1 Main Unit

2-2-2 Remote Control

2-2 Dimensions

2-2-1 Main Unit

2-2-2 Remote Control

2-2 Dimensions

2-2-1 Main Unit

2-2-2 Remote Control

2-2 Dimensions

2-2-1 Main Unit

2-2-2 Remote Control

2-2 Dimensions

2-2-1 Main Unit

2-2-2 Remote Control

2-2 Dimensions

2-2-1 Main Unit

2-2-2 Remote Control

2-2 Dimensions

2-2-1 Main Unit

2-2-2 Remote Control

2-2 Dimensions

2-2-1 Main Unit

2-2-2 Remote Control

2-2 Dimensions

2-2-1 Main Unit

2-2-2 Remote Control

2-2 Dimensions

2-2-1 Main Unit

2-2-2 Remote Control

2-2 Dimensions

2-2-1 Main Unit

2-2-2 Remote Control

2-2 Dimensions

2-2-1 Main Unit

2-2-2 Remote Control

Front view Side view

(Unit : mm)
