Samsung AW09P1HEA/XFA Bedienungsanleitung

OWNER’S

INSTRUCTIONS

AWT18F1HBA/BB/BC

AWT19F1HEA/EB/EC

AWT24F1HBA/BB/BC

AWT24F1HEA/EB/EC

AWT18A1HBA/BB/BC

AWT19A1HEA/EB/EC

AWT24A1HBA/BB/BC

AWT24A1HEA/EB/EC

Window-type Room Air Conditioner

( Cool )

DB98-13920A(2)

E-2

The following safety precautions must be taken when using your air conditioner.

Safety Precautions

1The unit must be plugged into an independent circuit.

The air conditioner must be installed in accordance with national wiring regulations and

safety regulations wherever applicable.

Some installation locations may require installation of a short circuit breaker or grounding.

4MAKE sure that the unit is correctly ventilated at all times :

do NOT place clothing or other materials over it.

5NEVER spill any kind of liquid into the unit. Should this happen, unplug the unit and

contact an authorized service center.

6Do NOT insert anything between the air outlet blades because the inner fan may be

damaged and could cause injury. Keep children away from the unit.

7Do NOT place any obstacles in front of the unit.

3If the supply cord is damaged, it must be replaced by the manufacturer, its service

agent or similarly qualified persons in order to avoid a hazard.

8Users of this product are cautioned not to attempt repairs.

Instead, they are requested to directly contact a designated service center or the

outlet at which the product was purchased.

9Do not use an extension cord with this product.

10 The appliance is not intended for use by young children without supervision ;

young children should be supervised to ensure that they do not play with the appliance.

11 Never store or ship the air conditioner upside down or sideways to avoid damage to

the compressor.

12 Max current is measured according to IEC standard for safety

and current is measured according to ISO standard for energy efficiency.

The manufacturer does not assume responsibility for accidents or injury

caused by an incorrectly installed air conditioner. If you are unsure about

installation, contact an installation specialist.

IIOO

Contents

◆PREPARING YOUR AIR CONDITIONER

■Safety Precautions ......................................................................................... 2

■Air Conditioning Unit - Main Parts and Control Panel .................................... 4

■Getting Started ............................................................................................... 5

◆OPERATING YOUR AIR CONDITIONER

■Cooling Your Room ........................................................................................ 6

■Airing Your Room ........................................................................................... 7

■Switching the Air Conditioner Off .................................................................... 7

■Adjusting the Air Flow Direction Horizontally .................................................. 8

■Adjusting the Air Flow Direction Vertically ...................................................... 8

◆RECOMMENDATIONS FOR USE

■Operating Recommendation ........................................................................... 9

■Temperature and Humidity Ranges ................................................................ 9

■Cleaning Your Air Conditioner ........................................................................ 10

■Solving Common Problems ............................................................................ 12

■Technical Specifications ................................................................................. 12

◆METHOD OFINSTALLATION ................................................................................. 13

E-3

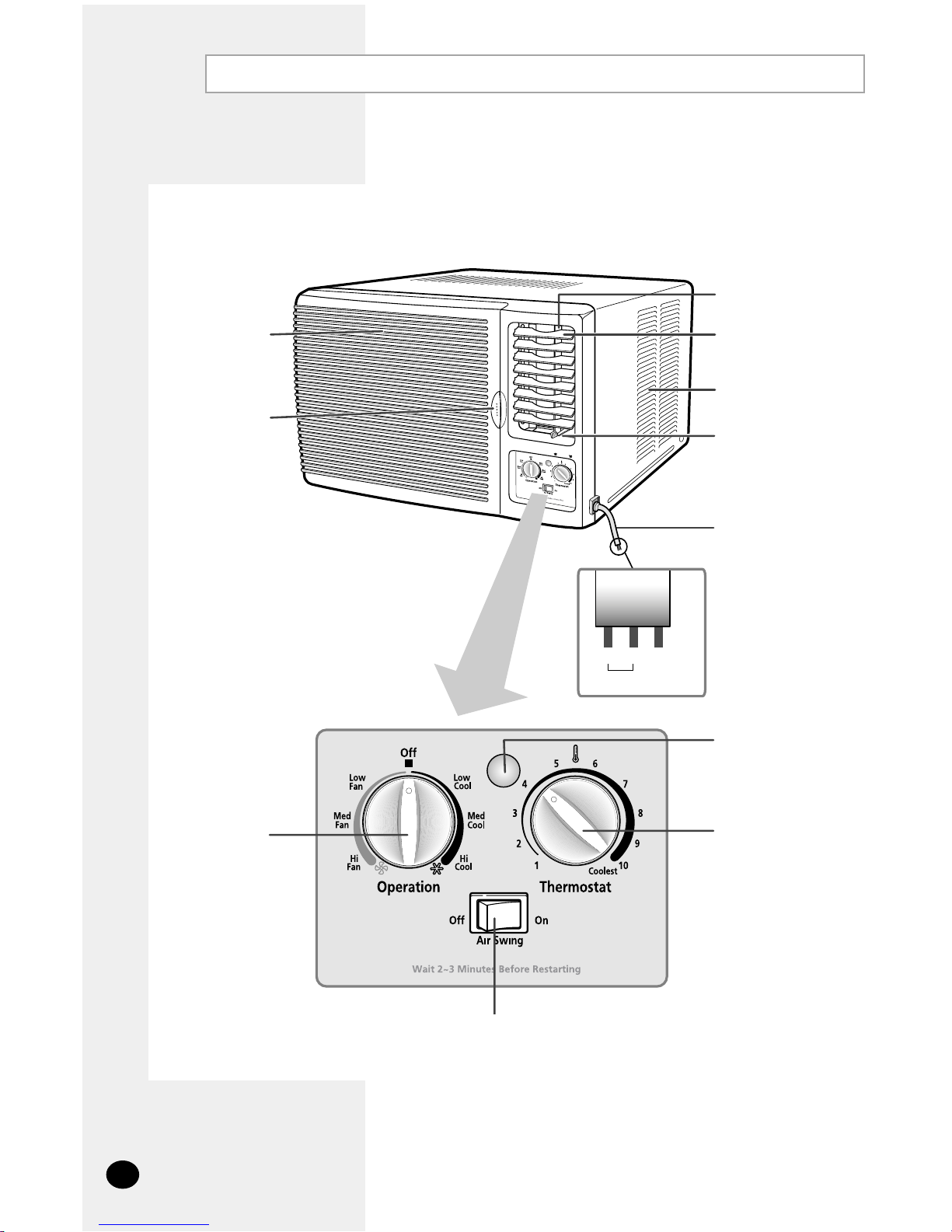

Air Conditioning Unit - Main Parts and Control Panel

Ventilation lever

Power Cable

Outer air flow blades

(up/down orientation)

Inner air flow blades

(right/left orientation)

Air inlet (Outside)

❈

Power cable connection

should be committed to

an installation engineer.

Air inlet(Inside)

Air filter(Inside)

❄The design and shape are subject to change,

depending on the model.

Temperature

control dial

Cooling lamp

Operating mode

selection dial

Air flow blade swing switch

E-4

BLUE BROWN

YELLOW/GREEN

Main Power Earth

Getting Started

You have just purchased a window-type room air conditioner and it has been installed

by your installation specialist.

Your Owner’s Instructions contain much valuable information on using your air conditioner.

Please take the time to read them as they will help you take full advantage of the unit’s features.

The booklet is organized as follows.

◆The illustration on page 4 shows the air conditioning unit;

it indicates the location and purpose of the main parts and controls on the unit.

◆ In the manual, you will find a series of step-by-step

procedures for each function available.

The illustrations in the step-by-step procedures use four different symbols:

PRESS PUSH IMPORTANT NOTE

☛

➢

E-5

Select the operating mode and fan speed.

To cool your room Set the operating mode

with a... selection dial to...

High fan speed Hi Cool

Between High and Low Med Cool

Low fan speed Low Cool

Result: ◆

The air conditioner starts up in Cool mode.

◆

The fan starts up at the speed selected.

You can change modes at any time.

You must select the Cool mode if you wish to lower the temperature

in your room. You can also set the fan speed.

To control the direction of the air flow, refer to page 8.

To adjust the temperature, turn the temperature control dial

to the desired position.

Possible temperatures: Between 18°C and 29°C inclusive.

Result:

The air conditioner starts cooling if the room temperature is higher

than the selected temperature.

➢

27˚C ~ 23˚C

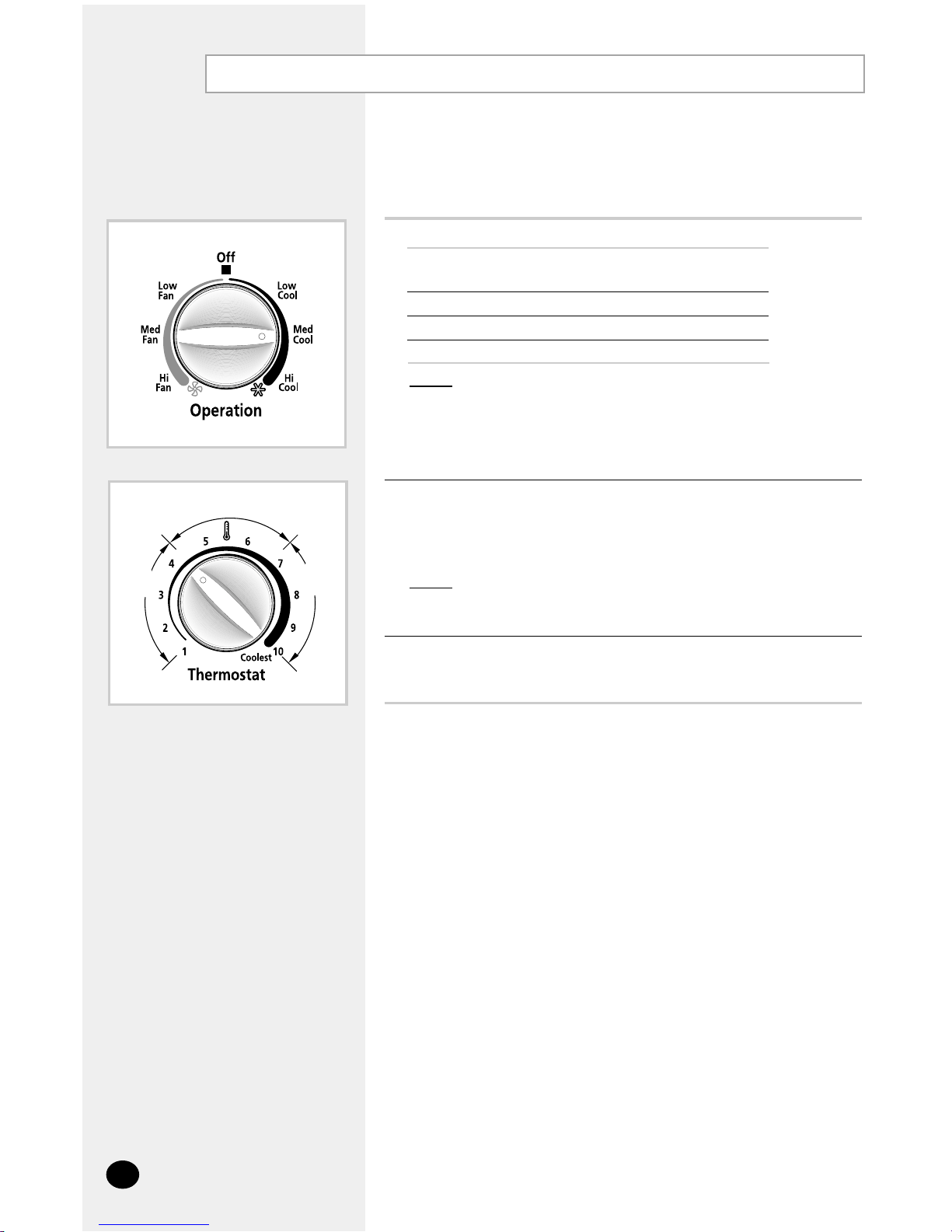

Cooling Your Room

27˚C

~ 29˚C 23˚C

~ 18˚C

E-6

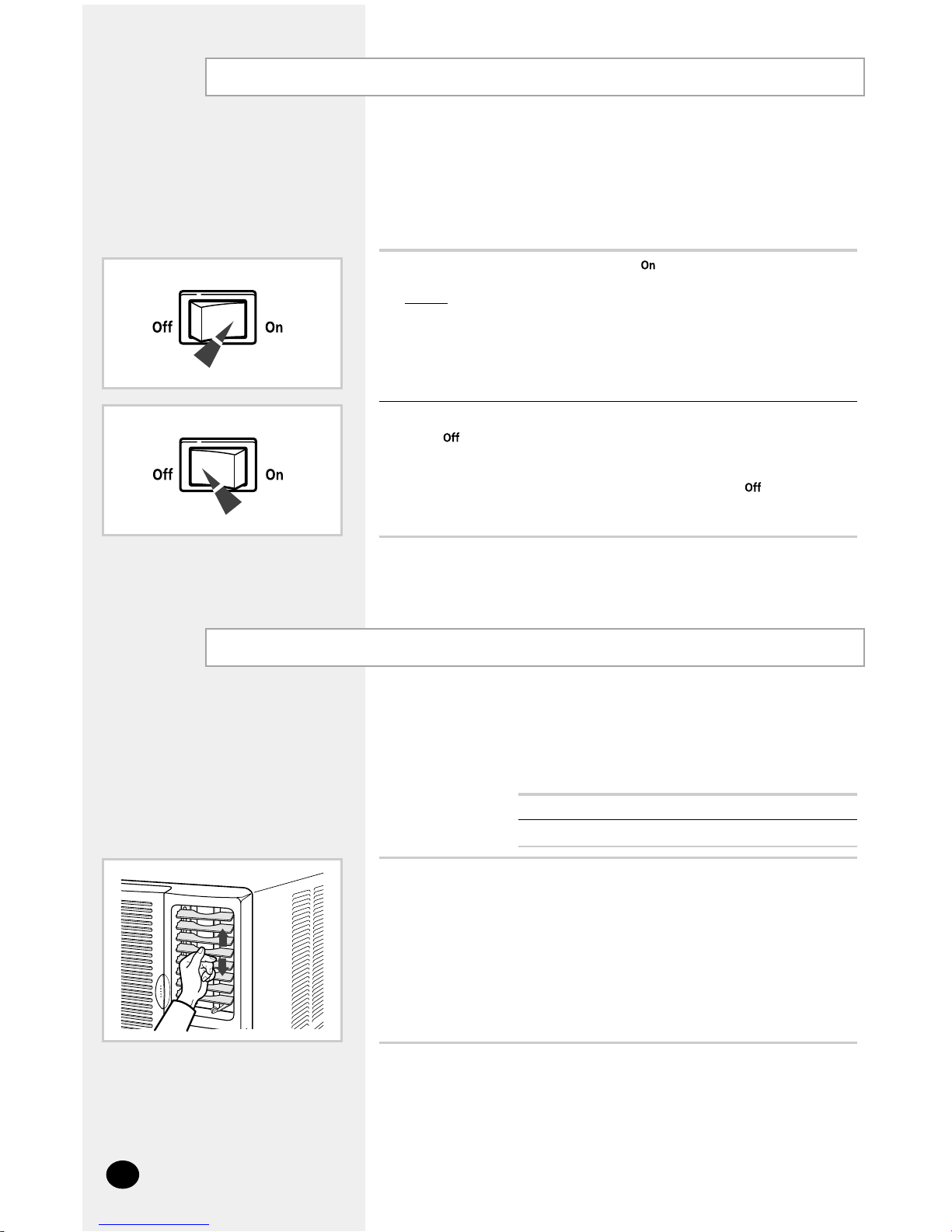

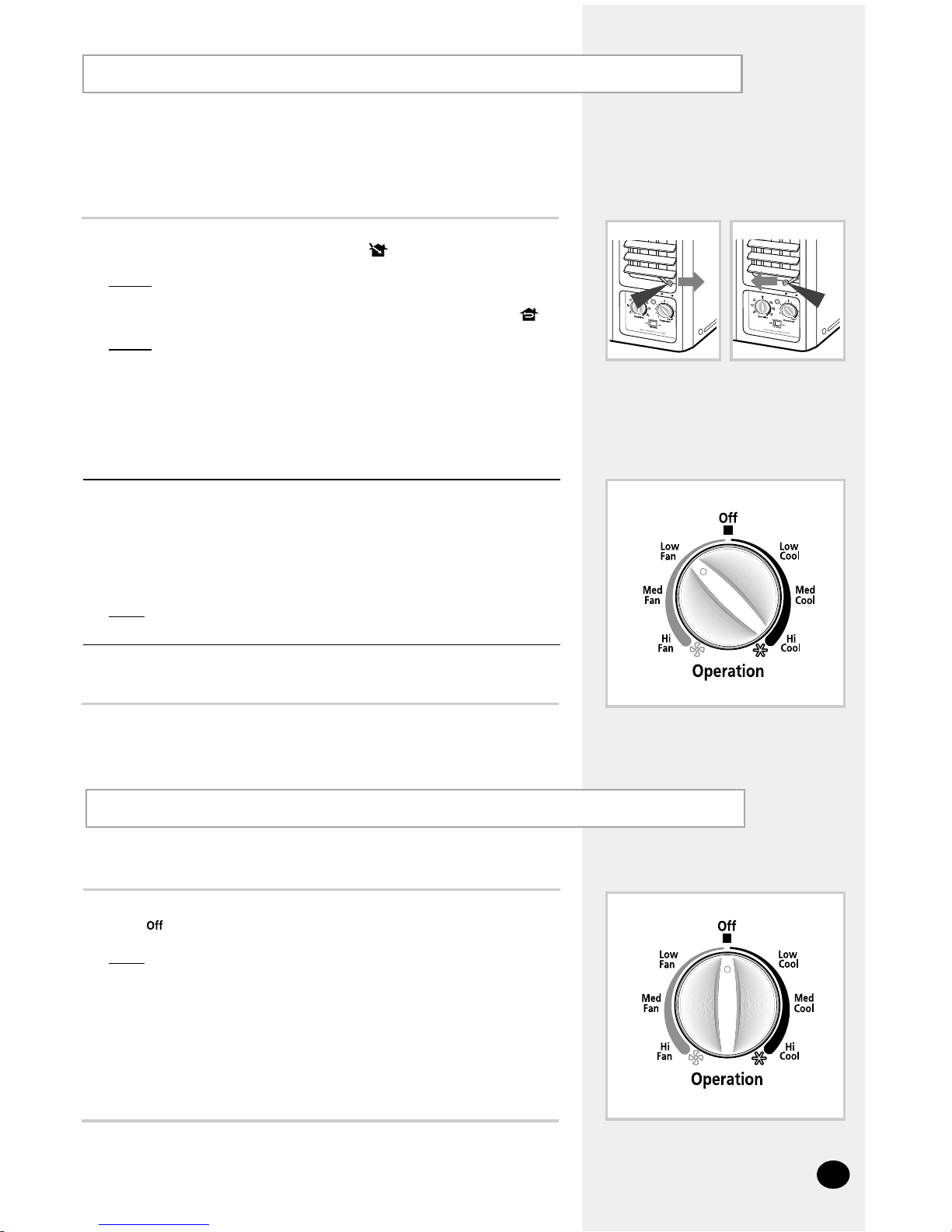

Airing Your Room

Switching the Air Conditioner Off

To switch the unit off, simply set the operating mode selection dial

to the position.

Result: The air conditioner stops operating.

If the atmosphere in your room is stale, you can air it using

the Fan feature and if necessary, evacuate the stale air outside.

You can switch the air conditioner off whenever you want.

Set the operating mode selection dial to the Hi Fan, Med Fan or

Low Fan position.

Hi Fan : The fan turns high speed.

Med Fan : The fan turns med speed.

Low Fan : The fan turns low speed.

Result: The air conditioner starts up in Fan mode.

To control the direction of the air flow, refer to page 8.

If you wish to evacuate stale air outside, push the ventilation lever on the front

of the unit to the right and the open position ( ).

Result:

The air inside the room circulates and stale air is evacuated outside.

Otherwise, push the ventilation lever to the left and the closed position ( ).

Result:

The air simply circulates inside the room.

➢

E-7

Adjusting the Air Flow Direction Horizontally

Adjusting the Air Flow Direction Vertically

Depending on the position of the unit in your room, you can adjust the

orientation of the inner air flow blades on the right-hand side of the

unit, thus increasing the efficiency of the air conditioner.

To stop the blades moving left and right, set the air flow blade swing switch

to the position.

To stop the blades in a specific position and orient the air flow in the

corresponding direction, simply set the switch to the position

when the blades are in the desired position.

Set the air flow blade swing switch to the position.

Result:

The inner blades swing automatically left and right.

Again depending on the position of the unit in your room, you can

adjust the orientation of the outer air flow blades on the right-hand

side of the unit.

RECOMMENDATION When...

Cooling

Adjust the blades to face...

Upwards.

Adjust the air flow blades to the desired position, by pushing them

upwards or downwards.

If you orient the air flow blades downwards and the unit operates

in Cool mode for long periods of time, dew may:

◆

Form on the surface of the blades

◆

Drip from the blades

➢

E-8

Operating Recommendation

If the air conditioner is used at... Then...

Higher temperature The automatic protection feature may be triggered

and the air conditioner stopped.

Lower temperature A water leakage or some other malfunction may happen

if the heat exchanger freezes.

Higher humidity levels Water may condense on and drip from the surface of the unit

if it is used for long periods.

The following table indicates the temperature and humidity ranges,

within which the air conditioner can be used.

Indoor

Temperature

Mode Outdoor

Temperature Indoor Humidity

Cooling 21°C to 32°C approx. 21°C to 54°C approx. 80% or less

Here is a recommendations that you should follow when using your air

conditioner.

Topic Recommendation

If a power failure occurs when the air conditioner is operating,

the unit is switched off. When the power returns,

the air conditioner starts up again automatically.

Power failure

Temperature and Humidity Ranges

E-9

Cleaning Your Air Conditioner (✴✴✴✴F1✴✴✴ models)

If you... Then...

Will not be using the ◆ Set the fan going for three to four hours

air conditioner for a to dry the inside of the air conditioner

long period of time thoroughly.

◆ Switch the air conditioner off and

unplug it from the wall socket.

◆ Clean the filter and outer surfaces.

Have not used the air Set the fan going for a few hours to

conditioner for a long dry the inside of the air conditioner

period of time thoroughly.

➢

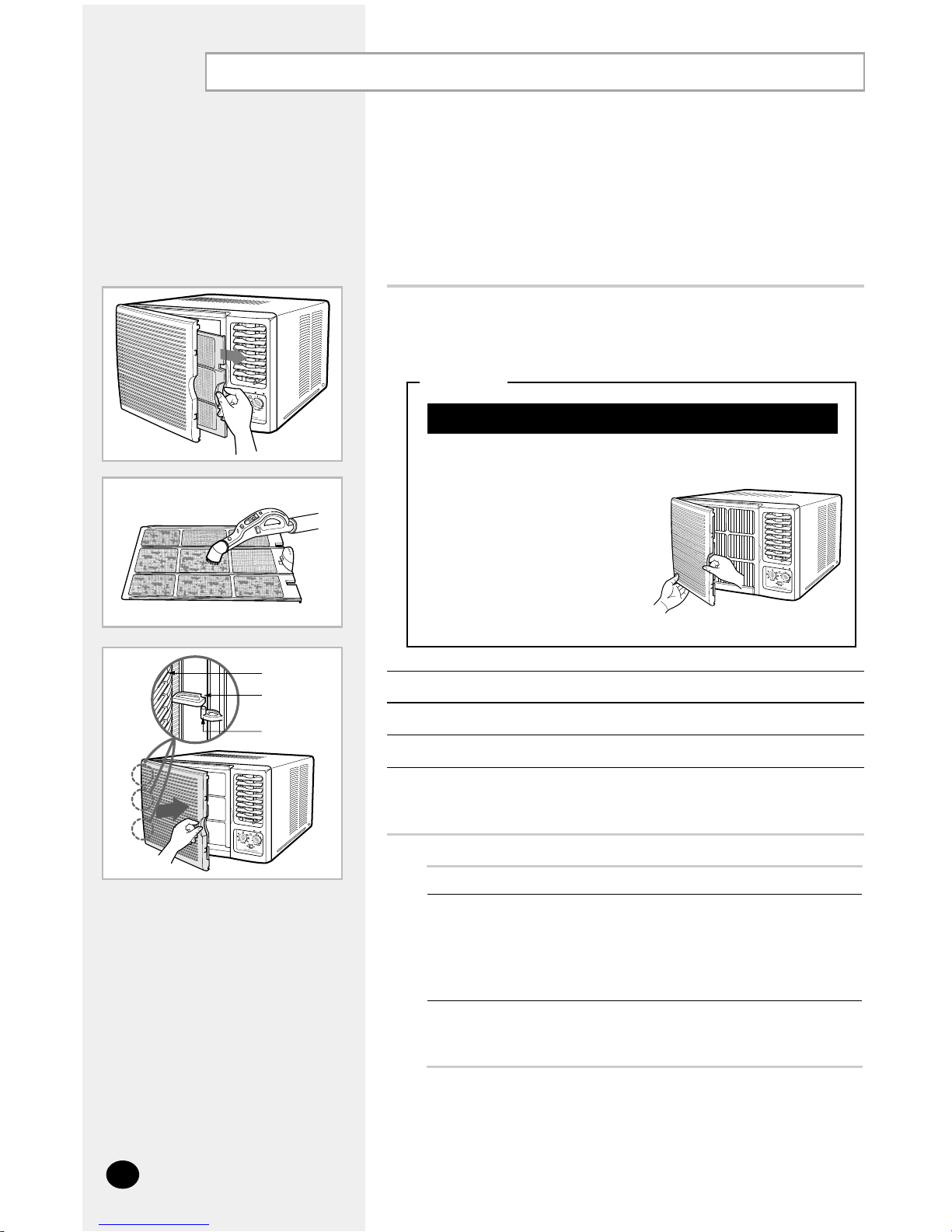

Hold the air filter handle, slightly pull it to the left side and open the front grille.

Pull the air filter to the right side.

Remove all dust on the air filter with a vacuum cleaner or brush.

When you have finished, insert the air filter back into its original position.

Wipe the surface of the unit with a neutral detergent and then wipe it again

with dry cloth.

(Be sure not to use benzene, solvent or other chemical products.)

The removal of the front grille makes it easier to clean the air

conditioner. Open the grille as much as possible.

➢

Be sure to clean the air filter periodically two weeks to maintain

the air conditioner in the best condition for a long period of time.

Removal and Reassembly of the Front Grille

Grasp the lower part of the front

grille and the air filter handle, then

open the grille. (The open angle

of front grille has not to be

exceeded 90 degree)

Push the front grille on the left and

remove it from the front panel.

Reassembling of front grille

should be done in reverse

order of disassembly.

Safety clip

CCAA

AAUU

UUTT

TTII

IIOO

OONN

E-10

Front grille

Grille groove

Body guide

When cleaning the air conditioner, turn it off and pull out

the power plug.

☛

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Klimaanlage Handbücher

Samsung

Samsung AM KNTD Series Bedienungsanleitung

Samsung

Samsung PC6EUX AN Series Bedienungsanleitung

Samsung

Samsung AQ07P2GE Bedienungsanleitung

Samsung

Samsung MRK-A00 Bedienungsanleitung

Samsung

Samsung AQ30C2BC Bedienungsanleitung

Samsung

Samsung AC026HBLDKH Bedienungsanleitung

Samsung

Samsung AW07A Bedienungsanleitung

Samsung

Samsung AC052MN4DKH Bedienungsanleitung

Samsung

Samsung AWT18WBHDE Bedienungsanleitung

Samsung

Samsung 1 way cassette type Bedienungsanleitung

Samsung

Samsung AR-KP/JP Series Leitfaden

Samsung

Samsung AVXTJ series Bedienungsanleitung

Samsung

Samsung AS09E Series Bedienungsanleitung

Samsung

Samsung AQV12ACME Bedienungsanleitung

Samsung

Samsung AM KN4DCH Series Bedienungsanleitung

Samsung

Samsung AM JN1DEH Series Bedienungsanleitung

Samsung

Samsung MH020FPEA Bedienungsanleitung

Samsung

Samsung AC018KNZDCH/AA Bedienungsanleitung

Samsung

Samsung NJ026LHXEA Bedienungsanleitung

Samsung

Samsung DH052EAM Bedienungsanleitung

Samsung

Samsung AM KN4DCH Series Bedienungsanleitung

Samsung

Samsung AC071TN4PKC Bedienungsanleitung

Samsung

Samsung AQ18FA Series Bedienungsanleitung

Samsung

Samsung ACH1800E Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung

Webasto

Webasto Frigo Top 25 DS Bedienungsanleitung

Frigidaire

Frigidaire FAZ12ES2A Bedienungsanleitung
