Samsung MRK-A00 Bedienungsanleitung

ENGLISH

Receiver & Display Unit

INSTALLATION MANUAL

MANUAL DE INSTALACIÓN

MANUEL D’INSTALLATION

MANUALE D’INSTALLZIONE

MANUAL DE INSTALAÇÃO

INSTALLATIONS-HANDBUCH

E°XEIPI¢IO E°KATA™TA™H™

àçëíêìäñàü èé ìëíÄçéÇäÖ

ESPAÑOL

FRANÇAIS

ITALIANO

PORTUGUÊS

DEUTSCH

E§§HNIKA

RUSSIAN

System Air Conditioner

Aire acondicionado sistemático

Climatiseur numérique multifonctionnel

Sistema Aria Condizionata

Sistema Ar Condicionado

Klimaanlage System

™‡ÛÙËÌ· ∫ÏÈÌ·ÙÈÛÌÔ‡

ëËÒÚÂÏÌ˚ ÇÓÁ‰Û¯Ì˚ äÓÌ‰ËˆËÓÌÂ

E S F I P D G R A DB98-05186A(2)

MRK-A00, A00U

MRK-B00, B00U

MRK-B01, B01U

Safety Precautions

◆Read carefully this installation manual before

installation and check whether the receiver & display

unit is installed correctly after installation.

◆Do not attempt to install or repair this receiver &

display unit by yourself.

◆This receiver & display unit contains no user-

serviceable parts. Always consult authorized service

personnel for repairs.

◆When moving, consult authorized service personnel

for disconnection and installation of the receiver &

display unit.

◆Ensure that the wall is strong enough to support the

weight of the receiver & display unit.

◆Must install the receiver & display unit with the wire

kit which is supplied with the unit.

◆The receiver & display unit must be installed

according to the national electrical rules by an

installation specialist.

◆When you want to disuse the receiver & display unit,

consult authorized installation center.

WARNING

E-2

This installation manual indicates you to install the receiver & display unit which

is supplied with the wireless remote controller of duct type air conditioner. For

installation of other optional accessories, see an appropriate installation manual.

CAUTION ◆

Do not use inflammable gases near the receiver &

display unit.

◆

Do not install the receiver & display unit in a location

where it will come into contact with the combustible

gases, machine oil, sulphide gas, etc.

◆

Avoid a location where acid/alkali solution or special

spray is used.

◆

Choose a location that is dry and sunny, but not

exposed to direct sunlight. Available temperature is

between 0°C(32°F) and 39°C(102°F).

◆

Do not spill water into the receiver & display unit.

◆

Do not give tensile strength to the cable to avoid

disconnection.

◆

Do not press buttons with a pointed thing.

◆

If the receiver & display unit is installed in a hospital

or other special places, it should not affect other

electronic devices.

E-3

ENGLISH

Receiver & Display Unit Installation - Concealed Type

E-4

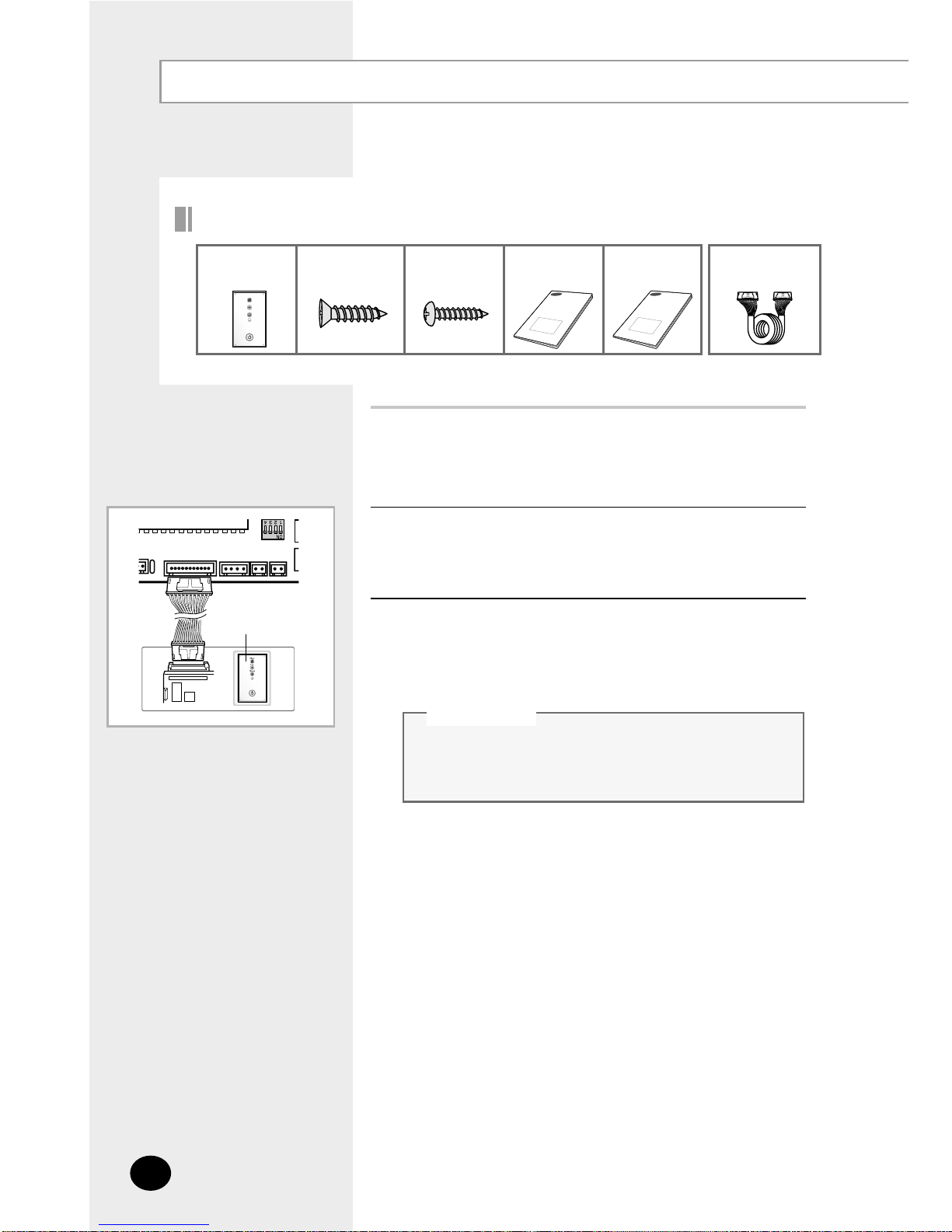

Accessories

MRK-A00, A00U

Receiver &

display unit (1)

STS 2S-2x10

tapped screw (4)

2S-4x12 tapped

screw (2)

Owner’s

instructions(1) Installation

manual (1)

Wire kit

(Length:10m)

Remove the receiver & display unit cover by using the

tab on its bottom.

Open the receiver & display unit.

Connect the end of the connector wire to the receiver

& display unit and connect the other end of the wire to

the MAIN PCB (CN91) as shown in figure.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

Do NOT keep the receiver & display unit cable

with a 220V cable because the remote controller

cables have low voltage.

◆

Receiver &

display unit

E-5

ENGLISH

Secure the receiver & display unit on the wall with

two screws.

Reassemble the receiver & display unit cover.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

◆ The receiver & display unit must be installed by an

installation specialist.

◆ Before installing the receiver & display unit, ensure

that you have turned off the main power.

◆ All receiver & display unit cables should be installed

according to the national wiring rules and you must

install it in the wall not to be touched by users.

Receiver & Display Unit Installation - Standard Type

Accessories

MRK-B00, B00U, B01, B01U

Receiver &

display unit (1)

Cable-tie (2) Cable clamp

(5)

M4 X 16 tapped

screw (7)

Owner’s

instructions(1) Installation

manual (1) Wire Kit

(Length:10m)

E-6

Remove the receiver & display unit cover by using the

tab on its bottom.

Open the receiver & display unit.

Connect the end of the connector wire to the receiver

& display unit and connect the other end of the wire to

the MAIN PCB (CN91) as shown in figure.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

Do NOT keep the receiver & display unit cable

with a 220V cable because the remote controller

cables have low voltage.

◆

Receiver &

display unit

E-7

ENGLISH

Close the receiver & display unit.

Secure the receiver & display unit on the wall with two

screws.

Reassemble the receiver & display unit cover.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

◆ The receiver & display unit must be installed by an

installation specialist.

◆ Before installing the receiver & display unit, ensure

that you have turned off the main power.

◆ All receiver & display unit cables should be installed

according to the national wiring rules and you must

install it in the wall not to be touched by users.

ELECTRONICS

THIS AIR CONDITIONER IS MANUFACTURED BY:

ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR:

CE CLIMATISEUR EST FABRIQUE PAR:

QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA:

ESTE APARELHO DE AR CONDICIONADO É FABRICADO POR:

DIESE KLIMAANLAGE IST FABRIZIERT VON:

AYTH H ™Y™KEYH KATA™KEYA™THKE A¶O:

ùíéí äéçÑàñàéçÖê àáÉéíéÇãÖç îàêåéâ:

Printed in Korea
