Samsung AW2402M Bedienungsanleitung

OWNER’S

INSTRUCTIONS

AW2402M

WINDOW -TYPE

ROOM AIR CONDITIONER

( Cool )

DB98-15113A(1)

The following safety precautions must be taken when installing

and using your air conditioner.

Safety Precautions

1The air conditioner must be plugged into its own specific power source, which must be

installed in compliance with national wiring, earthing and safety regulations.

Depending on national regulations and your specific installation, you may need to install:

A circuit breaker

For further information on electrical requirements, contact a professional electrician.

This device must be installed according to the national electrical rules.

2Make sure that the unit is correctly ventilated at all times;

do NOT place clothing or other materials over it.

Do NOT insert anything between the air outlet blades, as it may damage the inner fan

and you may get hurt. Keep children away from the unit.

If the supply cord is damaged, it must be replaced by the manufacturer,

its service agent

or similarly qualified persons in order to avoid a hazard.

6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:

An authorized service center

The dealer from whom you purchased the air conditioner.

7Do NOT place any blocking objects in front of the unit.

3NEVER spill liquids of any kind into the unit.

Should this happen, unplug the unit and contact your installation specialist.

8If the remote control will not be used for a long time, remove the batteries.

9Before throwing out the device, it is necessary to pull back the battery cells

and get rid of them safely.

The appliance is not intended for use by young children or infirm person without supervision;

young children should be supervised to ensure that they do not play with the appliance.

11 Do NOT use an extension cord with this product.

The manufacturer does not assume responsibility for accidents or injury

caused by an incorrectly installed air conditioner. If you are unsure about

installation, contact an installation specialist.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

E-2

E-

Contents

PREPARING YOUR AIR CONDITIONER

Safety Precautions ......................................................................................... 2

Description of Each Component .................................................................... 4

Getting Started ............................................................................................... 5

OPERATING YOUR AIR CONDITIONER

Cooling Your Room ........................................................................................ 6

Ventilating Your Room .................................................................................... 7

Switching the Air Conditioner Off .................................................................... 8

Adjusting the Air Flow Direction Horizontally .................................................. 9

Adjusting the Air Flow Direction Vertically ...................................................... 9

RECOMMENDATIONS FOR USE

Power Failure ................................................................................................. 10

Temperature and Humidity Ranges ................................................................ 10

Cleaning Your Air Conditioner ........................................................................ 11

Solving Common Problems ............................................................................ 12

Technical Specifications ................................................................................. 13

Air filter

(The air filter is

located in inside.)

Air inlet (Inside)

Air outlet

Thermostat control

Operating mode

selection dial

Air Swing switch

Outer air flow blades

(up/down orientation)

Air inlet (Outside)

Air outlet

Ventilation lever

Power plug (The type of

power plug may differ,

depending on the local

power supply.)

Inner air flow blades

(right/left orientation)

E-4

Description of Each Component

E-5

Getting Started

You have just purchased a Samsung window-type r oom air conditioner which should be

installed following your Owner’ s Instructions.

Your Owner's Instructions contain much valuable information on using your air conditioner.

Please take the time to r ead them as they will help you take full advantage of the unit's

features.

The illustrations in the step-by-step procedures use four different symbols:

PRESS PUSH IMPORTANT NOTE

To control the direction of the air flow, refer to page 9.3

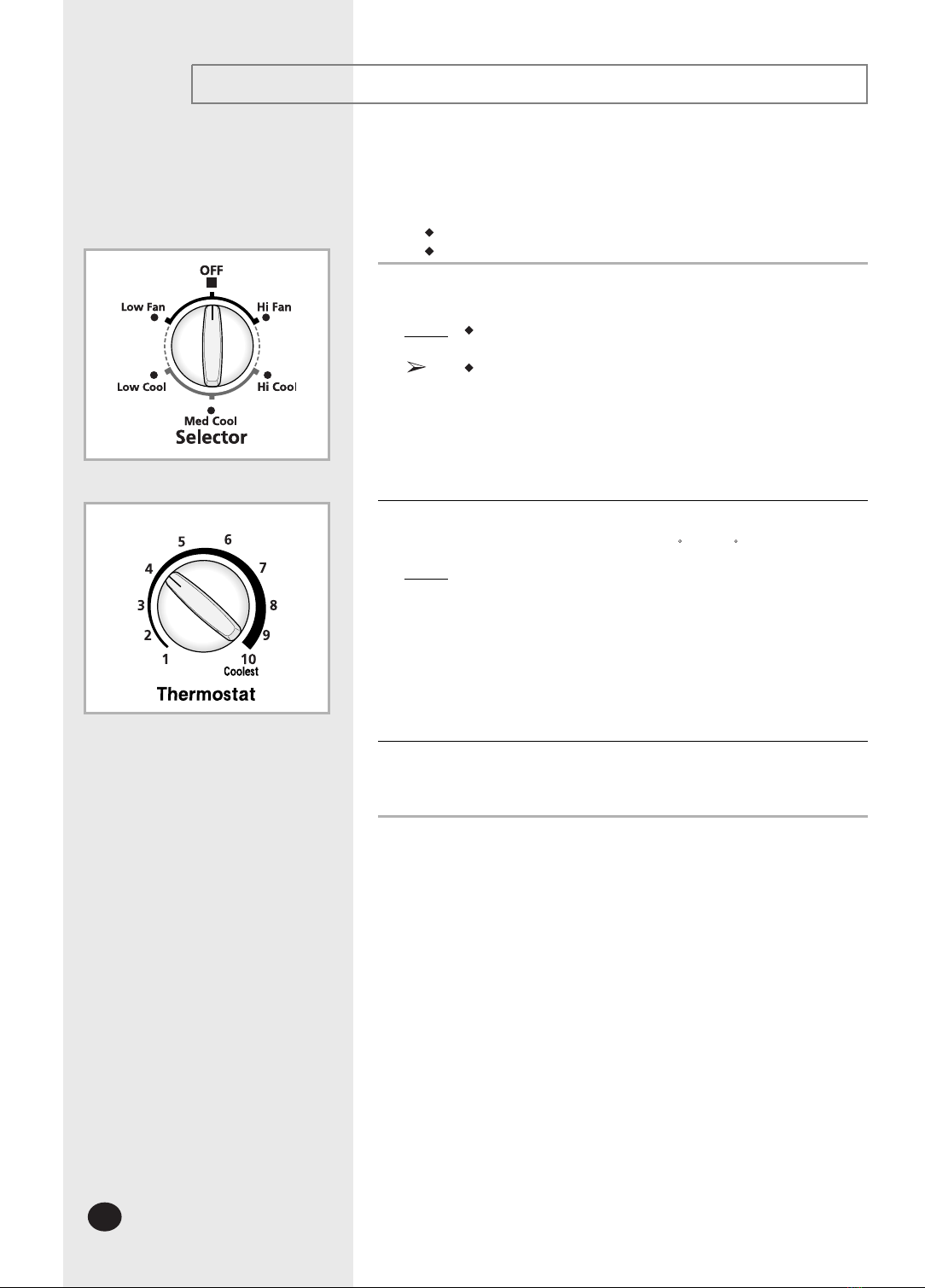

Turn the operating mode selection dial and set it to " Hi Cool " ,

" Med Cool " or " Low Cool ".

Result: The air conditioner starts up in cool mode.

You can change modes at any time.

Turn the THERMOSTAT control to the desired position.

You must select the COOL mode if you wish to adjust the:

Cooling temperature

Fan speed when Cooling

Possible temperatures: Can be set between 64

F and 84

Result: The air conditioner starts cooling if the room temperature is

higher than the selected temperature.

E-6

Cooling Your Room

Ventilating Your Room

E-

If the air in your room is stale, you can ventilate the room using the

Fan feature.

Turn the operating mode selection dial and set it to "Hi Fan" or "Low Fan"

position.

Result: The air conditioner starts up in fan mode.

Hi Fan : The fan turns rapidly.

Low Fan : The fan turns slowly.

You can change modes at any time.

To control the direction of the air flow, refer to page 9.

If you wish to discharge stale air, push the ventilation lever on the front

of the unit to the right and open position ( ).

Result:

The air inside the room circulates and stale air is discharged

outside.

Otherwise, push the ventilation lever to the left and closed position ( ).

Result:

The air simply circulates inside the room.

Ventilating Your Room

E-8

Switching the Air Conditioner Off

To switch the unit off, simply set the operating mode selection dial to the

OFF

position.

Result: The air conditioner stops operating.

You can switch the air conditioner off whenever you want.

E-

Adjusting the Air Flow Direction Vertically

The outer air flow blades can be adjusted to control the vertical air

flow direction.

RECOMMENDATION When...

Cooling

Adjust the blades to face...

Upwards.

Adjust the air flow blades to the desired position, by pushing them

upwards or downwards.

If you orient the air flow blades downwards and the unit operates

in Cool mode for long periods of time, dew may:

Form on the surface of the blades

Drip from the blades

To stop the blades moving left and right, set the Swing switch to the

position.

Set the Swing switch to the position.

Result:

The inner blades swing automatically left and right.

To stop the blades in a specific position and orient the air flow in the

corresponding direction, simply set the switch to the " position when

the blades are in the desired position.

Adjusting the Air Flow Direction Horizontally

The inner air flow blades on the right side of the unit can be adjusted to direct the air

flow to the left, right or straight, thus incr easing the efficiency of the air conditioner.

OFF

E-

Power Failure

Temperature and Humidity Ranges

If the air conditioner is used at... Then...

Higher temperature The automatic protection feature may be triggered

and the air conditioner stopped.

Lower temperature A water leakage or some other malfunction may happen

if the heat exchanger freezes.

Higher humidity levels Water may condense on and drip from the surface of the unit

if it is used for long periods.

The following table indicates the temperatur e and humidity ranges

within which the air conditioner can be used.

Mode Indoor

Temperature

Outdoor

Temperature

Indoor Humidity

Cooling 70

F to 90

F approx. 70

F to 110

F approx. 80% or less

If a power failure occurs, the air conditioner is switched off.

When the power comes back on, the air conditioner starts up again

automatically.
