Samsung AW25ECB7 Bedienungsanleitung

DB98-27303A(1)

E-3

Contents

PREPARING YOUR AIR CONDITIONER

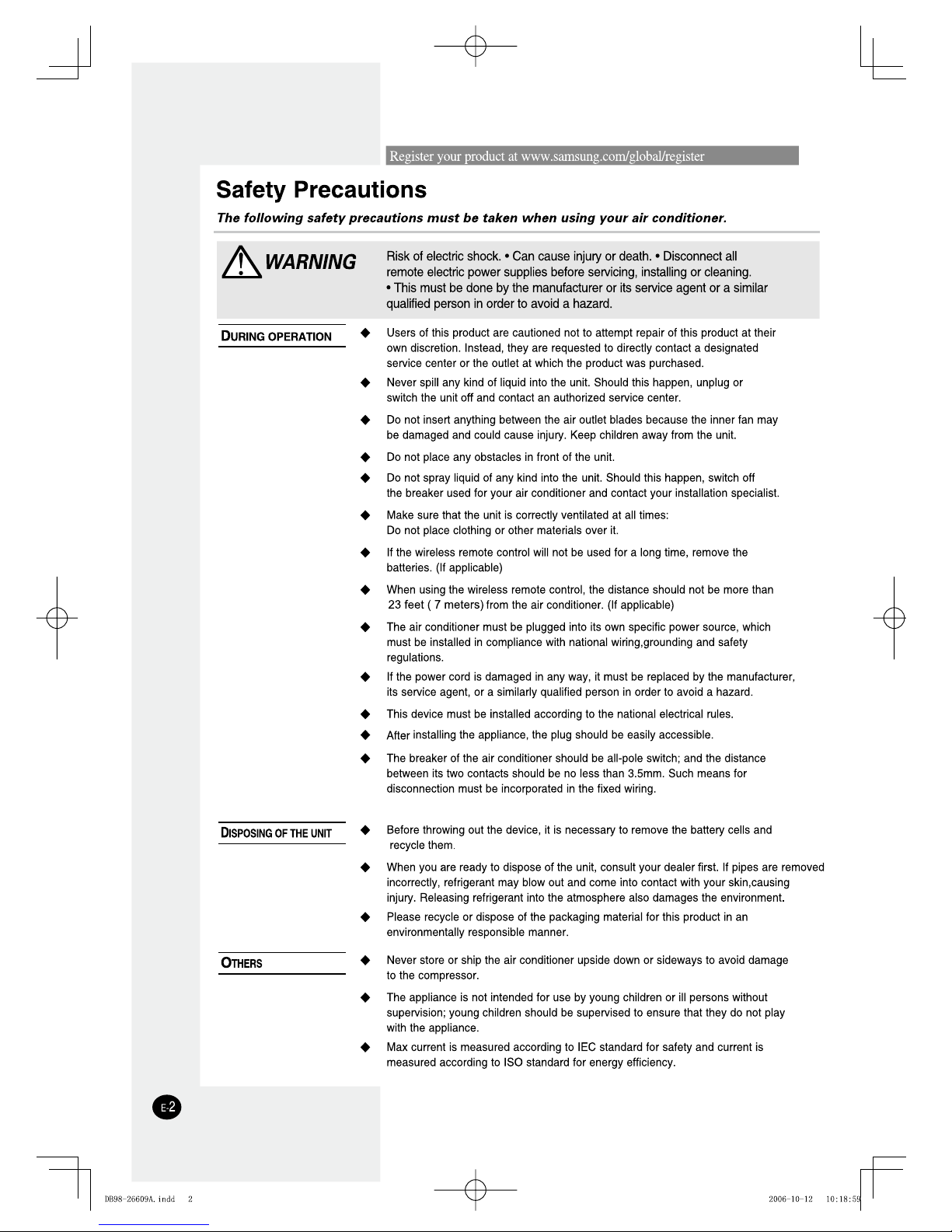

Safety Precautions ......................................................................................... 2

Description of Each Component .................................................................... 4

Remote Control - Buttons .............................................................................. 5

Getting Started ............................................................................................... 6

Inserting the Remote Control Batteries .......................................................... 7

OPERATING YOUR AIR CONDITIONER

Cooling Your Room ........................................................................................ 8

Airing Your Room ........................................................................................... 9

Removing Excess Humidity ............................................................................ 10

Adjusting the Air Flow Direction Horizontally .................................................. 11

Adjusting the Air Flow Direction Vertically ...................................................... 11

PROGRAMMING YOUR AIR CONDITIONER

Setting the On Timer ...................................................................................... 12

Setting the Off Timer ...................................................................................... 13

Setting the Sleep Timer .................................................................................. 14

Selecting Energy Saving mode ...................................................................... 15

RECOMMENDATIONS FOR USE

Temperature and Humidity Ranges ................................................................ 16

Cleaning Your Air Conditioner ........................................................................ 17

Troubleshooting .............................................................................................. 18

Technical Specifications ................................................................................. 19

......................................................................................................... 20

Front Grille

The Power Plug contains a Reset button that will automatically shut down

the air conditioner in the event of a power surge. To restart the unit, press

the Reset button and the unit will return to normal operation in 2-3 minutes.

Inner Air Flow

Blades Air Outlet

Ventilation Lever

Air Inlet (Outside)

Air Filter (Inside)

Power Plug

Sleep Timer setting button

Temperature Adjustment

Fan Speed Adjustment button

E-5

Remote Control - Buttons

Timer setting button

Temperature

Adjustment buttons

Fan Speed

Adjustment buttons

On/Off button

Sleep Timer setting

button

Mode selection

buttons

Energy Saver button

E-7

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

X+ on the battery with + on the remote control.

X- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

XUse two AAA, LR03 1.5V batteries.

XDo not use old batteries or different kinds of batteries together.

XBatteries may be completely discharged after 12 months, even

if they have not been used.

You must insert or replace the remote control batteries when :

XYou purchase the air conditioner

XThe remote control does not work correctly

I higher than the selected temperature,

the Air Conditioner starts cooling

A C

It will begin to cool after three minutes

is displayed.

You must select the Cool mode if you wish to lower the temperature

in your room. You can also set the Fan Speed.

F S

Remote Control Control Panel

The Air Conditioner starts up in Cool mode.

E-9

Airing Your Room

If you want to provide air circulation without cooling, you can use

the Fan mode.

If necessary, press the (On/Off) button.

Result: The Air Conditioner starts up in Cool mode

The unit beeps twice.

To set the Fan Speed:

Press the , or button on the Remote control as desired.

Press the button on the unit one or more times until the

desired Fan Speed(F1, F2 or F3) is displayed.

To control the direction of the air flow, refer to page 11.

If the Fan Speed(F1, F2 or F3) is not displayed on the control panel:

Press the button on the remote control

Press the button on the unit one or more times until the Fan Speed

(F1, F2 or F3) is displayed.

Result:The unit beeps each time you press the / button.

The Air Conditioner starts up in Fan mode.

You can change modes at any time.

When the Air Conditioner is in Fan mode, the temperature

cannot be set or displayed.

Mode

Cool/Dry/Fan

Fan Speed

Mode

Cool/Dry/Fan

Remote Control Control Panel

If you wish to evacuate stale air outside, push the ventilation lever on the

front of the unit to the right and the open position (

Result: The air inside the room circulates and stale air is evacuated

outside.

Otherwise, push the ventilation lever to the left and the closed

position ( ).

Result: The air simply circulates inside the room.

E-10

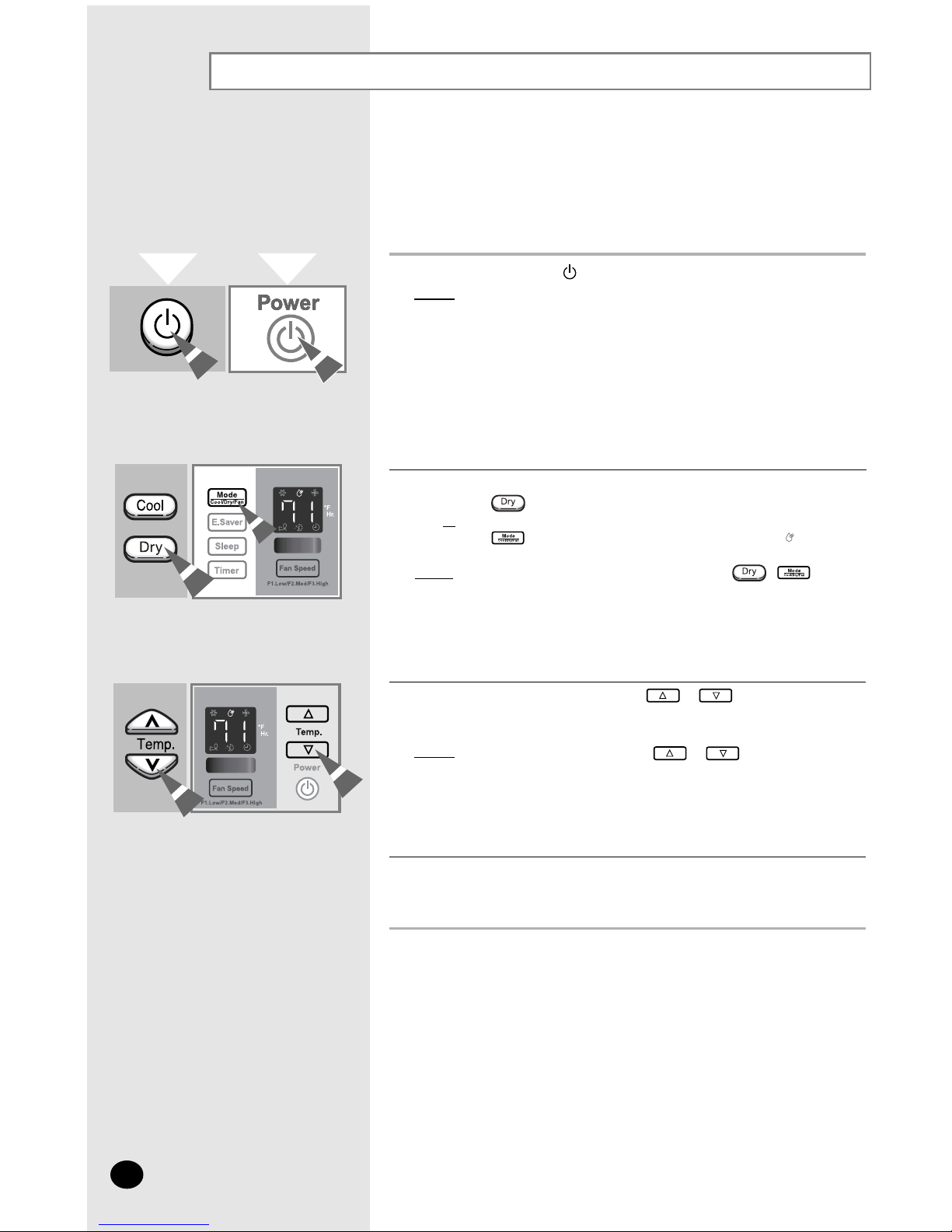

Removing Excess Humidity



Remote Control Control Panel

If the temperature is not displayed on the control panel:

X

Press the button on the Remote control

X

Press the button on the unit one or more times until is displayed.

Result:

X

The unit beeps each time you press the / button.

X

The Air Conditioner starts up in Cool mode.

You can change modes at any time.

If the atmosphere in your room is very humid or damp, you can remove

excess humidity without lowering the room temperature too much.

1If necessary, press the (On/Off) button.

Result:XThe Air Conditioner starts up in Cool mode.

XThe unit beeps.

The Air Conditioner is fitted with a protection mechanism to pre-

vent the unit from being damaged when it is started immediately

after being:

XPlugged in

XStopped

It will begin to cool after three minutes.

3To adjust the temperature, press the

buttons one or

more times until the desired temperature is displayed.

The temperature can be set between

64°F and 86°F

Result:XEach time you press the

buttons:

- The temperature is adjusted by 1°F

- The unit beeps

XThe Air Conditioner starts removing the excess humidity;

the quality of air is adjusted automatically.

4To control the direction of the air flow, refer to page 11.
