Samsung IAST18SJGE/XSG Bedienungsanleitung

ENGLISH

ESPAÑOL

FRANÇAIS

Split-type Room Air Conditioner (Cool)

Aire acondicionado doméstico sistema Split (Refrigeración)

Climatiseur de type Séparé (Refroidissement)

AST18SJGB(S)

AST18SJGE(S)

AST24S6GBD(S)

AST24S6GED(S)

Indoor unit UST18SJGB(S)

UST18SJGE(S)

UST24S6GBD(S)

UST24S6GED(S)

Outdoor unit

OWNER’S INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’UTILISATION

ESFADB98-20883A(1)

E-2

Safety Precautions

You should take the following safety precautions when using your air conditioner.

◆Do not repair the air conditioner at your discretion.

It is recommended to contact a service center directly.

◆Never spill any kind of liquid on the air conditioner.

If this happens, unplug or turn off the air conditioner and contact an

authorized service center.

◆Do not insert anything between the airflow blades to prevent damage of

the inner fan and consequent injury. Keep children away from the air

conditioner.

◆Do not place any obstacles in front of the air conditioner.

◆Do not spray any kind of liquid into the indoor unit. If this happens,

turn off the breaker and contact a service center.

◆Make sure that the air conditioner is well ventilated at all times:

Do not place a cloth or other materials over it.

◆Remove the batteries if you don’t use the remote control for a long

time. (If applicable)

◆Use the remote control within 7 meters from the indoor unit. (If applicable)

WARNING

DURING OPERATION

◆Never store or load the air conditioner upside down or sideways to

prevent the damage of the compressor.

◆Young children or infirm persons should be always supervised when

they use the air conditioner.

◆Max current is measured according to IEC standard for safety.

◆Current is measured according to ISO standard for energy efficiency.

OTHERS

◆Before throwing out the air conditioner, remove the batteries from the

remote control.

◆When you dispose of the air conditioner, consult your dealer. If pipes

are removed incorrectly, refrigerant may blow out and cause air

pollution. When it contacts with your skin, it can cause skin injury.

◆The package of the air conditioner should be recycled or disposed

properly for environmental reasons.

ISPOSING OF THE UNIT

• If you don’t follow the safety precautions, you may get the risk of an electric

shock, injury or death.

•The manufacturer or qualified service personnel must install this air conditioner.

• Unplug the electric power before repairing, installing or cleaning.

E-3

ENGLISH

Contents

◆

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . . . 6

■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . . . 8

◆

PERATING YOUR AIR CONDITIONER

■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . . . . 9

■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . . . . 11

■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

■ Selecting Energy Saving Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . . . . . 15

■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . . . . 15

◆

ROGRAMMING YOUR AIR CONDITIONER

■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . . . . 19

■ Operating Your Air Conditioner Without the Remote Control . . . . . 20

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

■ Cleaning Deodorizing and Bio filter (Option) . . . . . . . . . . . . . . . . . 22

◆

ECHNICAL SPECIFICATIONS

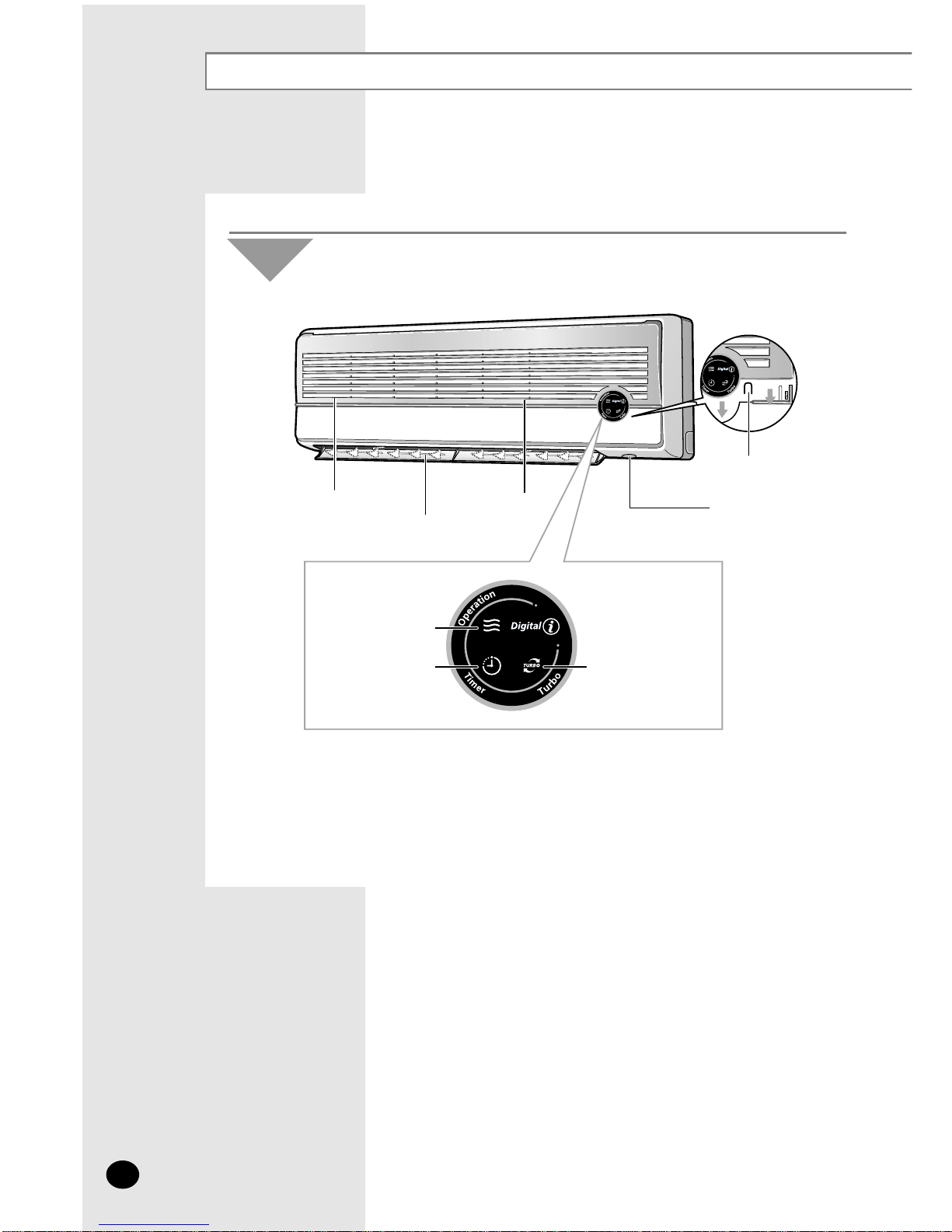

View of the Unit

E-4

The design and shape are subject to change according to the model.

Indoor Unit

Air filter

(under the grille) Air flow blades

(outlet)

Air Inlet

On/Off switch

Remote senser

Turbo indicator

(GREEN)

Operation indicator

(GREEN)

Timer indicator

(ORANGE)

E-5

ENGLISH

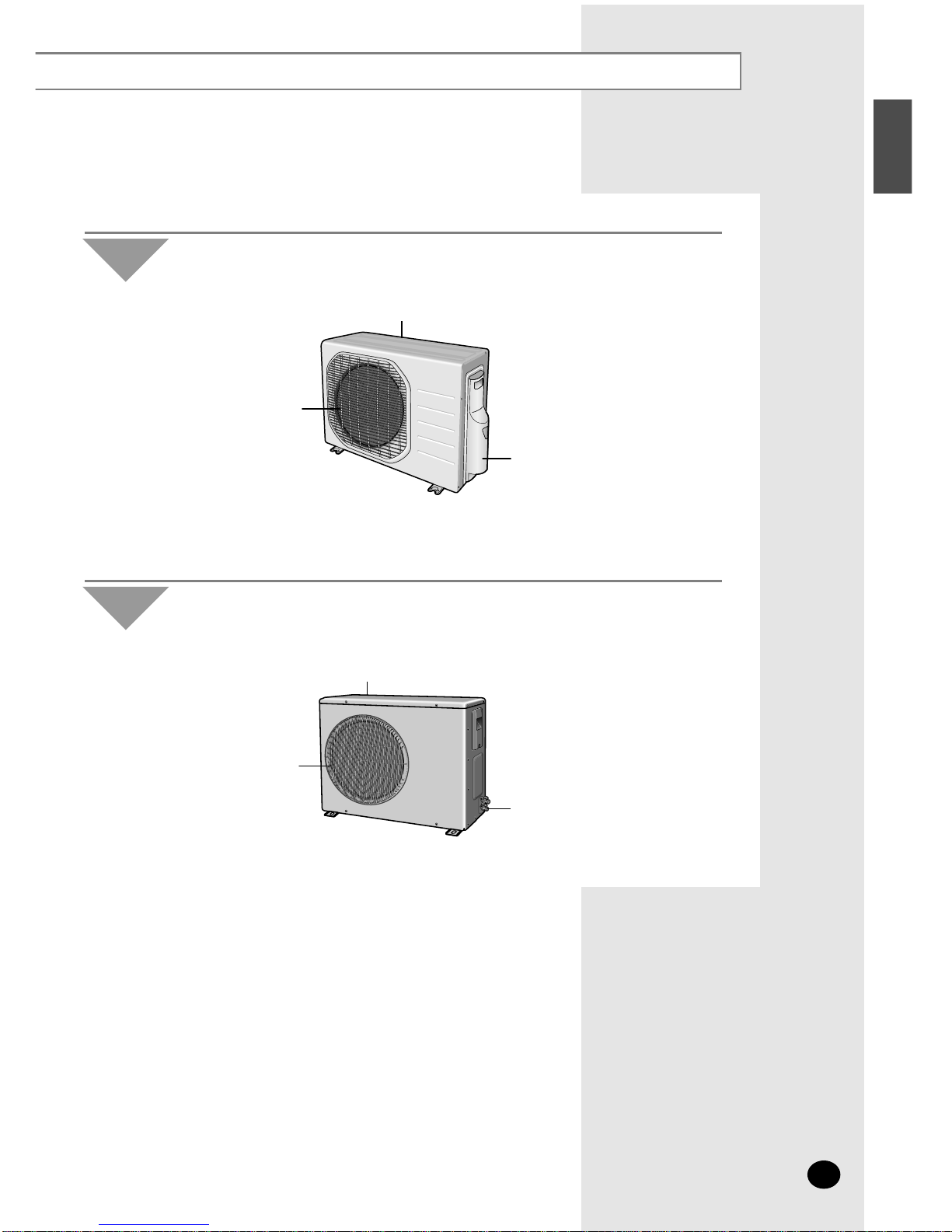

Air Inlet(Rear)

Air Outlet

Connection Valve

Outdoor Unit UST18SJGB(S) UST18SJGE(S)

Air Inlet(Rear)

Air Outlet

Connection Valve

Outdoor Unit UST24S6GBD(S) UST24S6GED(S)

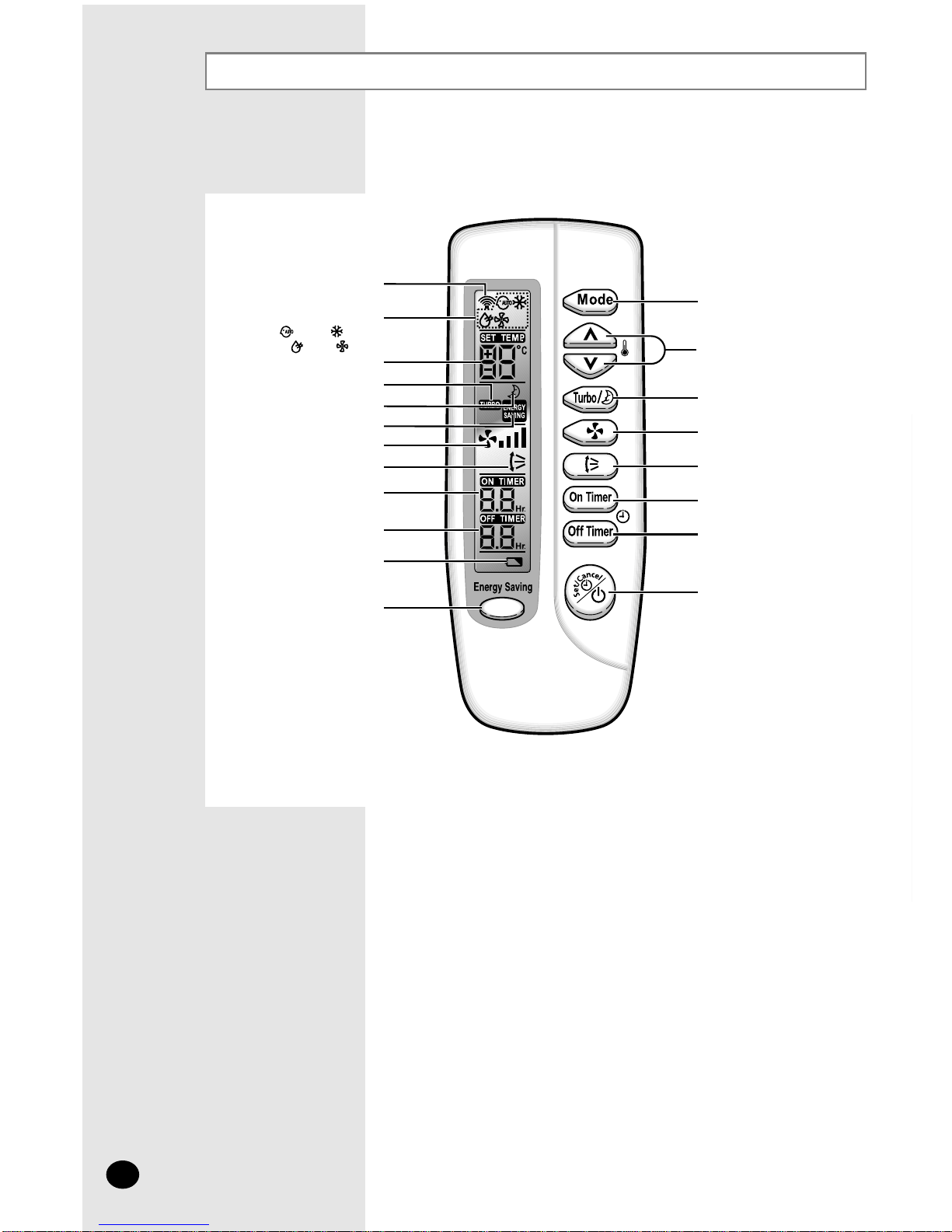

Remote Control - Buttons and Display

Operating mode

( AUTO, COOL,

DRY, FAN)

Remote control

transmission indicator Mode selection button

(AUTO, COOL, DRY, FAN)

Turbo/Sleep mode

selection button

Swing button

On Timer button

Off Timer button

On/Off &

Timer Set/Cancel button

Fan speed adjustment button

Temperature adjustment

buttons

Temperature setting

Sleep mode

Turbo mode

Energy saving

Fan speed

Air flow direction

On Timer setting

Off Timer setting

Battery discharge indicator

Energy Saving button

E-6

Getting Started

You have just purchased a split type air conditioner and it has been

installed by your installation specialist.

Your Owner’s Instructions contains valuable information on using your

air conditioner. Please take the time to read it as it will help you take full

advantage of the unit’s features.

The booklet is organized as follows.

◆The following figures are shown on pages from 4 to 6 :

- Indoor and outdoor units

- Remote control(buttons and display)

They will help you find the buttons and understand the symbols displayed.

◆In the manual, you will find a series of step-by-step procedures for each

function available.

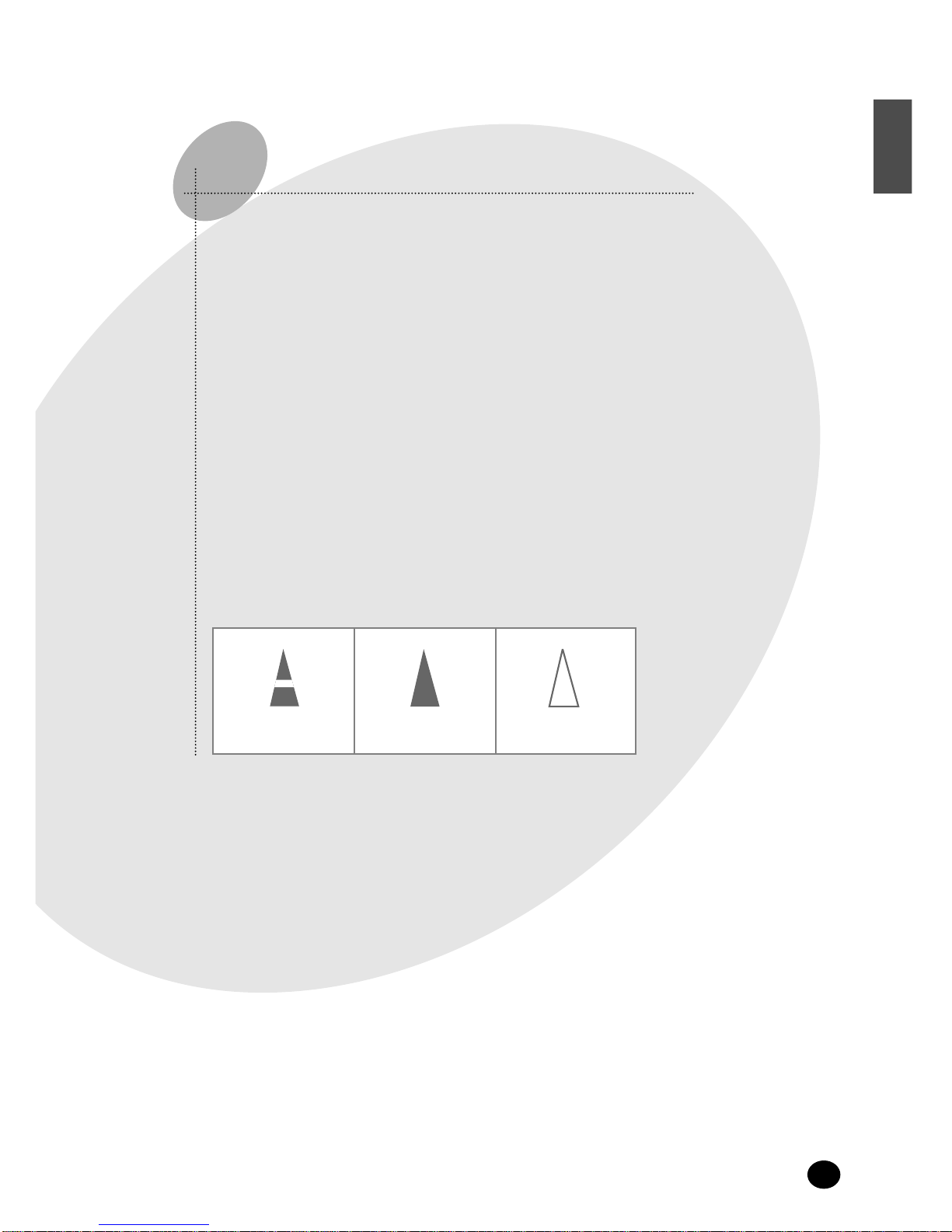

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

E-7

ENGLISH

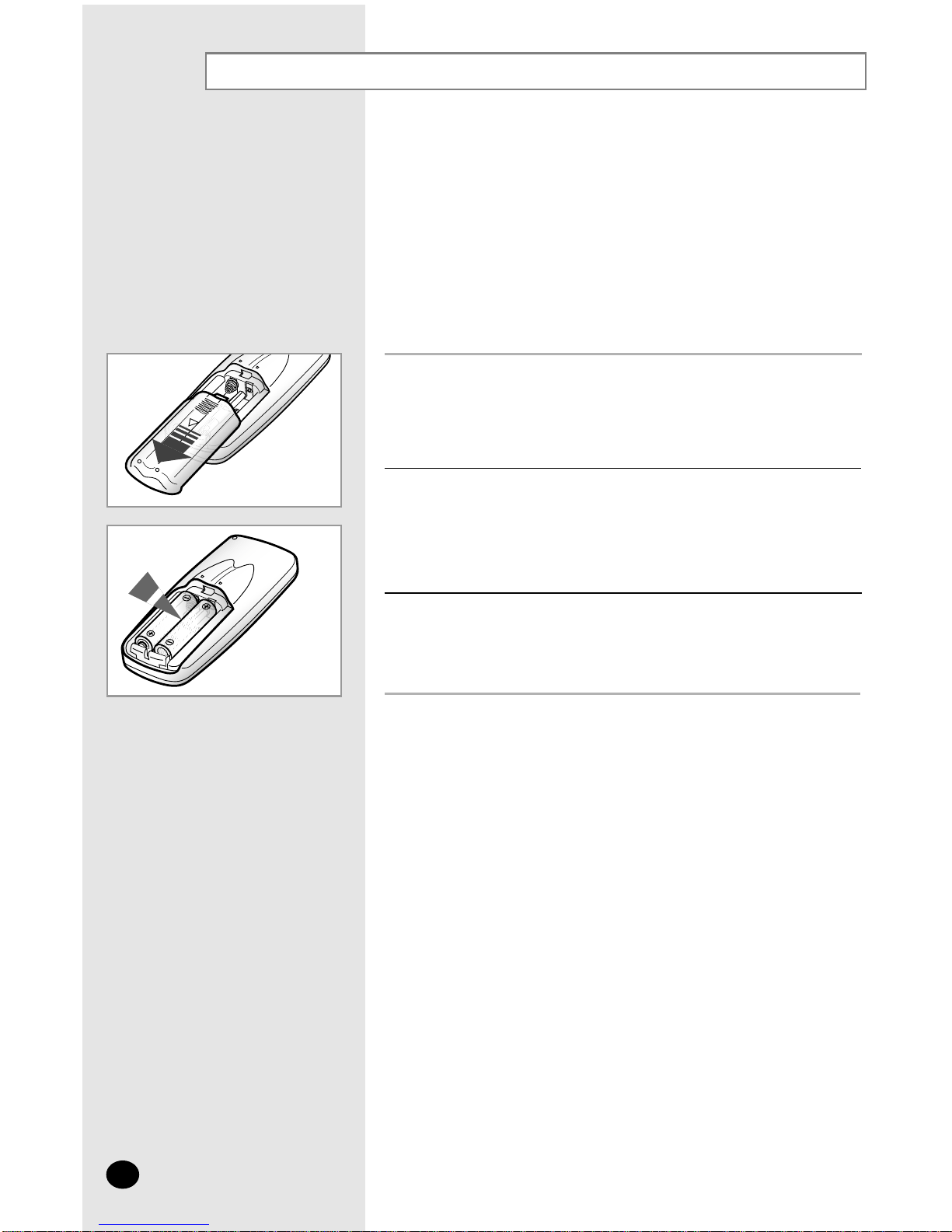

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months, even

◆if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air conditioner

◆The remote control does not work correctly

NNoo

oott

ttee

E-8

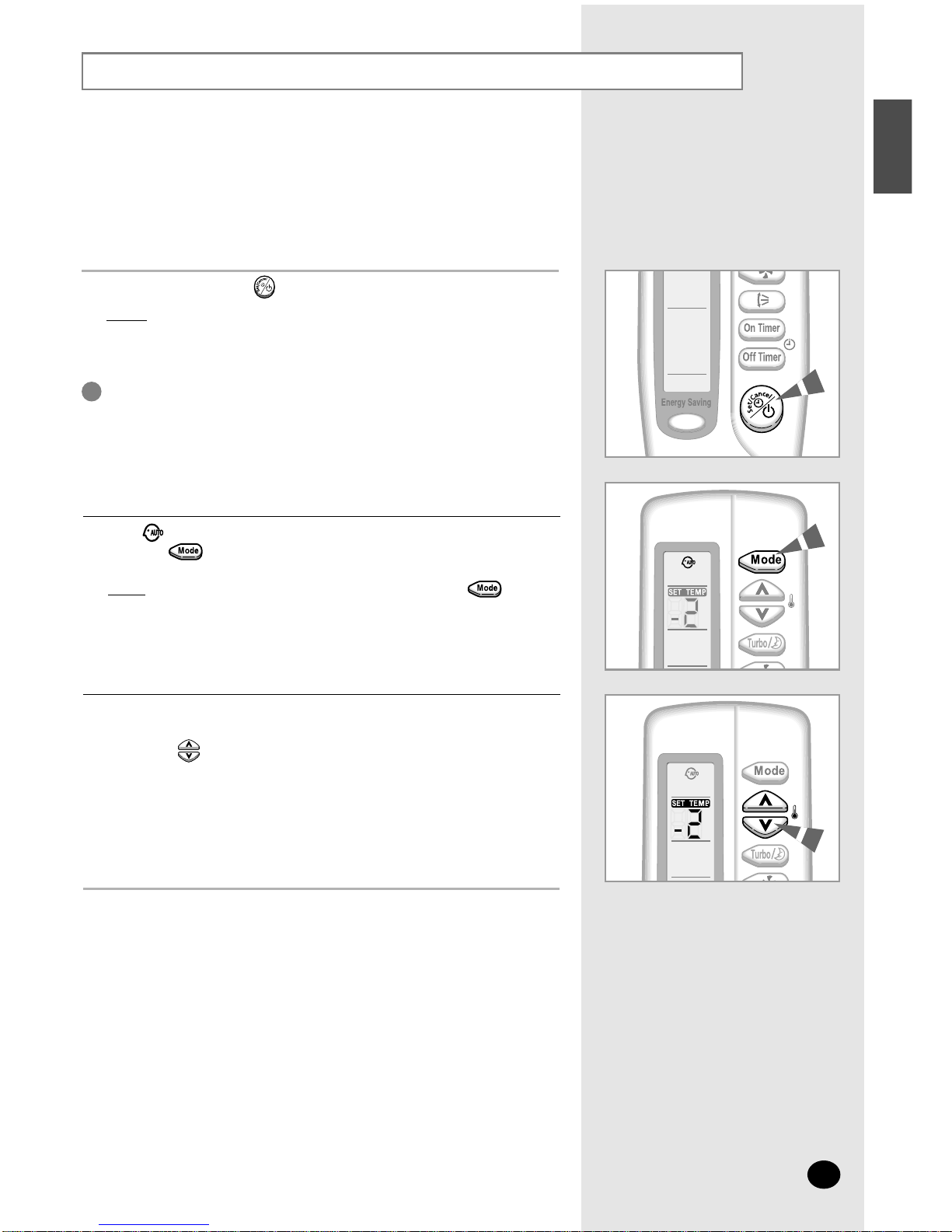

Selecting the Automatic Operating Mode

E-9

ENGLISH

You can start the air conditioner in Automatic mode from your remote

control. In the Automatic mode, the standard temperature and the

optimum fan speed is selected automatically. You can adjust the

standard temperature but not the fan speed.

If the is not displayed at the top of the remote control,

press the button on the remote control one or more times until it

appears.

Result:◆The indoor unit beeps each time you press the button.

◆The air conditioner runs in AUTO mode.

You can change modes at any time.

If necessary, press the (On/Off) button.

Result:◆The air conditioner starts up in Cool mode with

Turbo fan speed.

◆The operation indicator on the indoor unit lights up.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

NNoo

oott

ttee

To adjust the standard temperature (The air conditioner automatically

set the standard temperature by the current room temperature.),

press the button one or more times.

SET TEMP. SET TEMP. - SET TEMP. SET TEMP.

-2°C -1°C Standard temperature +1°C +2°C

< When you feel hot > < When you feel chilly >

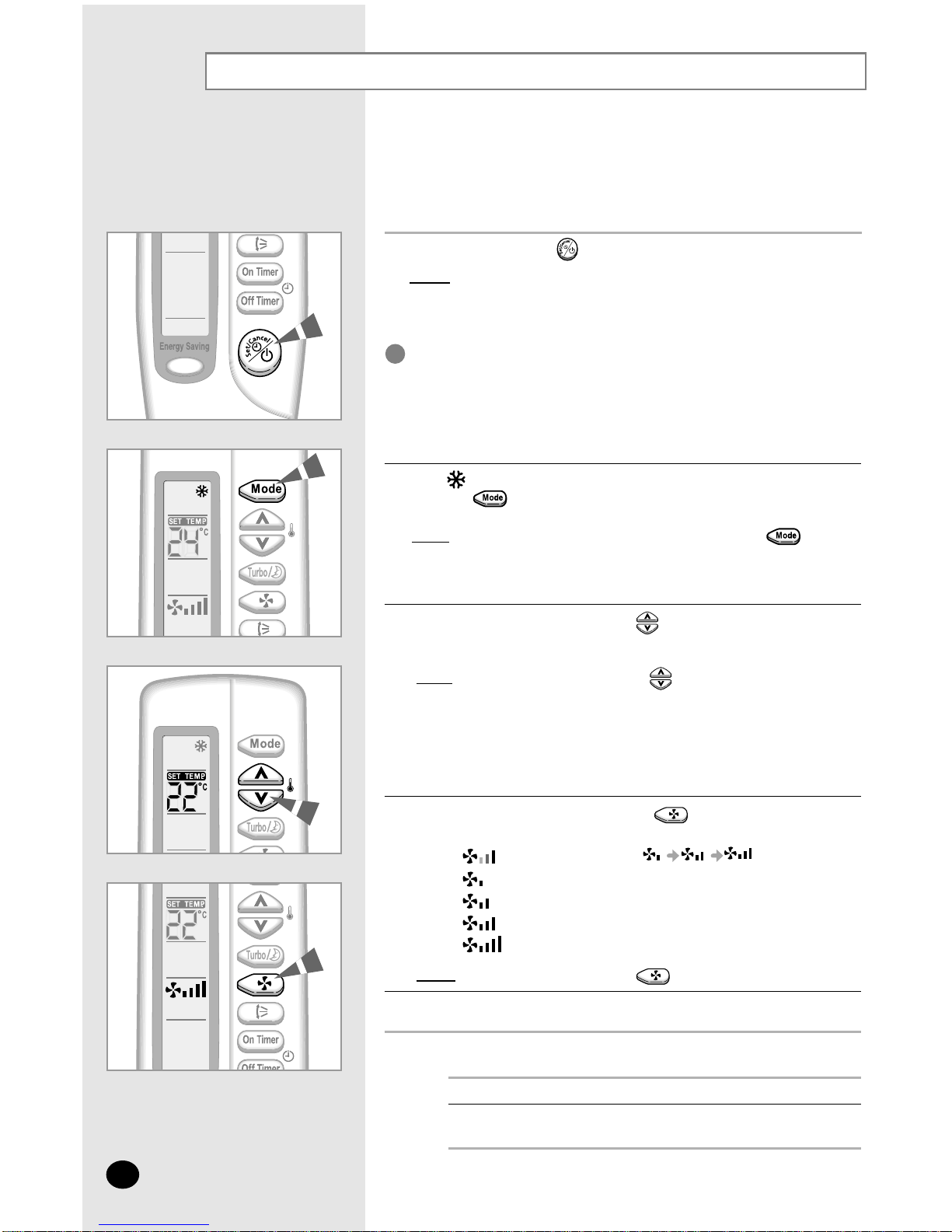

Cooling Your Room

1If necessary, press the (On/Off) button.

Result:◆The air conditioner starts up in Cool mode with

Turbo fan speed.

◆The operation indicator on the indoor unit lights up.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

If the is not displayed at the top of the remote control,

press the button on the remote control one or more times until it

appears.

Result:

◆

The indoor unit beeps each time you press the button.

◆

The air conditioner runs in COOL mode.

You can change modes at any time.

NNoo

oott

ttee

To adjust the temperature, press the button one or more times until

the required temperature is displayed.

Possible temperatures are between 18°C and 30°C inclusive.

Result:◆

Each time you press the button:

- The temperature is adjusted by 1°C

- The indoor unit beeps

◆The air conditioner starts cooling, provided that the room

temperature is higher than the selected temperature.

◆If the room temperature reaches the set temperature, the air

conditioner stops cooling, but the fan is still operating.

Select the fan speed by pressing the button one or more times

until the required setting is displayed:

Automatic (rotated : )

Low

Medium

High

Turbo (maximum)

Result: Each time you press the button, the indoor unit beeps.

To control the direction of the air flow, refer to page 15.

You must select the Cool mode if you wish to adjust the:

◆Cooling temperature

◆Fan speed when cooling

E-10

NNoo

oott

ttee

eeIf you turn off the air conditioner in Cool mode, the set temperature

is adjusted as below when you turn on the air conditioner again.

Set temperaturePrevious set temperature

Over 24°C

Below 24°C 24°C

Previous set temperature

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Klimaanlage Handbücher

Samsung

Samsung AQ09AWAN Bedienungsanleitung

Samsung

Samsung AR18NSWSPWKXCV Bedienungsanleitung

Samsung

Samsung AR**MXWS Series Bedienungsanleitung

Samsung

Samsung AQV09NSD Bedienungsanleitung

Samsung

Samsung MIM-B18BN Leitfaden

Samsung

Samsung AM18B1B2C09 Stücklistenhandbuch

Samsung

Samsung AQV36W Bedienungsanleitung

Samsung

Samsung AQ30W Series Bedienungsanleitung

Samsung

Samsung AW2492L Bedienungsanleitung

Samsung

Samsung AQV09FAN Bedienungsanleitung

Samsung

Samsung AC071MN4PKH Bedienungsanleitung

Samsung

Samsung MXD-K025AN Bedienungsanleitung

Samsung

Samsung AQ12A5(6)MB Bedienungsanleitung

Samsung

Samsung AS12 Series Bedienungsanleitung

Samsung

Samsung RAC Series Gebrauchsanweisung

Samsung

Samsung DC48GTTX Bedienungsanleitung

Samsung

Samsung AS07A5(6)MA Bedienungsanleitung

Samsung

Samsung ADN BDEH Series Bedienungsanleitung

Samsung

Samsung AR NXFH Series Bedienungsanleitung

Samsung

Samsung AR09/12JSPFBWKN Bedienungsanleitung

Samsung

Samsung mini DVM Series Bedienungsanleitung

Samsung

Samsung AR**HSFS Series Leitfaden

Samsung

Samsung SH30ZA2 Bedienungsanleitung

Samsung

Samsung MH020FPEA Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung

Webasto

Webasto Frigo Top 25 DS Bedienungsanleitung

Frigidaire

Frigidaire FAZ12ES2A Bedienungsanleitung
