3English

Safety Information

Before using your new air conditioner, please read this manual thoroughly

to ensure that you know how to safely and efficiently operate the extensive

features and functions of your new appliance.

Because the following operating instructions cover various models, the

characteristics of your air conditioner may differ slightly from those

described in this manual. If you have any questions, call your nearest

contact centre or find help and information online at www.samsung.com.

WARNING

Hazards or unsafe practices that may result in severe personal injury or

death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or

property damage.

Follow directions.

Do NOT attempt.

Make sure the machine is grounded to prevent electric shock.

Cut-off the power supply.

Do NOT disassemble.

FOR INSTALLATION

WARNING

Use the power line with the power specifications of the product or

higher and use the power line for this appliance only. In addition, do not

use an extension line.

• Extending the power line may result in electric shock or fire.

• Do not use an electric transformer. It may result in electric shock or fire.

• If the voltage/frequency/rated current condition is different, it may

cause fire.

Safety Information

English

Safety Information

The installation of this appliance must be performed by a qualified

technician or service company.

• Failing to do so may result in electric shock, fire, explosion, problems

with the product, or injury.

Install a switch and circuit breaker dedicated to the air conditioner.

• Failing to do so may result in electric shock or fire.

Do not install this appliance near a heater, inflammable material. Do

not install this appliance in a humid, oily or dusty location, in a location

exposed to direct sunlight and water (rain drops). Do not install this

appliance in a location where gas may leak.

• This may result in electric shock or fire.

This appliance must be properly grounded. Do not ground the appliance

to a gas pipe, plastic water pipe, or telephone line.

• Failure to do so may result in electric shock, fire, an explosion, or other

problems with the product.

• Never plug the power cord into a socket that is not grounded correctly

and make sure that it is in accordance with local and national codes.

CAUTION

Install the draining hose properly so that water is drained correctly.

• Failing to do so may result in water overflowing and property damage.

Avoid adding drain to waste pipes as odours may arise in the future.

5English

Safety Information

FOR POWER SUPPLY

WARNING

When the circuit breaker is damaged, contact your nearest service

centre.

Do not pull or excessively bend the power line. Do not twist or tie the

power line. Do not hook the power line over a metal object, place a

heavy object on the power line, insert the power line between objects,

or push the power line into the space behind the appliance.

• This may result in electric shock or fire.

CAUTION

When not using the air conditioner for a long period of time or during a

thunder/lightning storm, cut the power at the circuit breaker.

• Failing to do so may result in electric shock or fire.

FOR USING

WARNING

If the appliance is flooded, please contact your nearest service centre.

• Failing to do so may result in electric shock or fire.

If the appliance generates a strange noise, a burning smell or smoke,

unplug the power plug immediately and contact your nearest service

centre.

• Failing to do so may result in electric shock or fire.

In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate

immediately without touching the power line. Do not touch the

appliance or power line.

• Do not use a ventilating fan.

• A spark may result in an explosion or fire.

Safety Information

English

Safety Information

To reinstall the air conditioner, please contact your nearest service

centre.

• Failing to do so may result in problems with the product, water leakage,

electric shock, or fire.

• A delivery service for the product is not provided. If you reinstall the

product in another location, additional construction expenses and an

installation fee will be charged.

• Especially, when you wish to install the product in an unusual location

such as in an industrial area or near the seaside where it is exposed to

the salt in the air, please contact your nearest service centre.

Do not touch the circuit breaker with wet hands.

• This may result in electric shock.

Do not turn the air conditioner off with the circuit breaker while it is

operating.

• Turning the air conditioner off and then on again with the circuit

breaker may cause a spark and result in electric shock or fire.

After unpacking the air conditioner, keep all packaging materials well

out of the reach of children, as packaging materials can be dangerous to

children.

• If a child places a bag over its head, it may result in suffocation.

Do not touch the front panel with your hands or fingers during the

heating operation.

• This may result in electric shock or burns.

Do not insert your fingers or foreign substances into the outlet when

the air conditioner is operating or the front panel is closing.

• Take special care that children do not injure themselves by inserting

their fingers into the product.

Do not insert your fingers or foreign substances into the air inlet/outlet

of the air conditioner.

• Take special care that children do not injure themselves by inserting

their fingers into the product.

7English

Safety Information

Do not strike or pull the air conditioner with excessive force.

• This may result in fire, injury, or problems with the product.

Do not use this air conditioner for long periods of time in badly

ventilated locations or near infirm people.

• Since this may be dangerous due to a lack of oxygen, open a window at

least once an hour.

If any foreign substance such as water has entered the appliance, cut

the power by unplugging the power plug and turning the circuit breaker

off and then contact your nearest service centre.

• Failing to do so may result in electric shock or fire.

Do not attempt to repair, disassemble, or modify the appliance yourself.

• Do not use any fuse (such as copper, steel wire, etc.)other than the

standard fuse.

• Failing to do so may result in electric shock, fire, problems with the

product, or injury.

CAUTION

Do not place objects or devices under the indoor unit.

• Water dripping from the indoor unit may result in fire or property

damage.

Max current is measured according to IEC standard for safety and

current is measured according to ISO standard for energy efficiency.

Do not operate the appliance with wet hands.

• This may result in electric shock.

Do not spray volatile material such as insecticide onto the surface of the

appliance.

• As well as being harmful to humans, it may also result in electric shock,

fire or problems with the product.

Do not drink the water from the air conditioner.

• The water may be harmful to humans.

Safety Information

English

Safety Information

Do not apply a strong impact to the remote controller and do not

disassemble the remote controller.

Do not touch the pipes connected with the product.

• This may result in burns or injury.

Do not use this air conditioner to preserve precision equipment, food,

animals, plants or cosmetics, or for any other unusual purposes.

• This may result in property damage.

Avoid directly exposing humans, animals or plants from the air flow

from the air conditioner for long periods of time.

• This may result in harm to humans, animals or plants.

This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for

their safety.Children should be supervised to ensure that they do not

play with the appliance.

For use in Europe: This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in a

safe way and understand the hazards involved. Children shall not play

with the appliance. Cleaning and user maintenance shall not be made by

children without supervision.

9English

Safety Information

FOR CLEANING

WARNING

Do not clean the appliance by spraying water directly onto it. Do not

use benzene, thinner, alcohol or acetone to clean the appliance.

• This may result in discoloration, deformation, damage, electric shock or

fire.

Before cleaning or performing maintenance, unplug the air conditioner

from the wall socket and wait until the fan stops.

• Failing to do so may result in electric shock or fire.

CAUTION

Do not clean the inside of the air conditioner by yourself.

• For cleaning inside the appliance, contact your nearest service centre.

• When cleaning the internal filter, refer to the descriptions in the

‘Cleaning and Maintaining’ section.

• Failure to do may result in damage, electric shock or fire.

10 English

At a Glance

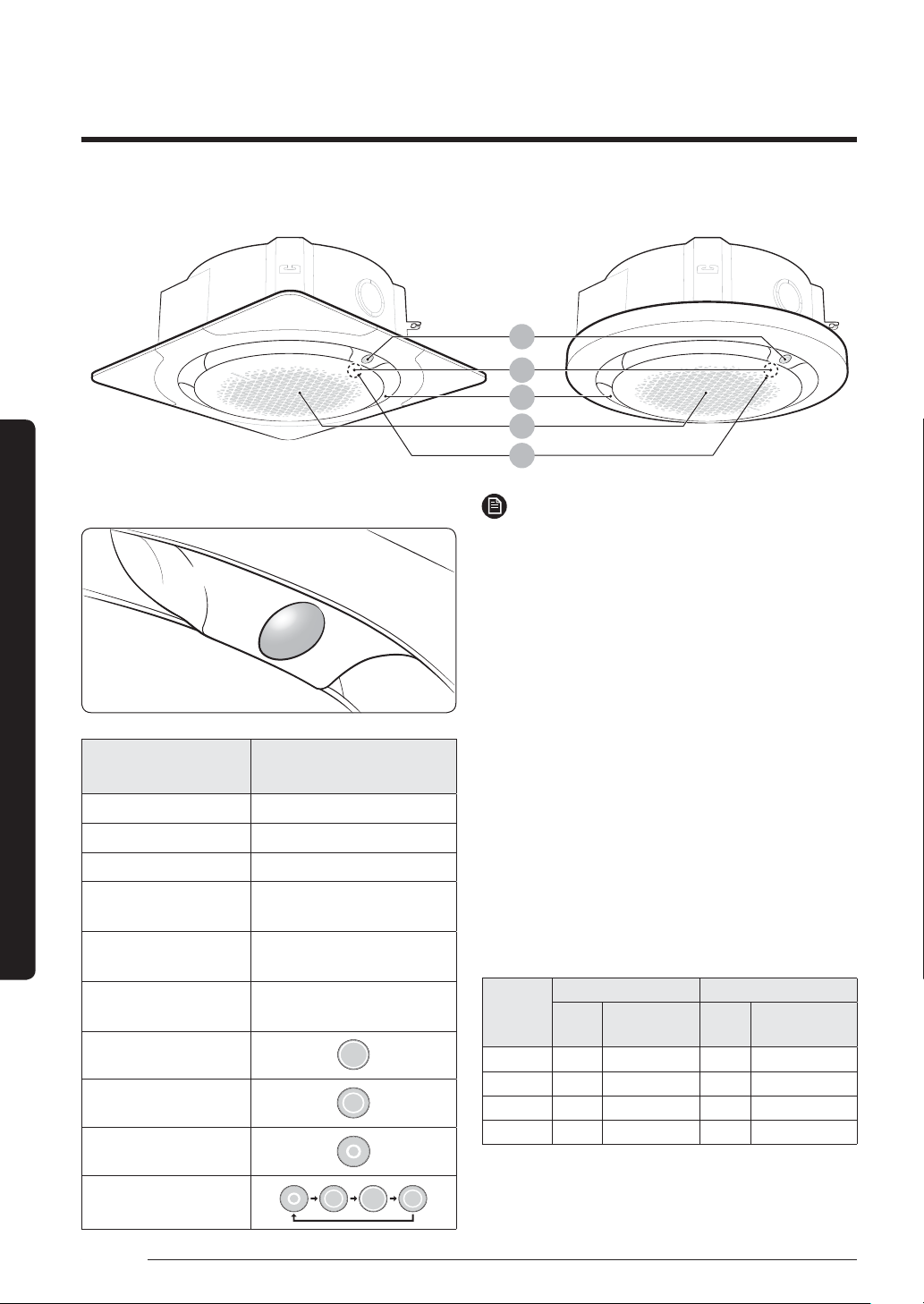

Circular panel

Square panel

Indoor Unit Overview

01 Display

Operation status Indication on the

display

Power on Ice blue (blinking)

In operation Ice blue

Stopped Off

Timed on/off

function Blue

Requires filter

cleaning Yellow green

Defrost function Ice blue (blinking once

every 10 seconds)

Wide

Mid

Spot

Swing

NOTE

• For the AR-KH0** wireless remote control,

the air flow direction indications appear on

its display, too.

• By using the AR-KH0** wireless remote

control, you can turn on or turn off the air

flow direction indications that appear on

the indoor unit display.

• For the AR-EH0**, AR-EC0** wireless remote

control, which is designed generally for

any indoor units, the air flow direction is

not shown on the remote control display.

Control the air flow direction with checking

it on the indoor unit display.

02 Remote control sensor

(behind the front grille)

03 Air outlet

04 Front grille /

Air filter (behind the front grille)

05 Air purification level indicator

Pollution

level

PM10 PM2.5 / PM1.0

Colour Concentration

(急/m³) Colour Concentration

(急/m³)

Very poor Red 151 and over Red Above 76

Poor Yellow 81~150 Yellow 36~75

Moderate Green 31~80 Green 16~35

Good Blue 30 and below Blue Below 15

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Klimaanlage Handbücher

Samsung

Samsung AM***FNFDEH series Bedienungsanleitung

Samsung

Samsung AC018JN4DCH/AA Bedienungsanleitung

Samsung

Samsung MH18AP1(P2)-09 Bedienungsanleitung

Samsung

Samsung AR TXFY Series Bedienungsanleitung

Samsung

Samsung MH020FVEA Bedienungsanleitung

Samsung

Samsung AWT18SBWDB Bedienungsanleitung

Samsung

Samsung AJ JCJ2CH Series Bedienungsanleitung

Samsung

Samsung AS12MWB Bedienungsanleitung

Samsung

Samsung AW09A0KE Bedienungsanleitung

Samsung

Samsung AR12HSSDBWKNEU Bedienungsanleitung

Samsung

Samsung AS18A9(0)RCFD Bedienungsanleitung

Samsung

Samsung AQ18AWAN Bedienungsanleitung

Samsung

Samsung AST18WJWE/MID Bedienungsanleitung

Samsung

Samsung AR18JVFSBWKNME Montage- und Bedienungsanleitung

Samsung

Samsung DH105CAV Bedienungsanleitung

Samsung

Samsung DVM S AM100MXVDGH/ET Gebrauchsanweisung

Samsung

Samsung SH09AI8VD Bedienungsanleitung

Samsung

Samsung SC05ZA8 Bedienungsanleitung

Samsung

Samsung SH18AW6 Bedienungsanleitung

Samsung

Samsung AC026FBRDEH Bedienungsanleitung

Samsung

Samsung AVMCH070EA4 Bedienungsanleitung

Samsung

Samsung DH60 T Series Bedienungsanleitung

Samsung

Samsung AC NN4DEH Series Bedienungsanleitung

Samsung

Samsung MC18AC2-09 Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung

Webasto

Webasto Frigo Top 25 DS Bedienungsanleitung

Frigidaire

Frigidaire FAZ12ES2A Bedienungsanleitung
