Connecting a Power Source

Camcorder Quick Start Guide AD68-00752S

Power Switch

1. Attach the battery pack to the camcorder.

2. Connect the AC Power adapter to an AC cord and connect

the AC cord to a wall socket.

3. Connect the DC cable to the DC jack socket on the

camcorder.

4. Turn the Camera power switch to off, and the charging indica-

tor will start to flash, showing that the battery is charging.

Battery charge time

SB - LS110 : Approx 2hr

SB - LS220 : Approx 3hr 30min

MENU Button

MENU Selector

(MENU/VOLUME/MF)

1. Insert the Lithium battery with the positive ( ) terminal face outward.

2. Insert a Cassette.

3. Select the appropriate OSD Language among the English, French, Spanish,

Portuguese, German and Italian.

➀Press the MENU button.

➁Move the MENU SELECTOR to highlight INITIAL and push the MENU

SELECTOR.

➂Using the MENU SELECTOR, select the LANGUAGE.

➃Push the MENU SELECTOR to confirm the OSD Language.

➄To exit, press the MENU button.

●CLOCK SET

➀Press the MENU button.

➁Move the MENU SELECTOR to highlight INITIAL and push the MENU

SELECTOR.

➂Use the MENU SELECTOR to select CLOCK SET from the submenu.

➃Push the MENU SELECTOR to enter SETTING mode.

A blinking item indicates the item to be changed.

➄Using the MENU SELECTOR and MENU SELECTOR, change the year, month,

day, and hour setting.

➅The word COMPLETE! will appear, and a few seconds later, the menu screen

will automatically return to the sub menu.

1. Connect a Power source to the camcorder.

2. Remove the LENS CAP.

3. Set the mode switch to the TAPE position.

4. Set the power switch to the CAMERA position.

5. To start recording, press the START/STOP button.

Preparation

Basic Recording

THETA2-Quick Guide-NEW 4/27/04 9:33 AM Page 1

S-VIDEO

MEMORY CARD

TAPE

MIC

A/V

DC IN

S-VIDEO

A/V

CAMCORDER

VIDEO

AUDIO(L)

AUDIO(R)

REC SEARCH FADE BLC

REV FWD S.SHOW

EASY

MULTI DISP.


TAPE PLAYBACK

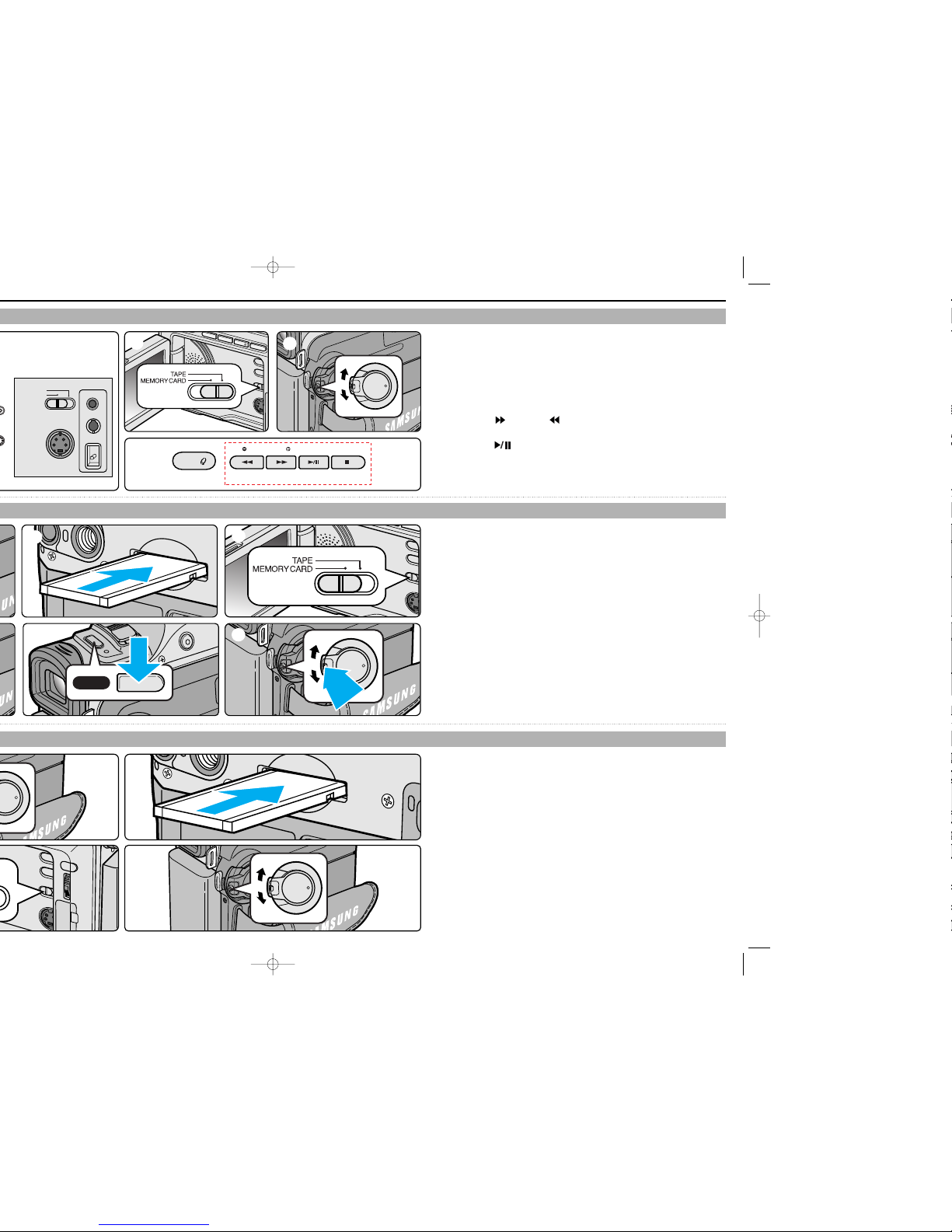

1.Connect the camcorder to a TV with the AUDIO/VIDEO cable.

■The yellow plug : Video

■The white plug : Audio(L) - Mono

■The red plug : Audio(R)

Set the mode switch to the TAPE position.

3. Set the power switch on the camcorder to PLAYER mode.

4. Using the (FF) and (REW) buttons, find the first position

you wish to play back.

Press the (PLAY/STILL) button.

1. Turn the Power switch to OFF.

2. Insert the Memory Card into the Memory Card slot located on

the bottom of the camcorder, in the direction of the arrow.

Set the mode switch to MEMORY CARD.

4. Set the power switch to the CAMERA mode.

5. ■Still Image : ➀Press the PHOTO button to record a picture.

■MPEG4 : ➀Press START/STOP button to start recording.

(up to 20 seconds)

DSC Recording

455

123

1. Turn the Power switch to OFF.

2. Insert the Memory Card into the Memory Card slot located

beneath the camcorder, in the direction of the arrow.

Set the mode switch to MEMORY CARD.

Set the power switch to the PLAYER mode.

Select the Storage Media (MPEG4,PHOTO) to playback

➀Press the MENU button and move the MENU SELECTOR

to highlight MEMORY.

➁Push the MENU SELECTOR to enter sub-menu.

➂Use the MENU SELECTOR to select MPEG4(PHOTO)

from the sub-menu. (M. PLAY SELECT)

➃

To exit the menu, push the MENU button.

DSC PLAYBACK

THETA2-Quick Guide-NEW 4/27/04 9:33 AM Page 2
