6. MAIN Electrical Parts List

6-1

This Document can not be used without Samsung's authorization

SEC CODE Design LOC Description

0403-001688 ZD605,ZD607 DIODE-ZENER

0404-001172 ZD504 DIODE-SCHOTTKY

0406-001201 ZD606 DIODE-TVS

0406-001261 ZD610 DIODE-TVS

0406-001267 ZD502,ZD503,ZD604 DIODE-TVS

0406-001267 ZD608,ZD609,ZD611 DIODE-TVS

0406-001286 ZD603 DIODE-TVS

0406-001293 ZD501 DIODE-TVS

0406-001375 ZD506,ZD507,ZD804 DIODE-TVS

0504-001151 Q401,U203,U205 TR-DIGITAL

0601-002070 LED603,LED604,LED605 LED

0601-002070 LED606,LED607,LED608 LED

0801-003022 U107 IC

0801-003139 U102,U104,U105 IC

1001-001459 U503 IC

1001-001586 U603 IC

1201-002764 U501 IC

1201-002765 PAM201 IC

1201-002773 PAM101 IC

1203-004291 U602 IC

1203-004792 U403 IC

1203-005069 U302 IC

1203-005250 U601 IC

1203-005501 U606 IC

1203-005512 U502 IC

1203-005675 U301 IC

1204-003022 U201 IC

1205-003517 U204 IC

1205-003598 U202 IC

1205-003636 U101 IC

1205-003721 U106 IC

1205-003755 UME401 IC

1205-003770 UCP301 IC

1404-001224 VR401 THERMISTOR

2007-000138 R606,R631,R638,R639 R-CHIP

2007-000138 R640,R641,R642 R-CHIP

2007-000140 R201,R415,R611 R-CHIP

2007-000148 R301,R306,R420,R607 R-CHIP

2007-000149 R423 R-CHIP

2007-000151 R421 R-CHIP

2007-000152 R621 R-CHIP

2007-000162 R303,R307,R417,R422 R-CHIP

2007-000173 R311,R618 R-CHIP

2007-000242 R504 R-CHIP

SAMSUNG Proprietary-Contents may change without notice

Main Electrical Parts List

6-2

This Document can not be used without Samsung's authorization

SEC CODE Design LOC Description

2007-000249 R304 R-CHIP

2007-000566 R308,R309 R-CHIP

2007-000831 R401 R-CHIP

2007-001119 R612,R613,R615,R617 R-CHIP

2007-001119 R619,R628 R-CHIP

2007-001291 R608,R609 R-CHIP

2007-001292 R505,R506 R-CHIP

2007-001306 R510,R512 R-CHIP

2007-001319 R408,R409,R629,R630 R-CHIP

2007-001333 R404,R605 R-CHIP

2007-002796 R503 R-CHIP

2007-003001 R508,R509 R-CHIP

2007-003006 R634,R635 R-CHIP

2007-003010 R418 R-CHIP

2007-003015 R203 R-CHIP

2007-007009 R624,R625,R626,R627 R-CHIP

2007-007009 R632,R633 R-CHIP

2007-007107 R202,R206,R402 R-CHIP

2007-007134 R305 R-CHIP

2007-007136 R107 R-CHIP

2007-007142 R302,R403,R620 R-CHIP

2007-007306 R113 R-CHIP

2007-007308 R406 R-CHIP

2007-007491 R115 R-CHIP

2007-007573 R614 R-CHIP

2007-007627 R610 R-CHIP

2007-008045 R106,R116,R637 R-CHIP

2007-008052 R110 R-CHIP

2007-008055 R204 R-CHIP

2007-008354 R616 R-CHIP

2007-008483 R207 R-CHIP

2007-008516 R405,R507 R-CHIP

2007-008547 R101,R102,R103,R104 R-CHIP

2007-009374 R114 R-CHIP

2007-009801 R111 R-CHIP

2203-000138 C624 C-CERAMIC,CHIP

2203-000233 C142,C336 C-CERAMIC,CHIP

2203-000254 C207,C227,C528,C626 C-CERAMIC,CHIP

2203-000330 C338 C-CERAMIC,CHIP

2203-000386 C208,C212,C228,C337 C-CERAMIC,CHIP

2203-000386 C504,C507,C511,C617 C-CERAMIC,CHIP

2203-000386 C618 C-CERAMIC,CHIP

2203-000438 C216,C218 C-CERAMIC,CHIP

2203-000679 C640,C641,C642,C643 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice

Main Electrical Parts List

6-3

This Document can not be used without Samsung's authorization

SEC CODE Design LOC Description

2203-000696 C140 C-CERAMIC,CHIP

2203-000812 C104,C108,C110,C114 C-CERAMIC,CHIP

2203-000812 C125,C126,C141,C402 C-CERAMIC,CHIP

2203-000812 C425,C523,C525,C526 C-CERAMIC,CHIP

2203-000812 C530,C531,C621 C-CERAMIC,CHIP

2203-000854 C226,C230,C421 C-CERAMIC,CHIP

2203-001153 C505,C508,C512,C539 C-CERAMIC,CHIP

2203-001153 C616,C619,C620 C-CERAMIC,CHIP

2203-001210 C517,C519 C-CERAMIC,CHIP

2203-001239 C118 C-CERAMIC,CHIP

2203-002487 C625 C-CERAMIC,CHIP

2203-002668 C132 C-CERAMIC,CHIP

2203-002709 C333,C401,C403,C404 C-CERAMIC,CHIP

2203-002709 C405,C406,C407,C408 C-CERAMIC,CHIP

2203-002709 C409,C410,C411,C412 C-CERAMIC,CHIP

2203-002709 C413,C414,C415,C416 C-CERAMIC,CHIP

2203-002709 C623 C-CERAMIC,CHIP

2203-005050 C120,C121,C233 C-CERAMIC,CHIP

2203-005234 C124,C127 C-CERAMIC,CHIP

2203-005281 C102,C214 C-CERAMIC,CHIP

2203-005288 L208 C-CERAMIC,CHIP

2203-005395 C229 C-CERAMIC,CHIP

2203-005446 C116,C117 C-CERAMIC,CHIP

2203-005450 C234 C-CERAMIC,CHIP

2203-005682 C111,C136,C139 C-CERAMIC,CHIP

2203-005717 C644,C645 C-CERAMIC,CHIP

2203-005729 C219 C-CERAMIC,CHIP

2203-005777 C232 C-CERAMIC,CHIP

2203-005806 C144,C145 C-CERAMIC,CHIP

2203-006048 C107,C304,C306,C308 C-CERAMIC,CHIP

2203-006048 C309,C334,C339,C506 C-CERAMIC,CHIP

2203-006048 C513,C601,C602,C603 C-CERAMIC,CHIP

2203-006048 C622,C632,C633,C634 C-CERAMIC,CHIP

2203-006120 C122 C-CERAMIC,CHIP

2203-006121 C105,C106 C-CERAMIC,CHIP

2203-006137 C133,C134 C-CERAMIC,CHIP

2203-006190 C138,C305,C307,C310 C-CERAMIC,CHIP

2203-006190 C419 C-CERAMIC,CHIP

2203-006194 C224 C-CERAMIC,CHIP

2203-006208 C503 C-CERAMIC,CHIP

2203-006257 C202,C204,C303,C311 C-CERAMIC,CHIP

2203-006257 C312,C313,C314,C315 C-CERAMIC,CHIP

2203-006257 C316,C317,C322,C323 C-CERAMIC,CHIP

2203-006257 C328 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice

Main Electrical Parts List

6-4

This Document can not be used without Samsung's authorization

SEC CODE Design LOC Description

2203-006260 C501,C515,C516,C518 C-CERAMIC,CHIP

2203-006260 C521 C-CERAMIC,CHIP

2203-006324 C335,C613 C-CERAMIC,CHIP

2203-006348 C428 C-CERAMIC,CHIP

2203-006399 C205,C422,C527,C529 C-CERAMIC,CHIP

2203-006423 C128,C135,C146,C222 C-CERAMIC,CHIP

2203-006474 C217,C318,C320,C426 C-CERAMIC,CHIP

2203-006562 C332,C427,C447,C520 C-CERAMIC,CHIP

2203-006648 C143,C221 C-CERAMIC,CHIP

2203-006681 C109,C112,C137,C203 C-CERAMIC,CHIP

2203-006681 C509,C510,C540 C-CERAMIC,CHIP

2203-006824 C215,C321,C324,C325 C-CERAMIC,CHIP

2203-006824 C326,C327,C330 C-CERAMIC,CHIP

2203-006839 C113 C-CERAMIC,CHIP

2203-006841 C341,C342,C537,C612 C-CERAMIC,CHIP

2203-006841 C615 C-CERAMIC,CHIP

2203-006872 C220,C223,C522,C607 C-CERAMIC,CHIP

2203-006872 C608,C610,C611,C614 C-CERAMIC,CHIP

2203-006872 C636 C-CERAMIC,CHIP

2203-006896 C211 C-CERAMIC,CHIP

2203-006979 C231 C-CERAMIC,CHIP

2203-007210 C417,C418 C-CERAMIC,CHIP

2203-007270 C635 C-CERAMIC,CHIP

2203-007271 C343,C344,C609 C-CERAMIC,CHIP

2203-007279 C319,C329,C331,C345 C-CERAMIC,CHIP

2203-007279 C346,C347 C-CERAMIC,CHIP

2203-007317 C201,C206,C210,C213 C-CERAMIC,CHIP

2404-001474 TA201 C-TA,CHIP

2404-001506 TA101,TA602,TA603 C-TA,CHIP

2703-001613 L103 INDUCTOR-SMD

2703-001747 L111,L112,L203 INDUCTOR-SMD

2703-001748 L205 INDUCTOR-SMD

2703-001751 L109,L214 INDUCTOR-SMD

2703-002208 L106,L107,L211 INDUCTOR-SMD

2703-002281 L104,L105 INDUCTOR-SMD

2703-002308 L101 INDUCTOR-SMD

2703-002309 L213,L512,L513 INDUCTOR-SMD

2703-002768 L401 INDUCTOR-SMD

2703-002793 L210 INDUCTOR-SMD

2703-002918 L204 INDUCTOR-SMD

2703-002958 L102 INDUCTOR-SMD

2703-003121 L202 INDUCTOR-SMD

2703-003258 L303 INDUCTOR-SMD

2703-003260 L301 INDUCTOR-SMD

SAMSUNG Proprietary-Contents may change without notice

Main Electrical Parts List

6-5

This Document can not be used without Samsung's authorization

SEC CODE Design LOC Description

2703-003274 L207 INDUCTOR-SMD

2703-003533 L304 INDUCTOR-SMD

2703-003534 L605 INDUCTOR-SMD

2801-004339 OSC301 CRYSTAL-UNIT

2809-001303 TCX101 OSCILLATOR-VCTCXO

2901-001370 F603,F604 FILTER-EMI SMD

2901-001376 F601 FILTER-EMI SMD

2901-001429 F602 FILTER-EMI SMD

2909-001320 F201 FILTER-DUPLEXER

2911-000115 U103 FILTER

3003-001138 MIC501 MIC-CONDENSOR

3301-001534 L108 CORE-FERRITE BEAD

3301-001682 L206 CORE-FERRITE BEAD

3301-001729 L201 CORE-FERRITE BEAD

3301-001762 L302 CORE-FERRITE BEAD

3301-001820 L501,L502,L507,L508 CORE-FERRITE BEAD

3301-001820 L509,L510,L516 CORE-FERRITE BEAD

3301-001885 L504,L514,L515,L601 CORE-FERRITE BEAD

3301-001885 L602,L603 CORE-FERRITE BEAD

3301-001912 L604 CORE-FERRITE BEAD

3705-001503 RFS101 CONNECTOR-COAXIAL

3708-001912 HDC501 CONNECTOR-FPC/FFC/PIC

3708-002162 HEA602 CONNECTOR-FH26-31S-0.3SHBW(21)

3708-002222 HDC601 CONNECTOR-FPC/FFC/PIC

3709-001447 SIM401 CONNECTOR-CARD EDGE

3711-006137 BTC601 CONNECTOR-HEADER

3711-006405 HEA801 CONNECTOR-HEADER

3722-002840 IFC601 JACK-PHONE;HY07-AB0700

4202-001463 ANT201 ODBTP3015

4302-001130 BAT301 BATTERY

GH71-08426A ANT101,ANT102 NPR-CONTACT ANT

SAMSUNG Proprietary-Contents may change without notice

9-1

This Document can not be used without Samsung's authorization

9. Flow Chart of Troubleshooting

9-1.Baseband

9-1-1Power ON

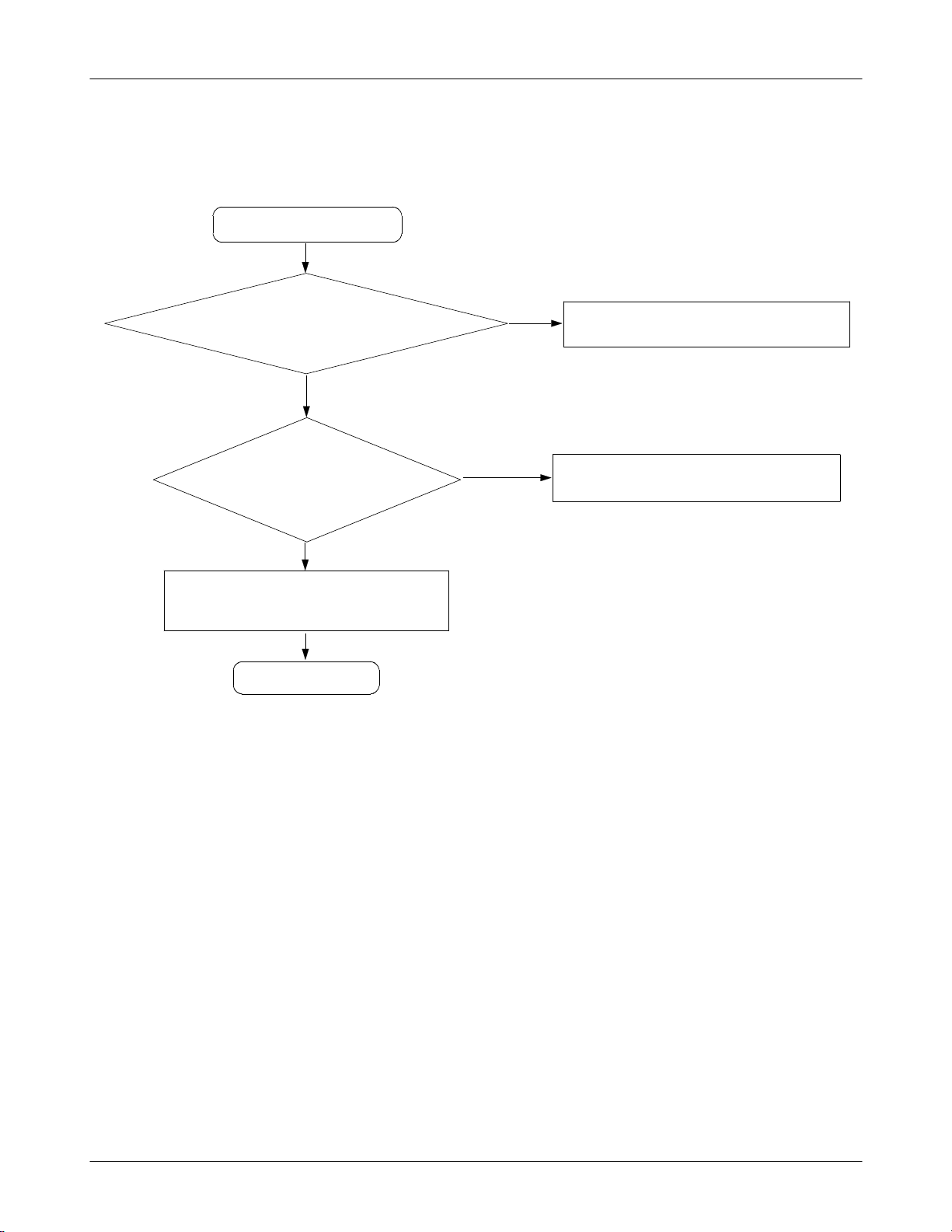

Check the Battery Voltage

is more than 3.4V

' Power On ' does not work

Change the Battery

END

Yes

C334 (VINT) = 2.55V? Check the PMU related to VINT

Yes

Check the Clock at

OSC301=32.7KHZ

Resolder OSC301

Yes

R306(VDD_IO_LOW_1.8V) &

C314(VDD_IO_HIGH_2.9V) =

"H"?

Check the related circuit

Yes

L303(VDD_GSM_CORE_1.2V)

=1.2V

Check the VDD_GSM_CORE_1.2V

circuit

Yes

Check the initial operation

Yes

SAMSUNG Proprietary-Contents may change without notice

Flow Chart of Troubleshooting

9-2

This Document can not be used without Samsung's authorization

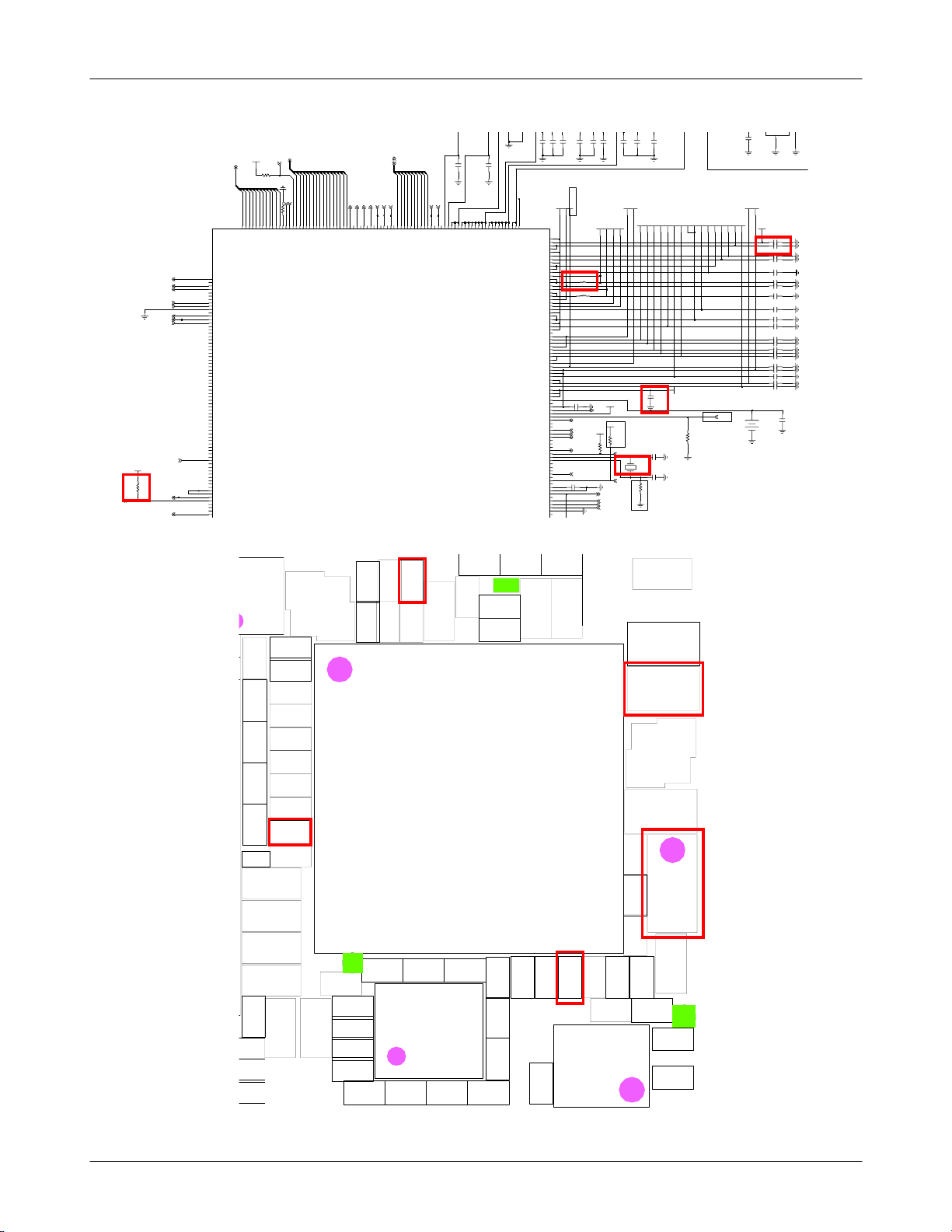

C317

VDD_LCR_HIGH_3.3V

C447

VDD_IO_LOW_1.8V

VDD_SYN_2.8V

C323

VHIGH

C321

VDD_MEM_CORE_1.8V

AVDD_2.6V

C308

USIMVIN_3.3V

VDDCO

TP304TP302

C305

C329

VDD_KEY_LED_3.3V

C314

C320

R304

C319

C313

USB_LDO_5V

C315

R303

C346

VDD_IO_HIGH_2.9V

BAT301

VDD_PLL_1.2V

VDD_SIM_3.0V

C345

C316

TP306

C339

C306

VBATT_4.2_3.3V

VINT

OSC301

C309

C328

1005

TP305

C310

C333

TP303

1005

C334

C307

C322

VBATT_4.2_3.3V

AVDD_HFA_2.6V

R307

C338

C347

USB_VBUS_5V

C331

VBATT_4.2_3.3V

C326

1005

39K,1%

R305

VDD_IO_LOW_1.8V

VDD_LCR_LOW_1.8V

VDD_USB_3.3V

VDD_TX_2.8V

VDD_RX_TX_2.8V

C336

C324

VDD_BT_1.5V

L304

TP308

Y4 RFSIGIO3

Y6 LVDS_RX_I_P

Y7 LVDS_RX_Q_P

Y8 LVDS_TX_I_P

Y9 LVDS_TX_Q_P

Y16 SEN4_RFSIGO6

Y17

SCLK4_RFSIGO7

Y18 HDP1

Y21 HDP3

W8 REFV_VRA1

GPO2VIN

Y11

TD_RD7

Y12

TD_RD6

Y13

TD_RD2

W20 HDP5

W21

VDDE1

W3 RFSIGIO2

RFSIGIO4

W7 REFV_VRA2

W12

TD_RD3

W13

TD_RD1

W14

TD_RD0

W15

SDATA3W16

SDATA4_RFSIGO8

W17 RESET_N

W18 HDP4

W19 HDP2

V19 HDP0

V20 HDP8

V21

VDDC

V3 RFSIGIO1

GPO1VIN

W10

TD_RD9

W11

TD_RD5

U3 RFSIGIO0

SDATA2

SCLK2

RF1VDD

U14

SCLK3

U15

VINT

U19 HDP6

U20 HDP7

SCLK1

T7 SEN2

T8 SEN1

RF2VDD

U10

MICBIASVDD

U11

REFC

U12

VINT

T17

REC1_N

T19 HDP9

T20 HDP11

T21 HDP10

SDATA1

GPO2

RF3VDD

T14 SEN3

T15

CCSET

R20 HDP15

R21 HDP12

GPO1

R11

REFGND

R12

VHIGH

R13

VBUS

R14

VCHG R15

VCHG

R16

REC2_N

R17

SCUSB

R19 HDP14

P20 HDP17

RF4VDD

R10

VSAVE

USIMVIN

D1D2VIN

VCC

P15

VBAT

P17

VBATSENSE

P19 HDP13

N17

LCVDD

N19 HDP16

N20 HDP19

N21

DCD2FB

N5 LCRSUBFINT

N6 GPMDMINT

USBVIN

D1VDD

N10

RF3RF4VIN

N11

RF1RF2VIN

N13

LCVIN

N15

VBAT

M19 HDP20

D2VDD

M20 HDP21

M21

DCD2LX

M5 REF_ON

M6 GSMFINT

TDO_EVP

D2VDD

M15

DCD2VIN

M17

RSTMEM_N

L20 HDP23

L21

DCD2LX

VDDC

TCK_EVP

TMS_EVP

TDI_EVP

D3D4VIN

L15

DCD1VIN

L17

INT_N

L19 HDP18

K20 HDP22

TRST_N_EVP

TCK

TMS

IOVIN

VDDE2

K16

PWREN4 K17

PWREN5

K19 HDP26

USBVDD

J21

DCD1LX

TDI

TDO

TRST_N

D5D6VIN

USBVDD

J15

PWREN1 J16

PWREN2 J17

PWREN3

J19 HDP25

J20 HDP24

H21

DCD1LX

VINT

VDDA_PLL3

D3VDD

J10

HCVIN

ADCIN1_D7_DNU

VDDE2

H16

GPIO4

H17

GPIO2

H19 HDP28

VDDA_LSIB

H20 HDP27

VDDA_CKI

G20 HDP29

G21

DCD1FB

VDDA_PLL1G7

VDDA_PLL2

G8 BP_CKI_PLL2

G11

SHUTDOWN

G16

GPIO3

G17

GPIO1

G19 HDP31

SDA

F7 BP_CKI_PLL3

D4VDD

G10

ADCIN2 A29 DNU

F14

RSTHC_N

F16

GPIO6

F17

GPIO5

F19 HDP34

IOVDD

F20 HDP30

E7 BP_CKI_PLL1

IOVDD

F12

USIMPRES

E19 HDP33

D5VDD

E20 HDP32

E21 HDP37

SCL

D5VDD

E12

ONKEY_N

E13

USIMACT

SCDATA8C9

SCDATA9

VDDC

D19 HDP36

D20 HDP35

C2 CLKSEL

C20 HDP38

C21

VDDC

SCDATA1

SCDATA0

SCDATA2

SCDATA6C7

SCDATA7

C12

SCDATA15

C13

SCADD4

C14

SCADD7

C15

SCADD10

C17 CSOUT_N

C18

SCADV_N

C19 HDP39

SCDATA3B6

SCDATA4

SCCLKBURST

C10

SCDATA12

C11

SCDATA14

B17

SCADDMSB

B21

VDDE1

B1 CKI

B10

SCDATA11

B12

SCADD1B13

SCADD2

B14

SCADD5

B15

SCADD9

B16

SCADD12

AA3

VDDC

AA4

VDDE_LVDS

AA6 LVDS_RX_I_N

AA7 LVDS_RX_Q_N

AA8 LVDS_TX_I_N

AA9 LVDS_TX_Q_N

AA14 DACLK

AA16

VDDC

AA17

VDDE1

AA19

OSCO

AA2

VDDE1

AA20

OSCI

SCDATA10

D6VDD

HCVDD

AA11

TD_RD8

AA12

TD_RD4

A2 CLK32KI

A20

CLK32K

VDDE1

VDDC

SCDATA5

A11

VDDE1

A12

SCADD3

A13

SCADD6

A14

SCADD8

A15

SCADD11

A16

SCCS_N

A17

VDDE1

A18

VDDC

UCP301

A10

SCDATA13

VDD_LCR_LOW_1.8V

VDD_TX_2.8V

C312

C330

VDD_GSM_CORE_1.2V

TP307

R30210K,1%

C337

VHIGH

C327

C332

R301

L303

C335

TP301

VDD_IO_LOW_1.8V

C318

VDD_RX_2.8V

C325

VHIGH

TP309

C311

ISET

AUX_ON

DSP_TCK

KEY_POWER_ON

USB_SUSPEND

SPI_ABB(2)

SPI_RF(1)

SPI_RF(0)

SPI_RF(2)

SPI_ABB(0)

SPI_ABB(1)

G2_RSTn

LCR_SW3

PAEN

IT_PMU

G2_REF_ON

INT_GSM_F

LCRSUBF_INT

G2_INT

GSM_REF_OUT

G2_REF_ON

DSP_TDI

DSP_TDO

DSP_TRST_N

G2_REF_ON

DSP_TMS

G2_CSn

32KHZ_DIGIT

512CLK

G2_26MHZ

FMP_CLKBURST

FMP_ADVn

SIM_OFF

SCL1

RSTON

DVM2

SDA1

FMP_DATA(7)

FMP_DATA(2)

FMP_DATA(1)

FMP_DATA(0)

TD_RF(0:9)

TD_RF(9)

TD_RF(8)

TD_RF(7)

TD_RF(6)

TD_RF(5)

TD_RF(4)

TD_RF(3)

TD_RF(2)

TD_RF(1)

TD_RF(0)

FMP_ADDR(1)

FMP_DATA(0:15)

FMP_DATA(11)

FMP_DATA(12)

FMP_DATA(13)

FMP_DATA(14)

FMP_DATA(15)

FMP_DATA(10)

FMP_DATA(9)

FMP_DATA(8)

FMP_DATA(3)

FMP_DATA(4)

FMP_DATA(5)

FMP_DATA(6)

FMP_ADDR(1:12)

FMP_ADDR(8)

FMP_ADDR(9)

FMP_ADDR(10)

FMP_ADDR(11)

FMP_ADDR(12)

FMP_ADDR(7)

FMP_ADDR(6)

FMP_ADDR(5)

FMP_ADDR(4)

FMP_ADDR(3)

FMP_ADDR(2)

C303

C304

C305

C306

C307

C308

C309

C310

C311

C312

C313

C314

C315

C316

C317

C318

C319

C320

C321

C322

C323

C324

C325

C326

C327

C328

C330

C331

C332

C333

C334

C335

C337

C338

C339

C340

C341

C342

C343

C345

C346

C347

C401

C411

C412

C415

C419

C515

C516

C517

C518

C519

C520

C521

C525

C526

C527

C528

C529

L301

L302

L303

L304

OSC301

R301

R302

R303

R304

R305

R306

R307

R308

R309

R416

R505

R506

R613

615

617

619

TP301

TP307

301

U302

U501

UCP301

SAMSUNG Proprietary-Contents may change without notice

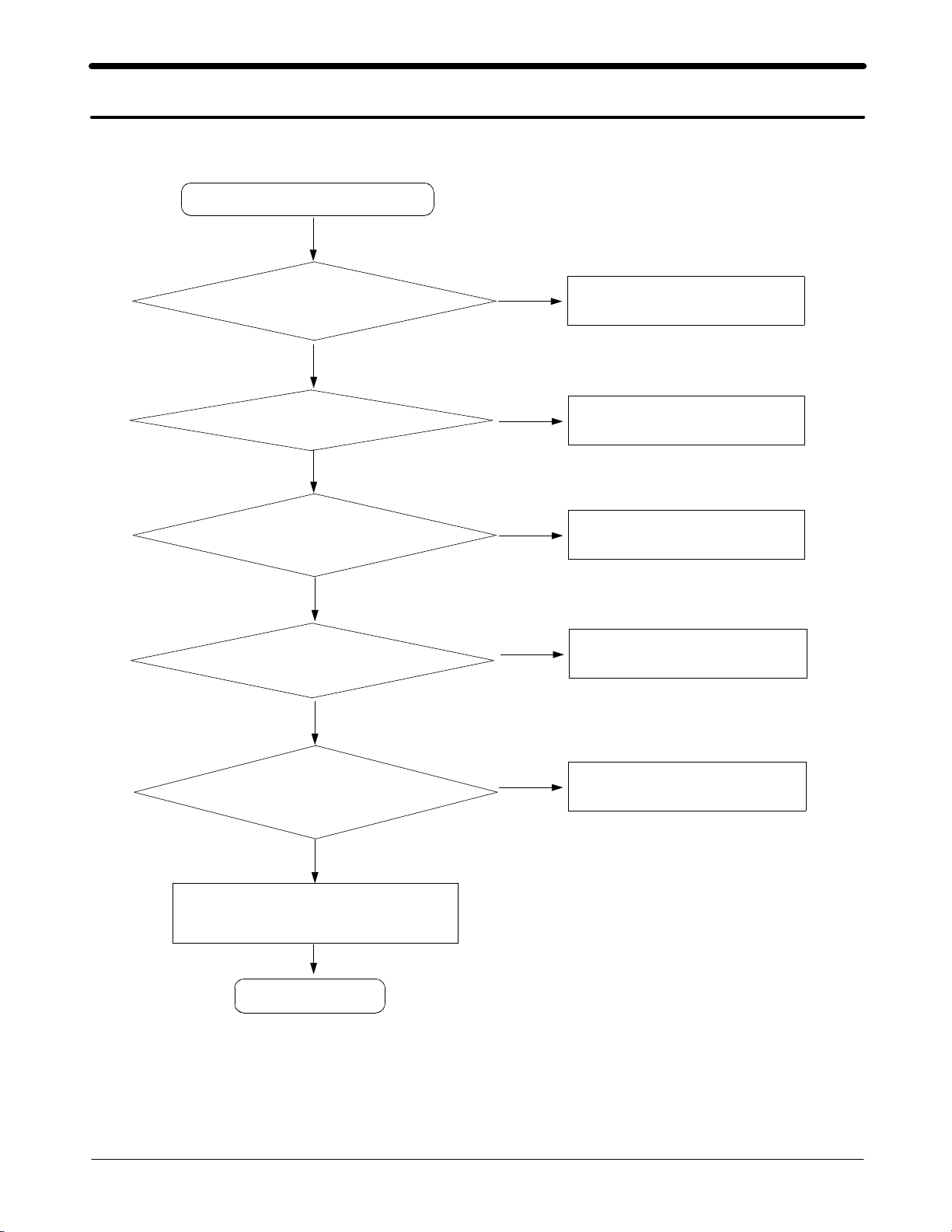

Flow Chart of Troubleshooting

9-3

This Document can not be used without Samsung's authorization

9-1-2. Initial

C340 (RSTON) ="H"?

Initial Failure

Check the circuit related to reset

END

Yes

UCP401 pin C13

(RSTEXT_N) TP407

="H"? OK?

Yes

change UCP401

Check the 16bit data signal

&memoryCE

Yes

Andere Handbücher für GT-C3630C

Andere Samsung Handy Handbücher

Samsung

Samsung SCH-N391 Referenzhandbuch

Samsung

Samsung SM-A315G/DS Bedienungsanleitung

Samsung

Samsung SGH-Z140 Bedienungsanleitung

Samsung

Samsung SM-A500F Bedienungsanleitung

Samsung

Samsung SGH V205 Bedienungsanleitung

Samsung

Samsung SPH-i700 Series Bedienungsanleitung

Samsung

Samsung SM-J727A Bedienungsanleitung

Samsung

Samsung SPH-M360 Bedienungsanleitung

Samsung

Samsung GT-E2600 Bedienungsanleitung

Samsung

Samsung SGH-E808 Bedienungsanleitung

Samsung

Samsung SGH-E640 Bedienungsanleitung

Samsung

Samsung SM-G930W8 Bedienungsanleitung

Samsung

Samsung GT-E1080W Bedienungsanleitung

Samsung

Samsung GT-I9250T Bedienungsanleitung

Samsung

Samsung GT-S6810L Bedienungsanleitung

Samsung

Samsung GT-I9500 Bedienungsanleitung

Samsung

Samsung SGH-D830 Bedienungsanleitung

Samsung

Samsung Sprint SPH-Z400 Bedienungsanleitung

Samsung

Samsung SGH-T209 Bedienungsanleitung

Samsung

Samsung SCH-R850 Series Bedienungsanleitung

Samsung

Samsung Galaxy Z Fold4 Bedienungsanleitung

Samsung

Samsung SM-X710 Bedienungsanleitung

Samsung

Samsung Corby TXT Bedienungsanleitung

Samsung

Samsung Transform SPH-M920 Bedienungsanleitung

Beliebte Handy Handbücher anderer Marken

Zte

Zte BLADE A520 Bedienungsanleitung

Nokia

Nokia Lumia 620 Bedienungsanleitung

Blackbe;rry

Blackbe;rry KEYone Bedienungsanleitung

Bea-fon

Bea-fon X5 Premium Bedienungsanleitung

Blackbe;rry

Blackbe;rry 8707 Series Bedienungsanleitung

Blackbe;rry

Blackbe;rry Storm Betriebsanleitung

LG LM-X420QN Bedienungsanleitung

LifeWatch

LifeWatch V Bedienungsanleitung

Bea-fon

Bea-fon SILVER LINE SL860 Bedienungsanleitung

IKI Mobile

IKI Mobile KF4.5i Bedienungsanleitung

Hitech

Hitech HT-850 Bedienungsanleitung

Yezz

Yezz Fashion F10 Bedienungsanleitung

Point Mobile

Point Mobile PM60 Bedienungsanleitung

Blackbe;rry

Blackbe;rry Q10 Bedienungsanleitung

Blackbe;rry

Blackbe;rry Bold 9900 Bedienungsanleitung

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Bedienungsanleitung

LG LM-K420EMW Bedienungsanleitung

ISAFE MOBILE

ISAFE MOBILE IS655.2 Bedienungsanleitung
