Samsung LN3B460 Bedienungsanleitung

English-1

1-800-SAMSUNG (7267864)

Samsung Electronics America, Inc.

105 Challenger Road Ridgefield Park, NJ 07660-0511

Samsung Electronics Canada Inc., Customer Service

55 Standish Court Mississauga, Ontario L5R 4B2

Call center hours of operation (Mon-Sun 9AM-12AM EST).

To register this product please visit

www.samsung.com/register.

LN22B460 / LN26B460

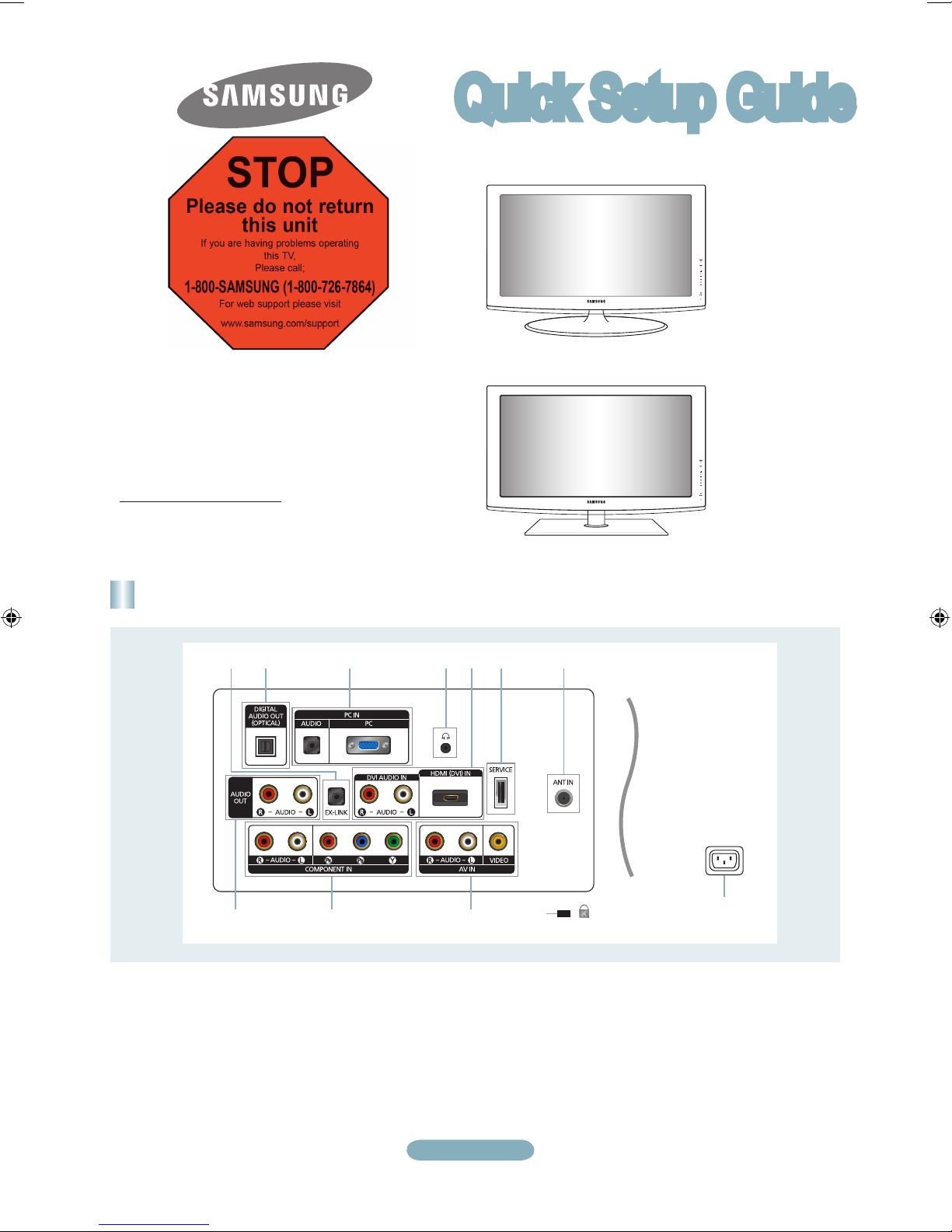

Rear Panel (LN22B460)

0!@

21 3 4 5 6 7

1EX-LINK

2DIGITAL AUDIO OUT (OPTICAL)

3PC IN [PC] / [AUDIO]

4H(HEADPHONE)

5HDMI (DVI) IN /

DVI AUDIO IN [R-AUDIO-L]

6SERVICE

7ANT IN

8POWER INPUT

9KENSINGTON LOCK

0AV IN

!COMPONENT IN

@AUDIO OUT

Quick Setup Guide

STOP

Please do not return

this unit

If you are having problems operating

this TV,

Please call;

1-800-SAMSUNG (1-800-726-7864)

For web support please visit

www.samsung.com/support

LN32B460

[QSG]BN68-02035A-00Eng.indd 1 2009-03-03 �� 10:13:18

English-2

Rear Panel (LN26B460, LN32B460)

1 52 43

7 86 9

1HDMI IN 1(DVI), 2, 3 /

DVI AUDIO IN [R-AUDIO-L]

2PC IN [PC] / [AUDIO]

3HEADPHONE

4DIGITAL AUDIO OUT (OPTICAL)

5SERVICE

6COMPONENT IN / AV IN 1

7ANT IN

8AUDIO OUT

9EX-LINK

0KENSINGTON LOCK

!AV IN 2

@POWER INPUT

Audio Output Performance Comparison

OPTICAL (Digital)

AUDIO (Analog)

Best

Normal

Video Input Performance Comparison

HDMI/DVI

PC/COMPONENT

VIDEO

Best

Better

Normal

[QSG]BN68-02035A-00Eng.indd 2 2009-03-03 �� 10:13:19

English-3

Remote Control

See “Remote Control” in the owner’s instructions for details.

POWER

Turns the TV on and off.

NUMERIC BUTTONS

Press to change the channel.

Press to select additional

channels (digital and analog)

being broadcast by the same

station. For example, to select

channel ‘54-3’, press ‘54’, then

press ‘_’ and ‘3’.

MUTE M

Press to temporarily cut off the

sound.

- VOL +

Press to increase or decrease

the volume.

CH LIST

Used to display Channel Lists

on the screen.

TOOLS

Use to quickly select frequently

used functions.

INFO

Press to display information on

the TV screen.

COLOR BUTTONS

Use these buttons in the

Channel list menus etc.

P.SIZE

Picture size selection.

Selects the TV mode directly.

PRE.CH

Tunes to the previous channel.

Press to change channels.

SOURCE

Press to display and select the

available video sources.

FAV.CH

Press to switch to your favorite

channels.

Displays the main on-screen

menu.

RETURN

Returns to the previous menu.

 UP▲/DOWN▼/LEFT◄/

RIGHT►/ENTERE

Use to select on-screen menu

items and change menu values.

(

EXIT

Press to exit the menu.

)

Controls the caption decoder.

MTS

Press to choose stereo, mono or

Separate Audio Program (SAP

broadcast).

(

)

[QSG]BN68-02035A-00Eng.indd 3 2009-03-03 �� 10:13:19

English-4

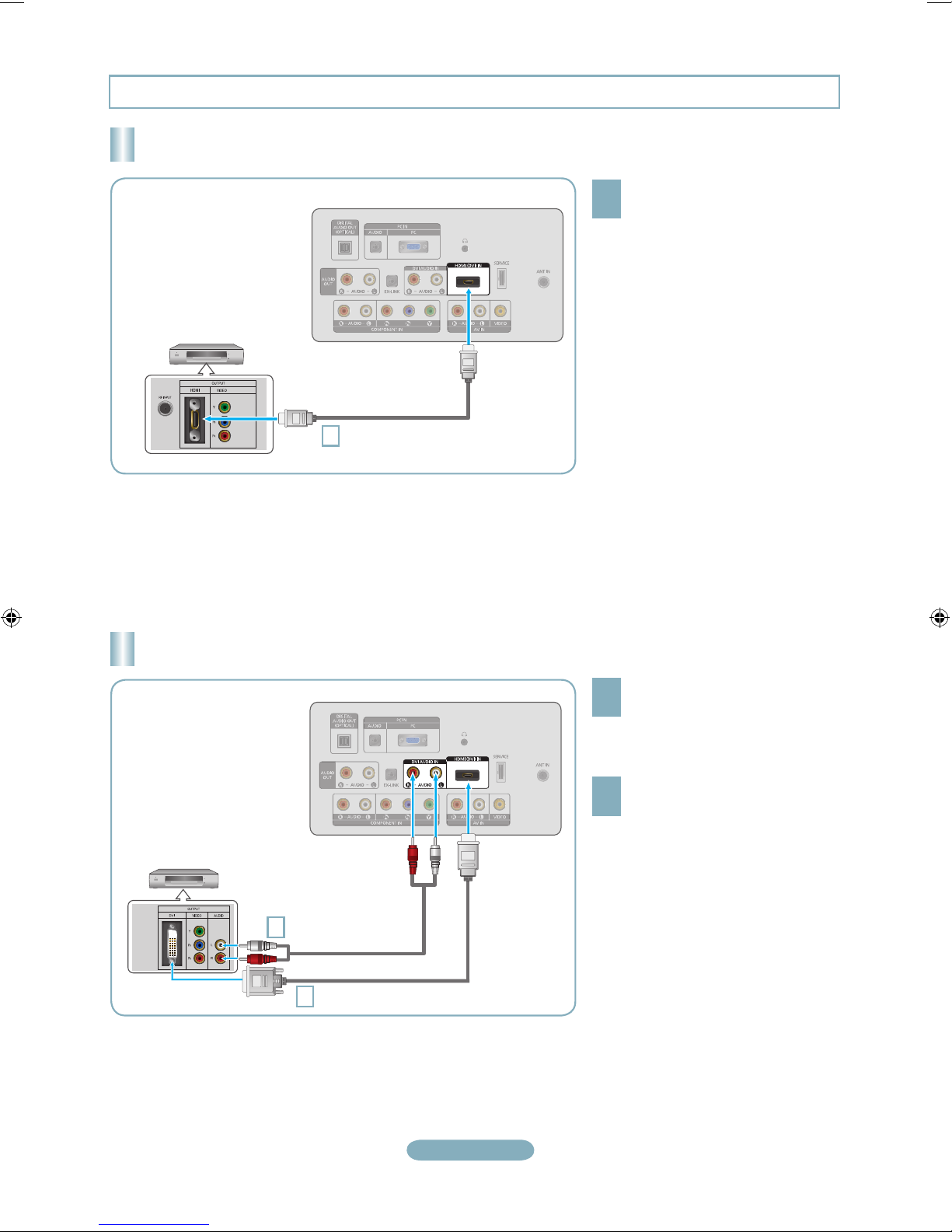

Connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) via DVI

TV Rear Panel

DVI to HDMI Cable (Not supplied)

2Audio Cable (Not supplied)

Connect a DVI to HDMI Cable or

DVI-HDMI Adapter between the HDMI

(DVI) IN jack on the TV and the DVI

jack on the DVD / Blu-ray player /

Cable Box / Satellite receiver (Set-Top

Box).

Connect Audio Cables between the

DVI AUDIO IN [R-AUDIO-L] jack on

the TV and the DVD / Blu-ray player /

Cable Box / Satellite receiver (Set-Top

Box).

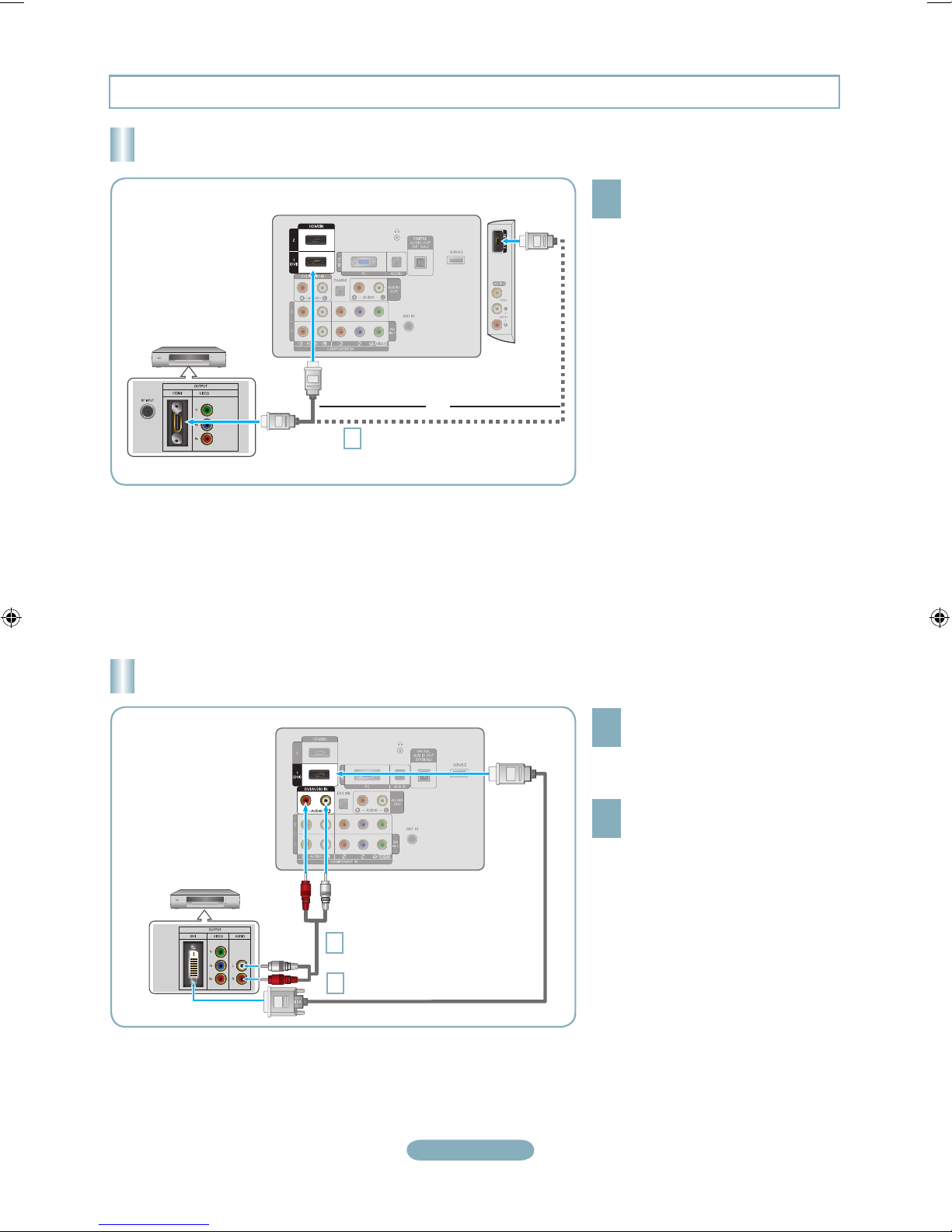

Connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) via HDMI

What is HDMI?

•

HDMI(High-Definition Multimedia

Interface), is an interface that enables the

transmission of digital audio and video

signals using a single cable.

•

The difference between HDMI and DVI

is that the HDMI device is smaller in

size and has the HDCP (High Bandwidth

Digital Copy Protection) coding feature

installed.

Connect an HDMI Cable between

the HDMI (DVI) IN jack on the TV

and the HDMI jack on the DVD

/ Blu-ray Player or Cable Box /

Satellite receiver (Set-Top Box).

DVD / Blu-ray player / Cable Box /

Satellite receiver (Set-Top Box)

Each DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration.

When connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable.

➣

Each DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration.

The TV may not output sound and pictures may be displayed with abnormal color when DVD / Blu-ray player / Cable Box / Satellite receiver

(Set-Top Box) supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound, connect

the HDMI cable to the HDMI (DVI) IN jack and the audio cables to the DVI AUDIO IN [R-AUDIO-L] jacks on the back of the TV. If this happens,

contact the company that provided the DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) to confirm the HDMI version, then

request an upgrade.

HDMI cables that are not 1.3 may cause annoying flicker or no screen display.

➣

DVD / Blu-ray player / Cable Box /

Satellite receiver (Set-Top Box)

TV Rear Panel

HDMI Cable (Not supplied)

Connections (LN22B460)

[QSG]BN68-02035A-00Eng.indd 4 2009-03-03 �� 10:13:20

English-5

Connecting a DVD / Blu-ray player / Cable Box / Satellite receiver

(Set-Top Box) via Component cables

TV Rear Panel

1Component Cable (Not supplied)

DVD / Blu-ray player / Cable Box /

Satellite receiver (Set-Top Box)

2Audio Cable (Not supplied)

Connect a Component Cable between

the COMPONENT IN [Y, PB, PR] jacks

on the TV and the COMPONENT [Y,

PB, PR] jacks on the DVD / Blu-ray

player / Cable Box / Satellite receiver

(Set-Top Box).

Connect Audio Cables between the

COMPONENT IN [R-AUDIO-L] jacks

on the TV and the AUDIO OUT jacks

on the DVD / Blu-ray player / Cable

Box / Satellite receiver (Set-Top Box).

Component video separates the video into

Y (Luminance (brightness)), Pb (Blue) and

Pr (Red) for enhanced video quality. Be sure

to match the component video and audio

connections. For example, if connecting a

Component video cable to COMPONENT IN,

connect the audio cable to COMPONENT IN

also.

Each DVD / Blu-ray player / Cable Box /

Satellite receiver (Set-Top Box) has a different

back panel configuration.

When connecting a DVD / Blu-ray player /

Cable Box / Satellite receiver (Set-Top Box),

match the color of the connection terminal to

the cable.

➣

Connecting a VCR

If you have a ‘mono’ (non-stereo) VCR,

use a Y-connector (not supplied) to

connect to the right and left audio input

jacks of the TV. Alternatively, connect

the cable to the ‘R’ jack. If your VCR is

stereo, you must connect two cables.

Each VCR has a different back

panel configuration.

When connecting a VCR, match

the color of the connection

terminal to the cable.

➣

TV Rear Panel

2Audio Cable (Not supplied)

VCR Rear Panel

Video Cable (Not supplied)

Connect Audio Cables between

the AV IN [R-AUDIO-L] jacks

on the TV and the AUDIO OUT

jacks on the VCR.

Connect a Video Cable

between the AV IN [VIDEO]

jack on the TV and the VIDEO

OUT jack on the VCR.

[QSG]BN68-02035A-00Eng.indd 5 2009-03-03 �� 10:13:22

English-6

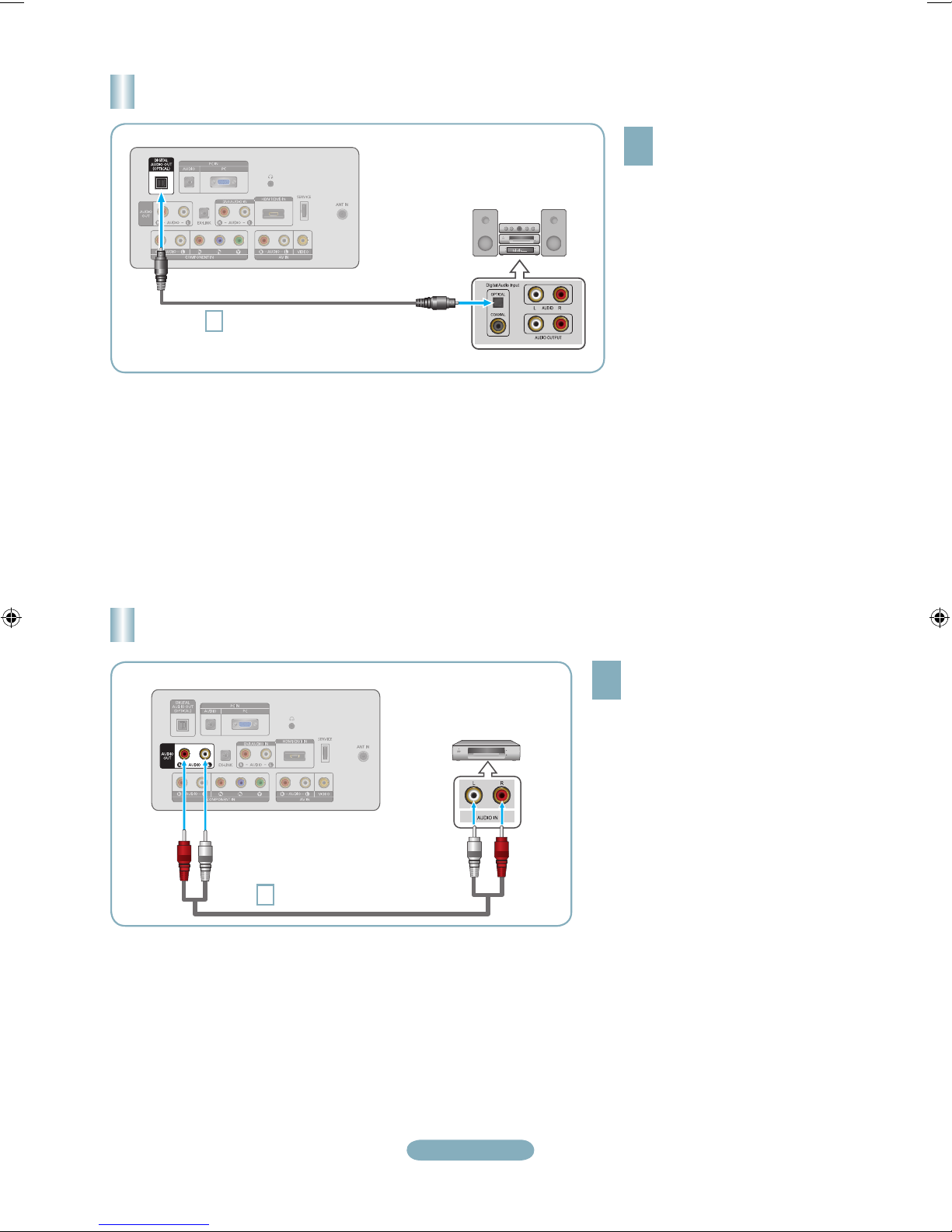

Connecting a Digital Audio System

TV Rear Panel

1Optical Cable (Not supplied)

Digital Audio System

Connect an Optical Cable

between the DIGITAL AUDIO

OUT (OPTICAL) jacks on the

TV and the Digital Audio Input

jacks on the Digital Audio

System.

When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack: Decrease the volume of the TV and

adjust the volume level with the system’s volume control.

5.1CH audio is possible when the TV is connected to an external device supporting 5.1CH.

Each Digital Audio System has a different back panel configuration.

When the Home Theater receiver is set to On, you can hear sound output from the TV’s Optical jack. When the TV is displaying

a DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component

such as a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) and is connected to the TV via HDMI, only 2

channel sound will be heard from the Home Theater receiver. If you want to hear 5.1 channel audio, connect the digital audio

out jack on DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) directly to an Amplifier or Home Theater, not the

TV.

➣

Connecting an Amplifier / DVD Home Theater

TV Rear Panel

1Audio Cable (Not supplied)

Amplifier/DVD Home Theater

Connect Audio Cables between the

AUDIO OUT [R-AUDIO-L] jacks on

the TV and Audio Input jacks on the

Amplifier / DVD Home Theater.

When an audio amplifier is connected

to the AUDIO OUT [R-AUDIO-L]

jacks: Decrease the volume of the TV

and adjust the volume level with the

Amplifier’s volume control.

Each Amplifier/DVD Home Theater has

a different back panel configuration.

When connecting an Amplifier/DVD

Home Theater, match the color of the

connection terminal to the cable.

➣

[QSG]BN68-02035A-00Eng.indd 6 2009-03-03 �� 10:13:23

English-7

Using a Video Cable

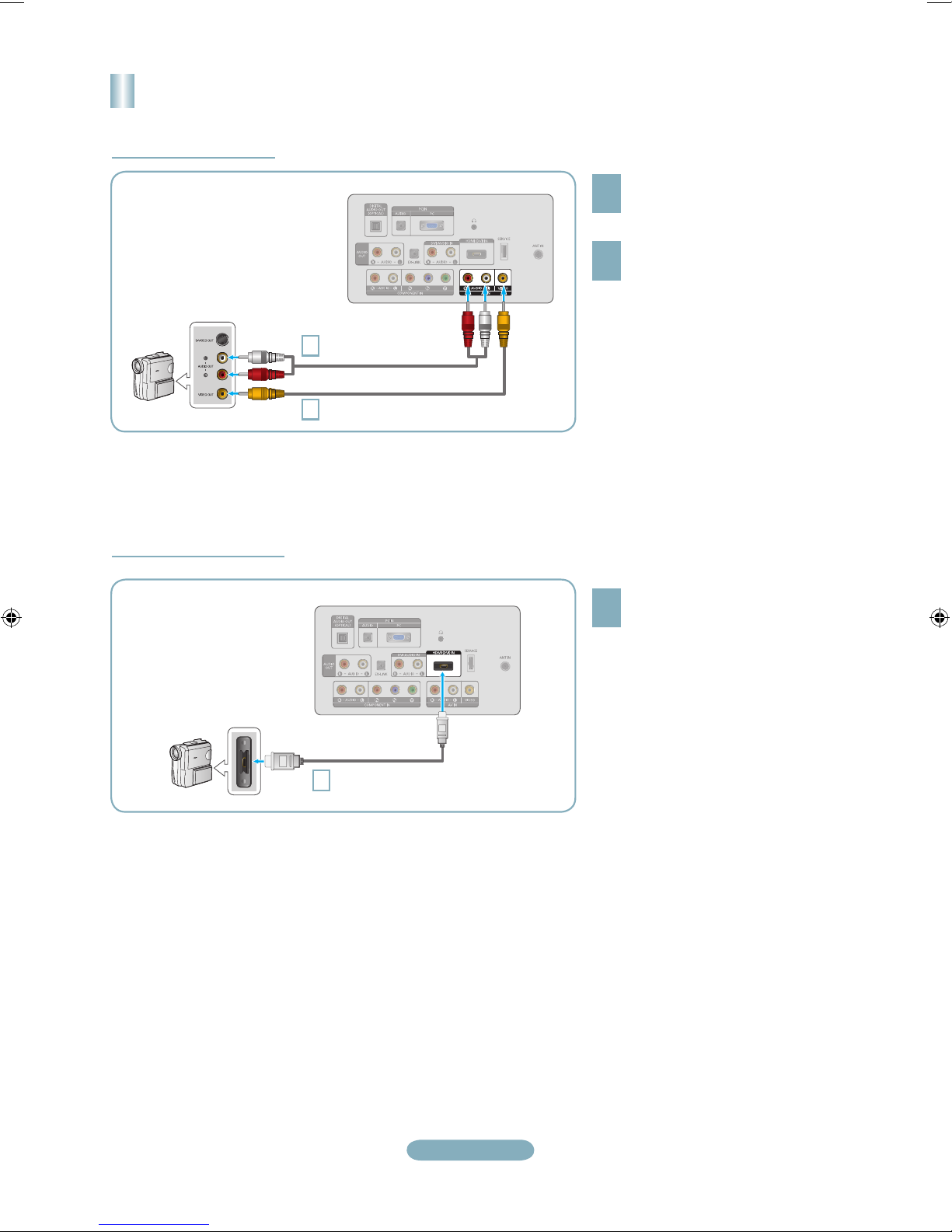

Connecting a Camcorder

Connect a Video Cable between the

AV IN [VIDEO] jack on the TV and

the VIDEO OUT jack on the cam-

corder.

Camcorder

TV Rear Panel

Using an HDMI Cable

Connect an HDMI Cable between

the HDMI (DVI) IN jack on the TV

and the HDMI OUT jack on the

camcorder.

HD Camcorder

TV Rear Panel

HDMI Cable (Not supplied)

2Audio Cable (Not supplied)

1Video Cable (Not supplied

Connect Audio Cables between the

AV IN [R-AUDIO-L] jacks on the TV

and the AUDIO OUT jacks on the

camcorder.

Each Camcorder has a different back panel configuration.

When connecting a Camcorder, match the color of the connection terminal to the cable.

➣

[QSG]BN68-02035A-00Eng.indd 7 2009-03-03 �� 10:13:24

English-8

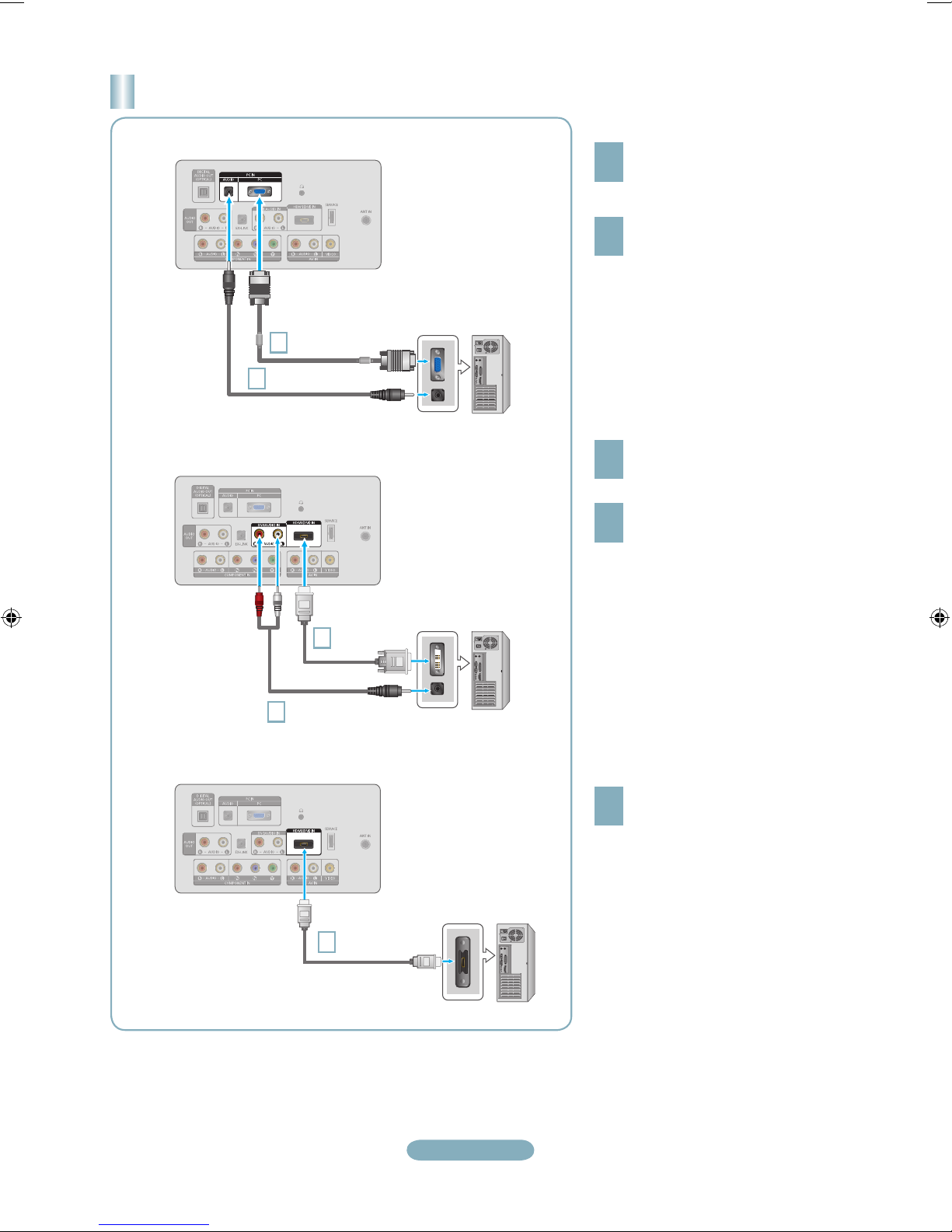

Connecting a PC

TV Rear Panel

1D-Sub Cable

(Not supplied)

2PC Audio Cable

(Not supplied)

Connect an HDMI/DVI cable

between the HDMI (DVI) IN jack on

the TV and the PC output jack on

your computer.

Connect a 3.5 mm Stereo miniplug

/ 2RCA Cable between the DVI

AUDIO IN [R-AUDIO-L] jack on the

TV and the Audio Out jack of the

sound card on your computer.

Using an HDMI/DVI Cable

Using a D-Sub Cable

TV Rear Panel

1HDMI/DVI Cable

(Not supplied)

23.5 mm Stereo mini-plug/

2RCA Cable (Not supplied)

Using an HDMI/DVI Cable

Connect a D-Sub Cable between

PC IN [PC] connector on the TV

and the PC output connector on

your computer.

Connect a PC Audio Cable

between the PC IN [AUDIO] jack

on the TV and the Audio Out jack of

the sound card on your computer.

Using a D-Sub Cable

When connecting a PC, match the

color of the connection terminal to the

cable.

➣

Connect an HDMI cable between

the HDMI (DVI) IN jack on the TV

and the PC output jack on your

computer.

Using an HDMI Cable

Each PC has a different back panel

configuration.

➣

TV Rear Panel

Using an HDMI Cable

1HDMI Cable

(Not supplied)

[QSG]BN68-02035A-00Eng.indd 8 2009-03-03 �� 10:13:25

English-9

Connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) via HDMI

What is HDMI?

•

HDMI(High-Definition Multimedia

Interface), is an interface that enables the

transmission of digital audio and video

signals using a single cable.

•

The difference between HDMI and DVI

is that the HDMI device is smaller in

size and has the HDCP (High Bandwidth

Digital Copy Protection) coding feature

installed.

Connect an HDMI Cable between

the HDMI IN (1(DVI), 2 or 3) jack

on the TV and the HDMI jack on

the DVD Player or Cable Box /

Satellite receiver (Set-Top Box).

Each DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration.

The TV may not output sound and pictures may be displayed with abnormal color when DVD / Blu-ray player / Cable Box / Satellite receiver

(Set-Top Box) supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound, connect

the HDMI cable to the HDMI IN 1(DVI) jack and the audio cables to the DVI AUDIO IN [R-AUDIO-L] jacks on the back of the TV. If this happens,

contact the company that provided the DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) to confirm the HDMI version, then

request an upgrade.

HDMI cables that are not 1.3 may cause annoying flicker or no screen display.

➣

DVD / Blu-ray player /

Cable Box /

Satellite receiver

(Set-Top Box)

TV Rear Panel

HDMI Cable (Not supplied)

Connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) via DVI

TV Rear Panel

DVI to HDMI Cable (Not supplied)

2Audio Cable (Not supplied)

Connect a DVI to HDMI Cable or

DVI-HDMI Adapter between the

HDMI IN 1(DVI) jack on the TV and

the DVI jack on the DVD / Blu-ray

player / Cable Box / Satellite receiver

(Set-Top Box).

Connect Audio Cables between the

DVI AUDIO IN [R-AUDIO-L] jack on

the TV and the DVD / Blu-ray player /

Cable Box / Satellite receiver (Set-Top

Box).

DVD / Blu-ray player /

Cable Box /

Satellite receiver

(Set-Top Box)

Each DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) has a different back panel configuration.

When connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable.

When using an HDMI / DVI cable connection, you must use the HDMI IN 1(DVI) jack.

➣

TV Side Panel

Connections (LN26B460, LN32B460)

[QSG]BN68-02035A-00Eng.indd 9 2009-03-03 �� 10:13:27

English-10

Connecting a DVD / Blu-ray player / Cable Box / Satellite receiver

(Set-Top Box) via Component cables

TV Rear Panel

DVD / Blu-ray player / Cable Box /

Satellite receiver (Set-Top Box)

Connect a Component Cable

between the COMPONENT IN (1 or

2) [Y, PB, PR] jacks on the TV and the

COMPONENT [Y, PB, PR] jacks on the

DVD / Blu-ray player / Cable Box /

Satellite receiver (Set-Top Box).

Connect Audio Cables between the

COMPONENT IN (1 or 2) [R-AUDIO-L]

jacks on the TV and the AUDIO OUT

jacks on the DVD / Blu-ray player /

Cable Box / Satellite receiver (Set-Top

Box).

Component video separates the video into

Y (Luminance (brightness)), Pb (Blue) and

Pr (Red) for enhanced video quality. Be sure

to match the component video and audio

connections. For example, if connecting a

Component video cable to COMPONENT IN

1, connect the audio cable to COMPONENT

IN 1 also.

Each DVD / Blu-ray player / Cable Box /

Satellite receiver (Set-Top Box) has a different

back panel configuration.

When connecting a DVD / Blu-ray player /

Cable Box / Satellite receiver (Set-Top Box),

match the color of the connection terminal to

the cable.

➣

1Component Cable

(Not supplied)

2Audio Cable (Not supplied)

Connecting a VCR

If you have a ‘mono’ (non-stereo) VCR,

use a Y-connector (not supplied) to

connect to the right and left audio input

jacks of the TV. Alternatively, connect

the cable to the ‘R’ jack. If your VCR is

stereo, you must connect two cables.

Each VCR has a different back

panel configuration.

When connecting a VCR, match

the color of the connection

terminal to the cable.

When connecting to AV IN 1, the

color of the AV IN 1 [Y/VIDEO]

jack (Green) does not match the

color of the video cable (Yellow).

➣

TV Rear Panel

2Audio Cable (Not supplied)

VCR Rear Panel

Video Cable (Not supplied)

Connect Audio Cables between

the AV IN (1 or 2) [R-AUDIO-L]

jacks on the TV and the AUDIO

OUT jacks on the VCR.

Connect a Video Cable

between the AV IN 1 [Y/VIDEO]

or AV IN 2 [VIDEO] jack on the

TV and the VIDEO OUT jack

on the VCR.

TV Side Panel

[QSG]BN68-02035A-00Eng.indd 10 2009-03-03 �� 10:13:28

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Flachbildfernseher Handbücher

Samsung

Samsung UN22D5003BF Bedienungsanleitung

Samsung

Samsung LN-T405H Bedienungsanleitung

Samsung

Samsung UN55B7000 - 55" LCD TV Montageanleitung

Samsung

Samsung PN50A760TF Bedienungsanleitung

Samsung

Samsung PN42B430P2D Bedienungsanleitung

Samsung

Samsung PN50C590 Bedienungsanleitung

Samsung

Samsung 700DXN - SyncMaster - 70" LCD Flat Panel... Bedienungsanleitung

Samsung

Samsung BN68-03088A-01 Bedienungsanleitung

Samsung

Samsung LN32B640 Bedienungsanleitung

Samsung

Samsung PN50C6400TF Bedienungsanleitung

Samsung

Samsung PN42A400C2D Bedienungsanleitung

Samsung

Samsung UN75F6400AF Bedienungsanleitung

Samsung

Samsung PN42C430 Bedienungsanleitung

Samsung

Samsung SyncMaster 460P Bedienungsanleitung

Samsung

Samsung BN68-03116A-01 Bedienungsanleitung

Samsung

Samsung LT-P2045U Einrichtungshandbuch

Samsung

Samsung UN55F7050AF Bedienungsanleitung

Samsung

Samsung UN75F8000XZA Leitfaden

Samsung

Samsung UN32C5000QF Bedienungsanleitung

Samsung

Samsung PL50A450P1 Bedienungsanleitung

Samsung

Samsung UN46B8000 - 46" LCD TV Bedienungsanleitung

Samsung

Samsung BN68-03088A-02 Bedienungsanleitung

Samsung

Samsung PN58A550S1F Bedienungsanleitung

Samsung

Samsung HP-R4272 Bedienungsanleitung

Beliebte Flachbildfernseher Handbücher anderer Marken

Philips

Philips 32PFL7602D - annexe 1 Bedienungsanleitung

Philips

Philips 42PF7321 Bedienungsanleitung

Sony

Sony WEGA KE-50XBR900, KE-42XBR900 Bedienungsanleitung

JVC

JVC LT-26DX7BFN Bedienungsanleitung

Philips

Philips Match Line 29PT9006/12 Bedienungsanleitung

Philips

Philips 37PFL5522D - annexe 2 Bedienungsanleitung

Westinghouse

Westinghouse TX-42F970Z Bedienungsanleitung

Philips

Philips 32PFL5332S Bedienungsanleitung

Philips

Philips 40PFL5705D Bedienungsanleitung

Toshiba

Toshiba 32BV500B Bedienungsanleitung

Philips

Philips MathLine 32PW9765 Bedienungsanleitung

Philips

Philips MatchLine FlatTV 50PF9965 Bedienungsanleitung

RCA

RCA MR53R400 Bedienungsanleitung

Philips

Philips 28PW8818/12 Bedienungsanleitung

JVC

JVC GGT0362-001A-H Bedienungsanleitung

Philips

Philips Magnavox 37MF331D/37 Bedienungsanleitung

Sanyo

Sanyo FVM4212 Bedienungsanleitung

Philips

Philips 47PFL7623D Bedienungsanleitung
