Samsung UN22D5003BF Bedienungsanleitung

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/register

Model _____________Serial No. _____________

User Manual

Contact SAMSUNG WORLD-WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Contacte con SAMSUNG WORLD WIDE

Si desea formular alguna pregunta o comentario en relación con los productos de Samsung, comuníquese con el centro de atención

al cliente de SAMSUNG.

Country Customer Care Center Web Site

MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com

IMPORTADO POR: SAMSUNG ELECTRONICS MÉXICO S.A. de C.V.

AV. PRESIDENTE MASARIK #111 INT701

COL. CHAPULTEPEC MORALES C.P.11570

DELEGACION MIGUEL HIDALGO MEXICO. DISTRITO FEDERAL

Tel: 01-55-5747-5100 / 01-800-726-7864

BN68-03703C

BN68-03703C-02

[UD5003-ZX]BN68-03703C.indb 1 2011-06-08 �� 10:34:51

English

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Product design and speciﬁcations may be changed without notice.

Still image warning

Avoid displaying still images (such as jpeg picture ﬁles) or still image elements (such as TV channel logos, panorama or 4:3 image format, stock

or news bars at screen bottom etc.) on the screen. Constant displaying of still pictures can cause ghosting of LCD/LED screen, which will affect

image quality. To reduce risk of this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.

• Always try to display any image on full screen, use TV set picture format menu for best possible match.

• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout

process.

• Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of the product.

✎

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

✎

The appearance may differ depending on the product.

✎

Be careful when you contact the TV because some parts can be somewhat hot.

Installation with a stand. Installation with a wall-mount.

4inches

[UD5003-ZX]BN68-03703C.indb 2 2011-06-08 �� 10:34:51

Contents

English

ENGLISH

Getting Started

yList of Features ......................................................... 4

yAccessories .............................................................. 4

yViewing the Control Panel ......................................... 5

yViewing the Remote Control...................................... 6

yConnecting to an Antenna ........................................ 7

yPlug & Play (Initial Setup)........................................... 7

Connections

yConnecting to an AV Device...................................... 8

yChanging the Input source...................................... 10

Basic Features

yHow to Navigate Menus.......................................... 11

yChannel Menu ........................................................ 11

Seeing Channels 11

Using Favorite Channels 12

Memorizing channels 12

Editing channels 12

Other Features 12

yPicture Menu .......................................................... 14

Changing the Preset Picture Mode 14

Adjusting picture settings 14

Changing the Picture Options 14

ySound Menu........................................................... 16

Changing the Preset Sound Mode 16

Adjusting sound settings 16

Sound Settings 16

ySetup Menu............................................................ 17

Setting the Time 17

Using the Sleep Timer 17

Setting the On/Off Timer 17

Locking Programs 18

Other Features 19

ySupport Menu......................................................... 20

Advanced Features

yMedia Play.............................................................. 21

Connecting a USB Device 21

Other Information

yInstalling the Wall Mount ......................................... 25

ySecuring the TV to the Wall..................................... 27

yAnti-Theft Kensington Lock..................................... 27

yTroubleshooting ...................................................... 28

Storage and Maintenance 30

ySpeciﬁcations ......................................................... 31

License 31

yIndex ...................................................................... 32

Check the Symbol!

t✎O

This function can be used by pressing

the TOOLS button on the remote

control.

Note :

Important information

Step by step guide :

Informs you how to access

the menu.

[UD5003-ZX]BN68-03703C.indb 3 2011-06-08 �� 10:34:51

Getting Started

English

Getting Started

List of Features

■Excellent Digital Interface & Networking : With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed

without a cable box / STB (Set-Top-Box) satellite receiver.

■Media Play: Allows you to play music ﬁles, and pictures saved on a USB device. (P. 21)

■Self Diagnosis: You can check picture and sound operation. (P. 20)

Accessories

✎

Please make sure the following items are included with your TV. If any items are missing, contact your dealer.

✎

The items' colors and shapes may vary depending on the models.

■Remote Control & Batteries (AAA x 2)

■Warranty Card / Safety Guide / Quick Setup Guide

■Owner’s Instructions

■Cleaning Cloth

■Power Cord

Holder wire stand

(UN40D5003BF Model only)

Assembling Holder-wire stand (UN40D5003BF Model only)

Input Cables (Sold Separately)

HDMI HDMI-DVI Component Composite (AV) Coaxial (RF)

[UD5003-ZX]BN68-03703C.indb 4 2011-06-08 �� 10:34:56

01 Getting Started

English

Viewing the Control Panel

✎

The product color and shape may vary depending on the model.

Speakers

Control Panel

P (Power) Press to turn the TV on and off.

Remote control sensor Aim the remote control towards this spot on the TV.

SOURCEEToggles between all the available input sources. In the on-screen menu, use this

button as you would use the ENTEREbutton on the remote control.

MENU Displays an on-screen menu of your TV’s features.

yAdjusts the volume. In the on-screen menu, use the ybuttons as you would

use the ◄and ►buttons on the remote control.

zChanges the channels. In the on-screen menu, use the zbuttons as you

would use the ▼and ▲buttons on the remote control.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount

of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

[UD5003-ZX]BN68-03703C.indb 5 2011-06-08 �� 10:34:57

Getting Started

English

Viewing the Remote Control

Installing batteries (Battery size: AAA)

✎

NOTE

Use the remote control within 23 feet from TV.

Bright light may affect the performance of the remote control.

Avoid use when nearby fluorescent lights or neon signs.

The Color and shape may vary depending on the model.

MTS

MEDIA.P

A B C D

P.SIZE CC

FAV.CH

Press to select additional channels

(digital) being broadcast by the same

station. For example, to select channel

‘54-3’, press ‘54’, then press ‘-’ and ‘3’.

Return to the previous channel.

Press to directly access to channels.

Turns the TV on and off. Display and select the available video

sources. (P. 10)

MTS:Press to choose stereo, mono or

Separate Audio Program (SAP

broadcast). (P. 16)

P.SIZE: Choose the picture size. (P. 15)

CC: Controls the caption decoder. (P. 19)

Cut off the sound temporarily.

Display favorite channel lists on the screen.

(p. 12)

Displays the channel list on the screen. (P. 11)

Press to display information on the TV

screen.

Quickly select frequently used functions.

Select on-screen menu items and

change menu values.

Exit the menu.

Return to the previous menu.

View the Media Play. (P. 21)

Buttons used in the Channel List,

Media Play menu, etc.

Change channels.

Displays the main on-screen menu.

Adjusts the volume.

[UD5003-ZX]BN68-03703C.indb 6 2011-06-08 �� 10:34:57

Plug & Play

Language : English

Time

Game Mode : Off

V-Chip

Caption

Melody : Medium

Setup

01 Getting Started

English

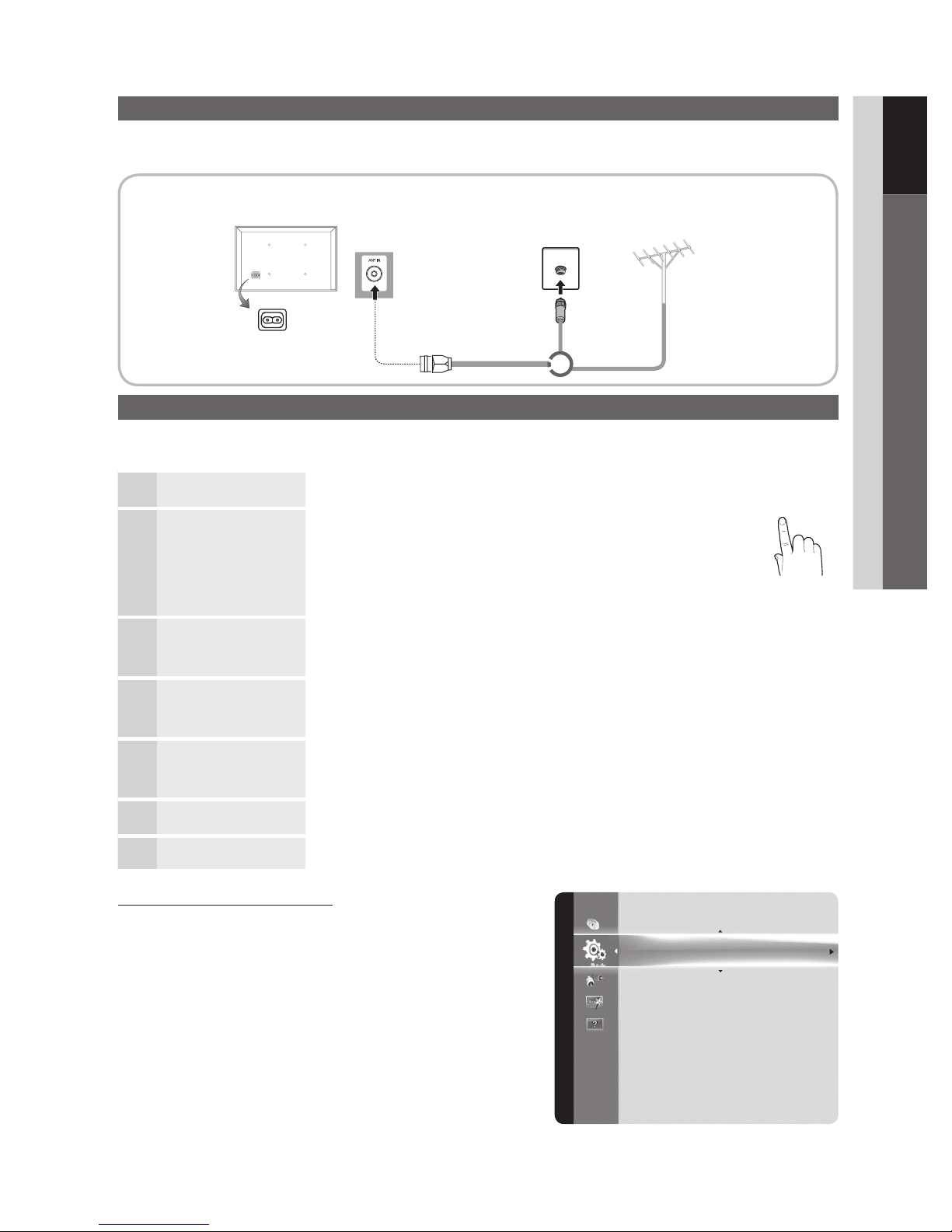

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

✎

Connecting the power cord and antenna.

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in conﬁguring basic settings. Press the

POWER

button. Plug & Play is available only when the Input source is set to TV.

1Selecting a language Press the ▲or ▼button, then press the ENTER

button.

Select the desired OSD (On Screen Display) language.

2Selecting Store Demo

or Home Use

Press the ◄or ►button, then press the ENTER

button.

ySelect the Home Use mode. Store Demo Mode is for retail

environments.

yTo return the unit’s settings from Store Demo to Home Use

(standard): Press the volume button on the TV. When you see the

volume in the OSD, press and hold MENU for 5 sec.

3Selecting an antenna Press the ▲or ▼button, then press the ENTER

button. Select Air, Cable or Auto.

✎

In Cable mode, you can select the correct signal source among STD, HRC, and IRC

by pressing the ▲, ▼, ◄or ►button, then press the ENTER

button.

4Selecting a channel The channel search will start automatically.

For more information, refer to Channel →Auto Program. (P. 12)

✎

Press the ENTER

button at any time to interrupt the memorization process.

5Setting the Clock

Mode

Set the Clock Mode automatically or manually.

✎

If you select the Auto, set the daylight saving time.

Select the time zone where you live.

6Viewing the HD

Connection Guide

The connection method for the best HD screen quality is displayed.

7Enjoy your TV. Press the ENTER

button.

If You Want to Reset This Feature...

→Setup →Plug & Play →ENTER

MEDIA.P

POWER

P.SIZE

SLEEP

S.MODE

P.MODE

✎

The position of power input port may differ depending on the model.

VHF/UHF Antenna

Cable

TV Rear Panel

[UD5003-ZX]BN68-03703C.indb 7 2011-06-08 �� 10:34:58

Connecting to an AV Device

Using an HDMI cable or HDMI to DVI Cable: HD connection (up to 1080p)

We recommend using the HDMI connection for the best quality HD picture.

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver

✎

HDMI IN 1(DVI), 2

When using an HDMI/DVI cable connection, you must use the HDMI/DVI IN jack for video. A DVD, Blu-ray

player, HD cable box, HD STB satellite receiver, cable box, or STB satellite receiver may require a DVI-HDMI (DVI

to HDMI) cable or DVI-HDMI (DVI to HDMI) adapter.

The picture may not display normally (if at all) or the audio may not work if an external device that uses an older

version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external

device about the HDMI version and, if out of date, request an upgrade.

Be sure to purchase a certiﬁed HDMI cable. Otherwise, the picture may not display or a connection error may

occur.

If an HDMI to DVI cable is connected to the HDMI IN 1(DVI) port, the audio does not work.

Using a Component Cable: (up to 1080p), Using an Audio/Video Cable: (480i only)

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

BD/DVD player/

HD cable/sat box

R-AUDIO-L PRPBY

HDMI OUT

R-AUDIO-L PRPBY

DVI OUT

TV Rear

R-AUDIO-L PRPBY

COMPONENT OUT

R-AUDIO-L PRPBY

AUDIO OUT

Blu-ray player

R-AUDIO-L PRPBY

VIDEO OUT

VCR

R-AUDIO-L PRPBY

AUDIO OUT

✎

When connecting to AV IN, the color of

the AV IN [Y/VIDEO] jack (Green) does not

match the color of the video cable (Yellow).

✎

For better picture quality, the Component

connection is recommended over the A/V

connection.

W W BG

Yellow Red White Red Blue Green

TV Rear

English

ConnectionsConnections

[UD5003-ZX]BN68-03703C.indb 8 2011-06-08 �� 10:35:01

Display Modes (HDMI/DVI Input)

19", 26", 32" : Optimal resolution is 1360x768@60Hz.

Mode Resolution

Horizontal Frequency (KHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H / V)

IBM 640 x 350 31,469 70,086 25,175 + / -

720 x 400 31,469 70,087 28,322 - / +

MAC 640 x 480 35,000 66,667 30,240 - / -

832 x 624 49,726 74,551 57,284 - / -

VESA DMT

640 x 480

31,469 59,940 25,175 - / -

37,861 72,809 31,500 - / -

37,500 75,000 31,500 - / -

800 x 600

37,879 60,317 40,000 + / +

48,077 72,188 50,000 + / +

46,875 75,000 49,500 + / +

1024 x 768

48,363 60,004 65,000 - / -

56,476 70,069 75,000 - / -

60,023 75,029 78,750 + / +

1360 x 768 47,712 60,015 85,500 + / +

Display Modes (HDMI/DVI Input)

22", 40" : Optimal resolution is 1920 x 1080@60Hz.

Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H / V)

IBM 640 x 350 31

469 70

086 25

175 +/-

720 x 400 31

469 70

087 28

322 -/+

MAC

640 x 480 35

000 66

667 30

240 -/-

832 x 624 49

726 74

551 57

284 -/-

1152 x 870 68

681 75

062 100

000 -/-

VESA DMT

640 x 480 31

469 59

940 25

175 -/-

640 x 480 37

861 72

809 31

500 -/-

640 x 480 37

500 75

000 31

500 -/-

800 x 600 37

879 60

317 40

000 +/+

800 x 600 48

077 72

188 50

000 +/+

800 x 600 46

875 75

000 49

500 +/+

1024 x 768 48

363 60

004 65

000 -/-

1024 x 768 56

476 70

069 75

000 -/-

1024 x 768 60

023 75

029 78

750 +/+

1152 x 864 67

500 75

000 108

000 +/+

1280 x 1024 63

981 60

020 108

000 +/+

1280 x 1024 79

976 75

025 135

000 +/+

1280 x 800 49

702 59

810 83

500 -/+

1280 x 800 62

795 74

934 106

500 -/+

1280 x 960 60

000 60

000 108

000 +/+

1360 x 768 47

712 60

015 85

500 +/+

1440 x 900 55

935 59

887 106

500 -/+

1440 x 900 70

635 74

984 136

750 -/+

1680 x 1050 65

290 59

954 146

250 -/+

VESA DMT / DTV CEA 1920 x 1080p 67

500 60

000 148

500 +/+

English

02 Connections

[UD5003-ZX]BN68-03703C.indb 9 2011-06-08 �� 10:35:01

English

Connections

✎

NOTE

For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.

The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

PC(D-Sub) input is not supported.

If an HDMI to DVI cable is connected to the HDMI IN 1(DVI) port, the audio does not work.

SERVICE

Connector for service only.

Changing the Input source

Source List

→Input →Source List →ENTER

Use to select TV or an external input sources such as a DVD / Blu-ray player / cable box / STB satellite

receiver.

■TV / AV / Component / HDMI1/DVI / HDMI2

✎

You can only choose external devices that are connected to the TV. In the Source List, connected

inputs will be highlighted.

✎

PC(D-Sub) input is not supported. If you want to connect PC to the TV, use HDMI1/DVI input.

✎

You can use the Edit Name and Information when you press the TOOLS button in the Source

List.

Information

You can see detailed information about the selected external device.

Edit Name

→Input →Edit Name →ENTER

■VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI / TV /

IPTV / Blu-ray / HD DVD / DMA: Name the device connected to the input jacks to make your input source selection

easier.

✎

When connecting a PC to the HDMI IN 1(DVI) port with HDMI cable, you should set the TV to PC mode under Edit

Name.

✎

When connecting a PC to the HDMI IN 1(DVI) port with HDMI to DVI cable, you should set the TV to DVI PC mode

under Edit Name.

✎

When connecting an AV devices to the HDMI IN 1(DVI) port with HDMI to DVI cable, you should set the TV to DVI

mode under Edit Name.

MEDIA.P

POWER

P.SIZE

SLEEP

S.MODE

P.MODE

[UD5003-ZX]BN68-03703C.indb 10 2011-06-08 �� 10:35:02

Andere Handbücher für UN22D5003BF

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Samsung Flachbildfernseher Handbücher

Samsung

Samsung PN42A400C2D Bedienungsanleitung

Samsung

Samsung 700DXN - SyncMaster - 70" LCD Flat Panel... Bedienungsanleitung

Samsung

Samsung PN58C590 Bedienungsanleitung

Samsung

Samsung PN50C8000YF Bedienungsanleitung

Samsung

Samsung LN32B640 Bedienungsanleitung

Samsung

Samsung LE22A455 Bedienungsanleitung

Samsung

Samsung UN32C4000PD Bedienungsanleitung

Samsung

Samsung UN22D5003BF Bedienungsanleitung

Samsung

Samsung LN52C530 Bedienungsanleitung

Samsung

Samsung UN55ES8000G Bedienungsanleitung

Samsung

Samsung LW17M24C Bedienungsanleitung

Samsung

Samsung LN-T405H Bedienungsanleitung

Samsung

Samsung LN40B50 Bedienungsanleitung

Samsung

Samsung ME75B Bedienungsanleitung

Samsung

Samsung UN46C6800UFXZA Bedienungsanleitung

Samsung

Samsung LT-P 1545 Bedienungsanleitung

Samsung

Samsung UN40B6000 - 40" LCD TV Bedienungsanleitung

Samsung

Samsung UN60FH6003 Bedienungsanleitung

Samsung

Samsung LN22A650AD Bedienungsanleitung

Samsung

Samsung LED 7450 Bedienungsanleitung

Samsung

Samsung UN40FH6030F Leitfaden

Samsung

Samsung PN50B530 - 50" Plasma TV Bedienungsanleitung

Samsung

Samsung BN68-02625B-03 Bedienungsanleitung

Samsung

Samsung UN65F9000AF Leitfaden

Beliebte Flachbildfernseher Handbücher anderer Marken

Philips

Philips 32PFL7602D - annexe 1 Bedienungsanleitung

Philips

Philips 42PF7321 Bedienungsanleitung

Sony

Sony WEGA KE-50XBR900, KE-42XBR900 Bedienungsanleitung

JVC

JVC LT-26DX7BFN Bedienungsanleitung

Philips

Philips Match Line 29PT9006/12 Bedienungsanleitung

Philips

Philips 37PFL5522D - annexe 2 Bedienungsanleitung

Westinghouse

Westinghouse TX-42F970Z Bedienungsanleitung

Philips

Philips 32PFL5332S Bedienungsanleitung

Philips

Philips 40PFL5705D Bedienungsanleitung

Toshiba

Toshiba 32BV500B Bedienungsanleitung

Philips

Philips MathLine 32PW9765 Bedienungsanleitung

Philips

Philips MatchLine FlatTV 50PF9965 Bedienungsanleitung

RCA

RCA MR53R400 Bedienungsanleitung

Philips

Philips 28PW8818/12 Bedienungsanleitung

JVC

JVC GGT0362-001A-H Bedienungsanleitung

Philips

Philips Magnavox 37MF331D/37 Bedienungsanleitung

Sanyo

Sanyo FVM4212 Bedienungsanleitung

Philips

Philips 47PFL7623D Bedienungsanleitung
