Samsung UN55F7050AF Bedienungsanleitung

BN68-05041A-00

QUICK START

GUIDE

Welcome to your new Smart TV!

The following instructions cover assembling, connecting, and setting up your new TV. Make

sure you have the accessories listed below.

Included in this box

Remote Control Stand Parts and Cables

Smart Touch Control Power cord Cable manager Stand Mount

x 4

Batteries (AAA x 2) IR extender Wall mount adapter

Also included: Cleaning cloth, user manual, regulatory guide,

3D Active Glasses, wireless keyboard

Step 1

Attach the TV to

the Stand

Step 2

Connect video

devices

Step 3

Insert the

batteries into the

remote control

Step 4

Power on and

start the initial

setup

Warning: Screens can be damaged

from direct pressure when handled

incorrectly. We recommend lifting the

TV by the edges, as shown.

Step 1 Attach the TV to the Stand

1 Lay the TV on a soft surface, screen side down.

Use the packing material to protect the screen.

4 Insert 4 screws and secure the stand to the

mount.

x4 (M4 X L12) 40” ~ 55”

x4 (M4 X L10) 60” ~ 65”

REQUIRED TOOLS: a Phillips head screwdriver and a soft, flat surface larger than the TV

(such as the box).

1 2 3

Holding the stand parallel to the screen, slide

the stand into the notches on the back of the

TV.

Base Screws

x 8

Put a base and screws off to assemble the stand

out of the box.

3 Fit the stand and mount together, making sure

the notch on the mount aligns with the stand.

6 Insert 4 screws and secure the stand to the TV.

x4 (M4 X L12) 40” ~ 55”

x4 (M4 X L10) 60” ~ 65”

[UF7050_QSG]BN68-05041A-00ENG.indb 2 2013-02-14 �� 11:44:50

Step 4 Power on and start the initial setup

Information required:

• Wi-Fi network password (if you use one)

• Zip code

• Cable or satellite provider info

The TV must be connected to the Internet to use the Smart Features. If you have a wireless

network, we recommend that you confirm that your network router is switched on and working

before you start the initial setup. If you have a wired network, we recommend that you connect

the TV to the network with a CAT 7 cable before you begin.

Power on to start the initial setup.

Connect to your network (wired or wireless)

Search for channels from

your TV service provider

After you have finished the initial setup, you can configure the universal remote control settings.

These settings let the Smart Touch remote control external devices connected to the TV, such as a

set-top box or Blu-ray player.

Congratulations on your new Smart TV!

Troubleshooting

The stand is wobbly or crooked

Make sure the arrows on the stand are properly aligned.

The TV won’t turn on

Make sure all cables are fully inserted, and that the remote has batteries installed.

My remote, gesture, or voice controls don't work

The TV ships with protective stickers covering some of the sensors. Make sure all of them have

been removed.

I have extra parts

The TV includes some optional parts to help with wall mounting and cable routing.

If you experience issues, please do not take the TV back

to the store.

In the United States of America, call us at

1-800-SAMSUNG (1-800-726-7864) or visit us at www.

samsung.com/spsn for support and warranty service.

For other countries, refer to "Contact SAMSUNG

WORLDWIDE" in the user guide.

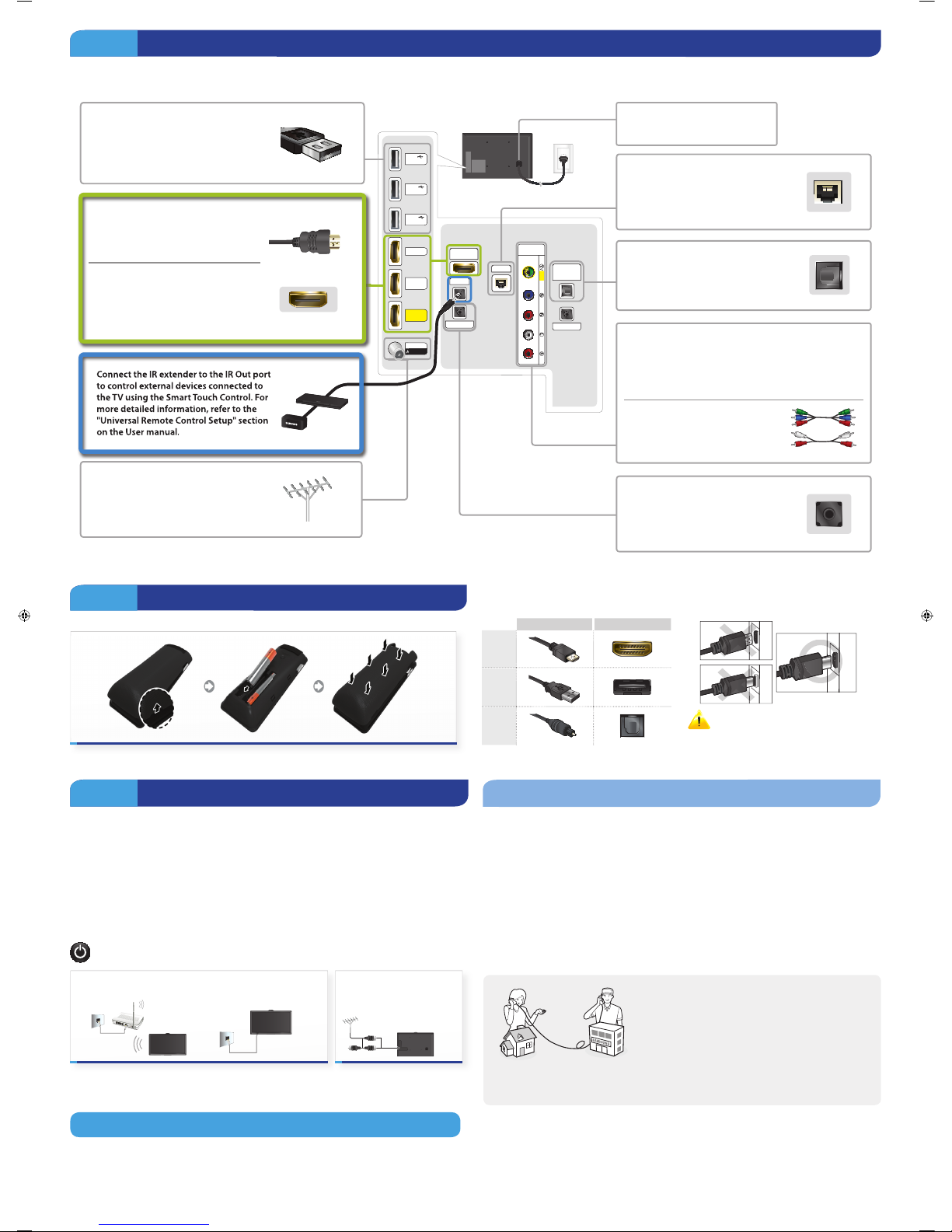

Step 2 Connect video devices

We suggest using HDMI connections whenever possible for the best picture quality.

The displayed image may differ depending on the model.

HDMI IN 3

DIGITAL

AUDIO OUT

(OPTICAL)

HDMI IN 2

(ARC)

ANT IN

AIR/CABLE

HDMI IN 1

(STB)

HDMI IN 4

(DVI)

LAN

USB

(5V 0.5A)

(HDD 5V 1A)

USB

(TV CAMERA)

USB

AUDIO OUT EX-LINK

IR OUT

COMPONENT

/ AV IN

AUDIO

VIDEO

Best Connection : HDMI

We suggest using HDMI whenever

possible.

HDMI Cable

HDMI 1 is the default port for a cable

or satellite set-top box.

Use the other ports for Blu-ray players,

game consoles, and other devices.

HDMI Port

USB Connections

You can connect USB storage devices to

the USB jacks and enjoy personal photos,

videos, and music.

Wired Ethernet

The AUDIO OUT port can connect to

a speaker.

Connect the cable from the antenna

or cable TV outlet.

AIR/CABLE

Good Connection : Component and AV

Match the colors on your device's cables to the colors

on the jacks. Connect the yellow composite video out

connector from an AV device to the green AV IN jack.

AV also accepts component video

connections (red/green/blue).

You can connect home theater

systems to the OPTICAL or AUDIO

OUT ports.

Power Input

Connect the IR extender to the IR Out port

to control external devices connected to

the TV using the Smart Touch Control. For

more detailed information, refer to the

"Universal Remote Control Setup" section

on the User manual.

Connect the IR extender to the IR Out port

to control external devices connected to

the TV using the Smart Touch Control. For

more detailed information, refer to the

"Universal Remote Control Setup" section

on the User manual.

Step 3 Insert the batteries into the remote control Make sure you have the correct cable before plugging it in. Illustrations of common plugs and

jacks are shown below.

Cable Plugs Ports / Jacks

HDMI

USB

Optical

Warning

Do not plug cables in upside down.

Be sure to check the orientation of

the plug before plugging it in.

To open, put your plastic card into the notch.
