Samsung LE19C350D1W Bedienungsanleitung

English - 1

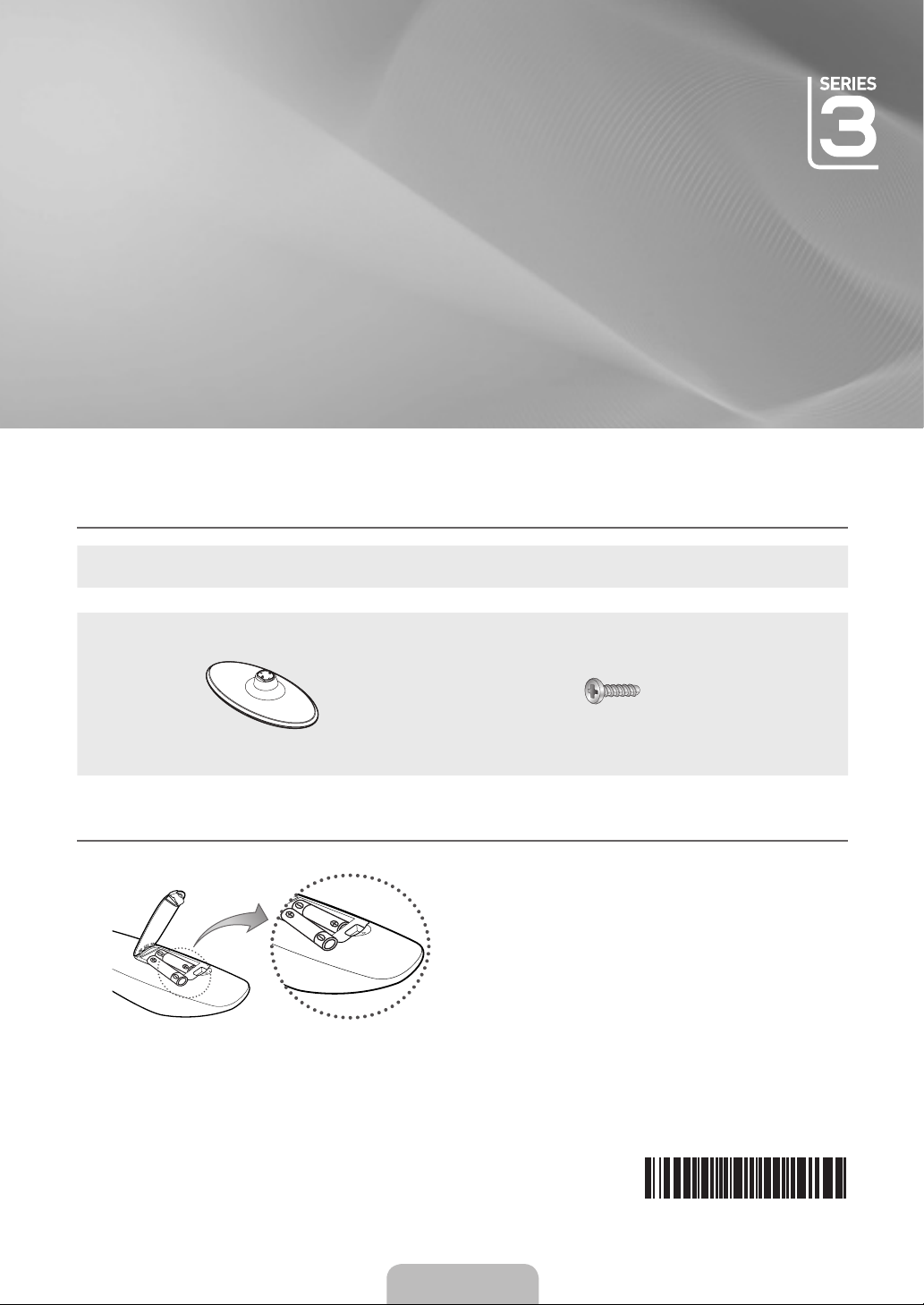

The Supplied Accessoris¦

Remote Control & Batteries (AAA x 2)

Owner’s Instructions

Cleaning Cloth

See separate guide for installing the stand.

(M4 X L16)

Stand (1EA)

yScrews (2EA)

Installing Batteries in the Remote Control¦

LCD TV

QUICK SETUP GUIDE

BN68-02681A-00

NOTE

✎

Use the remote control within 23 feet from the

T V.

Bright light may affect the performance of the

remote control. Avoid using nearby special

fluorescent light or neon signs.

The colour and shape may vary depending on

the model.

BN68-02681A_00Eng_UK QSG.indd 1 2010-03-27 �� 12:56:13

English - 2

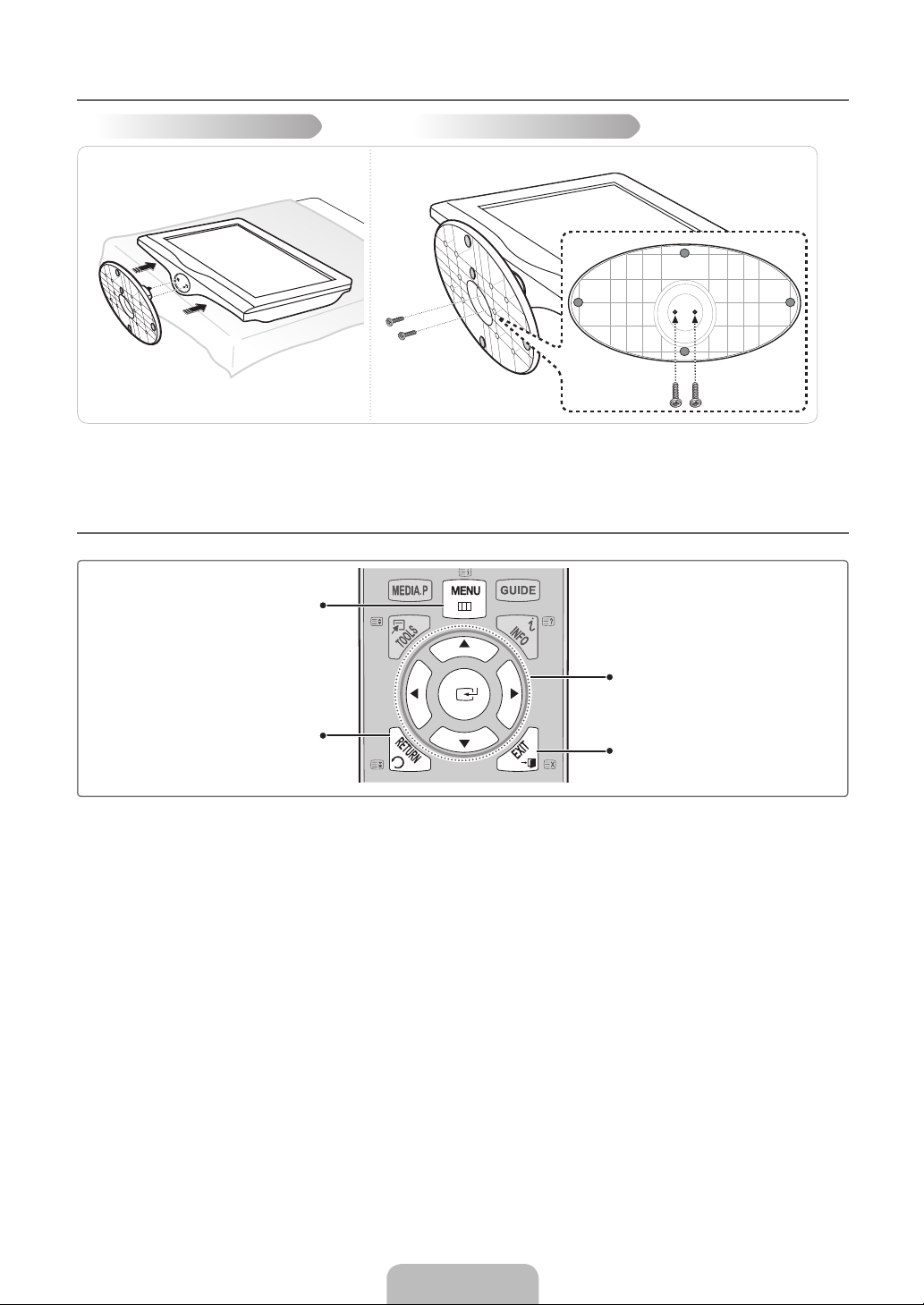

Installing the Stand¦

Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.

✎

Make sure that at least two persons lift and move the LCD TV.

✎

Lay the product down, with the screen facing up and fasten the screws.

✎

Using the remote control buttons¦

Front

Rear

Step 1 Step 2

ABCD

DUAL

I-II

SUBT.

III

ENTER

/ Direction Button

Move the cursor and select an item.

Select the currently selected item.

Conﬁrm the setting.

EXIT Button

Exit the on-screen menu

MENU Button

Displays the favourites channel list.

RETURN Button

Returns to the previous menu

BN68-02681A_00Eng_UK QSG.indd 2 2010-03-27 �� 12:56:14

English - 3

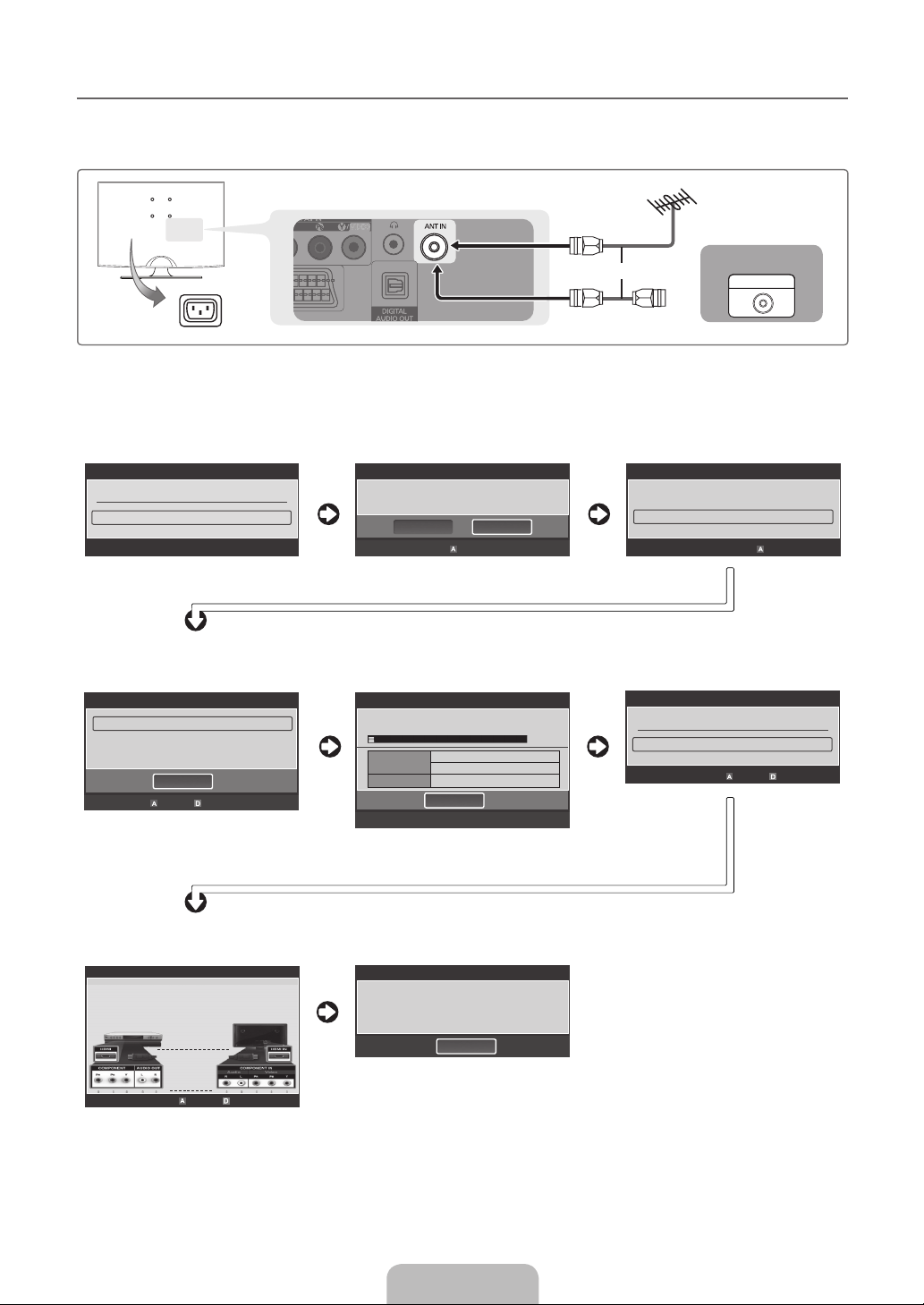

Plug & Play¦

When the TV is initially powered on, basic settings proceed automatically and subsequently.

If you want to reset this feature, press the MENU button to display menu.

You can set the Plug & Play by selecting Setup →Plug & Play.

On the screen, you can set as follows.

The each step may vary depending on the Antenna source.

✎

Plug & Play

Select the OSD Language.

Enter

Menu Language

: English

►

Step 1

Step 4

Step 3

Plug & Play

Select Country.

Enter

Country

: United Kingdom

►

Step 2

Plug & Play

Store Demo Home USE

Move

Enter

Step 7

Step 5 Step 6

Step 8

Plug & Play

HD Connection Guide

How to get the best performance from your new HDTV.

Step 1. Connect the HD Box to the TV using the HDMI or Component

cables.



HD box

TV rear view



1/2

Component Cable

Skip

HDMI Cable

Enjoy your TV.

Power Input

VHF/UHF Antenna

Cable

R-AUDIO-L PRPBY

ANT OUT

Select the usage mode.

Plug & Play

Serch

Skip

Move

Enter

Antenna Source

: Air

►

Channel Source

: Digital & Analogue

Plug & Play

Stop

Enter

Auto Store in progress.

Digital 2

TV:2 Radio:0 Data/Other: 0

Analogue 0

Channels 7

Plug & Play

Set the Clock Mode.

Skip

Enter

Clock Mode

: Auto

►

BN68-02681A_00Eng_UK QSG.indd 3 2010-03-27 �� 12:56:15

English - 4

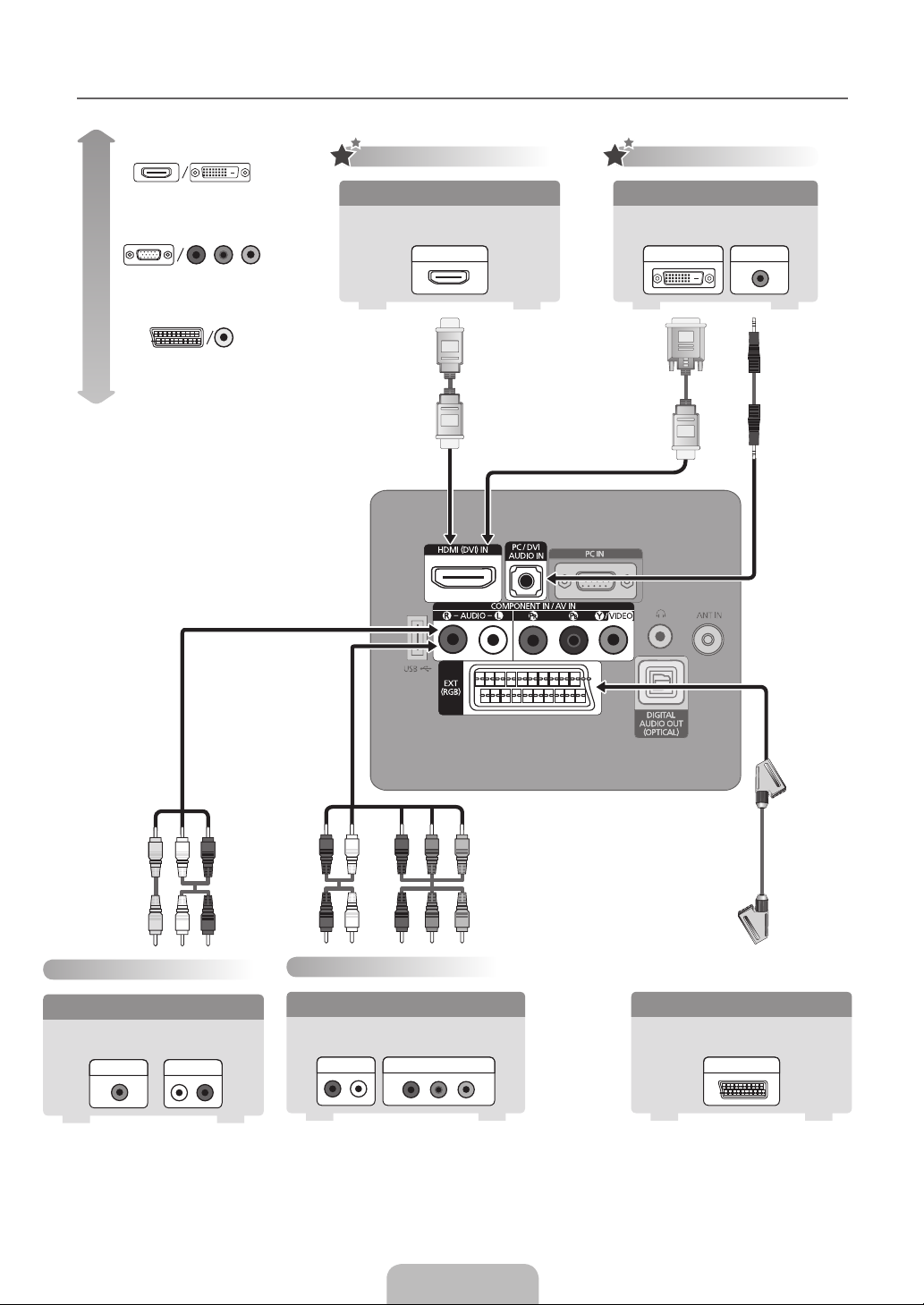

Connecting a AV device¦

GB W R

WRG

HD connection

DVD / Blu-Ray player / Cable Box

/ Satellite receiver (STB)

Using a DVI Cable

AUDIO OUTDVI OUT

HD connection

DVD / Blu-Ray player / HD Cable Box

/ HD Satellite receiver (STB)

Using an HDMI Cable

HDMI OUT

Component connection

DVD / Blu-Ray player / Cable

Box / Satellite receiver

Using a Component Cable

AUDIO OUT COMPONENT OUT

VCR / DVD

Using a Scart Cable

EXT

HDMI/DVI

PC/COMPONENT

EXT/VIDEO

Best

Normal

Audio/Video connection

VCR

Using an Audio/Video Cable

AUDIO OUTVIDEO OUT

BN68-02681A_00Eng_UK QSG.indd 4 2010-03-27 �� 12:56:17
