LCD TV LE15S51B/LE20S51B/LE20S51BU

LCD TV

LE15S51B

LE20S51B

LE20S51BU

Owner’s Instructions

Before operating the unit,

please read this manual thoroughly,

and retain it for future reference.

AFTER SALES SERVICE

Do not hesitate to contact your retailer or service agent if a

change in the performance of your product indicates that a

faulty condition may be present.

BN68-00963A-00

ON-SCREEN MENUS

PC DISPLAY

TELETEXT

This device is a Class B digital apparatus.

www.samsung.com/global/register

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European

countries with separate collection systems)

This marking shown on the product or its literature,

indicates that it should not be disposed with other

household wastes at the end of its working life. To prevent possible

harm to the environment or human health from uncontrolled waste

disposal, please separate this from other types of wastes and recycle

it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they

purchased this product, or their local government office, for details of

where and how they can take this item for environmentally safe

recycling.

Business users should contact their supplier and check the terms and

conditions of the purchase contract. This product should not be mixed

with other commercial wastes for disposal.

BN68-00816C-00Eng.qxd 7/11/05 12:13 PM Page 1

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

•

Digital Ready TV: When you

select the regular screen (4:3)

mode to watch an SD-grade

digital broadcast (and the set-top

box output is 480p).

Although digital broadcasting must be in the

wide screen (16:9) HD format, broadcasters

sometimes show programs made originally

in the regular screen format (4:3) by

converting the signals into digital form, in

which case the left and right side edges of

the screen are cropped.

Do not leave the screen in pause mode for

extended periods of time as you may

experience the same problem with products

by other manufacturers.

Note : If the borders at the left, right and the

center of the screen remain fixed for

an extended period of time, the

amount of light transmission will also

remain varied and as a result the

borders may leave traces.

•

Digital Ready TV: When you

select the wide screen (16:9)

mode to watch an SD-grade

digital broadcast (and the set-top

box output is 1080i).

•

Digital Ready TV: When the

TV receives HD-grade signals

(and the set-top box output is 1080i).

When you watch a digital HD-grade broadcast

on a regular (4:3) TV with the screen size

"16:9" or "Panorama" selected, you will be

able to watch the program but the top and

bottom edges of the screen will be cropped.

Do not leave the screen in pause mode for

extended periods of time as you may

experience the same problem with products

by other manufacturers.

Note : If the borders at the top, bottom and

the center of the screen remain fixed

for an extended period of time, the

amount of light transmission will also

remain varied and as a result the

borders may leave traces.

Eng.qxd 6/20/05 7:22 AM Page 1

• Integrated

Digital TV

(Wide-screen): When the TV

receives SD-grade (regular)

broadcasting signals (receives

480p regular signals).

•

Digital Ready TV

(wide-screen):

digital TV: When the TV receives

SD-grade (regular) broadcasting

signals (with a set-top box).

• When you watch an analogue

(regular) broadcast on a

wide-screen TV (with the 4:3 screen

mode selected).

Although digital broadcasting must be in the

wide screen (16:9) HD format, broadcasters

sometimes show programs made originally

in the regular screen format (4:3) by

converting the signals into digital form, in

which case the left and right side edges of

the screen are cropped.

Do not leave the screen in pause mode for

extended periods of time as you may

experience the same problem with products

by other manufacturers.

Note : If the borders at the left, right and the

center of the screen remain fixed for

an extended period of time, the

amount of light transmission will also

remain varied and as a result the

borders may leave traces.

•

When you watch a DVD, CD or a

video in wide screen (21:9) format on

a wide-screen (16:9) TV.

• When you connect a computer or a

game console to the TV and select

the 4:3 screen mode.

If you connect a DVD player, computer or a

game console to the wide-screen TV and

watch a movie or play a game in regular

(4:3) or wide (21:9) screen mode, the left

and right side edges, or the top and bottom

edges of the screen will be cropped.

Do not leave the screen in pause mode for

extended periods of time as you may

experience the same problem with products

by other manufacturers.

Note : If the borders at the left, right and the

center of the screen remain fixed for

an extended period of time, the

amount of light transmission will also

remain varied and as a result the

borders may leave traces.

Eng.qxd 6/20/05 7:22 AM Page 2

English-2

Contents

◆CONNECTING AND PREPARING YOUR TV

■Viewing the Control Panel............................................................................. 4

■Viewing the Connection Panel ...................................................................... 5

Connecting an Aerial or Cable Television Network.................................... 6

Connecting a Set-Top Box, VCR or DVD .................................................. 6

Connecting a Computer............................................................................. 6

Connecting External A/V Devices .............................................................. 7

Kensington Slot.......................................................................................... 7

■Viewing Pictures From External Sources...................................................... 8

■Inserting the Batteries in the Remote Control............................................... 9

■Viewing the Remote Control (All Functions Except Teletext)........................ 10

■Viewing the Remote Control (Teletext Functions)......................................... 11

■Switching On and Off .................................................................................... 12

■Placing in Standby Mode .............................................................................. 12

■Becoming Familiar with the Remote Control................................................. 13

■Plug & Play.................................................................................................... 14

■Selecting TV Mode or an Input Source......................................................... 16

■Editing an Input Source Name ...................................................................... 17

■Choosing Your Language .............................................................................. 18

◆SETTING THE CHANNELS

■Storing Channels Automatically..................................................................... 19

■Storing Channels Manually ........................................................................... 20

■Editing the Channels ..................................................................................... 22

■Sorting the Stored Channels ......................................................................... 23

■Giving Channels Names................................................................................ 24

◆SETTING THE PICTURE

■Changing the Picture Standard ..................................................................... 25

■Adjusting the Custom Picture........................................................................ 26

■Adjusting the Screen Background Colour ..................................................... 27

◆SETTING THE SOUND

■Changing the Sound Standard...................................................................... 28

■Selecting Auto Volume Control...................................................................... 29

01-BN68-00816C-00Eng.qxd 6/10/05 8:05 AM Page 2

English-3

Contents

◆SETTING THE TIME

■Setting the Clock ........................................................................................... 30

■Switching Off Automatically ........................................................................... 31

■Switching the Television On and Off Automatically ....................................... 32

◆USING THE VARIOUS FUNCTIONS

■Setting the Blue Screen Mode ...................................................................... 33

■Displaying Information................................................................................... 33

◆USING THE TELETEXT FEATURE

■Teletext Feature............................................................................................. 34

■Displaying the Teletext Information ............................................................... 35

■Selecting a Page by Number ........................................................................ 36

■Using FLOF to Select a Page ....................................................................... 37

■Storing Teletext Pages .................................................................................. 37

◆USING THE PC FUNCTIONS

■Setting Up Your PC Software ........................................................................ 38

■Coarse and Fine Tuning of the Image........................................................... 39

■Changing the Image Position ........................................................................ 40

■Initializing the Image Settings ....................................................................... 41

■Adjusting the PC Screen Automatically......................................................... 42

■Picture Mode ................................................................................................. 43

■Adjusting the Custom Picture........................................................................ 43

■Adjusting the Screen Background Colour ..................................................... 44

■Customizing the colour.................................................................................. 45

RECOMMENDATIONS FOR USE

■Troubleshooting: Before Contacting Service Personnel ............................... 46

■Power Saver.................................................................................................. 47

■Technical and Environmental Specifications ................................................. 48

■Display Modes............................................................................................... 49

■Retractable Stand.......................................................................................... 50

■Using Your TV in Another Country ................................................................ 50

■Using the Anti-Theft Kensington Lock........................................................... 51

■Installing VESA compliant mounting devices ................................................ 52

■Installing the Wall Mount Kit.......................................................................... 53

Press Important Note

Symbols

01-BN68-00816C-00Eng.qxd 6/10/05 8:05 AM Page 3

English-4

Viewing the Control Panel

SOURCE

Displays a menu of all of the available input sources

(TV - AV1 - AV2 - S-Video - PC).

You can also use the SOURCE()button

on the TV’s control panel to make selections.

Press to see an on-screen menu of your TV’s

features.

- +

Moves the selector left or right on the OSD.

Decreases or increases the level of audio

volume and the values of the selected function.

Moves the selector down or up on the OSD.

Decreases or increases the channel number.

POWER

Turns ON/OFF your set.

SPEAKERS

HEADPHONE

REMOTE CONTROL SENSOR

Aims the remote control towards this spot on the TV.

POWER INDICATOR

Lights up when you turn the power off.

(Red light shows in stand-by mode, Red shows

when you turn the power on, and light is off after

the power is on. Green shows when you set Timer

on or off.)

01-BN68-00816C-00Eng.qxd 6/10/05 8:05 AM Page 4

English-5

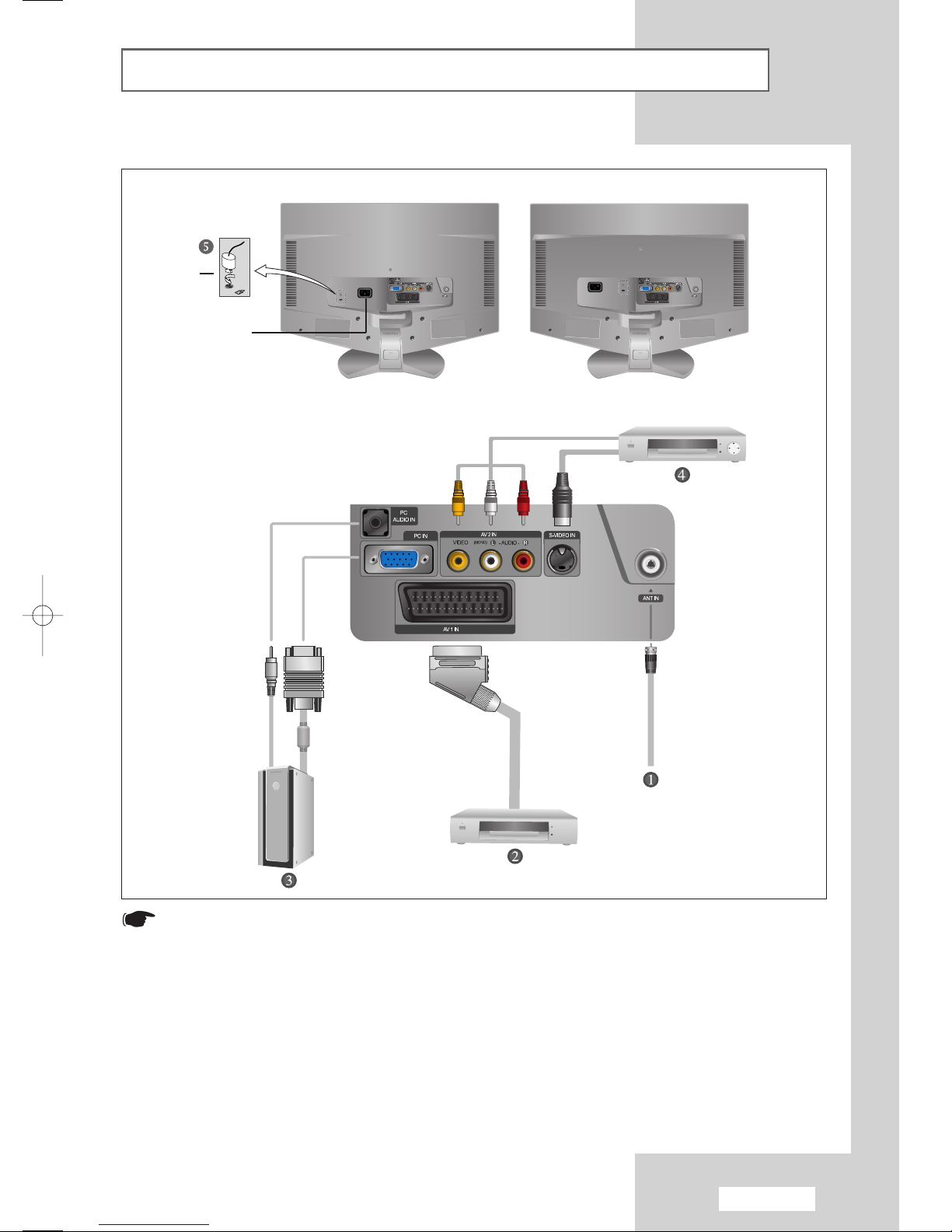

Viewing the Connection Panel

Power Input

Option

Whenever you connect an audio or video system to your set, ensure that all elements are switched off.

Refer to the documentation supplied with your equipment for detailed connection instructions and

associated safety precautions.

01-BN68-00816C-00Eng.qxd 7/9/05 11:11 AM Page 5

English-6

Connecting an Aerial or Cable Television Network (depending on the model)

To view television channels correctly, a signal must be received by the set from one of the following sources:

-An outdoor aerial

-Acable television network

-Asatellite network

Connecting a Set-Top Box, VCR or DVD

-Connect the VCR, or DVD SCART cable to the SCART connector of the VCR, or DVD.

-If you wish to connect both the Set-Top Box and VCR (or DVD), you should connect the Set-Top Box to the

VCR (or DVD) and connect the VCR (or DVD) to your set.

Connecting a Computer

-Connect the 15 Pin D-SUB connector to the PC video connector.

-Connect the stereo audio cable to the “PC AUDIO IN” jack on the rear of your set and the other end

to the “Audio Out” jack of the sound card on your computer.

Pin Separate H/V Composite H/V

1Red (R) Red (R)

2Green (G) Green (G)

3Blue (B) Blue (B)

4 Grounding Grounding

5Grounding (DDC return) Grounding (DDC return)

6Grounding - Red (R) Grounding - Red (R)

7Grounding - Green (G) Grounding - Green (G)

8Grounding - Blue (B) Grounding - Blue (B)

9No connection No connection

10 Grounding - Sync. / Self test Grounding - Sync. / Self test

11 Grounding Grounding

12 DDC - SDA (Data) DDC - SDA (Data)

13 Horizontal Sync. Horizontal/Vertical Sync.

14 Vertical Sync. Not used

15 DDC - SCL (Clock) DDC - SCL (Clock)

➣15 Pin D-SUB connector

Viewing the Connection Panel

01-BN68-00816C-00Eng.qxd 6/10/05 8:05 AM Page 6

English-7

Viewing the Connection Panel

Connecting External A/V Devices

-Connect RCA or S-VIDEO cables to an appropriate external A/V device such as a VCR, DVD or Camcorder.

-Connect RCA audio cables to “(MONO)L-AUDIO-R” on the rear of your set and the other ends to

corresponding audio out connectors on the A/V device.

Kensington Slot

-This television has been designed to apply a burglarproof lock. (See page 51)

01-BN68-00816C-00Eng.qxd 6/10/05 8:05 AM Page 7

English-8

Viewing Pictures From External Sources

Once you have connected up your various audio and video systems,

you can view the different sources by selecting the appropriate input.

Check that all the necessary connections have been made

(refer to pages

and

for further details).

Press the TV button to choose TV mode.

Press the SOURCE button to choose Video mode.

The input sources are displayed in the following order:

AV1 - AV2 - S-Video - PC.

01-BN68-00816C-00Eng.qxd 6/10/05 8:05 AM Page 8

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung LCD-Fernseher Handbücher

Samsung

Samsung Series 4+ Bedienungsanleitung

Samsung

Samsung LN46A750 Bedienungsanleitung

Samsung

Samsung LN-S2738D Bedienungsanleitung

Samsung

Samsung LN52C530F1F Bedienungsanleitung

Samsung

Samsung Crystal UHD UE50TU8500UXZT Bedienungsanleitung

Samsung

Samsung LE23R3 Bedienungsanleitung

Samsung

Samsung P2570HD - SyncMaster - 24.6" LCD Monitor Bedienungsanleitung

Samsung

Samsung LTN406W Bedienungsanleitung

Samsung

Samsung BN68-02663A-06 Bedienungsanleitung

Samsung

Samsung LN46A500T1FXZA Bedienungsanleitung

Samsung

Samsung LE23R7 Bedienungsanleitung

Samsung

Samsung LE26A45 C Series Bedienungsanleitung

Samsung

Samsung PRELIMINARY LN40B650 Bedienungsanleitung

Samsung

Samsung LE26A466C2W Bedienungsanleitung

Samsung

Samsung HA690 Installationsanleitung

Samsung

Samsung 6 series Bedienungsanleitung

Samsung

Samsung LE32D400E Leitfaden

Samsung

Samsung LCD TV Bedienungsanleitung

Samsung

Samsung 9000 Series Bedienungsanleitung

Samsung

Samsung LE26A340J3 Bedienungsanleitung

Samsung

Samsung BN68-01691A-02 Bedienungsanleitung

Samsung

Samsung series 9 950 Bedienungsanleitung

Samsung

Samsung 320BX Bedienungsanleitung

Samsung

Samsung LTN1765 Bedienungsanleitung

Beliebte LCD-Fernseher Handbücher anderer Marken

LG 32LC4R* Bedienungsanleitung

ViewSonic

ViewSonic N4200w-1 VS10945-1M Bedienungsanleitung

Salora

Salora 22LED1600 Bedienungsanleitung

Dell

Dell W1900 19 Gebrauchsanweisung

Grundig

Grundig 40 VLE 8230 BP Bedienungsanleitung

Philips

Philips 43PFL4901/F7 Bedienungsanleitung

Sony

Sony Bravia XBR-43X830C Bedienungsanleitung

LG 32LS350 Bedienungsanleitung

VIORE

VIORE LED32VF60 Bedienungsanleitung

Toshiba

Toshiba Regza 42HL167 Bedienungsanleitung

JVC

JVC LT-32A220 Bedienungsanleitung

Philips

Philips 20TA1000/93 Bedienungsanleitung

Philips

Philips 32PFL3158T/12 Bedienungsanleitung

Sony

Sony Bravia KDL-V32XBR2 Bedienungsanleitung

Vizio

Vizio VP422HDTV10A - 42" Plasma TV Bedienungsanleitung

Philips

Philips 40PFL7705D Bedienungsanleitung

Dynex

Dynex DX-40L261A12 Bedienungsanleitung

JVC

JVC LT-23C50BU Bedienungsanleitung
