YOUR NEW TV

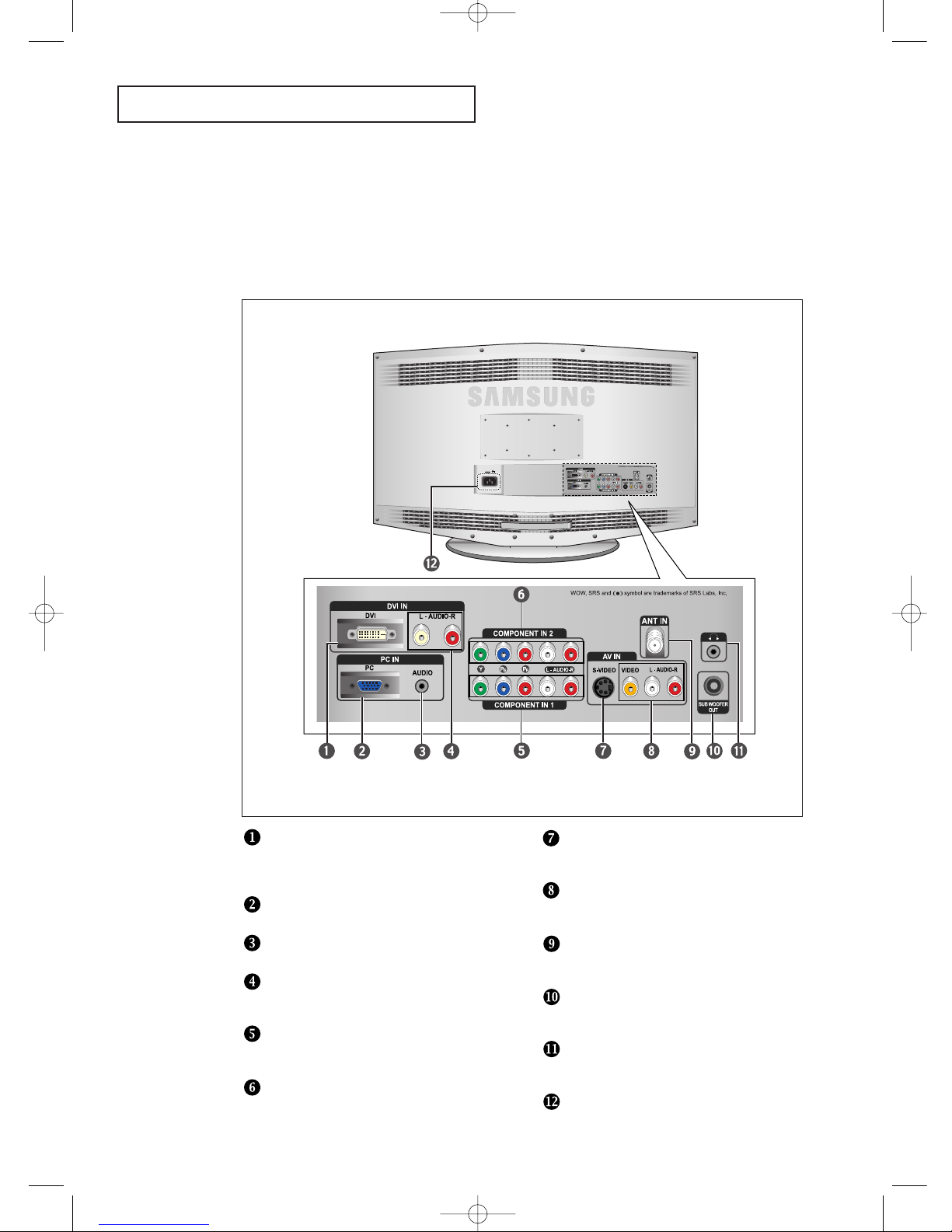

Rear Panel Jacks
Use the rear panel jacks to connect an A/V component that will be connected
continuously, such as a VCR or a DVD player.
For more information on connecting equipment, see pages 7-14.
DVI-D INPUT
Connect to the digital video output jack on your
DVD/Set-top box.
(DVI-D terminal does not support PC.)
PC VIDEO (D-SUB) INPUT
Connect to the video output port on your PC.
PC AUDIO INPUT
Connect to the audio output jack on your PC.
DVI-D AUDIO INPUT
Connect to the audio output jack on your
DVD/Set-top box.
COMPONENT IN 1
Connect component video/audio from a
DVD/VCR/Set-top box.
COMPONENT IN 2
Connect component video/audio from a
DVD/VCR/Set-top box.
S-VIDEO
Connect an S-Video signal from
a camcorder or VCR
VIDEO/AUDIO INPUT
Connect a video signal from
a camcorder or VCR.
ANT IN
Connect to an antenna or to a cable TV
system.
SUBWOOFER OUTPUT
Connect to an active (powered)
subwoofer.
HEADPHONE JACK
Connect a set of external headphones
for private listening.
POWER INPUT
BN68-00751A-00ENG.qxd 7/30/04 8:22 AM Page 3
English-2
INSTALLATION
3
Connect an S-video
cable between the
S-VIDEO OUT jack on
the VCR and the
S-VIDEO jack on
the TV.
An S-Video cable is usually included with an S-VHS VCR.
(If not, check your local electronics store.)
* Each external input source device has a different back panel configuration.
1
To begin, follow
steps 1–3 in the
previous section to
connect the antenna
or cable to your
VCR and your TV.
Connecting an S-VHS VCR
Your Samsung TV can be connected to an S-Video signal from an S-VHS VCR.
(This connection delivers a better picture as compared to a standard VHS VCR.)
2
Connect a set of audio
cables between the
AUDIO OUT jacks on
the VCR and the
L-AUDIO-R jacks on
the TV.
Connecting a DVD/Set-top box via DVI
* Each external input source device has a different back panel configuration.
1
Connect a DVI-D
cable between the
DVI-D connector
on the TV
and the DVI connector
on the DVD player/
Set-top box.
2
Connect a set of audio
cables between the
L-AUDIO-R jack on the
TV and the
AUDIO OUTPUT jacks
on the DVD player/
Set-top box.
BN68-00751A-00ENG.qxd 7/30/04 9:44 AM Page 12
English-3
INSTALLATION
Note: For an explanation of Component video, see your DVD player owner's manual.
* Each external input source device has a different back panel configuration.
Connecting a DVD Player
The rear panel jacks on your TV make it easy to connect a DVD player to your TV.
1
Connect a set of audio
cables between the
COMPONENT1 or
COMPONENT2
L-AUDIO-R jacks on
the TV and
the AUDIO OUT jacks
on the DVD player.
2
Connect a video cable
between the
COMPONENT1 or
COMPONENT2
(Y, PB, PR) jacks on
the TV and the Y, PB,
PRjacks on the DVD
player.
Note: For an explanation of Component video, see your Set-top box owner's manual.
* Each external input source device has a different back panel configuration.
Connecting a Digital TV Set-top box
The connections for a typical Set-top box are shown below.
1
Connect a set of audio
cables between the
COMPONENT1
or COMPONENT2
L-AUDIO-R jacks
on the TV and the
AUDIO OUT jacks on
the Set-top box.
2
Connect a component
video cable between
the COMPONENT1 or
COMPONENT2
(Y, PB, PR) jacks on
the TV and the Y, PB,
PRjacks on the
Set-top box.
BN68-00751A-00ENG.qxd 7/30/04 8:22 AM Page 13
English-4
INSTALLATION
Connecting a PC
TV Rear panel
PC VIDEO CABLE ( D-SUB )
(Optional)
PC AUDIO CABLE
(Optional)
- Connect the D- Sub cable to “PC (PC IN)” on the rear of your set.
- Connect the stereo audio cable to “AUDIO (PC IN)” on the rear of your TFT-LCD
and the other end to “Audio Out” of the sound card on your computer.
How to Connect Ferrite Core (LN-P327W)
The provided Ferrite Cores reduce EMI (E1ectromagnetic Interference) noise from
electrical or electronic products.
After connecting AV or Component cable to the TV, install the Ferrite Cores as
shown in the picture.
BN68-00751A-00ENG.qxd 7/30/04 9:46 AM Page 14
English-5
APPENDIX
Installing the Wall Mount Kit
Note: This installation is to be used when attaching the wall mount to a concrete wall.
When attachingto other building materials, please contact your nearest dealer.
Components (Sold separately)
Wall-Bracket Set-Bracket Screw: 8EA
Wood Screw: 4EA
Anchor: 4EA
Installation Guide
How to assemble the Wall Mount Bracket
1 Mark the location of hole on the wall.
Make over 35mm-depth-hole on the marked location using 0.5-diameter drill.
Fix anchors on each hole on the wall.
Connect wall-bracket to the wall with wood screws after fitting
anchors into the wall-bracket .
Note: If the bracket is not firmly fixed to the wall, LCD TV can fall off.
2 Turn the power off and unplug the power cord from the outlet.
Place the TV faced down on a soft cloth or cushion on a table.
Remove 4 screws from the back of the TV.
Separate the stand from the TV.
Cover the bottom hole with a cap
Attach the set-bracket onto the rear side of the TV set and secure the screws .
3 Insert 3 Hangers of the set-bracket into the grooves of the wall-bracket .
Fix set-bracket and wall-bracket with screws .
BN68-00751A-00ENG.qxd 7/30/04 9:51 AM Page 70
English-6
APPENDIX
Using Your TV in Another Country
If you plan to take your TV with you to a foreign country, please be aware of the
different television systems that are in use around the world. A TV designed for one
system may not work properly with another system due to differences in the TV channel
frequencies.
Using the Anti-Theft Kensington Lock
The Kensington lock is a device used to physically fix the system when using it in a public place.
The locking device has to be purchased separately. The appearance and locking method may
differ from the illustration depending on the manufacturer. Please refer to the manual provided
with the Kensington lock for proper use.
1. Insert the locking device into the Kensington slot on the LCD TV (Figure 1), and turn it in
the locking direction (Figure 2).
2. Connect the Kensington lock cable.
3. Fix the Kensington lock to a desk or a heavy stationary object.
Figure 2
Figure 1
Cable
<Optional>
BN68-00751A-00ENG.qxd 7/30/04 8:24 AM Page 71
