2_ Features

For easy future reference, write the model

and serial number down. You will ﬁnd

your model number and serial number on

the left side of the refrigerator.

Model #

Serial #

Features of your new Refrigerator

KEY FEATURES OF YOUR NEW REFRIGERATOR

Your Samsung Refrigerator comes equipped with various innovative storage and energy-efﬁcient features.

 Twin Cooling System

The Refrigerator and Freezer have separate evaporators. Due to this independent cooling system,

the Freezer and Refrigerator cool more efﬁciently.

Additionally, this separate air ﬂow system prevents food odor of one compartment from seeping into

other compartments.

 Bigger & Wider Space

The wide shelf area provides enough space for larger items.

The wide freezer drawer also provides enough space for 2~3 turkeys.

 Secure Auto Close

The Secure Auto Close feature will automatically close a door that is slightly open.

 Digital Display and Temperature Control

The easy-to-read Digital Display enhances the look of your kitchen and allows you precise

temperature control.

 Door Alarm

A helpful beeper alerts you if a door is ajar.

 Easy Handle

Freezer door can be opened with less effort.

 Energy Star

This Energy star labeled product may save you money on your energy costs.

DA68-01845A.indb 2 2009.11.19 2:46:35 PM

Safety Information _3

SAFETY INFORMATION

Before operating the appliance, please read this manual thoroughly and retain it for your reference.

Use this appliance only for its intended purpose as described in this instruction manual.

This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person responsible for their safety.

This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person responsible for their safety.

Because the following instruction covers various models, the characteristics of your Refrigerator may

differ slightly from the Refrigerator described in this manual. If you have any question, contact us at

1-800-SAMSUNG or ﬁnd help and information online at www.samsung.com.

Important safety symbols and precautions:

WARNING Hazards or unsafe practices that may result in .

CAUTION

Hazards or unsafe practices that may result in 

.

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions carefully.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the contact center for help.

Note.







WARNING

SEVERE WARNING SIGNS FOR INSTALLATION

Safety Information



heaters or other appliance.



water.

- Deteriorated insulation of electrical parts may cause an electric shock or ﬁre.

DA68-01845A.indb 3 2009.11.19 2:46:36 PM

Safety Information

4_ Safety Information

WARNING

- Improper use of the grounding plug can result in a risk of electric shock.

If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade

grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked

rating of the extension cord should be AC115-120 V, 10 A, or more. If a grounding adapter is

used, make sure the receptacle box is fully ground



- Always make sure that you have grounded the Refrigerator before attempting to investigate or

repair any part of the appliance. Power leakages can cause severe electric shock.



ground.







before it is used.



- If you connect the power plug upside down, the wire can get cut off and cause a ﬁre or electric

shock.



- This constitutes a ﬁre hazard.



refrigerator.



- There is a risk of death from suffocation if children put them on their head.







matched the rating plate.

- This provides the best performance and also prevents overloading house wiring circuits, which

could cause a ﬁre hazard from overheated wires.



- There is a risk of electric shock of ﬁre.







pull straight out from the outlet.

- Damage to the cord may cause a short-circuit, ﬁre and/or electric shock.



- Aerosols used near the Refrigerator may cause an explosion or ﬁre.

DA68-01845A.indb 4 2009.11.19 2:46:36 PM

Safety Information _5





- When you open or close the door, the articles may fall and cause personal injury and/or

material damage.



- If spilled, there is a risk of ﬁre or electric shock.









- Any sharp edges may cause personal injury.



- The drawer may break and cause them to slip.



- When you open the door, an item may fall out and cause personal injury or material damage.



hands.

- This may cause frostbite.



- There is a risk of explosion or ﬁre.



- The storage of benzene, thinner, alcohol, ether, LP gas and other such products may cause

explosions.



products in the refrigerator.

- Products that require strict temperature controls must not be stored in the refrigerator.



recommended by the manufacturer.



other than those recommended by the manufacturer.



Safety Information _5



- You run risk of causing a ﬁre, malfunction and/or personal injury.

CAUTION

CAUTION SIGNS FOR INSTALLATION



- If your refrigerator is not level, the internal cooling system may not work correctly.



obstruction.



WARNING

SEVERE WARNING SIGNS FOR USING

DA68-01845A.indb 5 2009.11.19 2:46:36 PM

6_ safety information

Safety Information











- Otherwise there is a risk of ﬁre







- When the contents freeze, the glass may break and cause personal injury.



- Any changes or modiﬁcations performed by a 3rd party on this ﬁnished appliance is not

covered under Samsung warranty service, nor can Samsung be responsible for safety issues

that result from 3rd party modiﬁcations.



- If the air holes are blocked, especially with a plastic bag, the refrigerator can be over cooled. If

this cooling period lasts too long, the water ﬁlter may break and cause water leakage.









- Deterioration in the insulation may cause ﬁre.



- Otherwise, door and mold may develop.



- Do not place foods too closely in front of the vents at the rear of the appliance as it can

obstruct free air circulation in the refrigerator compartment.

- Wrap the food up properly or place it in airtight containers before putting it into the refrigerator.



WARNING

SEVERE WARNING SIGNS FOR USING

CAUTION

CAUTION SIGNS FOR USING













refrigerator.

- Otherwise, there is a risk of electric shock.

DA68-01845A.indb 6 2009.11.19 2:46:36 PM

safety information _7





pins.

- Otherwise there is a risk of ﬁre or electric shock.



- There is a risk of ﬁre or electric shock.



- Take off the doors.

- Leave the shelves in place so that children may not easily climb inside.



manner.







small children or animals cannot become trapped inside.









of the refrigerator are damaged prior to disposal.

WARNING



CAUTION

CAUTION SIGNS FOR USING



- There is a risk of electric shock or ﬁre.



DA68-01845A.indb 7 2009.11.19 2:46:37 PM

8_ contents

Contents





09 Getting ready to install the refrigerator

10 Setting up the refrigerator

10 Removing the refrigerator doors

15 Adjusting the doors

16 Making minor adjustments between doors

17 Installation of the water line





19 Parts and features

20 Using the control panel

21 Controlling the temperature

24 Storing food in the refrigerator

24 Storing food in the freezer drawer

25 Food storage tips

27 Removing the fridge accessories

28 Removing the freezer accessories

29 Cleaning the refrigerator

30 Changing the interior lights

TROUBLESHOOTING

31 Troubleshooting



32 Warranty

DA68-01845A.indb 8 2009.11.19 2:46:37 PM

setting up _9

01 

Setting up your French Door Refrigerator

First thing! Make sure that you can easily move your Refrigerator to its ﬁnal location by measuring doorways

(both width and height), thresholds, ceilings, stairways, etc.

The following chart details the exact height and depth of Samsung French Door Refrigerator.

FLOORING

For proper installation, this refrigerator must be placed on a level

surface of hard material that is the same height as the rest of the

ﬂooring. This surface should be strong enough to support a fully

loaded refrigerator, or approximately 223lbs(106kg). To protect

the ﬁnish of the ﬂooring, cut a large section of the cardboard

carton and place under the refrigerator where you are working.

When moving the refrigerator, be sure to pull it straight out and

return it to position by pushing it straight in.

• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption

and keep your energy bills lower.

• If you install the Refrigerator where is below 50ºF (10ºC), it may not function optimally.

• Do not locate the refrigerator where the wet condition.

When moving your refrigerator

To prevent ﬂoor damage, be sure the front adjusting legs

are in the up position(above the ﬂoor).

Refer to ‘Adjusting the doors’ (on page 15).

CAUTION

 RF195AB

RF197AB RF217AB

Capacity (cu.ft) 17.8 19.7

Dimension

(inch)

Width (A) 32 1/4” 32 1/4”

Depth without door (B) 24 3/8” 26 1/4”

with door (C) 30 1/2” 32 1/2”

Height without hinge (D) 68 5/8” 68 5/8”

with hinge (E) 69 3/4” 69 3/4”

Congratulations on your purchase of this Samsung French Door Refrigerator. We hope you enjoy the state-of-art

features and efﬁciencies that this new appliance offers.



• A location with easy access to the water supply.

• A location without direct exposure to sunlight.

• A location with level (or nearly level) ooring.

• A location with enough space for the Refrigerator doors to open easily.

• Allow sufcient space for air circulation of the internal cooling system. If the

Refrigerator does not have enough space, the internal cooling system may not

work properly.

GETTING READY TO INSTALL THE REFRIGERATOR







DA68-01845A.indb 9 2009.11.19 2:46:47 PM

10_ setting up

REMOVING THE REFRIGERATOR DOORS



Now that you have your new Refrigerator installed in place, you are ready to set up and enjoy the features and

functions of the appliance. By completing the following steps, your Refrigerator should be fully operational.

1. Place the Refrigerator in an appropriate location with reasonable clearance between it and the wall.

Refer to installation instructions in this manual. (page 9, selecting the best location for the Refrigerator)

2. Once the Refrigerator is plugged in, make sure the interior light comes on when you open the doors.

3. Set the Temperature control to the coldest temperature and wait for an hour. The Freezer will get slightly

chilled and the motor will run smoothly.

4. After powering the Refrigerator, it will take a few hours to reach the appropriate temperature. You can

store food and drinks in the Refrigerator after the temperature is sufﬁciently cool.

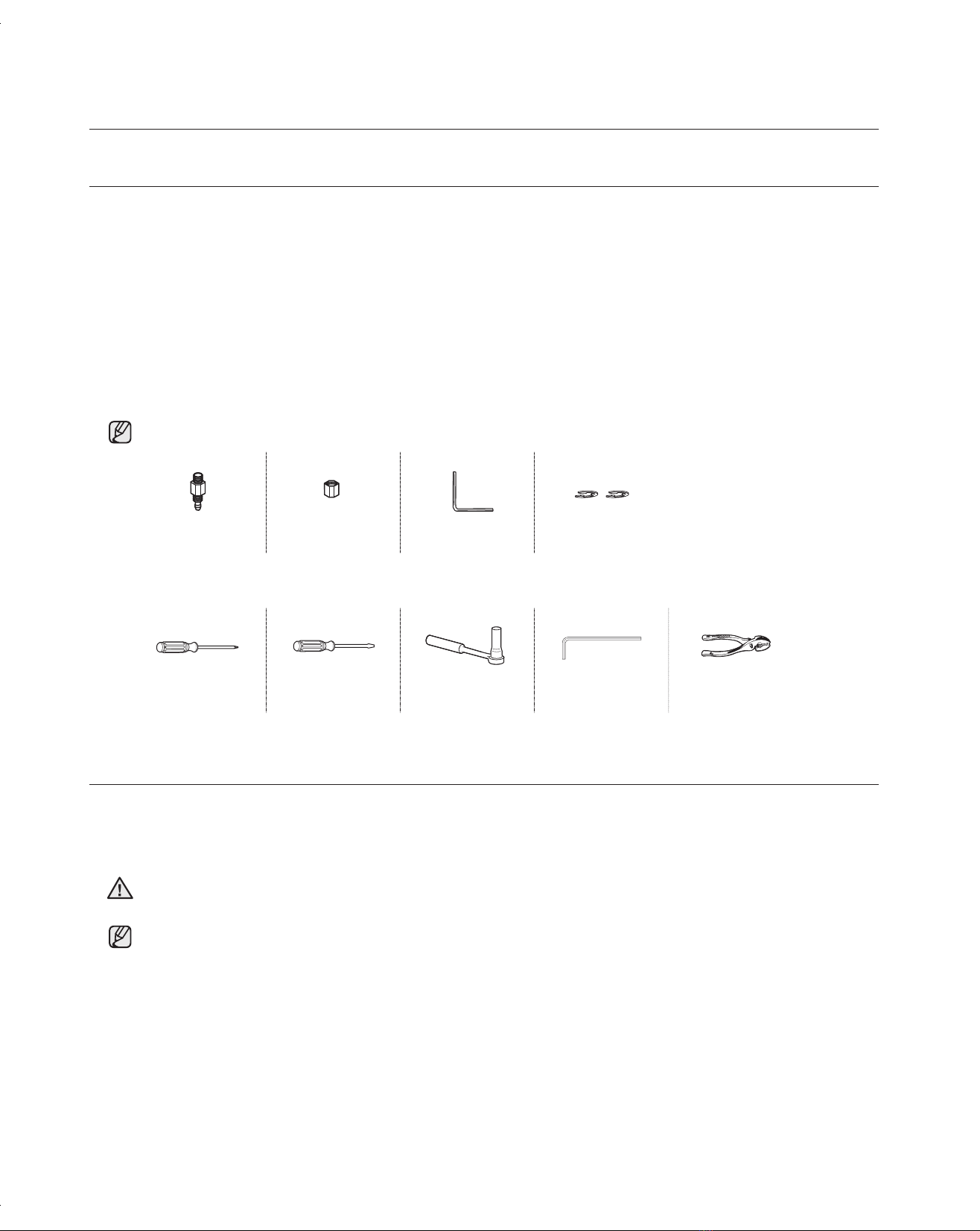

Phillips screwdriver(+) Flat-blade screwdriver(-) Socket Wrench

(10mm) (for bolts)

Hex Wrench (3/16”)

(for Mid hinge)

Pliers

Compression ﬁtting Compression nut Hex Wrench Fastener



Some installations require door/drawer removal to transport the Refrigerator to its ﬁnal location.

Do not remove the door/drawer if it is not needed. Before removing the door/drawer make sure you read

following items.

Disconnect power to the Refrigerator before removing the door or drawer.

WARNING

• Be careful not to drop, damage or scratch the door/drawer while removing them.

• Be careful not to get injured while removing the door/drawer.

• Reattach the door/drawer properly to avoid:

- Moisture from air leakage.

- Uneven door alignment.

- Wasting energy due to improper door seal.

Check the accessories listed below.

Setting up your French Door Refrigerator

DA68-01845A.indb 10 2009.11.19 2:46:48 PM

Andere Handbücher für RF197ABBP

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Samsung Kühlschrank Handbücher

Samsung

Samsung RFG299AARS - 29 cu. ft. Refrigerator Bedienungsanleitung

Samsung

Samsung RL48RWCIH1 Bedienungsanleitung

Samsung

Samsung RT35 Bedienungsanleitung

Samsung

Samsung RS267TD series Bedienungsanleitung

Samsung

Samsung RB3VTS Series Bedienungsanleitung

Samsung

Samsung RF323T Series Bedienungsanleitung

Samsung

Samsung SR-28 Series Bedienungsanleitung

Samsung

Samsung Refrigerator Bedienungsanleitung

Samsung

Samsung RF26J7500 Series Bedienungsanleitung

Samsung

Samsung RT-54 EMSW Bedienungsanleitung

Samsung

Samsung RS23 SERIES Bedienungsanleitung

Samsung

Samsung RL22FC Series Bedienungsanleitung

Samsung

Samsung BRD27 Series Bedienungsanleitung

Samsung

Samsung RL38ECSW Bedienungsanleitung

Samsung

Samsung RFG299AA series Bedienungsanleitung

Samsung

Samsung RSG309 SERIES Bedienungsanleitung

Samsung

Samsung RF267AA SERIES Bedienungsanleitung

Samsung

Samsung RF4289HARS Bedienungsanleitung

Samsung

Samsung RSG257AA Series Bedienungsanleitung

Samsung

Samsung DA99-00275B Sicherheitsleitfaden

Samsung

Samsung RF31FM Series Bedienungsanleitung

Samsung

Samsung RS51K5 Series Bedienungsanleitung

Samsung

Samsung RF25HMEDBSG Bedienungsanleitung

Samsung

Samsung RF267AB Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung

Teledyne

Teledyne 6712FR and Betriebsanleitung
