Features of your new Refrigerator

KEY FEATURES OF YOUR NEW REFRIGERATOR

Your Samsung French Door Refrigerator comes equipped with various innovative storage and energy-efﬁcient

features.

 Twin Cooling System

The Refrigerator and Freezer have separate evaporators. Due to this independent cooling system,

the Freezer and Refrigerator cool more efﬁciently.

Additionally, this separate air ﬂow system prevents food odor of one compartment from seeping into

other compartments.

 

The Cool Select pantryTM is a full-width drawer with adjustable temperature control.

 

The wide shelf area and pantry provide enough space for larger items like a pizza box, etc.

The wide freezer drawer also provides enough space for 2~3 turkeys.

 

The Secure Auto Close feature will automatically close a door that is slightly open.

 

The Ice maker can dispense cubed or crushed ice.

 

 

 

A helpful beeper alerts you if door is ajar.

 

The Tilting pocket can be used to store up to a 16” pizza.

 

The upper drawer in the freezer comes out automatically as you just open the freezer door.

 

Freezer door can be opened with less effort.

 

Energy star labeled this product could save your energy costs.

For easy future reference, write the model and

serial number down which can be found on the left

side of the refrigerator.

Model #

Serial #

2_ Features

Safety Information



Before using your new Samsung French Door Refrigerator, please read this manual thoroughly

to ensure that you know how to safely and efﬁciently operate the features and functions that your

new appliance offers.

Because the following instruction covers various models, the characteristics of your Refrigerator

may differ slightly from the Refrigerator described in this manual. If you have any question, contact

us at 1-800-SAMSUNG or ﬁnd help and information online at www.samsung.com.

What the icons and signs in this user manual mean :

WARNING Hazards or unsafe practices that may result in .

CAUTION

Hazards or unsafe practices that may result in 

.

CAUTION

To reduce the risk of ﬁre, explosion, electric shock, or personal injury when using your

refrigerator, follow these basic safety precautions:

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.







SEVERE WARNING SIGNS



•

Large appliances draw a lot of power. Powering more than one appliance or machine from a single power source

could cause overheating and cause a ﬁre.



• A damaged power plug may overheat and cause a re.



• Water could get into the interior machine parts and cause electric shock.



• Aerosols used near the Refrigerator may cause an explosion or re.

Safety Information _3



    Placing heavy articles on the power cord create the risk of explosion or ﬁre.



 It may cause electric shock.



 If it spills, it may cause ﬁre or electric shock.



 Wet and/or deteriorated insulation of the internal electrical parts may cause electric shock or ﬁre.



 Storing benzene, thinner, alcohol, ether, LP gas, dryice, and other such products may cause explosions.



 You run the risk of ﬁre, appliance malfunctions and/or personal injury. Call your nearest service center for

help from a qualiﬁed service technician.



 Changing the light while the Refrigerator is plugged in may cause electric shock.





 The doors(and their seals) can entrap a child if they climb into the Refrigerator.

Make sure that the doors are off, and ensure that no one is suffocated by being locked inside.



 Always make sure that you have grounded the Refrigerator before attempting to investigate or repair any

part of the appliance. Power leakages can cause severe electric shock.





 Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an

extension cord to power the Refrigerator, use only a 3-wire extension cord that has a 3-blade ground

plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extention

cord should be AC 115V~120V, 10A, or more. Additionally, if a grounding adapter is used, make sure the

receptacle box is also fully grounded.

Safety Information

4_ Safety Information

CAUTION SIGNS



 In an overfull Refrigerator, heavy, fragile, bulky or breakable items may fall out and cause personal injury

and/or damage to surrounding objects.



 When the contents freeze and then expand, the glass may break and cause personal injury or leave

dangerous glass shards in the Freezer.



 There is a risk of electric shock or ﬁre. Have the plug looked at by a licensed electrician.



 Always grip the power cord ﬁrmly and pull straight out from the outlet. Yanking or pulling on the power

cord may cause a short-circuit, ﬁre and/or electric shock.

 A damaged power cord must be replaced by the manufacturer, a certiﬁed service agent or qualiﬁed

service personnel.



 When you open or close the door, the articles may fall and cause personal injury and /or damage to

surrounding objects.





 Products that require exact temperature controls should not be stored in the Refrigerator.



















 Skin may stick to the surface and you may get frostbite.



 Any sharp edges may cause personal injury.

Safety Information _5

CAUTION



 It may cause personal injury and/or material damage.





 Over time, deterioration in the power cord insulation may cause ﬁre.





 A Dirty power plug can increase the risk of ﬁre.















 Wipe excess moisture from the inside and leave the doors open to keep odor and mold from developing.



 Any changes or modiﬁcations performed by a 3rd party on this ﬁnished appliance is not covered under

Samsung warranty service, nor can Samsung be responsible for safety issues that result from 3rd party

modiﬁcations.



Before you throw away your old Refrigerator or Freezer, make sure that you;

 Take off the doors.

 Leave all shelves in places so that children may not easily climb inside and shut the door while they are

inside.

This appliance is not intended for use by small children or inﬁrm persons without capable, adult

supervision. Small children should be supervised when using the appliance.

Safety Information

6_ Safety Information

CAUTION

Contents _7

Contents





08 Getting ready to install the refrigerator

09 Removing the refrigerator doors

11 Disassemble the freezer drawer

12 Reattaching the refrigerator doors

14 Assemble the freezer drawer

15 Adjusting the doors

15 Adjusting the support for extension shelf

16 Making minor adjustments between doors

17 Adjusting the freezer drawer level

18 Checking the water dispenser line

19 Installing the water line





21 Using the control panel

22 Using the digital display

23 Controlling the temperature

24 Using the ice and cold water dispenser

26 Parts and Features(RF267)

27 Parts and Features(RF26X)

28 Storing food

29 Using the Cool Select Pantry™

29 Using the tilting pocket

30 Removing the refrigerator accessories

31 Using the doors

32 Removing the freezer accessories

33 Cleaning the refrigerator

34 Changing the interior lights

35 Changing the water ﬁlter



40 Troubleshooting



42 Warranty



41 Wiring diagram

Setting up your French Door Refrigerator



Congratulations on your purchase of the Samsung French Door Refrigerator. We hope you enjoy the state-of-art

features and efﬁciencies that this new appliance offers.



• A

location with easy access to the water supply.

• A

location without direct exposure to sunlight.

• A

location with level (or nearly level) ﬂooring.

• A

location with enough space for the Refrigerator doors to open easily.

•

Allow sufﬁcient space for air circulation of the internal cooling system.

If the Refrigerator does not have enough space, the internal cooling

system may not work properly.

If your refrigerator has an ice maker, allow extra space at the back for the water line connections. When you install

the refrigerator next to a ﬁxed wall, minimum clearance is 3 ¾” (95mm) between the refrigerator and wall to allow

the door to swing open.

8_ Setting Up

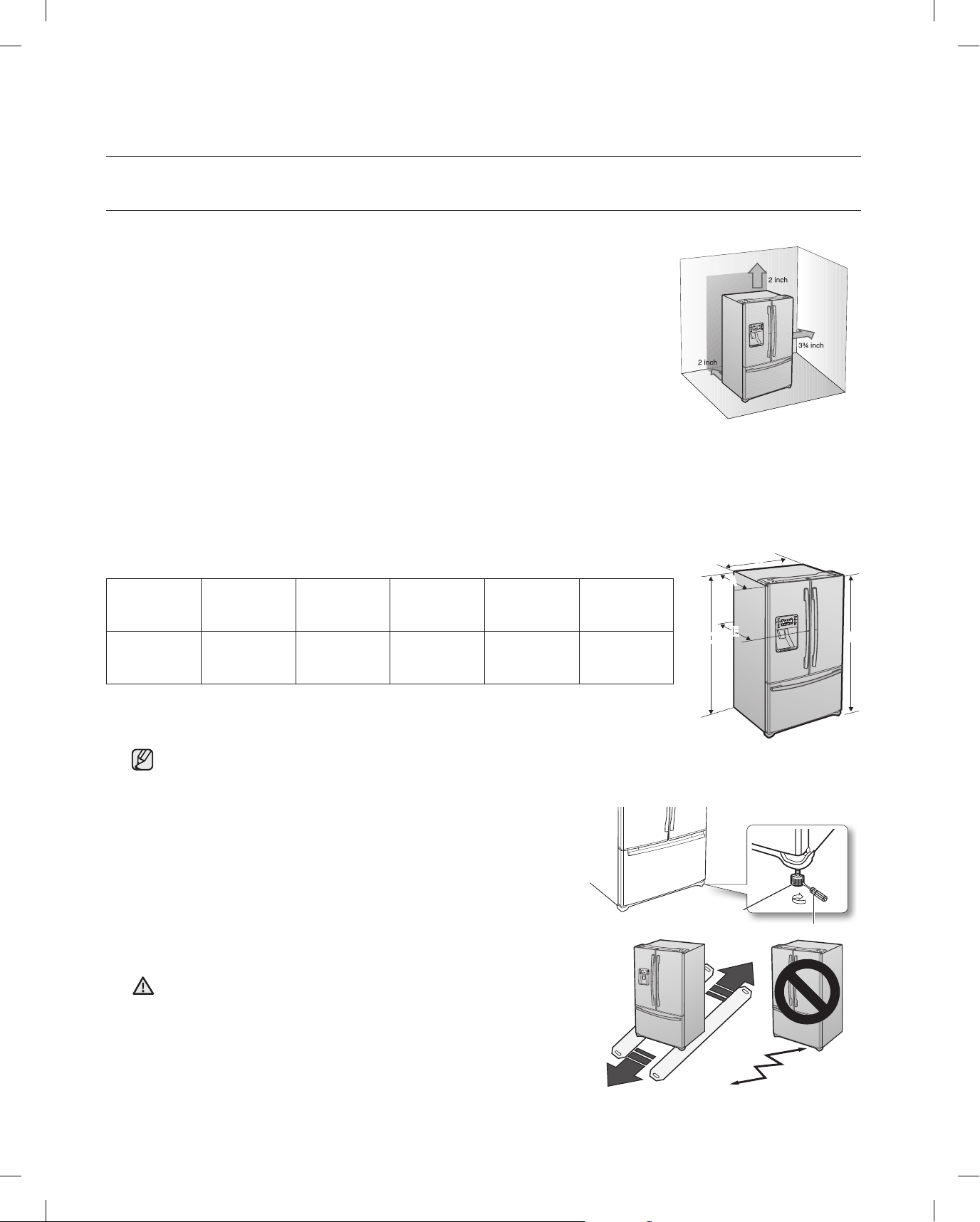

First thing! Make sure that you can easily move your Refrigerator to its ﬁnal location by measuring doorways

(both width and height), thresholds, ceilings, stairways, etc.

The following chart details the exact height and depth of Samsung French Door Refrigerator.

•

Allow clearance to the right, left, back and top when installing. This will help reduce power

consumption and keep your energy bills lower.

•







When moving your refrigerator

To prevent ﬂoor damage be sure the front levelling legs are

in the up position (above the ﬂoor). Refer to ‘Levelling the

refrigerator’ in the manual.

To protect the ﬁnish of the ﬂooring, place the protection

sheet such as packing carton under the refrigerator.

When installing, servicing or cleaning behind the refrigerator,

be sure to pull the unit straight out and push back in straight

after ﬁnishing.

CAUTION

Model Depth

“A”

Width

“B”

Height

“C”

Overall

Height “D”

Depth

“E”

RF267

RF26X

29-⅛”

(83.6cm)

35-¾”

(90.8cm)

68-⅝”

(174.4cm)

69-¾”

(177.4cm)

35-⅝”

(90.5cm)

CED

Setting Up _9



Now that you have your new Refrigerator installed in place, you are ready to set up and enjoy the features and functions of

the appliance. By completing the following steps, your Refrigerator should be fully operational.

1. Place the Refrigerator in an appropriate location with reasonable clearance between the wall and the

Refrigerator. Refer to installation instructions in this manual.

2. Once the Refrigerator is plugged in, make sure the interior light comes on when you open the doors.

3. Set the Temperature control to the coldest temperature and wait for an hour. The Freezer will get slightly chilled

and the motor will run smoothly.

4. After powering the Refrigerator, it will take a few hours to reach the appropriate temperature. You can store

food and drinks in the Refrigerator after the temperature is sufﬁciently cool.



If the Refrigerator is too large to pass through your doorway easily, you can remove the refrigerator doors.



1. With the door opened, remove the Top Table cap

(

) with a Flat head screwdriver, and close the

door.

Remove the 3 screws holding down the Top Table

and remove the Top Table( 2





Philips screwdriver 10mm Socket Wrench Allen wrench(3/16”)

Flat-blade screwdriver Pliers

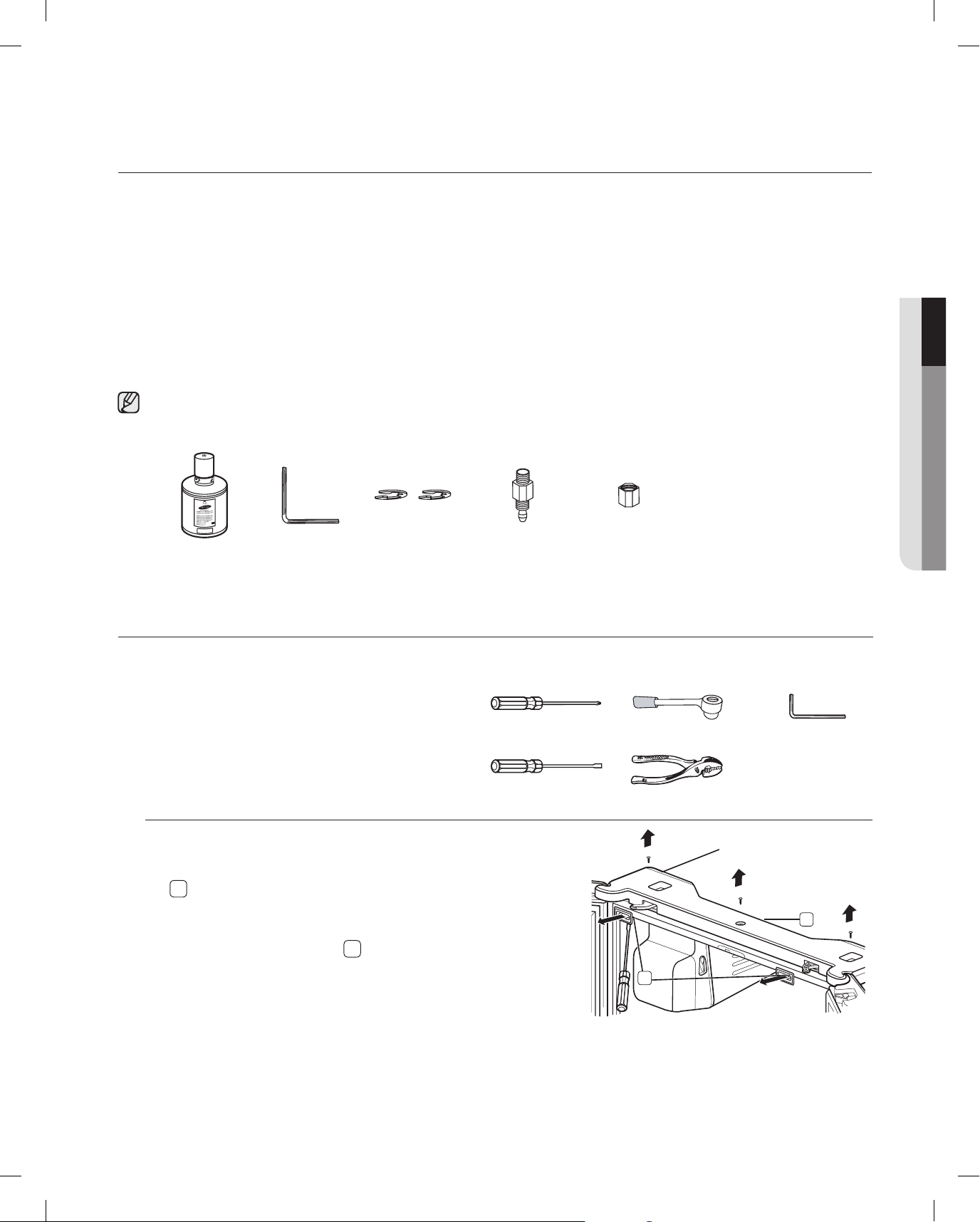

Check the accessory list below.

01 

Water ﬁlter

(DA29-00003B)

Hex wrench

(DA80-00002C)

Fastener

(DA60-00143B)

Compressin ﬁtting

(DA62-00305A)

Compression nut

(DA74-00070B)

 setting up

Setting up your French Door Refrigerator

3. Remove the three hex head bolts( 7) attached

to the upper left and right door hinges with a

Wrench(10mm).

With a Philips head screwdriver, remove the ground

screw( 8) attached to the upper left and right door

hinges.

Remove the upper left and right door hinges( 9).

4. Lift the door straight up to remove.

5. With a Philips head screwdriver, remove the two

screws(  ) attached to the lower left and right

door hinges.

With an Allen Wrench(3/16”), remove the two hex

head bolts(  ) attached to the lower left and right

door hinges.

Remove the lower left and right door hinges(  ).







2. Disconnect two connectors ( 3) at

each side of the top cap and the one

connector( 4) on left side door . Remove

the tube ( 5) with pressing the dark gray

color part ( 6) of the water line coupler. 3

Dispenser

Door Tube

Cabinet

Tube

Dispenser

Door Tube

Cabinet

Tube

Red Clip

(1/4”)

Red Clip

(1/4”)

If a red clip is on the coupler, it must be removed

before removing the tube.

CAUTION

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Samsung Kühlschrank Handbücher

Samsung

Samsung rf28hmedbsr Bedienungsanleitung

Samsung

Samsung RF23HTED Bedienungsanleitung

Samsung

Samsung RF28T5F01 Bedienungsanleitung

Samsung

Samsung RR19 series Bedienungsanleitung

Samsung

Samsung RS2534BB Bedienungsanleitung

Samsung

Samsung RB38A7B63S9/EF Bedienungsanleitung

Samsung

Samsung RF28K9380SR/ Bedienungsanleitung

Samsung

Samsung RFG299AARS Bedienungsanleitung

Samsung

Samsung RT23 Bedienungsanleitung

Samsung

Samsung RS2666SL Bedienungsanleitung

Samsung

Samsung RFG297 Series Bedienungsanleitung

Samsung

Samsung RF23M8570SR Bedienungsanleitung

Samsung

Samsung RSA1N Series Bedienungsanleitung

Samsung

Samsung RF267AE series Bedienungsanleitung

Samsung

Samsung RS261MDBP Bedienungsanleitung

Samsung

Samsung RF267 Bedienungsanleitung

Samsung

Samsung RB38T600FSA/EK Bedienungsanleitung

Samsung

Samsung RL48RWCIH1 Bedienungsanleitung

Samsung

Samsung RF265A Series Bedienungsanleitung

Samsung

Samsung RS267TD series Bedienungsanleitung

Samsung

Samsung RFG297AA Bedienungsanleitung

Samsung

Samsung RN405BRKA SERIES Bedienungsanleitung

Samsung

Samsung RT77KBPN Bedienungsanleitung

Samsung

Samsung RL55VQBRS Premium 2m Fridge Freezer Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung

Teledyne

Teledyne 6712FR and Betriebsanleitung
