Samsung RS2530BSH Bedienungsanleitung

SIDE BY SIDE

RS2530BSH

RS2530BWW

REFRIGERATOR

REFRIGERATOR PRODUCT FEATURE

For the latest parts information, Please access to our service web site (http://itself.sec.samsung.co.kr)

Twin X AirFlow

Xtra Space

Door Alarm

Vegetable Crisper

IMPORTANT SAFETY NOTICE

This service guide is for service technicians with adequate

backgrounds and electrical, electronic, and mechanical experience.

Any attempt to repair a major appliance may result in personal injury

and property damage.The manufacturer or dealer cannot be

responsible for the interpretation of this information.

SAMSUNG ELECTRONICS AMERICA, INC.

Technical Service Guide

part in any form without written permission from the SAMSUNG ELECTRONICS

Company.

WARNING

Contents

1. PRECAUTIONS(SAFETY WARNINGS)························ 4

2. PRODUCT SPECIFICATIONS ···························· 7

3. OPERATING INSTRUCTIONS & INSTALLATION ·················· 16

4. ALIGNMENT AND ADJUSTMENTS·························· 26

5. DISASSEMBLY AND REASSEMBLY ························· 33

6. TROUBLE SHOOTING ································· 48

7. EXPLODED VIEW & PARTS LIST ··························· 64

8. BLOCK DIAGRAM ···································· 76

9. PCB DIAGRAM ····································· 78

10. WIRING DIAGRAM··································· 80

11. CIRCUIT DIAGRAM ·································· 81

12. CIRCUIT DESCRIPTION ······························· 82

13. REFERENCE ······································ 94

14. NOMENCLATURE ··································· 97

15. SPECIFICATIONS ··································· 98

16. REFERENCE INFORMATION ···························· 99

17. REFRIGERATION CYCLE AND COOL AIR CIRCULATION ROUTE ······ 101

1. PRECAUTIONS(SAFETY WARNINGS)

●Unplug the refrigerator before making any repairs or any replacements.

󳦧Avoid electric shock.

●Use rated components for the replacements.

󳦧Check that they have the correct model number, rated voltage, rated current, operating

temperature and so on.

●On repair, be sure that the wires such as harness are bundled tightly and are not exposed by

water.

󳦧Bundle wires tightly in order not to be detached by an the external force.

●Upon repair, completely remove dust, particles or other items from housing areas,

harness parts, and connectors.

󳦧Cleaning may prevent fire by tracking or short.

●Check if there is any trace of water infitration on electrical parts.

󳦧If there is kind of trace, change the related components or do the necessary action

such as taping using the insulating tape.

●After repair, check the appearance of the assembled parts.

󳦧They must look the same as they did before disassembly.

●Check the conditions surrounding the installed refrigerator.

󳦧When the refrigerator is located at humid or wet place, or the installed state is

unstable, change the location.

●If necessary instal a ground conductor.

󳦧This appliance must be properly grounded, especially if there is a possibility of

electrical leakage.

●Do not allow consumers to use one outlet for several plugs.

●Check whether the power cord has been placed under an other appliance and gotten,

damaged, worn-out squeezed.

󳦧Repair the defective power plug or outlet immediately.

󳦧Make sure that the power cord is not placed under an other appliance or pinched.

●Do not allow consumers to keep bottles or the likes in the Freezer or to keep foods in

unstable positions.

●Do not allow consumers to repair the appliance by themselves.

●Do not allow consumers to keep other chemicals except food.

󳦧Medicines and other materials for research, this appliance will not maintain the

precisely constant temperature for them.

󳦧Volatile materials (Alcohol, Benzene, Ether, LP gas etc.) - possibility of explosion

PRECAUTIONS(SAFETY WARNINGS)

Read all instructions before repairing the product, and follow to the instructions

in order to prevent danger or property damage.

CAUTION/WARNING SYMBOLS DISPLAYED

SYMBOLS

Indicates that a

danger of death

or serious injury

exists.

Indicates that a risk

of personal injury

or material damage

exists.

means “Forbidden”.

means “do not disassemble”.

means “do not touch”

means “Instructions that need to be

followed”

means “Ground to prevent Electric

shock”.

means “power cord should be

unplugged from the consent”

Pull the power plug out to

exchange the interior lamp

of the refrigerator.

●

It may cause electric shock.

Warning

Warning & Caution

Caution

Unplug

Use rated components for

the replacement.

●

Check for the correct model, rated

voltage, rated current, operating

temperature and so on.

Upon repair, make sure that the

wires such as harness are

bundled tightly.

●

Bundle wires tightly for them not to be

detached by an external force and not to get

wet.

Check if there is any trace indicating

water permeation.

●

If there is that kind of trace, change

the related components or do the

necessary treatment

such as taping

using the

insulating tape.

After repair, check the

appearance of the assembled

components.

●

IThey must look the same as they did

before disassembly.

Upon repair, remove completely dust or

other items form the housing areas,

harnesses, and check parts appearance.

●

Cleaning may prevent the possible fire by

tracking or short.

Rated

components

PRECAUTIONS(SAFETY WARNINGS)

❈

Please ler users know following warnings & cautions in detail.

Do not allow users to put glass

bottles or similar in the freezer.

●

Freezing the contents may cause .

Do not allow users to store narrow

and long bottles or foods in a small

multi-purpose room.

●

It may hurt you when the refrigerator door

is opened and closed resulting in stuff falling

down.

Do not allow users to store

pharmaceutical products, scientific

materials, etc., in the refrigerator.

●

Products which require temperature control

should not be stored in the refrigerator.

Do not allow users to store

articles on top of the product.

●

Opening or closing the door may cause

things to fall down, witch may cause injury.

Forbidden Forbidden Forbidden

Forbidden

Warning & Caution

Do not allow users to

disassemble, repair or alter.

●

It may cause fire or abnormal operation

leading to injury.

Do not

disassemble

Do not allow users to insert the

power plugs for many products

at the same time.

●

May cause abnormal generation of

heat or fire.

Forbidden

Do not allow users to bend the

power cord with excessive force or

do not allow the power

cord to get pinched by a heavy item.

●

May cause fire.

Do not allow users to install the

refrigerator in a wet place or a

place where water splashes.

●

Deterioration of the insulation of electric

parts may cause electric shock or fire.

Ensure grounding.

●

If grounding is not done, it will cause

breakdown and electric shock.

Ground

2. PRODUCT SPECIFICATIONS

2-1) Introduction of main function ····························· 8

2-2) Comparison of Design Change···························· 9

2-3) Model Specification &Comparison Chart ····················· 10

2-4) Model Specification ··································11

2-5) Electric Parts Specification ······························12

2-6) Dimensions (Inch) ···································14

2-7) Optional Material Specifications ···························15

PRODUCT SPECIFICATIONS

●●A newly developed SAMSUNG side by side refrigerator in 2006 has the following

characteristics.

Twin X AirFlow

·Cool air circulates through side vents on every shelf level. This

provides even distribution of cooling inside cabinets to keep your

food fresh longer.

Xtra SpaceTM

·Vertical room next to the ice maker in the freezer provides space

for pizza etc.

Door Alarm

·Beep sound reminds you the door is open.

Vegetable Crisper

·Optimized humidity control keeps vegetables & fruits fresh.

2-1) Introduction of main function

2-2) Comparison of Design Change

PRODUCT SPECIFICATIONS

ITEM

BASIC MODEL(RS2630**)NEW MODEL(RS2530B**)

Appearance Design Feature

• Dispenser & Display Design :

Projecting control type

• Compartment Lighting : 30W

• Handle Design : A-Top Long-

Bar (plastic)

• Freezer Compartment Basket

Type : Wire Basket

• Flat door plate

• Cover Hinge Type : Exposed

type

• New Design Dispenser

(Display) : Flat control type

• Compartment Lighting : 40W

• New Handle Design : Al oval

half bar

• Freezer Compartment Basket

Type : Plastic Box

• Contour door plate

• Cover Hinge Type : Hidden

type

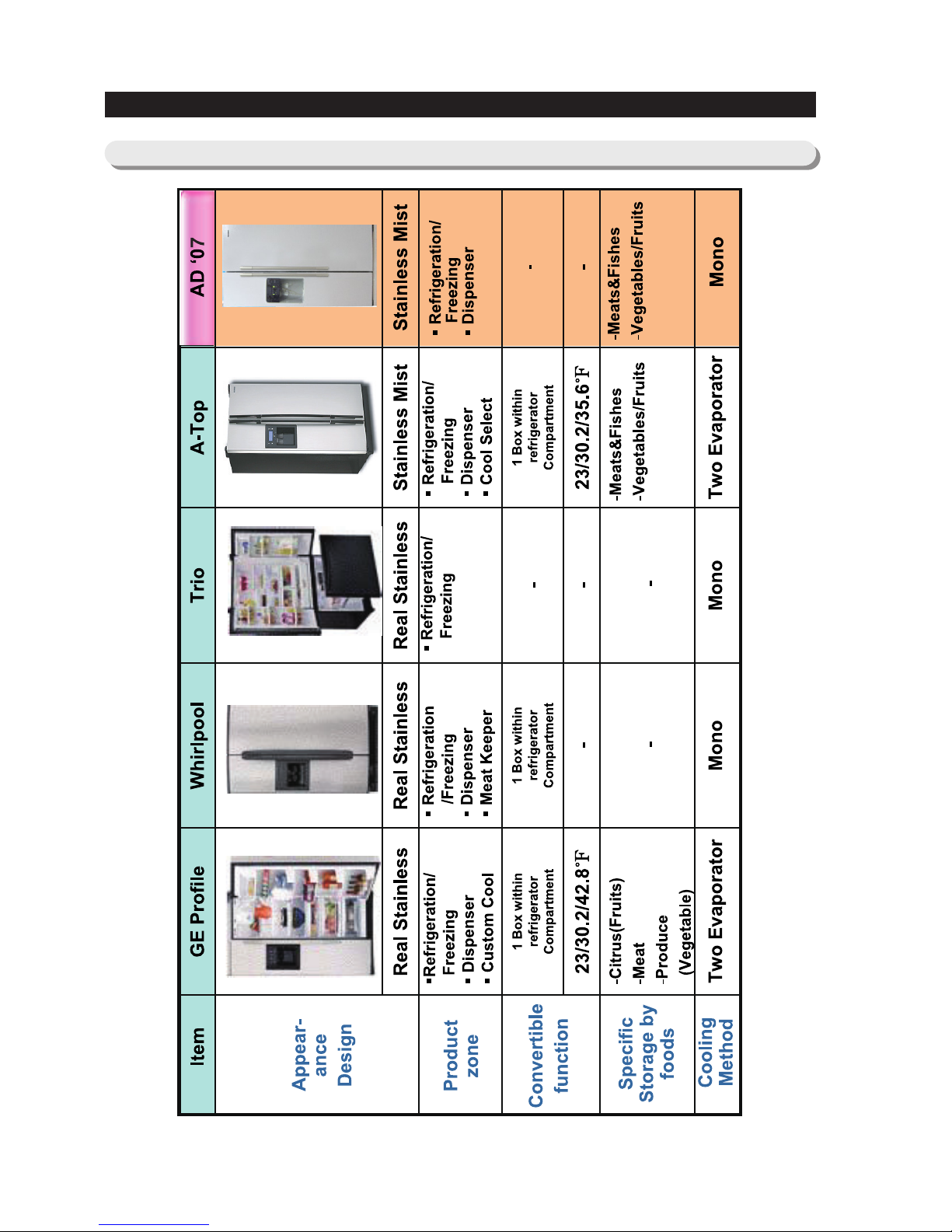

2-3) Model Specification &Comparison Chart

PRODUCT SPECIFICATIONS
