Samsung OH55A-S Bedienungsanleitung

USER MANUAL

OH55A-S

The color and the appearance may differ depending on the product, and the specifications are subject to

change without prior notice to improve the performance.

The contents of this manual are subject to change without notice to improve quality.

Samsung owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung is

prohibited.

Trademarks other than that of Samsung are owned by their respective owners.

Table of contents

Before Using the Product

Safety Precautions 6

Safety symbols 6

Electricity and Safety 7

Installation 8

Operation 9

Cleaning 11

Storage 11

Preparations

Checking the Components 12

Components 12

Parts 13

Reverse Side 14

Remote Control 15

Before Installing the Product (Installation

Guide) 17

Tilting Angle and Rotation 17

Ventilation 17

Installing the Wall Mount 19

Installing the Wall Mount Kit 19

Wall Mount Kit Specifications 19

Using MDC

MDC Program Installation/Uninstallation 42

Installation 42

Uninstallation 42

Connecting to MDC 43

Using MDC via RS-232C (serial data

communications standards) 43

Using MDC via Ethernet 43

Player feature

Player 45

Viewing content 45

When content is running 46

Available menu 46

File Formats Compatible with Player 47

Schedule 51

Clone Product 52

ID Settings 53

Device ID 53

Device ID Auto Set 53

PC Connection Cable 53

Remote Control (RS232C) 20

Cable Connection 20

Connection 23

Control Codes 24

Connecting and Using a Source Device

Before Connecting 32

Pre-connection Checkpoints 32

Before connecting cables 33

Connecting to a PC 34

Connection Using an HDMI-DVI Cable 34

Connection Using an HDMI Cable 34

Connecting to a Video Device 35

Using an HDMI cable or HDMI to DVI Cable (up

to 1080p) 35

Connection Using an HDMI-DVI Cable 35

Connection Using an HDMI Cable 35

Connecting the HDBase-T 36

Connecting to an Audio System 37

Connecting the LAN Cable 37

Changing the Input source 38

Source 38

Web Browser 39

Screen Mirroring 41

Samsung Workspace 41

Table of contents

OnScreen Display

Display Orientation 69

Onscreen Menu Orientation 69

Source Content Orientation 69

Aspect Ratio 69

Screen Protection 70

Auto Protection Time 70

Screen Burn Protection 70

Message Display 71

Source Info 71

No Signal Message 71

MDC Message 71

Download Status Message 71

Language 72

Reset OnScreen Display 72

Picture Enhancer 61

Color 61

Tint (G/R) 61

White Balance 62

Gamma 62

Contrast Enhancer 62

Black Tone 62

Flesh Tone 63

RGB Only Mode 63

Color Space Settings 63

Input Signal Plus 63

Motion Lighting 63

Picture Options 64

Color Tone 64

Digital Clean View 64

HDMI Black Level 64

Film Mode 64

Auto Motion Plus Settings 64

Local Dimming 65

Dynamic Peaking 65

Apply Picture Settings 66

Picture Size Settings 67

Picture Size 67

Fit to Screen 67

Zoom and Position 67

Reset Picture 68

Video Wall 54

Horizontal x Vertical 54

Screen Position 55

Format 55

Network Status 55

On/Off Timer 56

On Timer 56

Off Timer 57

Holiday Management 57

Ticker 57

URL Launcher 58

URL Launcher Settings 58

Screen Adjustment

Backlight / Brightness / Contrast / Sharpness 59

Color Temperature 60

Advanced Settings 61

Table of contents

Fan Settings 86

Fan Control 86

Fan Speed Setting 86

Outdoor Mode 86

Play via 87

Change PIN 87

Security 88

Safety Lock On 88

Screen Monitoring Lock 88

USB Auto Play Lock 89

Remote Management 89

Secured Protocol 89

Server Security Status 89

Network Lock 89

USB Lock 89

General 90

Smart Security 90

Anynet+ (HDMI-CEC)90

HDMI Hot Plug 92

Custom Logo 92

Game Mode 93

Empty Storage 93

Reset System 93

Start Setup 79

Time 80

Clock Set 80

NTP Settings 80

DST 80

Power On Delay 80

Auto Source Switching 81

Primary Source Recovery 81

Primary Source 81

Secondary Source 81

Default Input 81

Power Control 82

Auto Power On 82

Max. Power Saving 82

Standby Control 82

Remote Configuration 83

Power Button 83

Eco Solution 84

Power Saving Mode 84

Eco Sensor 84

Screen Lamp Schedule 85

No Signal Power Off 85

Auto Power Off 85

Network

Network Status 73

Open Network Settings 73

Network Settings (Wired) 74

IPv6 76

IPv6 Status 76

Server Network Settings 76

Connect to Server 76

MagicInfo Mode 76

Server Access 76

FTP Mode 77

Proxy Server 77

Device Name 77

System

Accessibility 78

Voice Guide Settings 78

High Contrast 79

Enlarge 79

Table of contents

Specifications

General 101

Preset Timing Modes 102

Appendix

Responsibility for the Pay Service (Cost to

Customers) 104

Not a product defect 104

A Product damage caused by customer's fault 104

Others 104

Prevention of Afterimage Burn-in 105

What is afterimage burn-in? 105

Recommended prevention practices 105

License 106

Terminology 107

Support

Software Update 94

Update Now 94

Contact Samsung 94

Terms & Conditions 94

Reset All 94

Troubleshooting Guide

Requirements Before Contacting Samsung

Customer Service Center 95

Testing the Product 95

Checking the Resolution and Frequency 95

Check the followings. 96

Q & A 100

Before Using the Product

Chapter 01

Safety Precautions

The following safety instructions are to ensure your personal safety and prevent property damage.

Please read the following to ensure the proper use of the product.

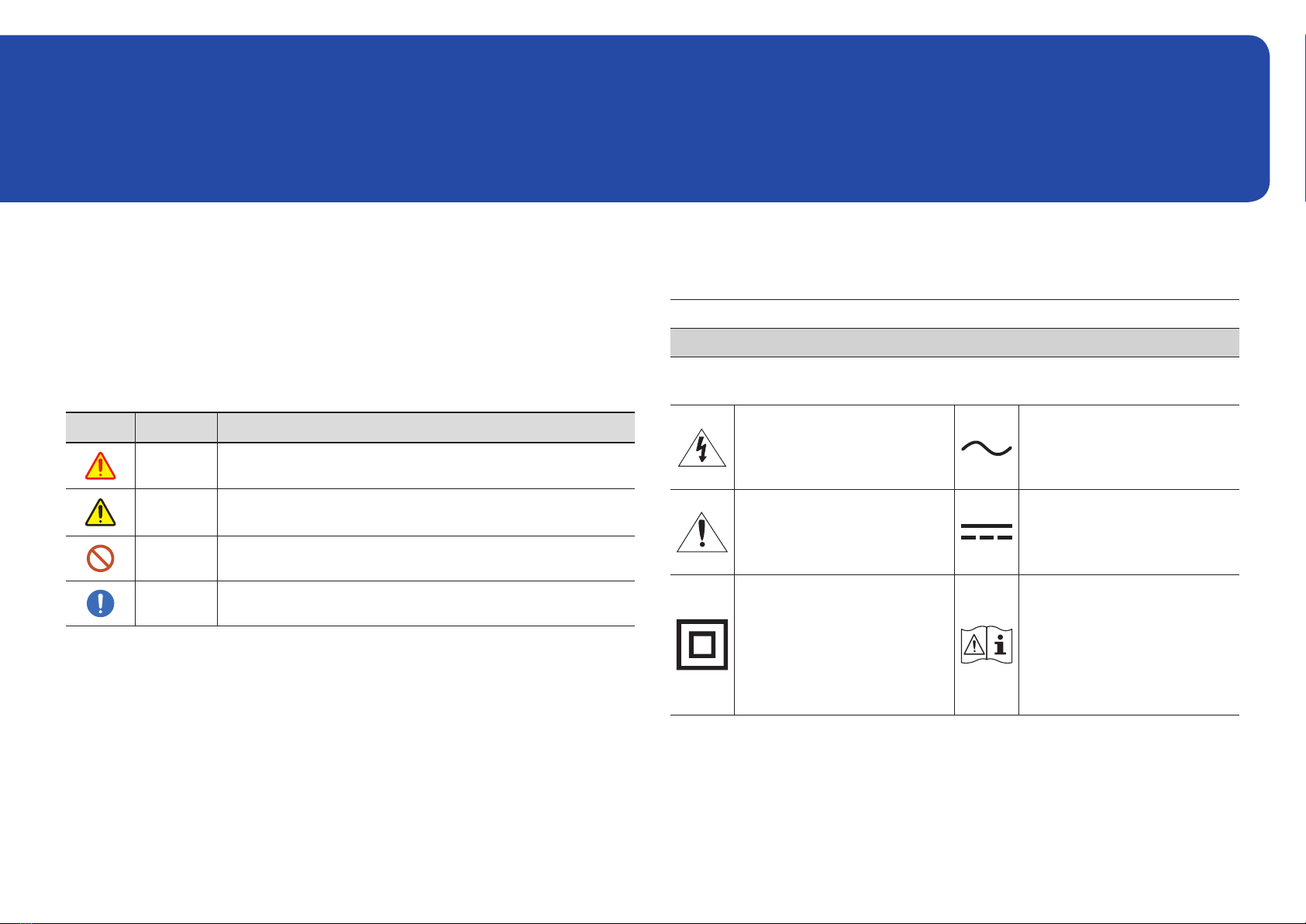

Safety symbols

Symbol Name Meaning

Warning A serious or fatal injury may result if instructions are not followed.

Caution Personal injury or damage to properties may result if instructions are not

followed.

Prohibition Do NOT attempt.

Instruction Follow directions.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE

NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

AC voltage: Rated voltage marked with

this symbol is AC voltage.

This symbol indicates that this

product has included important

literature concerning operation and

maintenance.

DC voltage: Rated voltage marked with

this symbol is DC voltage.

Class II product: This symbol indicates

that a safety connection to electrical

earth (ground) is not required. If this

symbol is not present on a product

with a mains lead, the product

MUST have a reliable connection to

protective earth (ground).

Caution. Consult instructions for use:

This symbol instructs the user to

consult the user manual for further

safety related information.

Electricity and Safety

Warning

Do not use a damaged power cord or plug, or a loose power socket.

An electric shock or fire may result.

Do not use multiple products with a single power socket.

Overheated power sockets may cause a fire.

Do not touch the power plug with wet hands. Otherwise, an electric shock may result.

Insert the power plug all the way in so it is not loose.

An unsecure connection may cause a fire.

Connect the power plug to a grounded power socket (type 1 insulated devices only).

An electric shock or injury may result.

Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy

object.

Damage to the cord may result in a fire or electric shock.

Do not place the power cord or product near heat sources.

A fire or electric shock may result.

Clean any dust around the pins of the power plug or the power socket with a dry cloth.

A fire may result.

Caution

Do not disconnect the power cord while the product is being used.

The product may become damaged by an electric shock.

Only use the power cord provided with your product by Samsung. Do not use the power cord with other

products.

A fire or electric shock may result.

Keep the power socket where the power cord is connected unobstructed.

The power cord must be disconnected to cut off power to the product when an issue occurs.

Note that the product is not completely powered down by using only the power button on the

remote.

Hold the plug when disconnecting the power cord from the power socket.

An electric shock or fire may result.

Installation

Warning

DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT

INSTALL THE PRODUCT NEAR HEAT SOURCES.

A fire may result.

Have a technician install the wall-mount hanger.

Installation by an unqualified person can result in an injury.

Only use approved cabinets.

Do not install the product in poorly ventilated spaces such as a bookcase or closet.

An increased internal temperature may cause a fire.

When installing the product, keep it at a distance from the wall so that it is well ventilated.

Refer to the Outdoor Installation Guide. (http://displaysolutions.samsung.com)

An increased internal temperature may cause a fire.

Keep the plastic packaging out of the reach of children.

Children may suffocate.

Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.)

The product may fall and become damaged and/or cause an injury.

Using the product in an area with excess vibration may damage the product or cause a fire.

Do not install the product within the reach of young children.

The product may fall and injure children.

As the front is heavy, install the product on a flat and stable surface.

Edible oil, such as soybean oil, can damage or deform the product. Do not install the product in a kitchen

or near a kitchen counter.

Precautions during installation and storage

After opening the cover, install the product within 1 hour under humidity of 60% or below. (P. 33)

Keep the predefined humidity while opening the cover or assembling the housing (e.g. connection of

external device, F/W update).

During operation and storage of the product, be sure to attach the cover.

Caution

Do not drop the product while moving.

Product failure or personal injury may result.

Do not set down the product on its front.

The screen may become damaged.

When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the

product is not protruding.

The product may fall and become damaged and/or cause an injury.

Install the product only on cabinets or shelves of the right size.

Set down the product gently.

Product failure or personal injury may result.

If the product is installed in an unusual location, the surrounding environment may cause a serious

quality problem. Therefore, be sure to contact Samsung Customer Service Center before installation.

Places where many fine dusts are generated, places where chemicals are used, places with too

high or low temperatures, places with a lot of moisture orwater, transportation equipment such as

vehicles, airports and stations used continuously for a long time, and more.

Operation

Warning

There is a high voltage inside the product. Never disassemble, repair or modify the product yourself.

A fire or electric shock may result.

Contact Samsung Customer Service Center for repairs.

If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord

immediately and contact Samsung Customer Service Center.

An electric shock or fire may result.

Do not let children hang from the product or climb on top of it.

Children may become injured or seriously harmed.

Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product.

The product or heavy objects may fall as children try to reach for the toys or sweets resulting in a

serious injury.

Do not drop objects on the product or apply impact.

A fire or electric shock may result.

Do not move the product by pulling the power cord or any cable.

Product failure, an electric shock or fire may result from a damaged cable.

If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area immediately.

Sparks can cause an explosion or fire.

Do not lift or move the product by pulling the power cord or any cable.

Product failure, an electric shock or fire may result from a damaged cable.

Do not use or keep combustible spray or an inflammable substance near the product.

An explosion or fire may result.

Ensure the vents are not blocked by tablecloths or curtains.

An increased internal temperature may cause a fire.

Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper, matches,

etc) into the product (via the vent or input/output ports, etc).

Be sure to power off the product and disconnect the power cord when water or other foreign

substances have entered the product. Then contact Samsung Customer Service Center.

Product failure, an electric shock or fire may result.

Do not block the vent on the product. The product may not function properly due to potential

overheating.

Do not attempt to insert your fingers or objects into the vents.

Product failure or personal injury may result.

Caution

Leaving the screen fixed on a stationary image for an extended period of time may cause afterimage

burn-in or defective pixels.

Activate power-saving mode or a moving-picture screen saver if you will not be using the product for

an extended period of time.

Disconnect the power cord from the power socket if you do not plan on using the product for an extended

period of time (vacation, etc).

Dust accumulation combined with heat can cause a fire, electric shock or electric leakage.

Use the product at the recommended resolution and frequency.

Your eyesight may deteriorate.

Do not hold the product upside-down or move it by holding the stand.

The product may fall and become damaged or cause an injury.

Looking at the screen too close for an extended period of time can deteriorate your eyesight.

Rest your eyes for more than 5 minutes for every 1 hour of product use.

Eye fatigue will be relieved.

Do not touch the screen when the product has been turned on for an extended period of time as it will

become hot.

Store small accessories out of the reach of children.

Exercise caution when adjusting the product angle or stand height.

Your hand or finger may get stuck and injured.

Tilting the product at an excessive angle may cause the product to fall and an injury may result.

Do not place heavy objects on the product.

Product failure or personal injury may result.

When using headphones or earphones, do not turn the volume too high.

Having the sound too loud may damage your hearing.

Be careful that children do not place the battery in their mouths when removed from the remote control.

Place the battery in a location that children or infants cannot reach.

If children have had the battery in their mouths, consult your doctor immediately.

When replacing the battery, insert it with the right polarity (+, -).

Otherwise, the battery may become damaged or it may cause fire, personal injury or damage due to

leakage of the internal liquid.

Use only the specified standardized batteries, and do not use a new battery and a used battery at the

same time.

Otherwise, the batteries may be damaged or cause fire, personal injury or damage due to a leakage

of the internal liquid.

The batteries (and rechargeable batteries) are not ordinary refuse and must be returned for recycling

purposes. The customer is responsible for returning the used or rechargeable batteries for recycling.

The customer can return used or rechargeable batteries to a nearby public recycling center or to a

store selling the same type of the battery or rechargeable battery.

Inhaltsverzeichnis

Andere Samsung Fernseher Handbücher

Samsung

Samsung CL-21Z43ML Bedienungsanleitung

Samsung

Samsung TXM 1491F Bedienungsanleitung

Samsung

Samsung UN46D6420UF Bedienungsanleitung

Samsung

Samsung HLR5668W - 56" Rear Projection TV Bedienungsanleitung

Samsung

Samsung The Terrace LST7T Series Bedienungsanleitung

Samsung

Samsung UE75MU8000TXZG Bedienungsanleitung

Samsung

Samsung QLED QN65Q90R Bedienungsanleitung

Samsung

Samsung 9000 Series Bedienungsanleitung

Samsung

Samsung CS-21M20MN Bedienungsanleitung

Samsung

Samsung UN40D6050TF Bedienungsanleitung

Samsung

Samsung CX6844N3X/XEE Bedienungsanleitung

Samsung

Samsung WS32Z10HVTXBWT Bedienungsanleitung

Samsung

Samsung UN32D6000SF Bedienungsanleitung

Samsung

Samsung QP65A-8K Bedienungsanleitung

Samsung

Samsung UN46D7900XF Bedienungsanleitung

Samsung

Samsung UA49KS8000 Bedienungsanleitung

Samsung

Samsung 670 Bedienungsanleitung

Samsung

Samsung SERIF Series Bedienungsanleitung

Samsung

Samsung UA55B8000XF Bedienungsanleitung

Samsung

Samsung UA32H4303AK Leitfaden

Samsung

Samsung CS-29A10HW Bedienungsanleitung

Samsung

Samsung UE55KS7580UXZG Bedienungsanleitung

Samsung

Samsung QE43Q67AAUXXN Bedienungsanleitung

Samsung

Samsung CW29Z68PSGXXEC Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
