Samsung SP-43T9HR Kurzanleitung

ENG

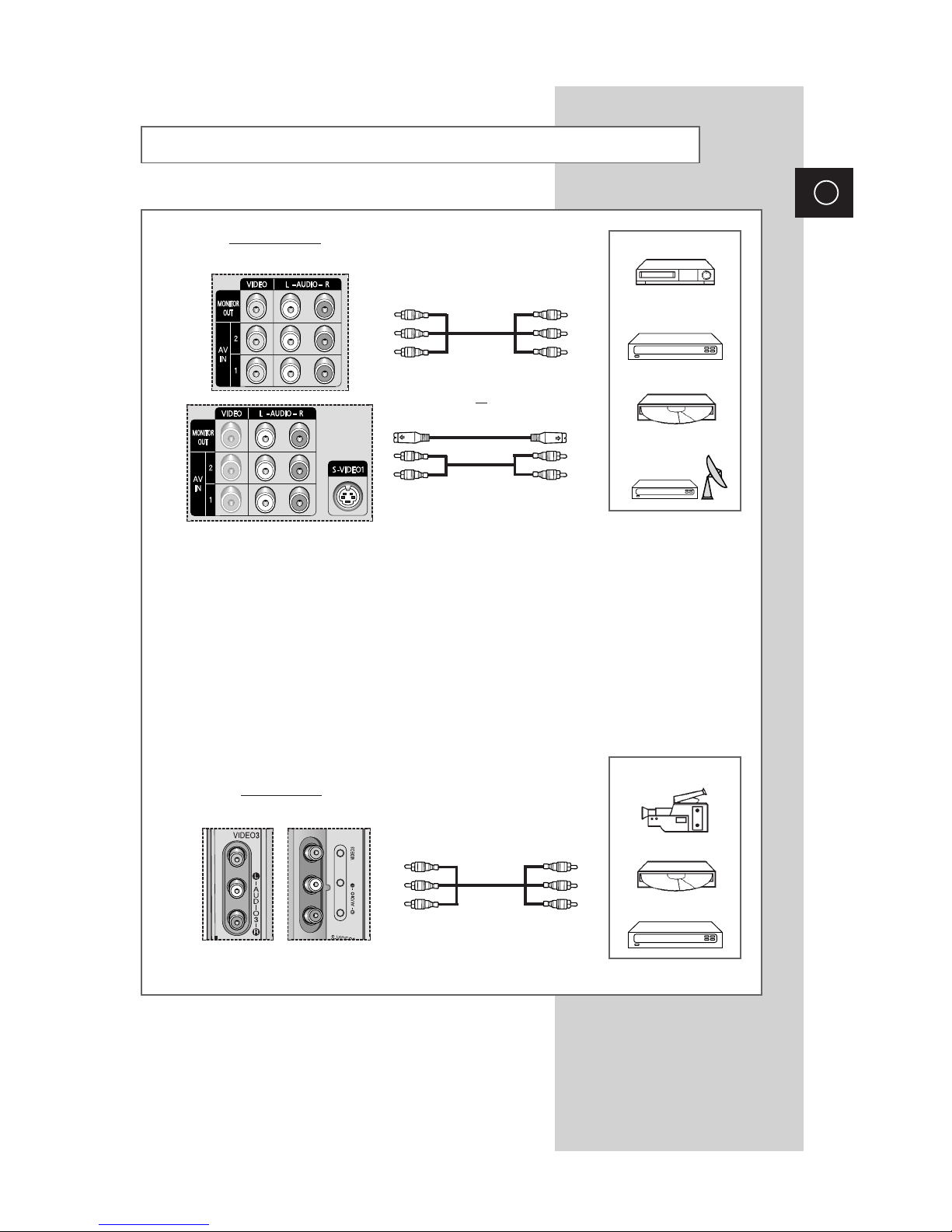

Connecting to the External Devices

(depending on the model)

Rear of the TV

(Input/Output)

①

This end can be fitted with:

◆Three RCA connectors (VIDEO + AUDIO-L and R)

◆An S-Video connector and two audio RCA connectors (L+R); AV-1, AV-2

②

If you have a second VCR and wish to copy cassettes tape, connect the source VCR to

“AV-1”

and the

target VCR to

“MONITOR OUT”

so that you can redirect the signal from

source VCR

to target VCR.

③

If you have a decoder, connect the decoder to the VCR and the VCR to the television.

➃

“MONITOR OUT” is used for displaying the current picture to an external device.

When you wish to

record the current picture, connect the VCR to

“MONITOR OUT”

①

Side of the TV

(Input)

Camcorder

Video disc player

Video game device

VCR

Decoder /

Video game device

Video disc player

Satellite receiver

③

➃

②

ENG

Connecting to the S-Video Input

(depending on the model)

The “S-VIDEO” and RCA (AUDIO-L/R) connectors are used for equipment with an S-Video output, such as

a camcorder or VCR.

Side of the TV

Camcorder

VCR

and

Rear of the TV

and

①

To play pictures and sound, both the S-VIDEO and RCA connectors must be used.

①

ENG

The “AUDIO OUT” connectors are used for equipment, such as an audio system or external amplifier

(to take full advantage of the Surround sound effect).

Audio System/

External Amplifier

Connecting to the Audio Outputs

Rear of the TV

ENG

Connecting to the Component Input

①

The “COMPONENT 1” connectors are used for equipment with a DVD output.

(480i, 480p, 576i, 576p, 720p,1080i)

②

The “COMPONENT 2” connectors are used for DTV receiver. (480p, 576p, 720p, 1080i)

DVD

Rear of the TV

DTV receiver

①

②

ENG

Connecting to the DVI Input (depending on the model)

The DVI IN and RCA (AUDIO-L/R) connectors are used for equipment with a DVI output.

and

Rear of the TV

DTV receiver

Personal Computer

ENG

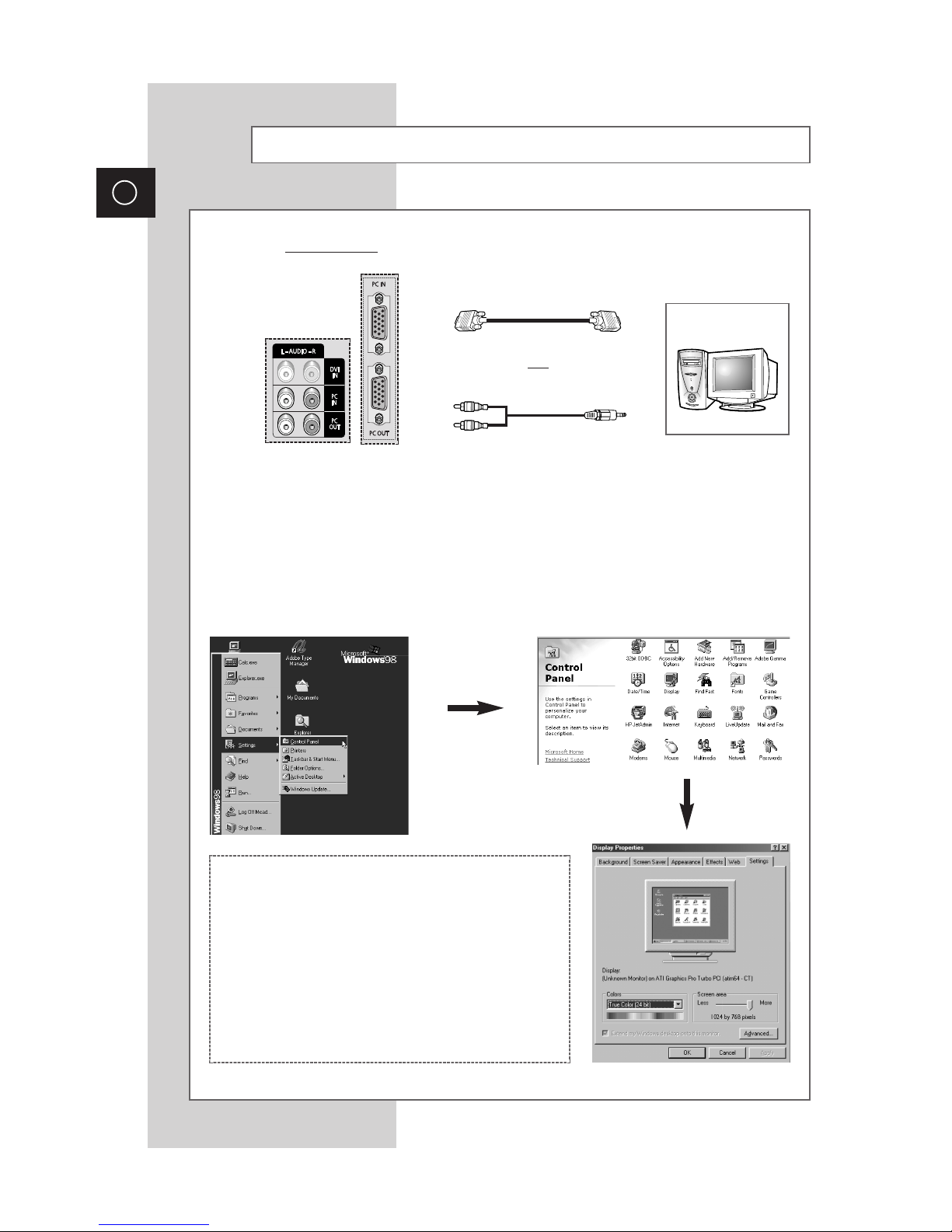

Connecting to the PC Input

The “PC IN” and “AUDIO-L/R” (PC IN-RCA) connectors are

used for interfacing with your PC.

Personal Computer

and

Setting up Your PC Software (Windows only)

The Windows display-settings for a typical computer are shown below. But the actual screens on your PC will

probably be different, depending upon your particular version of Windows and your particular video card.

But even if your actual screens look different, the same, basic set-up information will apply in almost all cases.

(If not, contact your computer manufacturer or Samsung Dealer.)

First, click on Settings on the Windows start menu.

While Settings is highlighted, move the cursor so that Control

Panel is highlighted.

When the control panel screen appears, click on Display and a

display dialog-box will appear.

Navigate to the Settings tab on the display dialog-box.

The correct setting of size (resolution) is 1024 x 768 pixels.

If a vertical-frequency option exists on your display settings

dialog box, the correct value is 60 Hz. Otherwise, just click OK

and exit the dialog box.

Rear of the TV

①

The “PC OUT” and “AUDIO-L/R” (PC OUT-RCA) connectors are used for some other computer

device, such as a multi-media PC monitor.

ENG

PC Input Mode

Notes

◆When this television is used as a PC display, 32-bit color is supported (over 16 million colors).

◆Your PC display screen might appear different depending on the manufacturer (and your particular version of

Windows). Check your PC instruction book for information about connecting your PC to a television.

◆If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5kHz (horizontal).

In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turned

off (or if the PC is disconnected). If so, press the SOURCE ()button to enter the Video mode. Also, make

sure that the PC is connected.

◆When horizontal synchronous signals seem irregular in PC mode, check PC power saving mode or cable

connections.

◆Same modes as PC are supported for the signal input to the DVI jack. Only a separate sync signal is

supported.

◆The interlace mode is not supported.

◆The television might operate abnormally if a non-standard video format is selected.

Both screen position and size will vary depending on the type of PC monitor and its resolution.

The table below shows all of the display modes that are supported:

Mode

VGA

SVGA

XGA

Resolution

640 x 480

800 x 600

1024 x 768

Vertical frequency (Hz)

60.00

75.00

60.00

75.00

60.00

75.00
