SATO GT408 Bedienungsanleitung

PN 9001140A

GT408/412/424e

Printer

PARTS LIST

SATO America, Inc.

10350A Nations Ford Road

Charlotte, NC 28273

Main Phone: (704) 644.1650

Technical Support Hotline: (704) 644.1660

Technical Support Fax: (704) 644.1661

E-Mail: satosale[email protected]

technicalsupport@satoamerica.com

www.satoamerica.com

SATO GT4xxe Series Parts List PN 9001140A Page 1

HOUSING COVER ASSEMBLY (1)

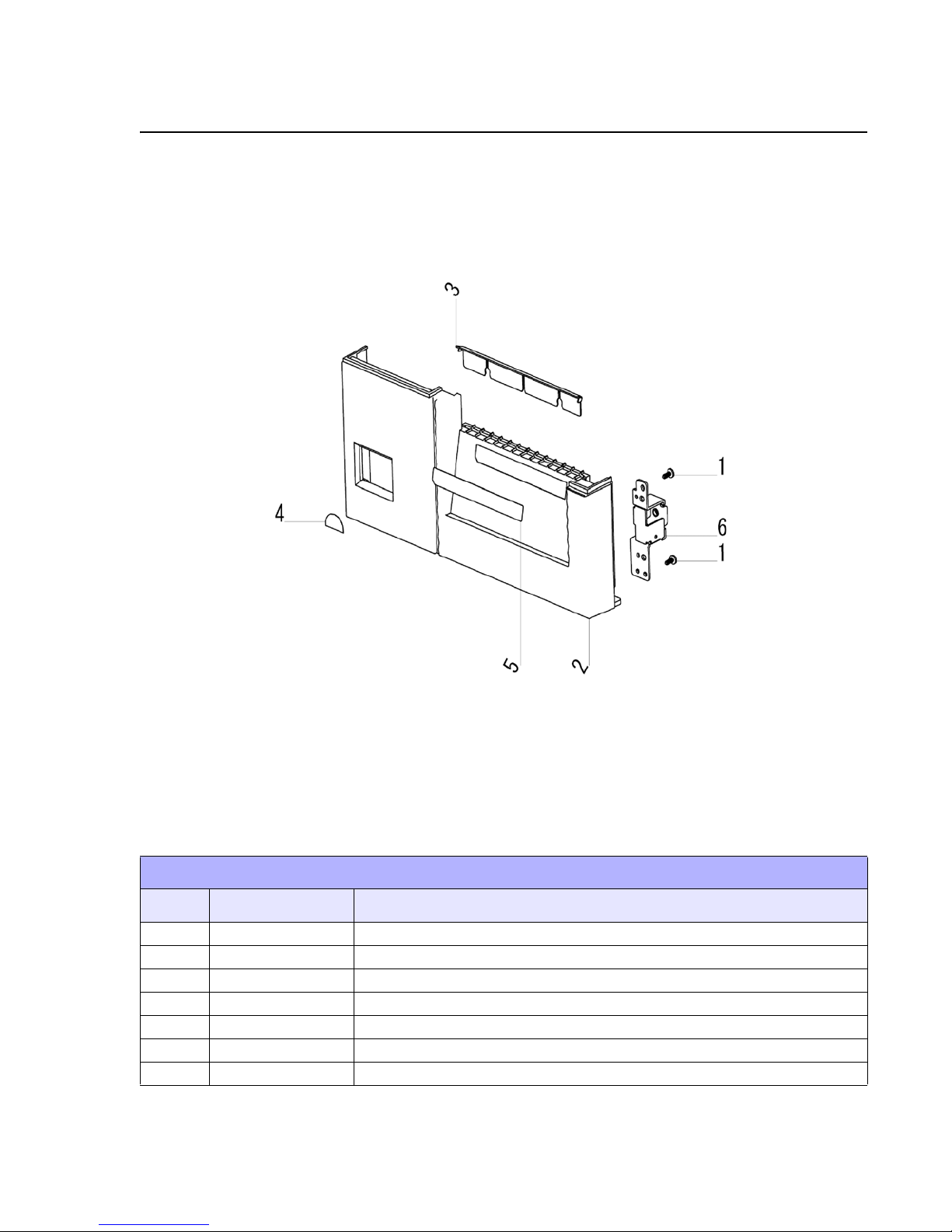

Figure PL1, Housing Cover Assembly (1)

HOUSING COVER ASSEMBLY (1)

ITEM PART NUMBER PART DESCRIPTION

1 M16220000 HEX UPSET SCREW

2 M16223000 BIND SCREW

3 P11150000 SCREW CAP, RUBBER

4 P11306010 CABLE COVER

5 R04632010 LEFT COVER SET (PARTS 2 + 5)

6 R04699012 OPEN COVER SUB-ASSEMBLY (PARTS 1, 3, 6)

7 R04918012 LOWER FRONT COVER SUB-ASSEMBLY

SATO GT4xxe Series Parts List PN 9001140A Page 2

HOUSING COVER ASSEMBLY (2)

Figure PL2, Housing Cover Assembly (2)

HOUSING COVER ASSEMBLY (2)

ITEM PART NUMBER PART DESCRIPTION

1 M16226000 FLANGED HEX TAP SCREW

2 M16254000 FLANGED CAP HUT (SERRATED)

3 P11297011 SUPPORT PLATE C

4 P11302010 WINDOW

5 R04635012 OPEN COVER SET

6 R04636010 HINGE BRACKET SET

7 R04637001 TOP FRONT COVER, PLASTIC

8 R04699012 OPEN COVER SUB-ASSEMBLY (PARTS: 1 THRU 7)

SATO GT4xxe Series Parts List PN 9001140A Page 3

HOUSING COVER ASSEMBLY (3)

Figure PL3, Housing Cover Assembly (3)

HOUSING COVER ASSEMBLY (3)

ITEM PART NUMBER PART DESCRIPTION

1 M16208000 BIND P-TIGHT SCREW

2 P11467011 LOWER FRONT COVER, PLASTIC

3 P11656010 TEAR-OFF CUTTER

4 Q00735000 STICKER, ENERGY STAR

5 Q00896001 STICKER, TEAR OFF

6 R04832020 CUTTER GUIDE SET

7 R04918012 LOWER FRONT COVER SUB-ASSEMBLY (PARTS: 1 THRU 6)

SATO GT4xxe Series Parts List PN 9001140A Page 4

FRAME ASSEMBLY (1)

Figure PL4, Frame Assembly (1)

FRAME ASSEMBLY (1)

ITEM PART NUMBER PART DESCRIPTION

1 M16220000 HEX UPSET SCREW

2 M16221000 BIND P-TIGHT SCREW

3 P11137000 COVER

4 P11433020 BRACKET, CIRCUIT BOARD, PLASTIC

5 R04673000 KB CABLE SET

6 R04674010 DC POWER CABLE SET

7 R04790010 MAIN CIRCUIT BOARD (CONT PCB ASSY)

SATO GT4xxe Series Parts List PN 9001140A Page 5

FRAME ASSEMBLY (2)

Figure PL5, Frame Assembly (2)

FRAME ASSEMBLY (2)

ITEM PART NUMBER PART DESCRIPTION

1 JG100011A TIE WRAP

2 M16220000 HEX UPSET SCREW

3 R04675001 SENSOR CABLE SET

SATO GT4xxe Series Parts List PN 9001140A Page 6

FRAME ASSEMBLY (3)

Figure PL6, Frame Assembly (3)

FRAME ASSEMBLY (3)

ITEM PART NUMBER PART DESCRIPTION

1 M16220000 HEX UPSET SCREW

2 P11150000 SCREW CAP, RUBBER

SATO GT4xxe Series Parts List PN 9001140A Page 7

FRAME ASSEMBLY (4)

Figure PL7, Frame Assembly (4)

FRAME ASSEMBLY (4)

ITEM PART NUMBER PART DESCRIPTION

1 GA200191A POWER SWITCH

2 JG100011A TIE WRAP

3 M16220000 HEX UPSET SCREW

4 M16222000 FLAT HEAD P-TIGHT SCREW

5 P11267020 SPINDLE/MOTOR BRACKET, PLASTIC

6 R04633010 SUB-FRAME, METAL

7 R04711000 ACCESSORY CABLE SET

8 R05377000 INLET CABLE SET

9 R05383000 POWER SWITCH CABLE SET

SATO GT4xxe Series Parts List PN 9001140A Page 8

FRAME ASSEMBLY (5)

Figure PL8, Frame Assembly (5)

FRAME ASSEMBLY (5)

ITEM PART NUMBER PART DESCRIPTION

1 M16220000 HEX UPSET SCREW

2 P11150000 SCREW CAP, RUBBER

3 R04709000 BASE FRAME SUB-ASSEMBLY
