SATO M-8400RVe Series Bedienungsanleitung

Page 1-1

M-8400RVe Printer

Parts List

P/N 9001085

Rev.B

Rev. B

Page 2

SATOM-8400RVe Printer Parts List

SATO Industrial Bar Code Printers

Table of Contents

M-8400RVe Page

Parts List

Frame Assembly........................................................................................................3

Head Assembly..........................................................................................................8

Ribbon Assembly .................................................................................................... 11

Feed Roller Assembly.............................................................................................16

Base Cover Assembly.............................................................................................18

Cutter Unit Assembly..............................................................................................27

Dispenser Unit Assembly.......................................................................................33

Rev. B Page 3

SATO Industrial Bar Code Printers

SATOM-8400RVe Printer Parts List

Frame Assembly

Rev. B

Page 4

SATOM-8400RVe Printer Parts List

SATO Industrial Bar Code Printers

Frame Assembly

Rev. B Page 5

SATO Industrial Bar Code Printers

SATOM-8400RVe Printer Parts List

Frame Assembly

Rev. B

Page 6

SATOM-8400RVe Printer Parts List

SATO Industrial Bar Code Printers

Frame Assembly

NO. CODE DESCRIPTION QTY

1 PR1740104 ENGINE FRAME 1

2 PB0680000 IDLE GEAR POST 1

3 PR1680100 IDLE GEAR 1

4 ND0040030 E-SNAP RING 1

5 PE5680000 GUIDE SHAFT 1

6 PR3740501 SLIDE GUIDE (MELTED) 1

7 PB2680100 KNOB 1

8 PE1010400 GUIDE ROLLER (A) 2

9 MF0302022 PAN TAPPING SCREW W/+ HOLE 1

10 MH0301621 PAN HEAD SCREW 1

11 PB0680400 GUIDE SHAFT 3

12 MD4401022 PAN HEAD SCREW 3

13 RH1741400 STEPPER MOTOR ASSY 1

14 PL0680102 MOTOR PULLEY 1

15 MJ1300424 HEX HOLE W-POINT 2

16 MD4402021 PAN HEAD SCREW 2

17 PA1740100 NUT PLATE 2

18 RH1740500 HEAD OPEN SW CABLE SET(SEN5) 1

19 MD3201221 PAN SCREW 2

20 PA3740200 SENSOR GUIDE 1

21 MD4300822 PAN HEAD SCREW 2

22 PT8130064 MINI PITCH BELT 1

23 PT8090064 MINI PITCH BELT 1

24 PA1740200 SIDE FRAME 1

25 MD4401022 PAN HEAD SCREW 3

26 PR3740400 PAPER GUIDE 1

27 PE3720300 ROLLER 2

28 PB2740100 COLLAR 2

29 MD4301222 PAN HEAD SCREW 2

30 RH1741300 PAPER END SW CODE SET (SEN7) 1

31 MD3201221 PAN HEAD SCREW 2

32 MD4300622 PAN HEAD SCREW 2

33 MD4301022 PAN HEAD SCREW 2

34 PB0740101 POST (LATCH) 1

35 NA1040022 PLAIN WASHER 1

36 NB0040022 SPRING WASHER 1

37 MT1400722 HEX NUT 1

38 PB0740202 SENSOR SHAFT 1

39 PR7740200 PITCH SENSOR SUB 1

Rev. B Page 7

SATO Industrial Bar Code Printers

SATOM-8400RVe Printer Parts List

Frame Assembly

40 PA4740300 PLATE SPRING 1

41 MH0300821 P-TIGHT SCREW 2

42 ND0040030 E-SNAP RING 2

43 PA1740300 SENSOR BRACKET 1

44 ND0030030 E-SNAP RING 1

45 MD4300822 PAN HEAD SCREW 2

46 PB0740800 POST 1

47 MD4401621 PAN HEAD SCREW 1

48 PA3741800 TENSION BRACKET 1

49 PE3720100 TENSION ROLLER 1

50 PB0740900 TENSION ROLLER SHAFT 1

51 ND0040030 E-SNAP RING 3

52PC0740100 SPRING 1

53 MD4301422 PAN HEAD SCREW 1

54 MT1300522 HEX NUT 1

56 MD4300822 PAN HEAD SCREW 1

58 MD4300822 PAN HEAD SCREW 1

59 PA1741000 ADJUST PLATE 1

60 MD4401022 PAN HEAD SCREW 2

61 PA1681000 SPACER 1

62 MD0300622 PAN HEAD SCREW 1

63 MD4301422 PAN HEAD SCREW 4

64 MD4401022 PAN HEAD SCREW 2

65 PA1741400 COVER (PLATE) 1

67 MD4301222 PAN HEAD SCREW 1

68 PR7740102 PLATEN ROLLER SUB 1

69 PR7740300 FEED ROLLER SUB 1

NO. CODE DESCRIPTION QTY

Rev. B

Page 8

SATOM-8400RVe Printer Parts List

SATO Industrial Bar Code Printers

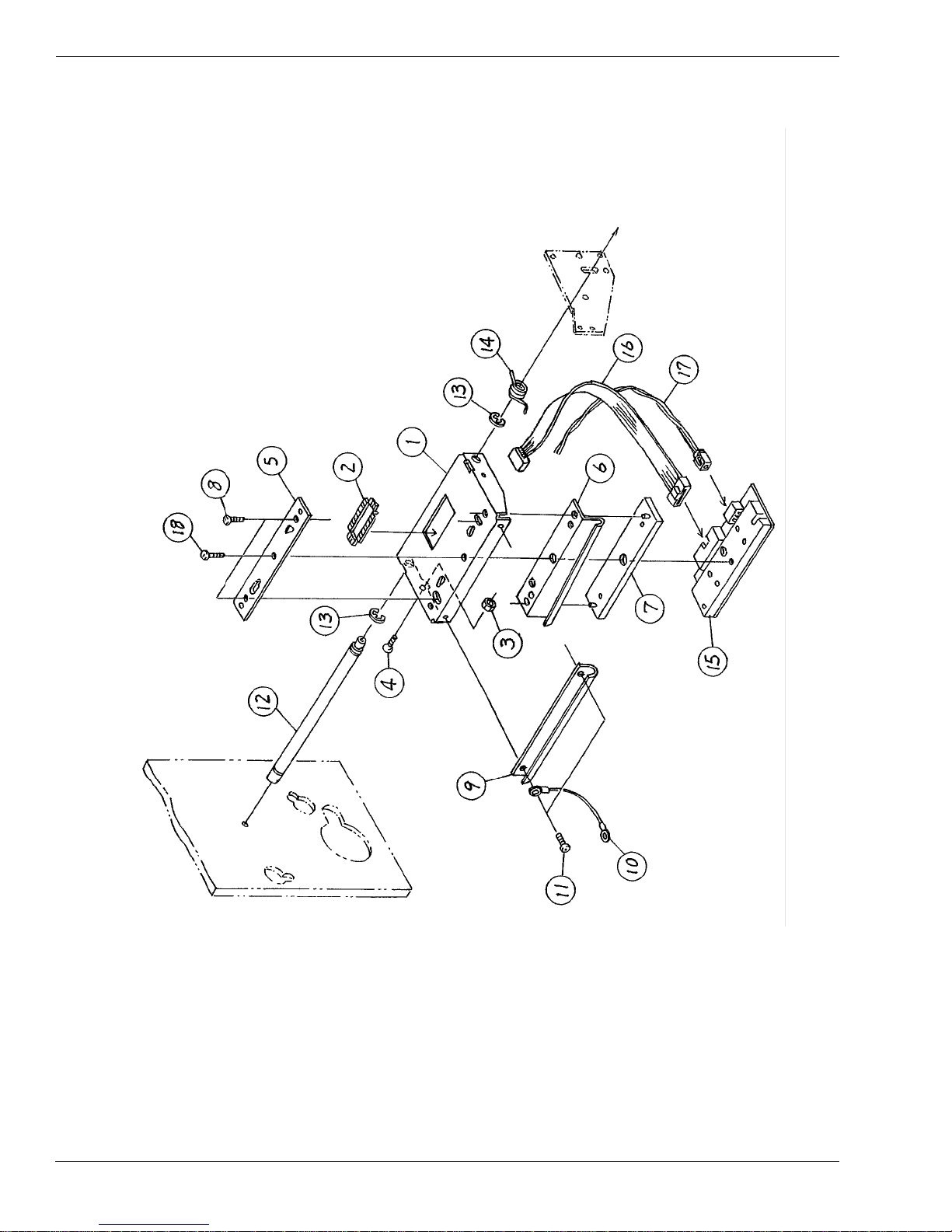

Head Assembly

Rev. B Page 9

SATO Industrial Bar Code Printers

SATOM-8400RVe Printer Parts List

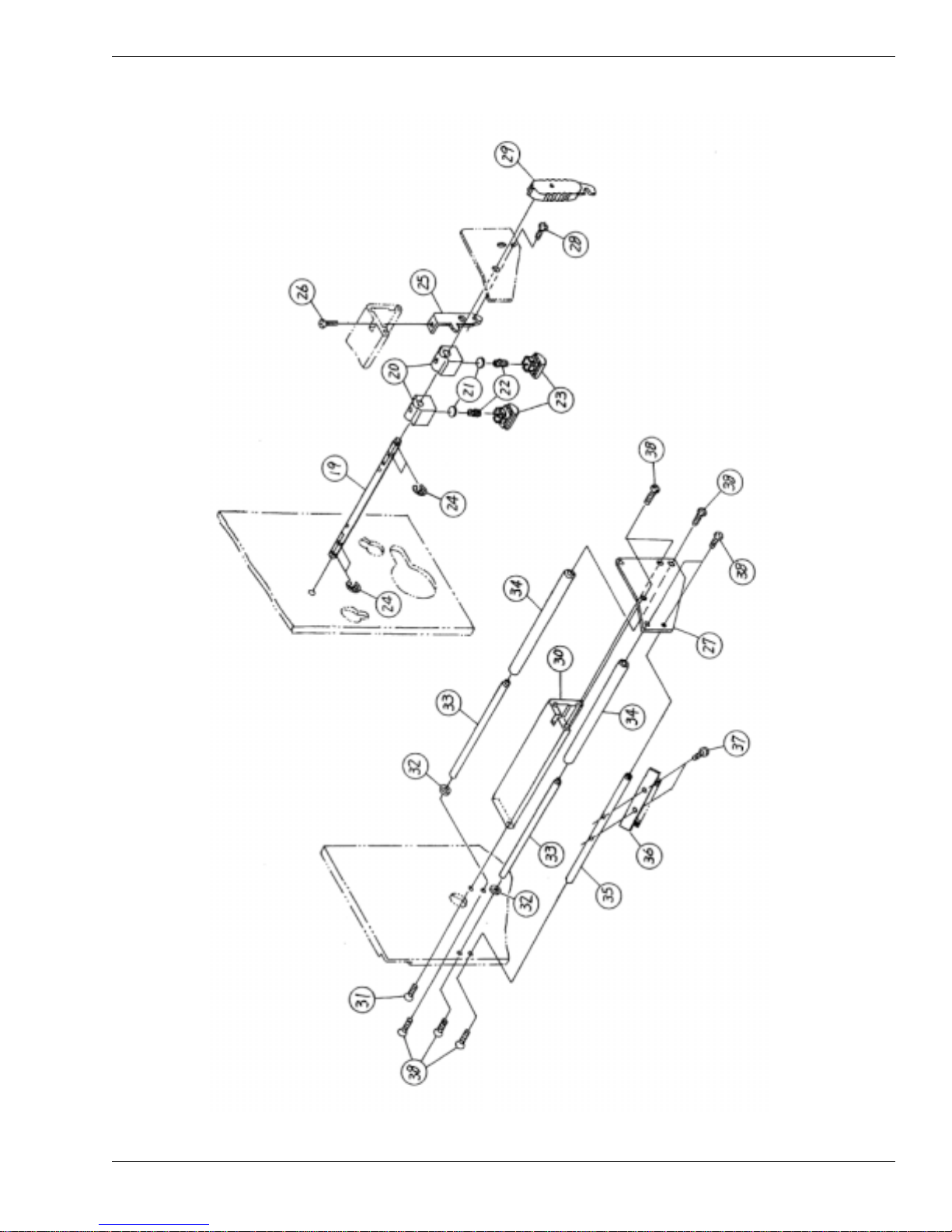

Head Assembly

Rev. B

Page 10

SATOM-8400RVe Printer Parts List

SATO Industrial Bar Code Printers

NO. CODE DESCRIPTION QTY

Head Assembly

1 PA3740402 HEAD BRACKET 1

2 PV9740300 BUSHING 1

3 MT1300522 HEX NUT 1ST TYPE 1

4 MA0300821 PAN HEAD SCREW 1

5 PA1740401 ADJUST PLATE 1

6 PR4740402 PLATE (RIBBON) 1

7 PR1740300 HEAD SUB HOLD 1

8 MD4301022 PAN HEAD SCREW 2

9 PA3740504 PLATE (RIBBON ADJUST) 1

10 RH1741800 HEAD BRACKET FG CORD SET 1

11 MA0300622 PAN HEAD SCREW 2

12 PB0740300 SHAFT (HEAD) 1

13 ND0060030 E-SNAP RING 2

14 PC2740101 SPRING (OPEN) 1

15 GH000811A PRINT HEAD 1

16 RH1775201 PRINT HEAD CABLE ASSY 1

17 RH1775100 HEAD CABLE ASSY 1

18 MD4301422 PAN SCREW 1

19 PB0740401 SHAFT (HEAD PRESSURE) 1

20 PE1740100 HEAD PRESSURE BRACKET 2

21 PA0740100 PRESSURE PLATE 2

22 PC1740200 SPRING (HEAD) 2

23 PE1740200 HEAD PRESSURE 2

24 ND0060030 E-SNAP RING 4

25 PA3740600 ADJUST PLATE 1

26 MD4301422 PAN SCREW 1

27 PA1740500 HEAD PLATE 1

28 MD4300622 PAN SCREW 1

29 PR2740100 LATCH HANDLE 1

30 PD1740100 STAY 1

31 MD4401621 PAN HEAD SCREW 2

32 PT9740300 POLY SLIDER 2

33 PB0680400 GUIDE SHAFT 2

34 PR1740400 ROLLER 2

35 PB0740500 SHAFT(BRASH) 1

36 PR1340500 ANTI-STATIC BRASH 1

37 MA0300622 PAN HEAD SCREW 2

38 MD4401022 PAN SCREW 8
