SATO M8485S Bedienungsanleitung

M8485S/ Opposite Hand

Parts List

Please note that this list is divided into two sections. Use the second section

(pages 30-58) if your printer S/N is between 50100000 and 70699999.

For all other serial numbers please use the first section (pages 3-29)

P/N 9001049 REV. E

M8485S/ Opposite Hand

Parts List

(Use this section for all serial numbers other then 50100000 to 70699999)

SATO America, Inc.

10350-A Nations Ford Rd.

Charlotte, NC 28273

Tel (704) 644-1650

Fax (704) 644-1662

M8485S Opposite Hand

Description Page #

Frame Assembly 4-10

Thermal Head Assembly 11-13

Ribbon Assembly 14-17

Feed Roller Assembly 18-21

Pressure Roller Assembly 22-22

Cover Assembly 23-25

Main PCB Assembly 26-26

Check PCB Assembly 27-27

Card PCB Assembly 28-28

M8485S Opposite Hand

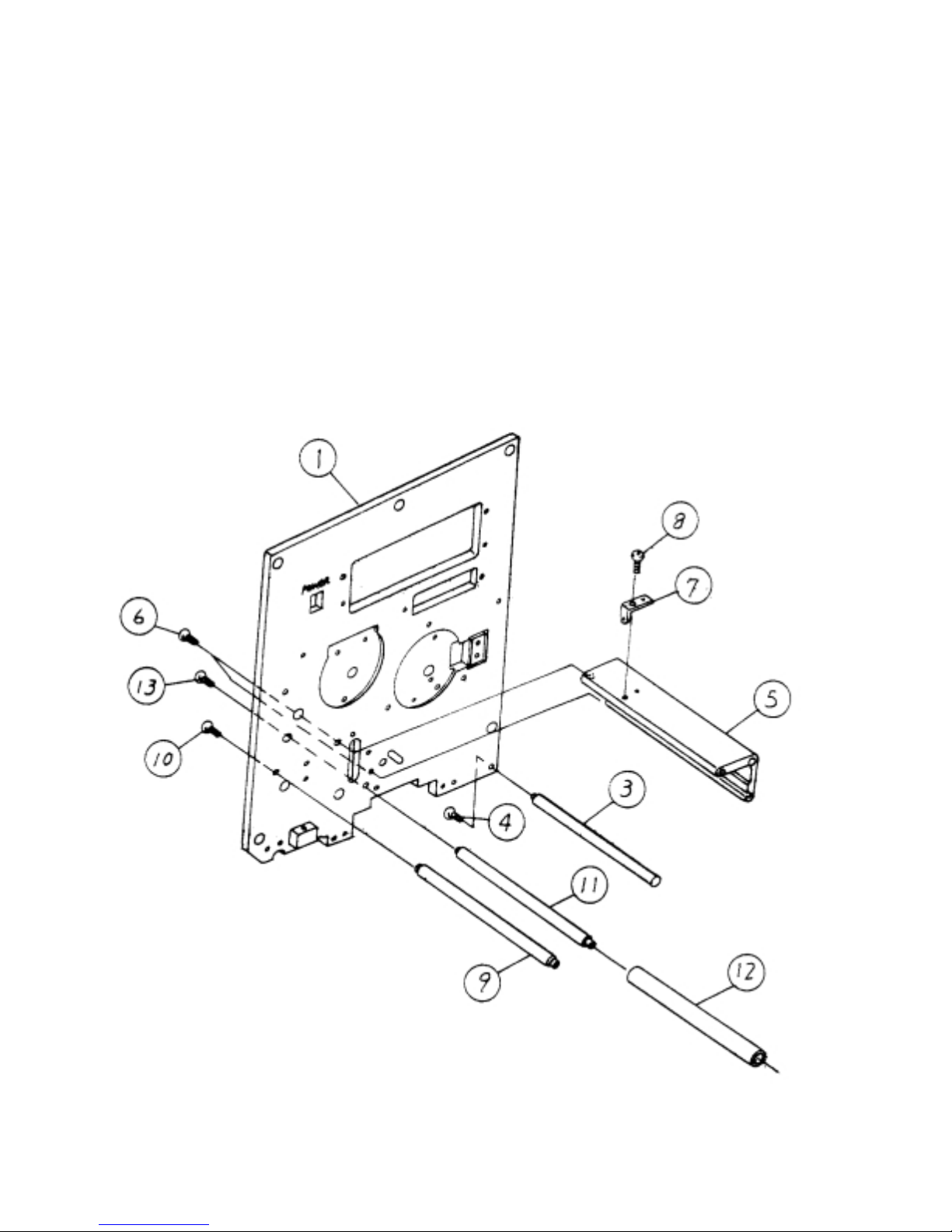

M8485S Frame Assembly

M8485S Opposite Hand

M8485S Frame Assembly

M8485S Opposite Hand

M8485S Frame Assembly

M8485S Opposite Hand

M8485S Frame Assembly

M8485S Opposite Hand

M8485S Frame Assembly

M8485S Opposite Hand

FRAME ASSY

Item # Part number Description QTY

1 PR1734100 Engine frame 1

3 PB0540101 Guide post 1

4 MC0401022 Pan head screw 1

5 PR1731701 Stay 1

6 MC0401222 Pan head screw 2

7 PA3732500 Spring bracket 1

8 MC0300622 Pan head screw 1

9 PB0731500 Shaft (support ) 1

10 MC0401022 Pan head screw 1

11 PB0732800 Shaft ( Ribbon adjust) 1

12 PR1730300 Roller 1

13 MC0401022 Pan head screw 1

14 PA3738400 Dispense bar bracket 1

15 MN0300824 Hex bolt 1

16 PD1731300 dispense bar 1

17 MN0300624 Hex bolt 2

19 PB0733500 Shaft (holder) 1

20 NB0040022 Spring washer 1

21 PA4730700 Plate spring 1

22 PD1732000 Platen frame 1

23 PR0730100 Platen roller 2

24 PB2730100 Collar 2

25 MJ1300424 W-point screw 2

26 PT1112060 Ball supporter 2

27 PT1109050 Ball supporter 2

28 PA1732100 Supporter clamp (A) 1

29 MN0400824 Hex bolt 2

31 PB0730500 Post (latch ) 1

32 PB2740100 Collar 1

33 PE3720300 Roller 1

34 MD4301222 Pan head screw 1

35 PA3736400 Latch handle (holder ) 1

36 PB0735400 Shaft (latch handle) 1

37 PC3730101 Spring (latch handle) 1

38 PE1730700 Handle (C) 1

39 NG2201030 Pin 1

40 ND0030030 E-snap ring 2

43 MN0403024 Hex bolt 2

44 MN0401624 Hex Bolt 1

45 MN0401024 Hex bolt 1

46 PE8730200 Pulley 2

47 ND0040030 E-snap ring 2

49 PA3734800 Pulley bracket 1

M8485S Opposite Hand

FRAME ASSY

Item # Part number Description QTY

50 PA2730700 Plate nut 1

51 PB0731600 Shaft (roller) 1

52 PR1730600 Tension roller 1

53 ND0040030 E-snap ring 1

54 MD4402022 Pan head screw 2

55 PT8190064 Timing belt 1

56 PL1720100 Motor pulley 1

57 MJ1400524 W-point screw 2

58 RH1730600 STP cable 1

59 MC0401222 Pan head screw 2

61 PB0731701 Shaft (idle) 1

62 PE8730100 Gear 1

63 PE8730300 Pulley 1

64 PT1112060 Ball supporter 2

65 ND0040030 E-snap ring 1

66 PT8150064 Timing belt 1

67 PR4730700 Shaft bracket 1

68 MC0401022 Pan head screw 2

71 PA1730700 Tension bracket 1

72 PB0730600 Post (tension) 1

73 MD4400822 Pan head screw 1

74 PR1730600 Tension roller 1

75 ND0040030 E-snap ring 1

76 MD4301622 Pan head screw 2

78 PR4730501 Key board cover 1

79 MD4301622 Pan head screw 4

80 RJ2730200 KB PCB set EX1 1

82 MH0300821 P-tight screw 4

83 RH1731300 PSW cable 1

85 RJ2730100 DSW PCB set 1

86 MD3301222 Pan head screw 2

87 PH0730200 DSW cover 1

88 RH1731600 DSW cable 1

90 RH1731100 SEN5 cable 1

92 MD3201221 Pan head screw 2
