SATO TG3 Series Bedienungsanleitung

RFID User Guide

Read this User Guide before and during usage of the above product.

Keep this document handy for future reference.

www.satoamerica.com

PN: 9001147D

Parts List

For printer model:

TG3 Series

www.satoamerica.com

PN: 9001227(A)

Copyrights

The contents of this document are proprietary information of SATO Corporation and/or its subsidiaries in

Japan, the U.S and other countries. No part of this document may be reproduced, copied, translated or

incorporated in any other material in any form or by any means, whether manual, graphic, electronic,

mechanical or otherwise, without the prior written consent of SATO Corporation.

Limitation of Liability

SATO Corporation and/or its subsidiaries in Japan, the U.S. and other countries, makes no representations

or warranties of any kind regarding this material, including, but not limited to, implied warranties of

merchantability and fitness for a particular purpose. SATO Corporation shall not be held responsible for

errors contained herein or any omissions from the materials or for any damages, whether direct, indirect,

incidental or consequential, in connection with the furnishing, distribution, performance, or use of this

material.

SATO Corporation reserves the right to change or improve this product and document without notice.

Trademarks

SATO is a registered trademark of SATO Corporation and/or its subsidiaries in Japan, the U.S and other

countries.

SATO America, Inc.

10350 Nations Ford Road

Charlotte, NC 28273

Main Phone: (704) 644.1650

Technical Support: (704) 644.1660

Technical Support Fax: (704) 644.1661

E-Mail: satosale[email protected]

www.satoamerica.com

TG3 Series Parts List PN 9001227A Page 1

ENGINE ASSEMBLY

Figure PL1a, Engine Assembly

ENGINE ASSEMBLY (PL1A)

ITEM PART NUMBER PART DESCRIPTION

13 K00285000 STEPPING MOTOR

41 MD3401222 PAN HEAD SCREW

44 MD4300522 PAN HEAD SCREW +SW +WL

48 MD4400622 PAN HEAD SCREW +SW +WL

61 MJ1400524 HEX W-POINT SCREW

66 ND0040030 E SNAP RING

80 P13863010 TENSION ROLLER

136 P28000010 POWER ROUTE (BASE) B

138 P28005000 TENSION PLATE A

163 P28095000 MOTOR PULLEY (22)

168 P28132000 TENSION SHAFT A

177 P28147000 SHAFT (CUT PULLEY B)

178 P28158000 TENSION SHAFT C

187 P28188010 SUPPORT SHAFT

217 P28697000 SPRING (IDLE)

341 R12492010 TENSION PLATE B ASSEMBLY

TG3 Series Parts List PN: 9001227A Page 2

ENGINE ASSEMBLY, CONTINUED

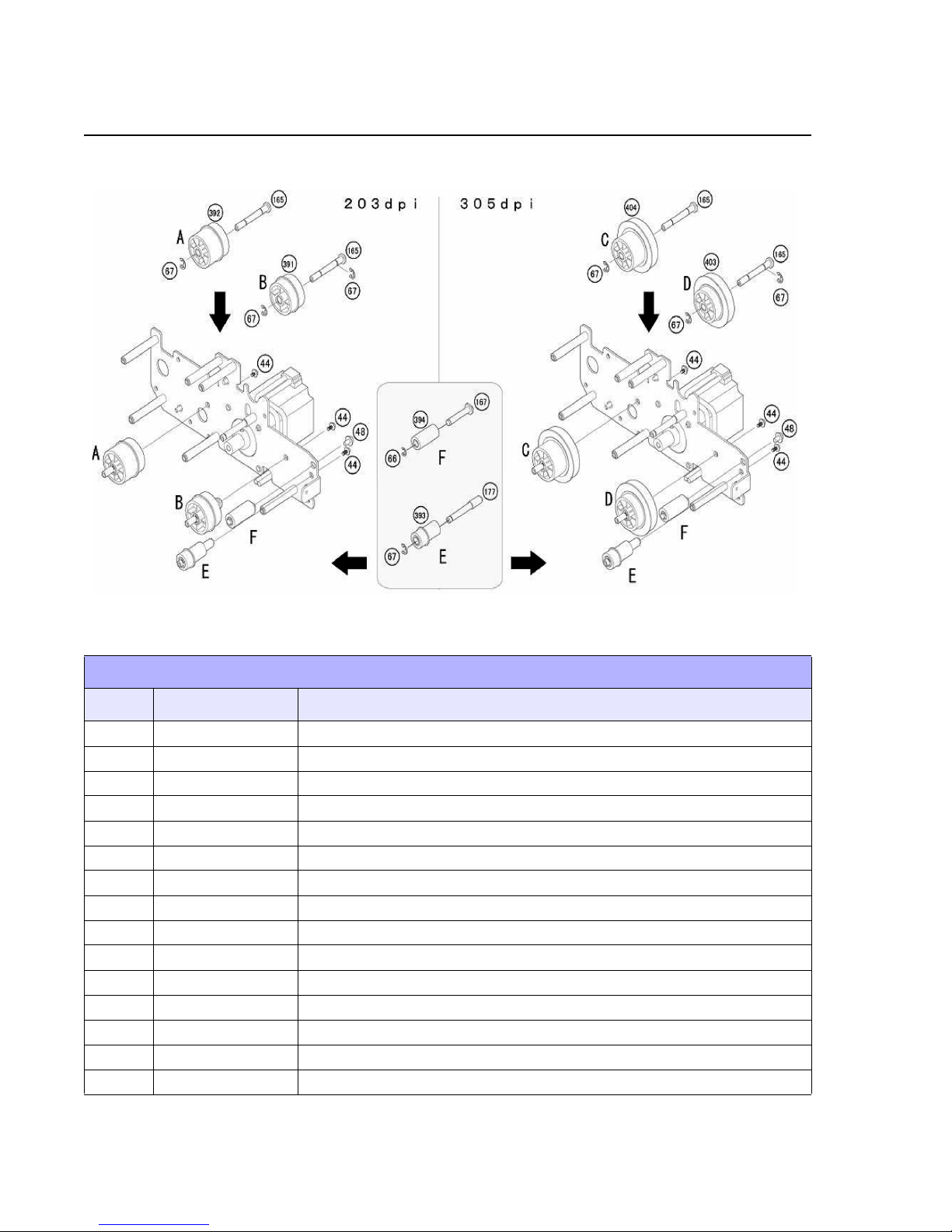

Figure PL1b, Engine Assembly

ENGINE ASSEMBLY (PL1B)

ITEM PART NUMBER PART DESCRIPTION

44 MD4300622 PAN HEAD SCREW

48 MD4400822 PAN HEAD SCREW +SW +WL

66 ND0040030 E SNAP RING

67 ND0050030 E SNAP RING

165 P28129000 SHAFT (PULLEY A/E)

167 P28131000 SHAFT (CUTTER PULLY)

177 P28147000 SHAFT (CUT PULLEY B)

390 R14230010 PULLEY(69) ASSEMBLY

391 R14231000 PULLEY (55/55) ASSEMBLY TG308

392 R14232000 PULLEY ASSEMBLY TG308

393 R14233010 CUTTER PULLEY (27/27) ASSEMBLY

394 R14234000 CUTTER PULLEY (27) ASSEMBLY

396 R14237000 PULLEY ASSEMBLY

403 R14821000 PULLEY (55/83) ASSEMBLY TG312

404 R15137000 PULLEY ASSEMBLY TG312

TG3 Series Parts List PN 9001227A Page 3

ENGINE ASSEMBLY, CONTINUED

Figure PL1c, Engine Assembly

ENGINE ASSEMBLY (PL1C)

ITEM PART NUMBER PART DESCRIPTION

66 ND0040030 E SNAP RING

164 P28128020 SHAFT (FEED ROLLER B)

166 P28130020 ADAPTOR (PLATEN)

244 P32001000 TIMING BELT TG308

245 P32002000 TIMING BELT TG308 TG312

246 P32003000 TIMING BELT TG308 TG312

247 P32004000 TIMING BELT TG308 TG312

248 P32005000 TIMING BELT TG308 TG312

249 P32006000 TIMING BELT TG312

250 P32007000 TIMING BELT TG312

269 P33345000 TIMING BELT TG308

TG3 Series Parts List PN: 9001227A Page 4

ENGINE ASSEMBLY, CONTINUED

Figure PL1d, Engine Assembly

ENGINE ASSEMBLY (PL1D)

ITEM PART NUMBER PART DESCRIPTION

44 MD4300622 PAN HEAD SCREW

66 ND0040030 E SNAP RING

80 P13863010 TENSION ROLLER

83 PT1112060 BEARING, PLATEN ROLLER (INNER)

139 P28021000 TENSION PLATE C

169 P28133000 TENSION SHAFT B

178 P28158000 TENSION SHAFT C

217 P28697000 SPRING (IDLE)

282 PA3760500 SUPPORTER CLAMP

343 R12497010 TENSION PLATE A ASSEMBLY

344 R12498010 TENSION PLATE C ASSEMBLY

349 R13886000 POWER ROUTE A ASSEMBLY

350 R13887000 POWER ROUTE D ASSEMBLY

TG3 Series Parts List PN 9001227A Page 5

SENSOR ASSEMBLY

Figure PL2a, Sensor Assembly

SENSOR ASSEMBLY (PL2A)

ITEM PART NUMBER PART DESCRIPTION

8 JG100011A TIE WRAP

11 JG100541A CABLE CLAMP

21 MA0301222 PAN HEAD SCREW (+2JP3012)

25 MA1300622 FLAT HEAD SCREW

33 MD3300822 PAN HEAD SCREW +SW +WS

44 MD4300622 PAN HEAD SCREW +SW +WL

53 MH0300822 PAN HEAD P TIGHT SCREW

54 MH0301221 P TIGHT SCREW

66 ND0040030 E SNAP RING

141 P28030000 SHAFT (SLIDE)

145 P28039010 BRACKET B (S/H SEN)

146 P28040010 BRACKET(C/H SENS)

147 P28041000 SHAFT (SENSOR)

148 P28042010 BRACKET (RACK C/H SENSOR)

189 P28207000 LENS (I MARK)

191 P28209000 RACK B (CENTER)

TG3 Series Parts List PN: 9001227A Page 6

192 P28212010 SENSOR BR BOTTOM (CENTER HOLE)

193 P28213000 RACK A (CENTER)

263 P32287000 BUSH

277 PA1740901 SENSOR PROTECTOR

280 PA3740300 SENSOR BRACKET

283 PA3761101 SUPPORTER CLAMP

287 PB2760300 COLLAR

292 PE1740400 BRACKET, SENSOR

293 PE1760200 SENSOR PROTECTOR (C)

294 PE1762300 SENSOR PROTECTOR (B)

348 R13745010 BODY B (S/H SEN) ASSEMBLY

351 R13892010 BODY A (S/H SEN) ASSEMBLY

361 R14168000 GAP & CENTER HOLE (U) SENSOR CABLE SET-LF

367 R14174000 GAP & CENTER HOLE (L) SENSOR CABLE SET-LF

370 R14178010 SIDE HOLE (L) SENSOR CABLE SET-LF

395 R14236010 FRAME ASSEMBLY

SENSOR ASSEMBLY (PL2A)

ITEM PART NUMBER PART DESCRIPTION

TG3 Series Parts List PN 9001227A Page 7

SENSOR ASSEMBLY, CONTINUED

Figure PL2b, Sensor Assembly

SENSOR ASSEMBLY (PL2B)

ITEM PART NUMBER PART DESCRIPTION

21 MA0301222 PAN HEAD SCREW (+2JP3012)

29 MC0301622 PAN HEAD SCREW

32 MD3300622 PAN HEAD SCREW +SW +WS

43 MD4300522 PAN HEAD SCREW +SW +WL

44 MD4300622 PAN HEAD SCREW

45 MD4300822 PAN HEAD SCREW

46 MD4301022 PAN HEAD SCREW +SW +WL

48 MD4400822 PAN HEAD SCREW +SW +WL

51 MH0300522 PAN HEAD P TIGHT SCREW

55 MH1200522 FLAT HEAD P TIGHT SCREW

63 MT1300522 HEXAGON NUT (2N3X0.5)

65 ND0030030 E SNAP RING E350

66 ND0040030 E SNAP RING

94 P25440010 SENSOR COVER (I MARK)

99 P25546000 LOCK COLLAR (HEAD)

TG3 Series Parts List PN: 9001227A Page 8

142 P28032010 PAPER GUIDE B

144 P28037000 PAPER GUIDE (FEED A)

149 P28044010 FRAME (SUPPORT A)

150 P28045000 SHAFT (SENSOR GEAR)

151 P28046000 BRACKET (JUMP SENSOR)

152 P28047010 OPEN SENSOR BR

170 P28137000 GEAR PULLEY_B (34/17)

190 P28208000 SUB GUIDE (A)

205 P28330010 SHAFT (LOCK COLLAR)

233 P29730000 FEED LOCK B

234 P29731020 SHAFT (LATCH LOCK)

235 P29732010 SPRING (F/B LOCK)

263 P32287000 BUSH

284 PA3761700 KEYBOARD BRACKET (B)

298 PE2750400 COLLAR

299 PE5A21700 HEAD OPEN KNOB

347 R13583000 FEED LOCK ASSEMBLY

362 R14169000 IM & EDGE SENSOR CABLE SET-LF

364 R14171000 AF & J-HOLE (U) SENSOR CABLE SET-LF

373 R14181000 LITTLUCH SENSOR CABLE SET-LF

409 P40559000 SPRING (PAPER GUIDE)

SENSOR ASSEMBLY (PL2B)

ITEM PART NUMBER PART DESCRIPTION
