ILLUSTRATED

PARTS

MANUAL

Part No. 06274

Printed 12/13

Printed in USA

Scag Power Equipment

Division of Metalcraft of Mayville, Inc.

Model STC

Tiger Cat

IPL

THIS MANUAL CONTAINS THE ILLUSTRATED PARTS LIST FOR MODELS:

STC48V-22FS with a serial number of J8700001 to J8799999

STC48V-23CV with a serial number of J8800001 to J8899999

STC52V-22FX with a serial number of J9000001 to J9099999

STC52V-25CV with a serial number of J9100001 to J9199999

STC52V-25CV-EFI with a serial number of K4300001 to K4399999

STC61V-23FX with a serial number of J9200001 to J9299999

STC61V-25CV with a serial number of J9300001 to J9399999

STC61V-26CV-EFI with a serial number of J9400001 to J9499999

STC61V-27BS with a serial number of J9500001 to J9599999

Table of Contents

48V & 52V CUTTER DECKS .............................................................................................................................2

61V CUTTER DECK...........................................................................................................................................4

CUTTER DECK CONTROLS .............................................................................................................................6

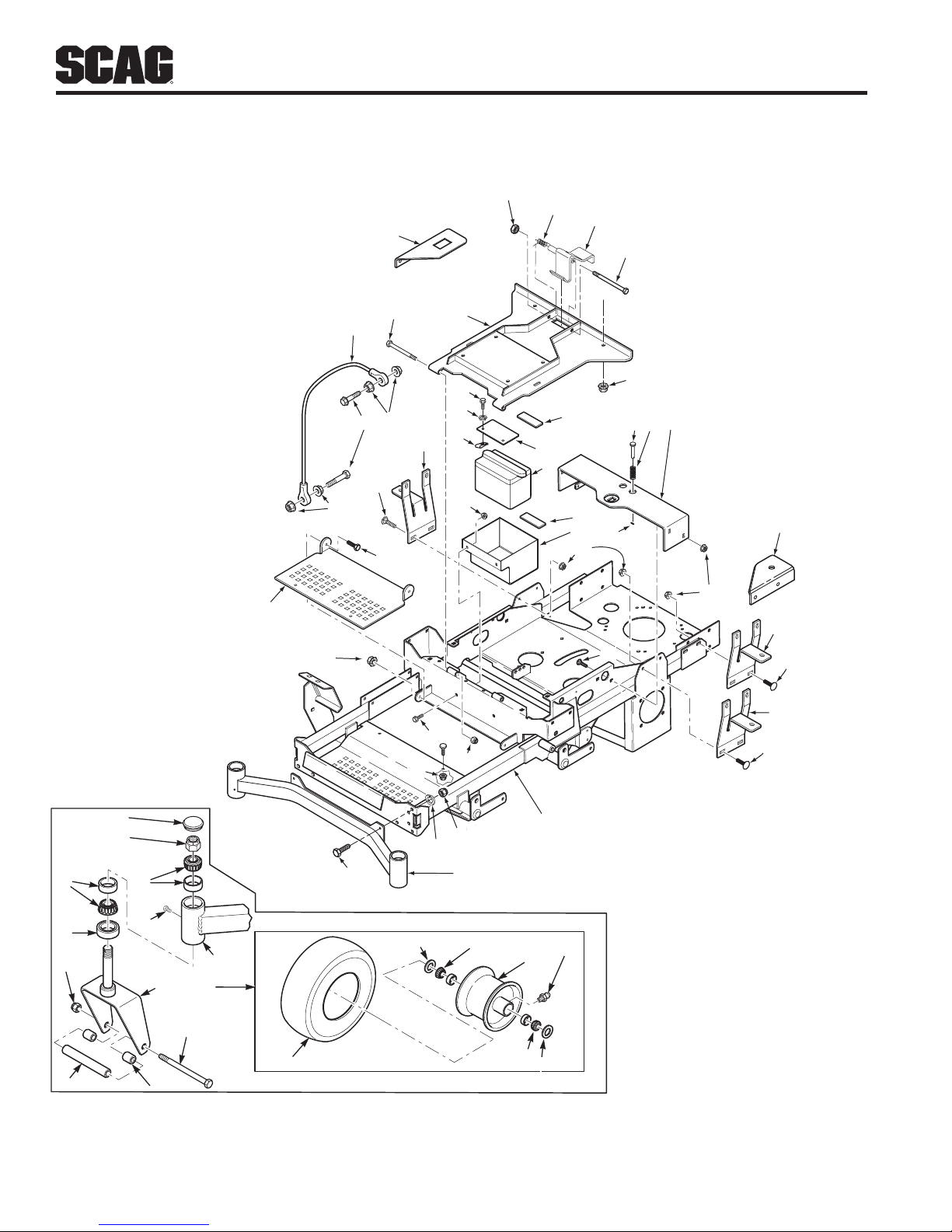

SHEET METAL COMPONENTS ........................................................................................................................8

STC FOLDABLE ROLL-OVER PROTECTION SYSTEM ................................................................................10

STC SUSPENSION SEAT ................................................................................................................................12

STC SOFT RIDE SEAT W/BLACK ARMRESTS .............................................................................................13

DRIVE SYSTEM COMPONENTS ....................................................................................................................14

ENGINE & ATTACHING PARTS.......................................................................................................................16

STEERING COMPONENTS.............................................................................................................................18

BRAKE COMPONENTS ..................................................................................................................................20

HYDRAULIC SYSTEM .....................................................................................................................................22

STC FUEL SYSTEM.........................................................................................................................................24

ELECTRICAL SYSTEM ...................................................................................................................................26

ELECTRICAL SYSTEM - KOHLER EFI...........................................................................................................28

BDP-10A HYDRAULIC PUMP ASSEMBLY.....................................................................................................30

REPLACEMENT DECALS AND INFORMATION PLATES .............................................................................32

ELECTRICAL SCHEMATIC - BRIGGS & STRATTON / KOHLER ..................................................................34

ELECTRICAL SCHEMATIC - KAWASAKI.......................................................................................................35

ELECTRICAL SCHEMATIC - KOHLER EFI ....................................................................................................36

Section 8

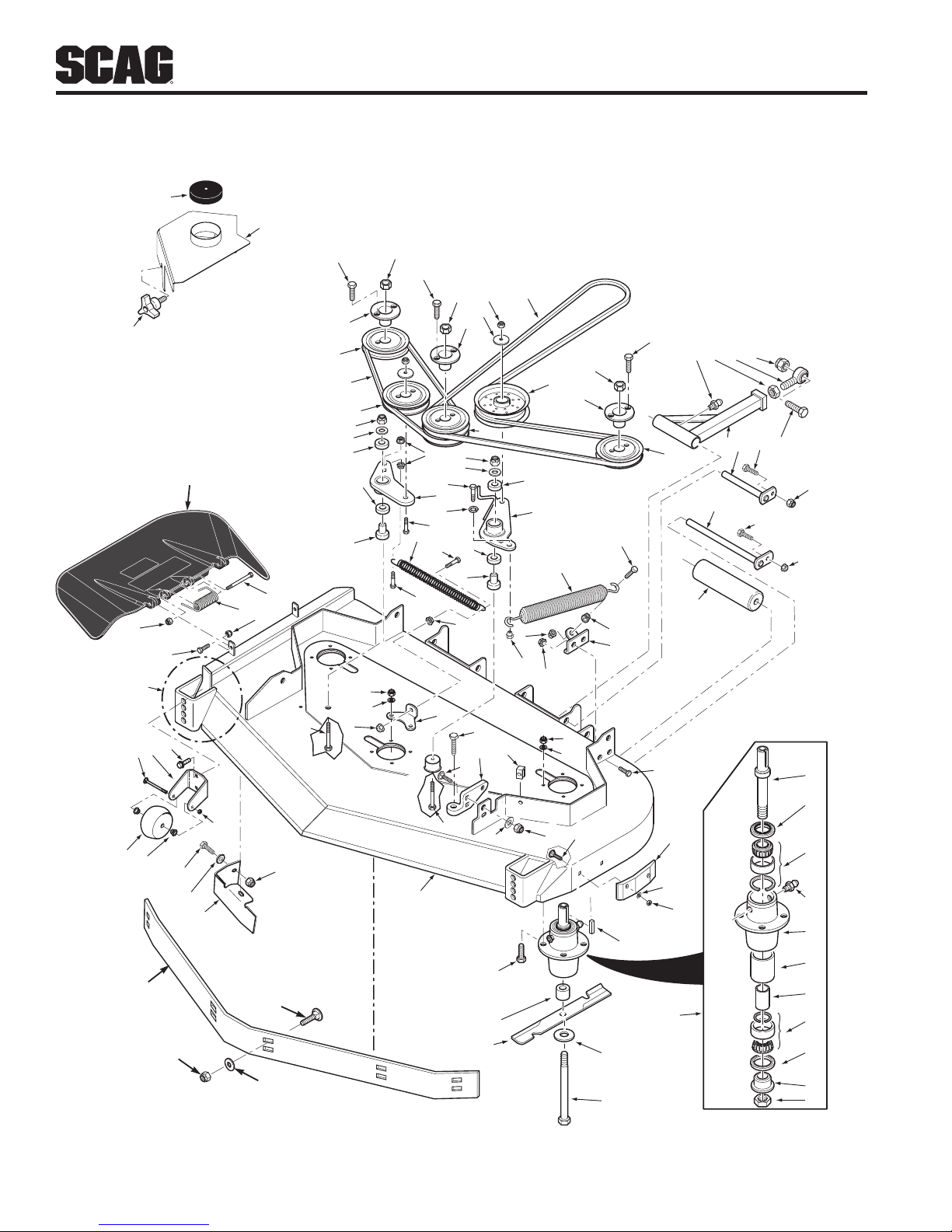

48V & 52V CUTTER DECKS

STC 2012 CD4852

52,

52A

6 7 8

5 25

64 60 62 61

59 58 66 63

* 52" cutter deck has a notch for anti-scalp roller

53 53

49 49

382

Section 8

48V & 52V CUTTER DECKS

Ref.

No. Part No. Description 48 52 Ref.

No. Part No. Description 48 52

461854

461858

43686

04019-04

481625-01

481632

04003-26

422478

04017-27

04043-06

04021-05

461844

*462473

461845

*462475

04001-11

04001-12

04021-10

04020-09

45944

04001-41

48038

04001-154

04063-08

483246

04043-04

04001-176

04019-03

04001-51

48100-15

04030-03

04040-15

04001-136

04021-09

04001-31

483247

424369

424409

04110-03

461663

43589

481024

481022

48114-04

48677

43644

43312

43296

481025

43297

481035

43590

482877

482878

483210

48224

461940

Cutter Deck Velocity Plus

Boss, Spring Anchor

Nut, 3/8-16 Serrated Flange

Wing Nut, 3/8-16

Anti-Scalp Wheel

Bolt, Carriage 3/8-16 x 4”

Bracket, Anti-Scalp Wheel

Bolt, Serrated Flange 3/8-16 x 1”

Flatwasher, 5/8” Hardened

Locknut, 3/8-16 Center Lock

Discharge Chute Assy.

CA Discharge Chute, 48V

Discharge Chute Assy.

CA Discharge Chute, 52V

Bolt, Hex Head 5/16-18 x 1-1/2”, Rear

Bolt, Hex Head 5/16-18 x 1-3/4”, Front

Nut, Elastic Stop 5/16-18

Nut, 5/8-11 UNC

Shaft, Roller

Bolt, Hex Head 5/8-11 x 9-1/2”

Roller, Rear

Bolt, Hex Head 5/16-18 x 4-3/4”

Key, 1/4 x 1/4 x 2"

Spring, Idler LH

Flatwasher, 3/8”

Bolt, Hex Head 5/16-18 x 1-3/4” Gr. 8

Nut, Serrated Flange 5/16-18

Bolt, Hex Head 3/8-16 x 3-3/4”

Bushing, .376 ID Oilite

Lockwasher 5/16”

Flatwasher 5/16”

Bolt, Hex Head 3/8-16 x 1-1/2” Gr. 8

Nut, Elastic Stop 3/8-16

Bolt, Hex Head 3/8-16 x 2-1/2”

Spring, Idler RH

Bracket, Spring Anchor LH 48V

Bracket, Spring Anchor LH 52V

U-Nut, 3/8-16

Spindle Assembly

Shaft, Spindle

Seal Upper

Bearing Assembly

Grease Fitting

Valve, Grease Relief

Housing, Spindle

Spacer, Outside

Spacer, Inside

Seal, Lower

Bushing, Bottom

Nut, Special 1-1/16 - 18

Spacer, Spindle

Cutter Blade 16.5”

Cutter Blade 18”

Pulley, Idler 5” Dia.

Bearing

Idler Arm Assy.

52A

43689

462359

462358

462404

462405

48926

461946

04001-172

483282

483284

424208

*425619

*424211

451240

461516

04020-16

04021-13

48763

04001-79

48114-04

483241

483242

04001-09

483378

424839

424840

04003-23

04021-22

04043-04

483239

483240

48181

483283

483285

483167

461929

04003-40

04040-11

04021-11

424367

04030-03

424376

424377

04001-136

04001-19

04021-04

483176

43689

04003-12

04040-04

484368

Idler Pivot

Belt Cover Weldment RH (incl. #91)

Belt Cover Weldment LH (incl. #91)

Belt Cover Weldment RH (incl. #91

Belt Cover Weldment LH (incl. #91)

Hub, Tapered 1-1/8” Bore

Idler Arm

Bolt, Hex Head 1/4-20 x 1” Grade 8

Pulley 4.75”

Pulley 5.35”

Turbo Bafﬂe, Bolt On

Turbo Bafﬂe, 48V

Turbo Bafﬂe, 52V

Push Arm Shaft

Push Arm (Includes 64,60,62)

Nut, 5/8-18 UNF

Nut, Elastic Stop 5/8-11

Rod End, 5/8 Male RH Thread

Bolt, Hex Head 5/8-11 x 4-1/2”

Grease Fitting, 90 Degree

Belt, Cutter Deck Drive (48V)

Belt, Cutter Deck Drive (52V)

Bolt, Hex Head 5/16-18 x 1”

Spring, Discharge Chute

Bafﬂe Custom-Cut, 48V (7-Position)

Bafﬂe Custom-Cut, 52V (7-Position)

Bolt, Carriage 3/8-16 x 1”

Nut, Elastic Stop 5/16-18 Grade 8

Flatwasher 3/8”

Belt, RH Cutter Deck

Pulley, Idler 5” Dia.

Pulley, Double Groove

Bolt, Special

Lever Assy., Deck Level

Bolt, Carriage 7/16-14 x 1-1/4”

Flatwasher, 7/16-.500 x 1.25 x .083"

Nut, Elastic Stop 7/16-14

Dust Shield

Lockwasher 3/8”

Bracket, Spring Anchor RH

Bolt, Hex Head 3/8-16 x 1-1/2” Gr. 8

Bolt, Hex Head 3/8-16 x 1”

Nut, Center Lock 5/16-18

Wear Pad

Idler Pivot

Bolt, Carriage 5/16-18 x 3/4”

Flatwasher, 5/16”

Cap, Spindle

* = California Models Only (not shown)

Section 8

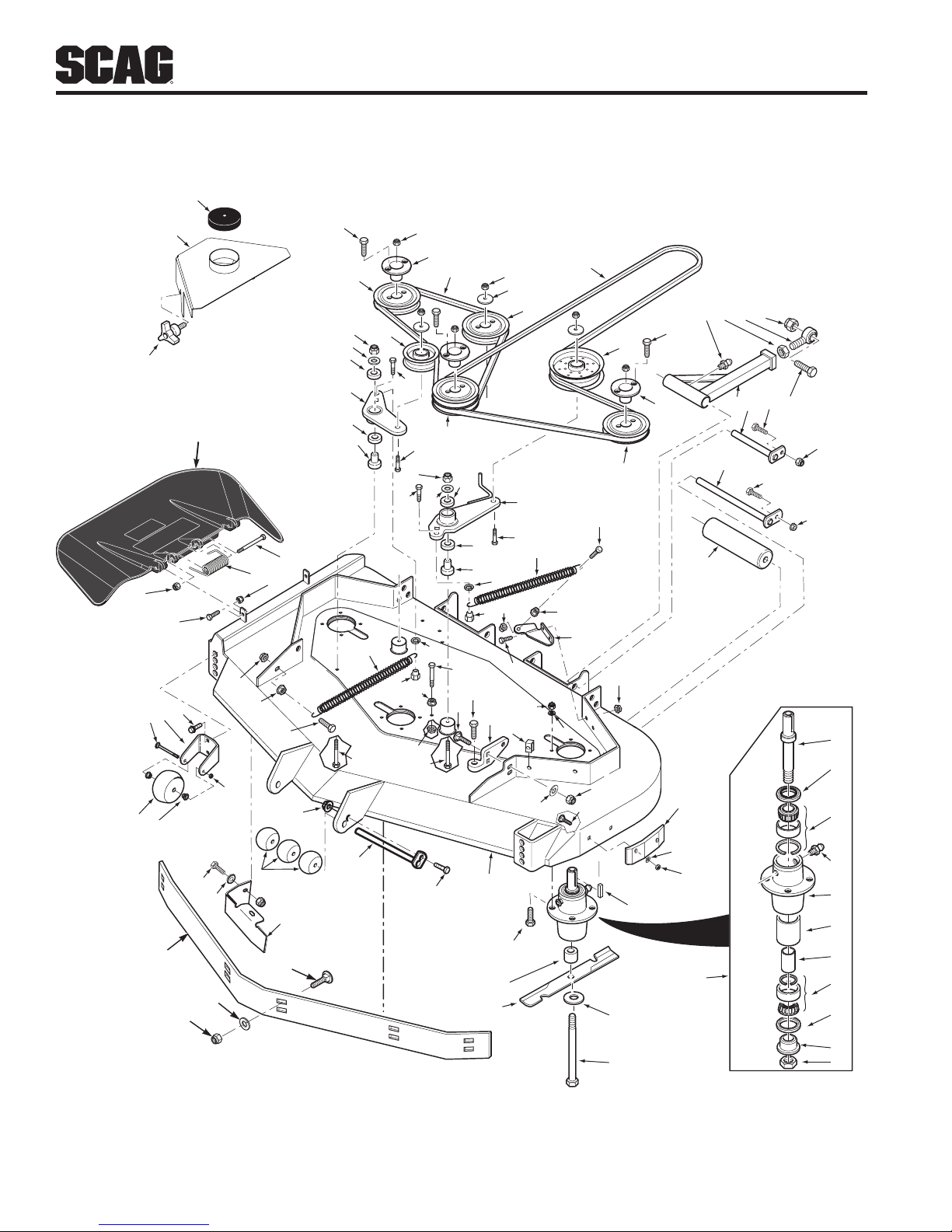

61V CUTTER DECK

STC 2012 CD61

64 60 62 61

59 58 66 63

6 7 8

5 25

22,

22A

"A"

24 14

280 80

83 84

Section 8

61V CUTTER DECK

Ref.

No. Part No. Description Ref.

No. Part No. Description

1 461862 Cutter Deck Velocity Plus

2 43687 Boss, Spring Anchor

3 424371 Bracket, LH Spring Anchor 61V

4 481625-01 Wing Nut, 3/8-16

5 481632 Anti-Scalp Wheel

6 04003-26 Bolt, Carriage 3/8-16 x 4”

7 422478 Bracket, Anti-Scalp Wheel

8 04017-27 Bolt, Serrated Flange 3/8-16 x 1”

9 04043-06 Flatwasher, 5/8” Hardened

10 04021-05 Locknut, 3/8-16 Center Lock

11 461846 Discharge Chute Assy.

*462477 CA Discharge Chute Assy.

12 04001-11 Bolt, Hex Head 5/16-18 x 1-1/2”, Rear

04001-12 Bolt, Hex Head 5/16-18 x 1-3/4”, Front

13 04021-10 Nut, Elastic Stop 5/16-18

14 04020-09 Nut, 5/8-11 UNC

15 45944 Shaft, Roller

16 04001-41 Bolt, Hex Head 5/8-11 x 9-1/2”

17 48038 Roller, Rear

18 04001-154 Bolt, Hex Head 5/16-18 x 4-3/4”

19 04063-08 Key, 1/4 x 1/4 x 2”

20 483246 Spring, LH Deck Drive

21 04043-04 Flatwasher, 3/8” - .938 x .391 x .105"

22 04001-176 Bolt, Hex Head 5/16-18 x 1-3/4” Grade 8

23 04019-03 Nut, Serrated Flange 5/16-18

24 04001-172 Bolt, Hex Head 1/4-20 x 1” Grade 8

25 48100-15 Bushing, .376 ID Oilite

26 04030-03 Lockwasher 5/16”

27 04040-15 Flatwasher 5/16”

28 483703 Spring, RH Deck Drive

29 04021-09 Nut, Elastic Stop 3/8-16

30 461940 Idler Arm Assembly, LH Drive

31 461946 lder Arm Assembly, RH Drive

32 483286 Pulley, Tapered Bore 6.33” Dia.

33 04110-03 U-Nut, 3/8-16

34 461663 Spindle Assembly

35 43589 Shaft, Spindle

36 481024 Seal Upper

37 481022 Bearing Assembly

38 48114-04 Grease Fitting

39 48677 Valve, Grease Relief

40 43644 Housing, Spindle

41 43312 Spacer, Outside

42 43296 Spacer, Inside

43 481025 Seal, Lower

44 43297 Bushing, Bottom

45 481035 Nut, Special 1-1/16 - 18

46 43590 Spacer, Spindle

47 482879 Cutter Blade 21”

48 483287 Pulley, Double Groove 6.33” Dia.

49 424367 Dust Shield

50 483210 Idler Pulley, 5” Dia.

51 48181 Idler Pulley, 5” Dia.

52 424575 Belt Cover (61V)

53 48926 Hub, Tapered 1-1/8” Bore

54 483415 Idler Pulley, 3-1/2” Dia.

55 43689 Pivot, Idler

56 48224 Bearing

57 424209 Turbo Bafﬂe, Bolt On

*425625 Turbo Bafﬂe 61V

58 451240 Push Arm Shaft

59 461516 Push Arm (Includes 64,60,62)

60 04020-16 Nut, 5/8-18 UNF

61 04021-13 Nut, Elastic Stop 5/8-11

62 48763 Rod End, 5/8 Male RH Thread

63 04001-79 Bolt, Hex Head 5/8-11 x 4-1/2”

64 48114-04 Grease Fitting, 90 Degree

65 483243 Belt, Deck Drive 61V

66 04001-09 Bolt, Hex Head 5/16-18 x 1”

67 483185 Spring, Discharge Chute

68 424841 Bafﬂe Custom-Cut, 61V (7-Position)

69 04003-23 Bolt, Carriage 3/8-16 x 1”

70 04041-07 Flatwasher, 3/8-.391 x .938 x .105"

71 04001-77 Bolt, Hex Head 3/8-16 X 3-1/2”

72 483157 Belt, Deck Drive RH

73 482295 Wheel, Anti Scalp

74 45944 Roller Shaft

75 483167 Bolt, Special

76 04003-40 Bolt, Carriage 7/16-14 x 1-1/4”

77 461929 Lever Assy., Deck Level

78 04001-136 Bolt, Hex Head 3/8-16 x 1-1/2” Gr.8

79 04001-19 Bolt, Hex Head 3/8-16 x 1”

80 04019-04 Nut, Serrated Flange 3/8-16

81 04030-04 Lockwasher, 5/16”

82 43689 Pivot, Idler Short

83 04003-12 Bolt, Carr. 5/16-18 x 3/4”

84 483176 Wear Pad

85 04040-04 Flatwasher, 5/16-.344 x .688 x .065"

86 04021-04 Nut, Center Lock 5/16”

87 04001-19 Bolt, Hex Head 3/8-16 x 1”

88 04001-31 Bolt, Hex Head 3/8-16 x 2-1/2”

89 04021-11 Nut, Elastic Stop 7/16-14

90 04040-11 Flatwasher, 7/16-.500 x 1.250 x .083"

91 04001-46 Bolt, Hex Head 3/8-16 x 2-1/4”

92 04001-54 Bolt, Hex Head 3/8-16 x 3”

93 04021-09 Nut, Elastic Stop 3/8-16

94 483287 Pulley, Double Groove 6.33" Dia.

95 484368 Cap, Spindle

* = California Models Only (not shown)

Section 8

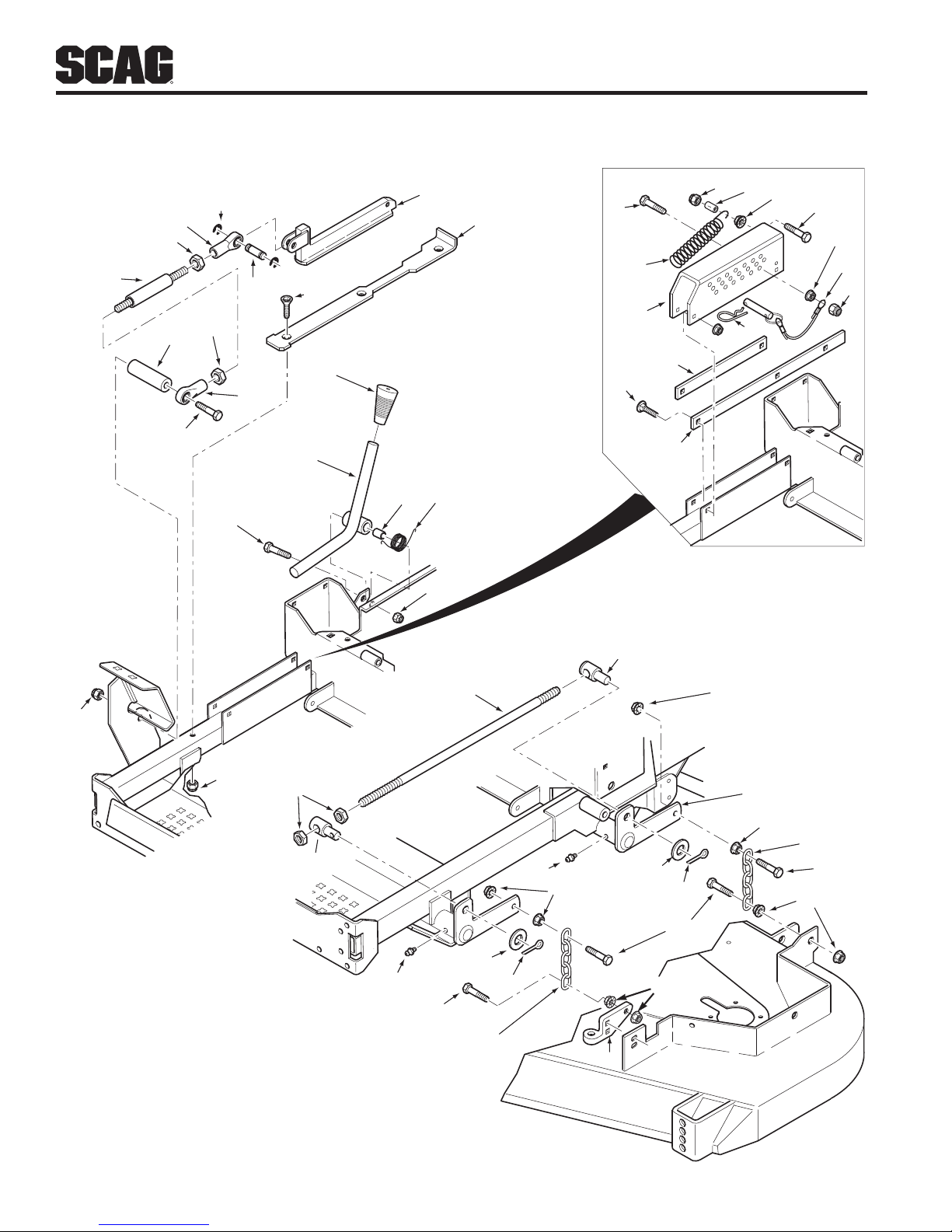

CUTTER DECK CONTROLS

STC 2006 CDC

CUTTER DECK

20 21

32 24

41 42 7

Section 8

CUTTER DECK CONTROLS

Ref.

No. Part No. Description

1 482624 Rod, Deck Lift Linkage

2 04020-28 Nut, Jam 1/2-20 LH Thread

3 481766 Rod End, 1/2-20 Female Thread

4 04050-10 Retaining Ring, 1/2” External “E”

5 483062 Slide, Deck Height Adjust

6 43487 Pin, Deck Lift

7 423463 Bracket, Cutting Height Adjustment

8 04001-22 Bolt, Hex Head 3/8-16 x 2-3/4”

9 43668 Bushing .502" OD

10 04021-09 Nut, Elastic Stop 3/8-16

11 461874 Lever, Deck Latch

12 422346 Slide, Cutting Height

13 04014-03 Screw, Cap 5/16-18 x 3” FHHS

14 422381 Guide, Short

15 04003-04 Bolt, Carriage 5/16-18 x 1”

16 422380 Guide, Long

17 483177 Spring, Helper

18 04021-05 Nut, 3/8-16 Center Lock

19 04040-09 Flatwasher, 5/8-.656 x 1.312 x .095"

20 04019-04 Nut, 3/8-16 Serr. Flange

21 04001-32 Bolt, Hex Head 3/8-16 x 1-1/4”

22 43678 Swivel Joint LH

23 04061-07 Cotter Pin, 3/16 x 1”

24 04019-04 Nut, Serr. Flange 3/8-16

25 04001-20 Bolt, Hex Head 3/8-16 x 1-1/2”

26 04019-04 Nut, Serr. Flange 3/8-16

27 04021-09 Nut, Elastic Stop 3/8-16

28 48540 Chain

29 48114-04 Grease Fitting, 1/4-28 Self Tap

30 483181 Torsion Spring

31 461929 Lever Assy., Deck Level

32 04004-45 Stud, 1/2-13 x 20”

33 04067-09 Pin

481547 Lanyard

34 04020-07 Nut, 1/2-13

35 43679 Swivel Joint RH

36 04001-155 Bolt, Hex Head 1/2-13 x 5”

37 481765 Rod End, 1/2-20 Female RH Thread

38 04001-77 Bolt, Hex Head 3/8-16 x 3-1/2”

39 43572 Spacer

40 04021-07 Locknut, 1/2-13

41 43630 Spacer

42 04020-27 Nut, 1/2-20 UNF-2B

43 04021-10 Nut, Elastic Stop 5/16-18

44 45904 Lift Bellcrank Weldment, LH Rear

45905 Lift Bellcrank Weldment, RH Rear

04041-14 Flatwasher, 1.0-1.062 x 1.5 x .048"

04050-08 Retaining Ring, 1” ext.

45 04062-04 Hair Pin Cotter, .177 x 3-1/4”

46 481477 Grip, Deck Latch Lever

Section 8

SHEET METAL COMPONENTS

STC 2011 SMC

18 19

11 7 8 20

23 22

30 45

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Scag Power Equipment Rasenmäher Handbücher

Scag Power Equipment

Scag Power Equipment TURF TIGER 6201 Einrichtungshandbuch

Scag Power Equipment

Scag Power Equipment SCR Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment CHEETAH SCZ SCZ61V-31FX Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment LIBERTY Z Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment V-ride Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment SW Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment TURF TIGER STT-29DFI Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment V-Ride SVR52V-730FX Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment Liberty Z SZL48-22KT Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment SWZV Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment FREEDOM Z SFZ-48H-25CX Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment CHEETAH SCZ Einrichtungshandbuch

Scag Power Equipment

Scag Power Equipment SW32-12B Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment Turf Tiger Diesel Powered STT-28CAT Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment FREEDOM Z 52 Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment TIGER CAT STC48V-19KAI Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment SMTC-48V Einrichtungshandbuch

Scag Power Equipment

Scag Power Equipment SM-52 Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment MAG Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment SW Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment STC Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment Tiger Cat II STCII-52V-26FT-EFI Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment TURF TIGER STT61V-31KB-DF Bedienungsanleitung

Scag Power Equipment

Scag Power Equipment STHM 59999 Bedienungsanleitung

Beliebte Rasenmäher Handbücher anderer Marken

RHINO

RHINO 1958 Bedienungsanleitung

Wolf Garten

Wolf Garten Compact plus 40 B Bedienungsanleitung

Cub Cadet

Cub Cadet LTX 1045 Bedienungsanleitung

Craftsman

Craftsman 917.378461 Bedienungsanleitung

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Bedienungsanleitung

Challenge

Challenge CH18V2 Betriebsanleitung

TALEN TOOLS

TALEN TOOLS AVR HGM30 Bedienungsanleitung

DEWEZE

DEWEZE ATM-725 Bedienungsanleitung

Weed Eater

Weed Eater 180083 Bedienungsanleitung

Husqvarna

Husqvarna Poulan Pro PP185A42 Bedienungsanleitung

Better Outdoor Products

Better Outdoor Products Quick Series Bedienungsanleitung

Cub Cadet

Cub Cadet 23HP Z-Force 60 Betriebsanleitung

MTD

MTD 795, 792, 791, 790 Bedienungsanleitung

Toro

Toro Groundsmaster 3505-D Bedienungsanleitung

Dennis

Dennis FT 610 Bedienungsanleitung

AIRFORCE

AIRFORCE F-15 Gen 3 Bedienungsanleitung

MTD

MTD 126-220-000 Bedienungsanleitung

Toro

Toro 74806 Bedienungsanleitung
