SCAN 22 Bedienungsanleitung

SCAN 22

INSTRUCTIONS FOR

INSTALLATION AND USE

This manual is accompanied by a pam-

phlet with General Instructions for

Installation. 10.04 - GB

Approved according to DIN 18891

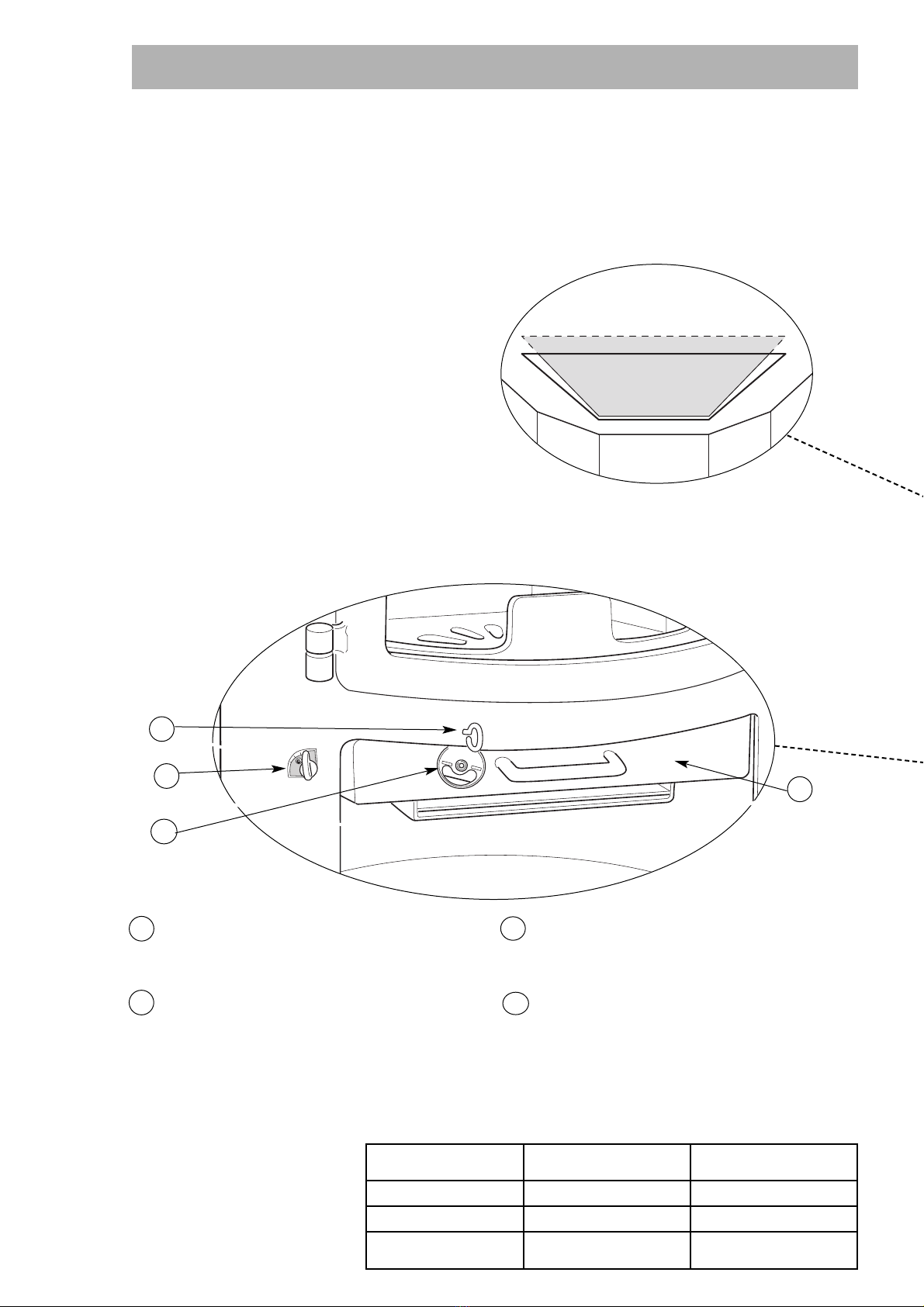

Ceramic smoke deflector

In order to dismount the ceramic smoke deflector, lift up the

plate and take it down while holding it at an angle.

You have chosen a product from one of Europe's leading

manufacturers of wood-burning stoves. We are convinced

that your stove will be to your full satisfaction and give you

many hours of pleasure if you follow the advice and instruc-

tions of this manual.

Please read this manual as well as the General

Instructions for Installation before beginning the

installation.

Congratulations on your new SCAN

stove!

SCAN

1 Ashtray. The ashtray is placed below the combustion

chamber. Attention! Be careful when you empty ashes

from the stove. There may be embers left for up to 24

hours after the stove was last used!

2 Handle for shaking grate. The stove is equipped

with a shaking grate. When you activate the grate

handle, the ashes from the combustion chamber are

emptied into the ashtray.

3 Regulation for primary air. Turn the air valve in

order to open. The primary air is used when lighting

and refuelling the stove. It should always be closed

during continuous firing.

4 Regulation for combustion air. Push the button

sideways. Left position is closed and right position is

open. The air is used for the combustion and

regulates the output of the stove.

Adjustment of the air

SCAN 22

The ashtray, shaking grate, and primary air should

always be closed during continuous firing.

Wood / briquettes Fuel kg/h (beechwood

max. 20% humidity)

SCAN 22 2,2 kg

Combustion air % 100

Primary air % 0-25

Adjustment of the handle

You can adjust the handle by loosening the screw

opposite the handle. The vertical position of the hand-

le can be adjusted with the other screw.

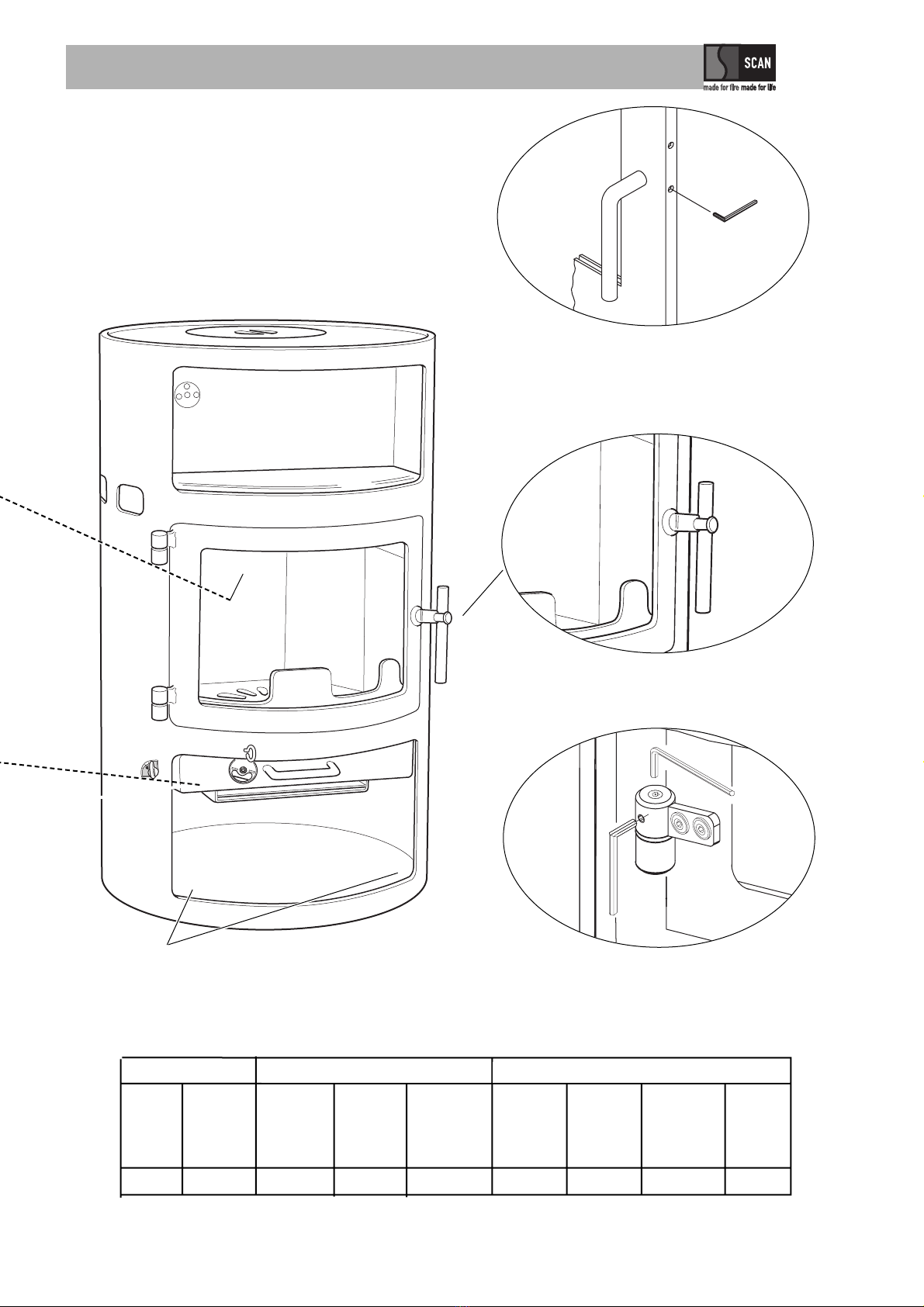

Accessories

For this model you can have the following accessories:

SCAN

Handle

The door is opened by turning the handle counter-

clockwise.

Adjustment screws

The stove has two adjustment screws

on the bottom that can be used for

levelling the stove.

Self-closing door (BA 1)

The door is prepared with a self-closing function at the facto-

ry. If you tighten the spring with the hexagon spanner, the door

will close automatically when you let go of it.

• Soapstone top plate

• Baking-compartment door

• Connection piece for fresh-air

intake

• Steel floor plate

• Small grill

SCAN 22

Data for calculation of the chimney

Stove

model

SCAN

Connecting

adaptor

Density of

flue gas

flow

g/s

Flue gas

tempera-

ture

Minimum

draft

Density of

flue gas

flow

g/s

Flue gas

temperature

Minimum

draft

0,8

Minimum

draft

22 150 21 250 10 6 350 14 11

With closed doorsWith open doors

Column 2 and 5 show the flue gas temperature in the connecting adaptor

Column 3 and 6 show the lowest/minimum draft in Pa by rated value

Column 7 shows the lowest/minimum draft in Pa by 0.8 x rated value

The stove can be prepared for an external air supply where

fresh air is let directly into the combustion chamber (must be

mounted from the factory).

Krog Iversen & Co. A/S - DK-5492 Vissenbjerg

180

530

890

742

200

Warranty Conditions

All SCAN wood-burning stoves and inserts are made of first-class material

and are subject to a strict quality control before they leave the factory.

However, if an error should occur, we back all SCAN wood-burning stoves

and inserts with an extensive, five-year limited warranty.

See also the General Instructions for Installation delivered with your

stove for more details.

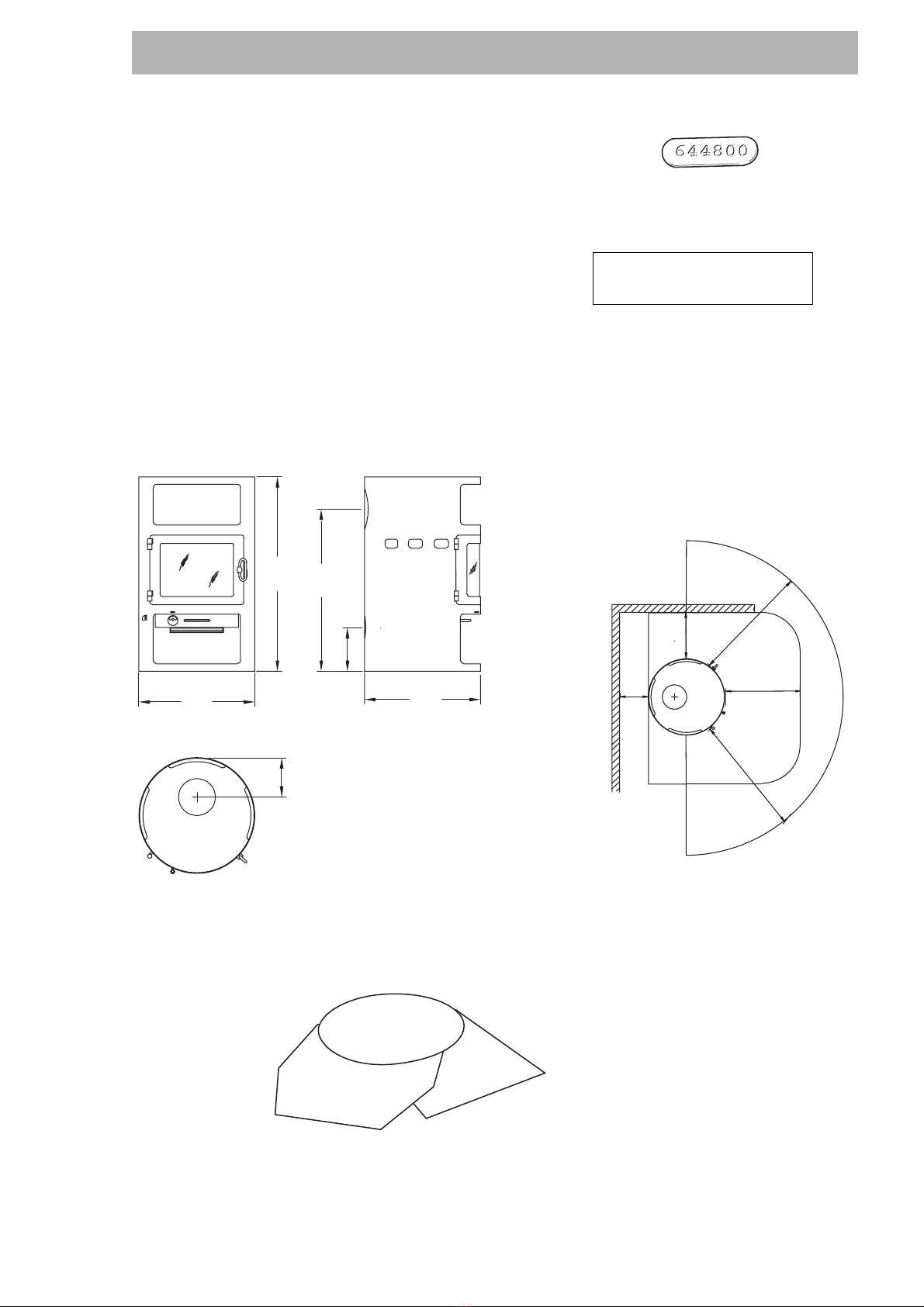

Technical info

Rated output: 7 kW

Min./max.: 3 - 9 kW

Weight: 130 kg

Connection piece, diameter: int. 135 mm / ext. 148 mm

*To the middle of the rear outlet

**Connection piece to fresh air intake

Distances to flammable materials

(mm)

Production number

Write the production number of your

stove here so that you have it at hand in

case you need to contact us.

You can choose between several floor plates in

different shapes and dimensions for your stove.

Please contact your local authorities concern-

ing the security distances needed.

SCAN 22

200

Base plate

Radiation area

500

300

800

You should read this manual as well as the General Instructions for Installation before beginning the installation.
