The deadbolt included is preconﬁgured to ﬁt a

standard door frame.

Note your 6 digit programming code located on a sticker on

inside of your lock (alarm assembly) before you begin

installation. This may be needed for panel pairing if this unit

was not purchased as a part of your primary system order.

When tightening any screws, be sure to make sure that

no parts move by hand once tightened.

Be sure not to over tighten any screws. This can

prevent the deadbolt from moving freely.

Additional installation instructions can be found at:

https://youtu.be/ZVyzexUnHeA

PRE-INSTALLATION

NOTES

Phillips Screwdriver (Included in your package)

DO NOT use a power drill! A manual or electric

screwdriver is safe, but a power drill may damage

the lock.

Additional Tools You May Need:

• Tape Measure

• Flathead Screwdriver

• Pencil

• Wood Block

• Hammer

REQUIRED TOOLS

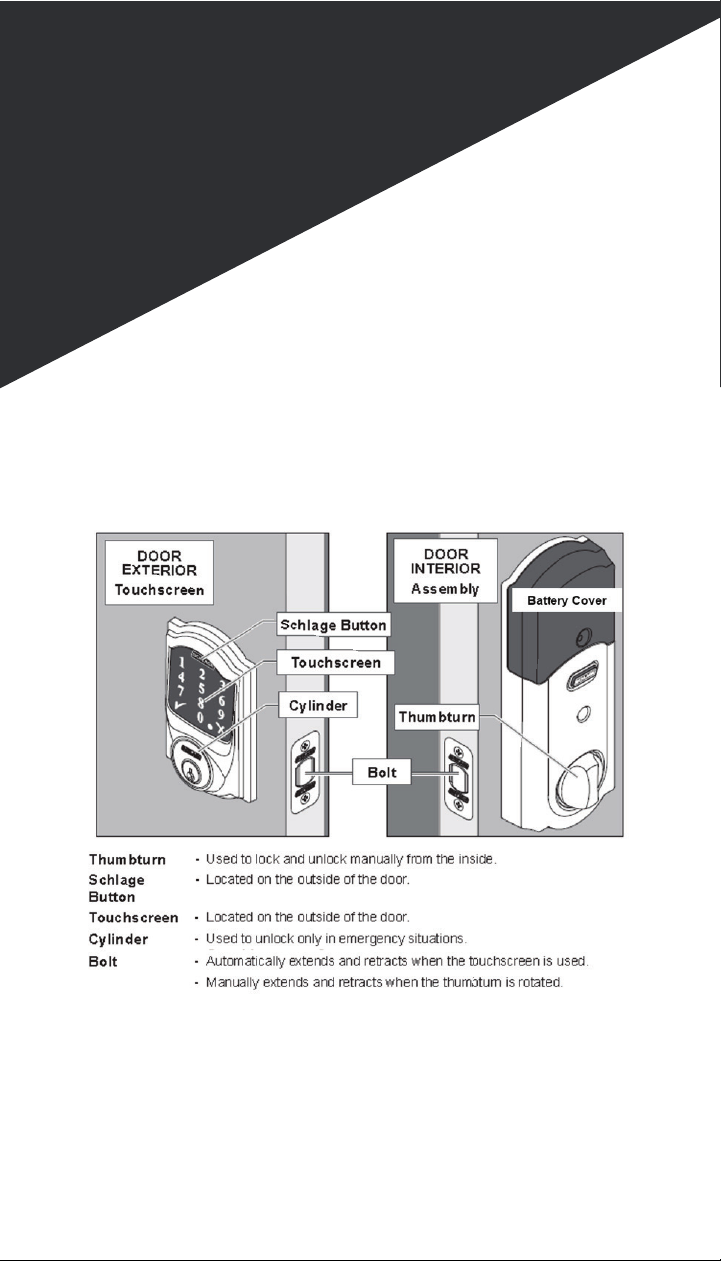

LOCK COMPONENT

TERMINOLOGY

Because the bolt on this lock is extended automatically,

it is important that the door and frame are aligned.

Use this checklist to determine if your current

alignment will work without any adjustment.

I can lock the door without pushing, pulling or lifting

the door.

My door alignment— the ability to lock the door easily

and smoothly— stays the same with changing seasons.

When the door is closed, there is space for the

deadbolt to extend 1” into the frame when locked.

If you could not check every box in the checklist, you

will need to adjust your door and/or frame. Please

visit answers.schlage.com for more information.

STEP 1

CHECK THE CURRENT

DOOR/FRAME ALIGNMENT

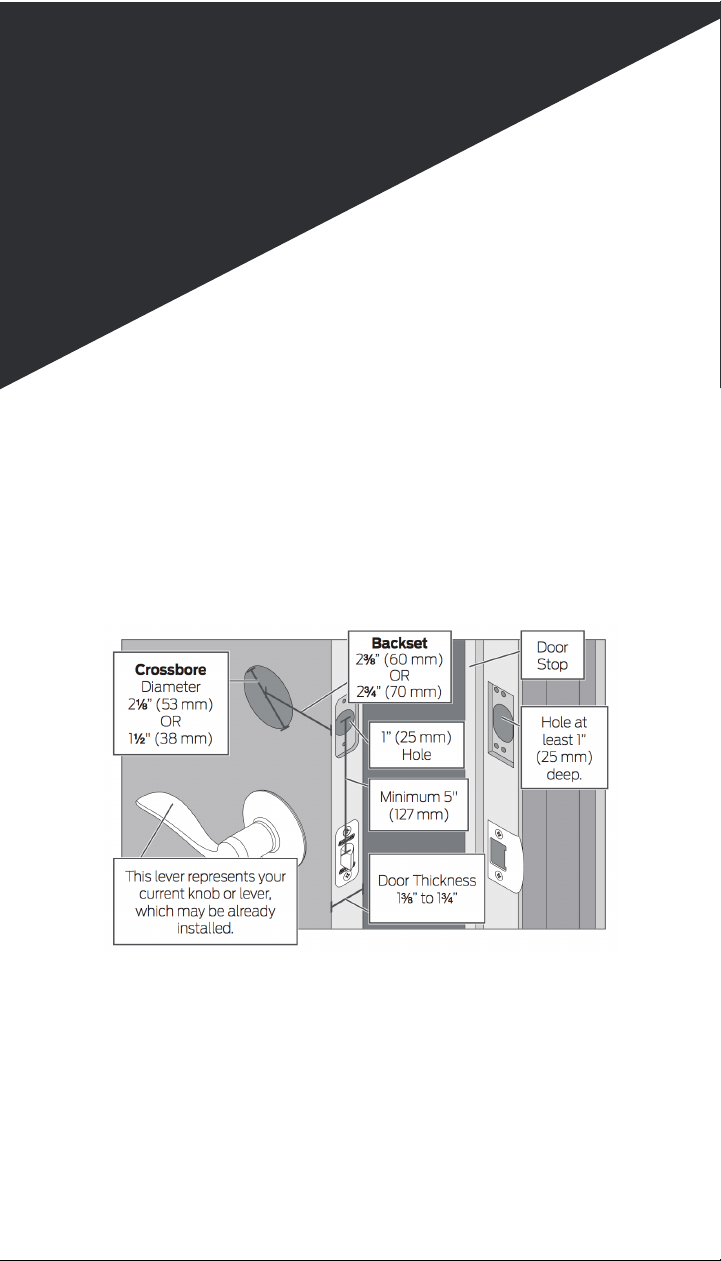

Measure the dimension shown in the image below

(standard dimensions). If your door dimensions do not

match, you will need to change your door preparation.

STEP 2

CHECK DOOR/FRAME

DIMENSIONS

If your door is thicker than 1 ¾”, you will need a thick

door kit. Please call Schlage Customer Service at

1-888-805-9837.

Mark your crossbore and backset measurements

on the next page. You will need these measurements

for installation. Either measurement example on the

next page is normal.

STEP 3

3a: Adjust bolt length if necessary.

Note: the bolt is preconﬁgured to ﬁt the standard door

dimensions mentioned in STEP 2. If your door matched

the measurements in STEP 2, you do not need to adjust

the length.

INSTALL BOLT AND STRIKE

If the backset (see step 2) of your door was 2 ¾”

(70 mm), you need to adjust your bolt. Twist the

faceplate until the button pops into the 2 ¾” space.

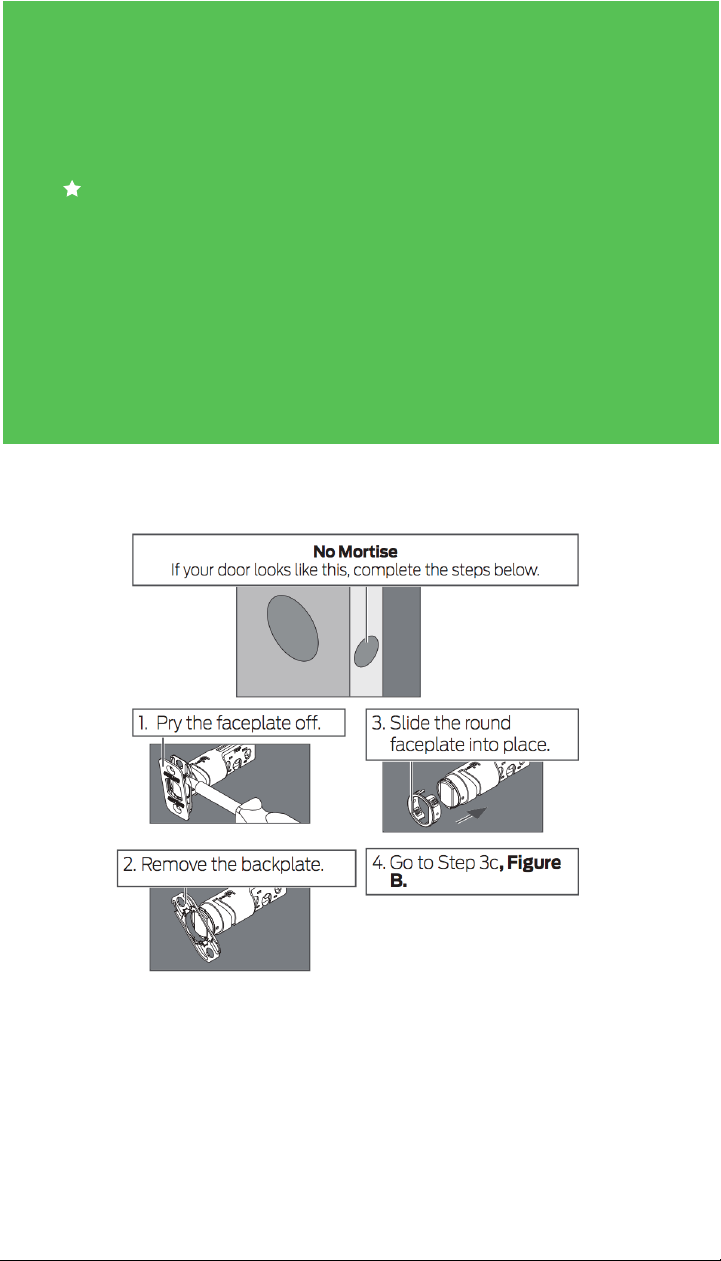

3b: Change the faceplate if necessary.

Note: The faceplate is currently preconﬁgured to ﬁt

the standard door frame. If your door matches the

measurements in STEP 2, you can move on to step 3c.

3c: Install the bolt into the door.

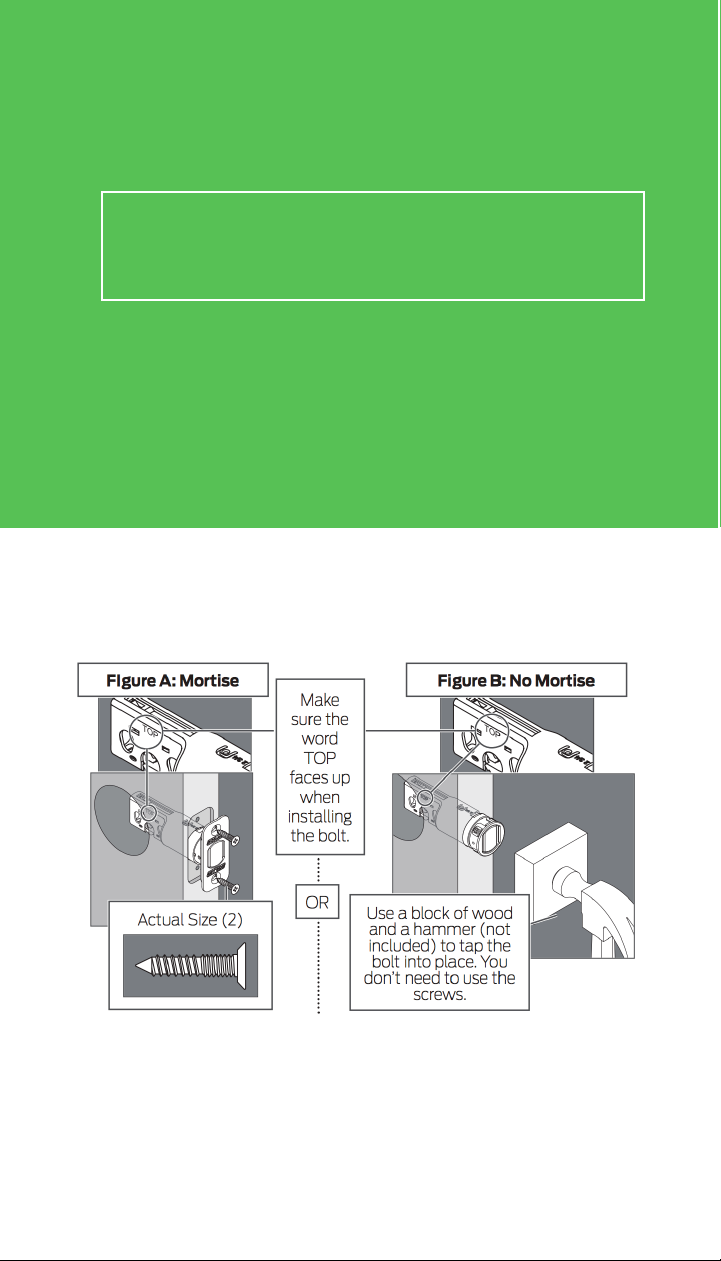

Choose the picture below that matches your door

IMPORTANT!

Retract the bolt before continuing to step 3c!
