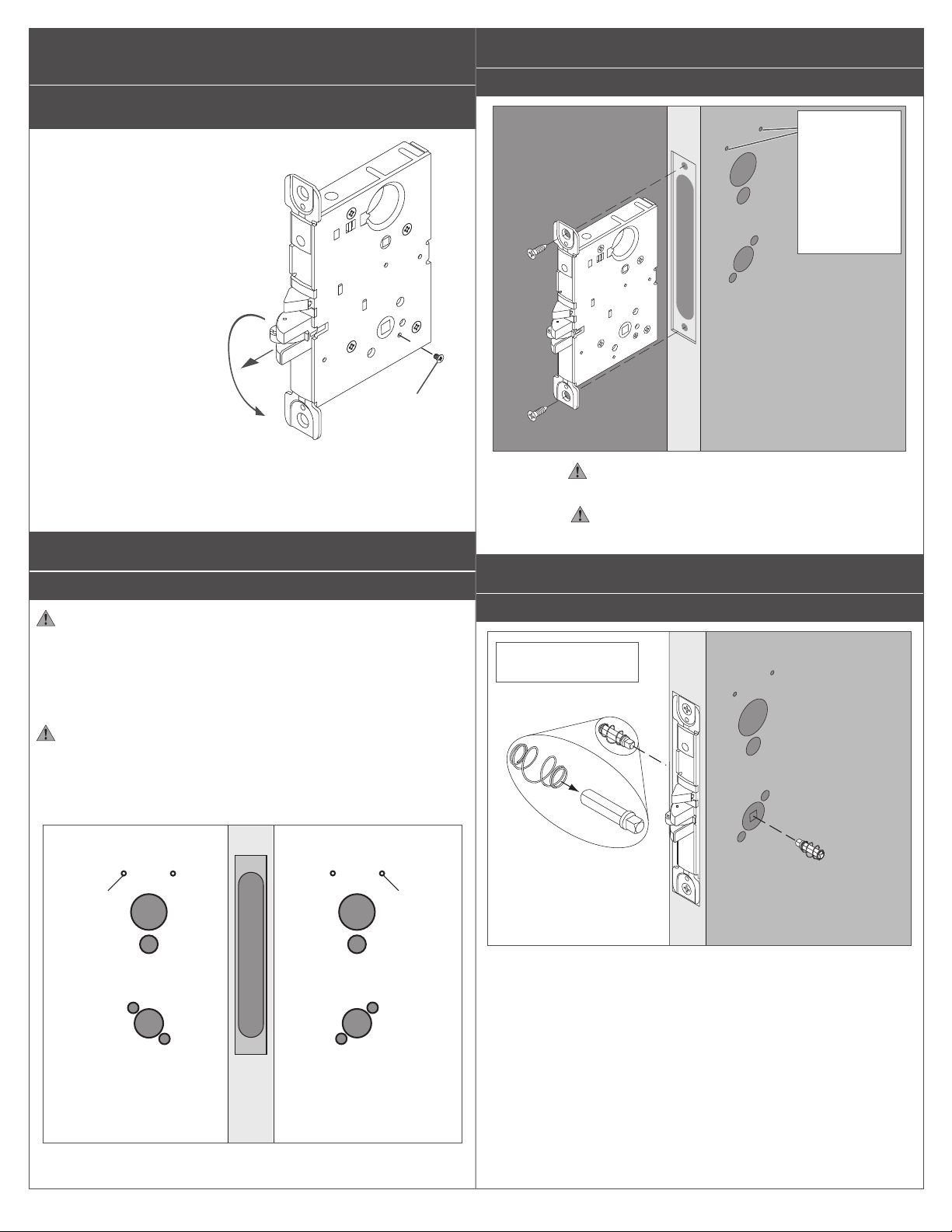

1 IMPORTANT! Check lock handing before installation

To change handing:

1. Pull out the latch

and rotate 180°.

2. Remove the lock

handing screw

from one side of

the chassis and

install it on the

opposite side.

The lock handing

screw should

always be on the

interior side of

he door.

Pull

Rotate

180°

Handing

screw

2 Prepare the door for indicator trim

Two Z\," pilot holes are required to mount the indicator.

ONLY ONE SIDE OF THE DOOR – THE INDICATOR SIDE –

REQUIRES THIS PREPARATION. Use the template included in

the package to mark the location of the pilot holes before drilling.

Inside of door Outside of door

¹⁄₈" pilot

hole x 2

¹⁄₈" pilot

hole x 2

Indicator trim is available for either the inside or outside of the door on allowable functions.

Non-indicator trim is furnished on the opposite side of the door.

The L9000 lock with indicator is not intended for exterior door applications.

For retrot, see page 7.

Thumb

turn

Check the door preparation dimensions with the template included in the package.

Inside cylinder indicator with outside cylinder

non-indicator sectional trim shown

Tools

Non-indicator thumb turn or cylinder

furnished on inside of door when outside

of door is ordered with indicator trim,

depending on conguration.

Cylinder

L9000 Series Lock with Indicator Sectional Trim

L9000 Lock with Indicator

Installation Instructions

3 Install lock chassis

Note:

Pilot holes for

INDICATOR

ONLY

DO NOT FULLY TIGHTEN

CHASSIS MOUNTING SCREWS.

4 Install springs and spindles

All functions

Exterior

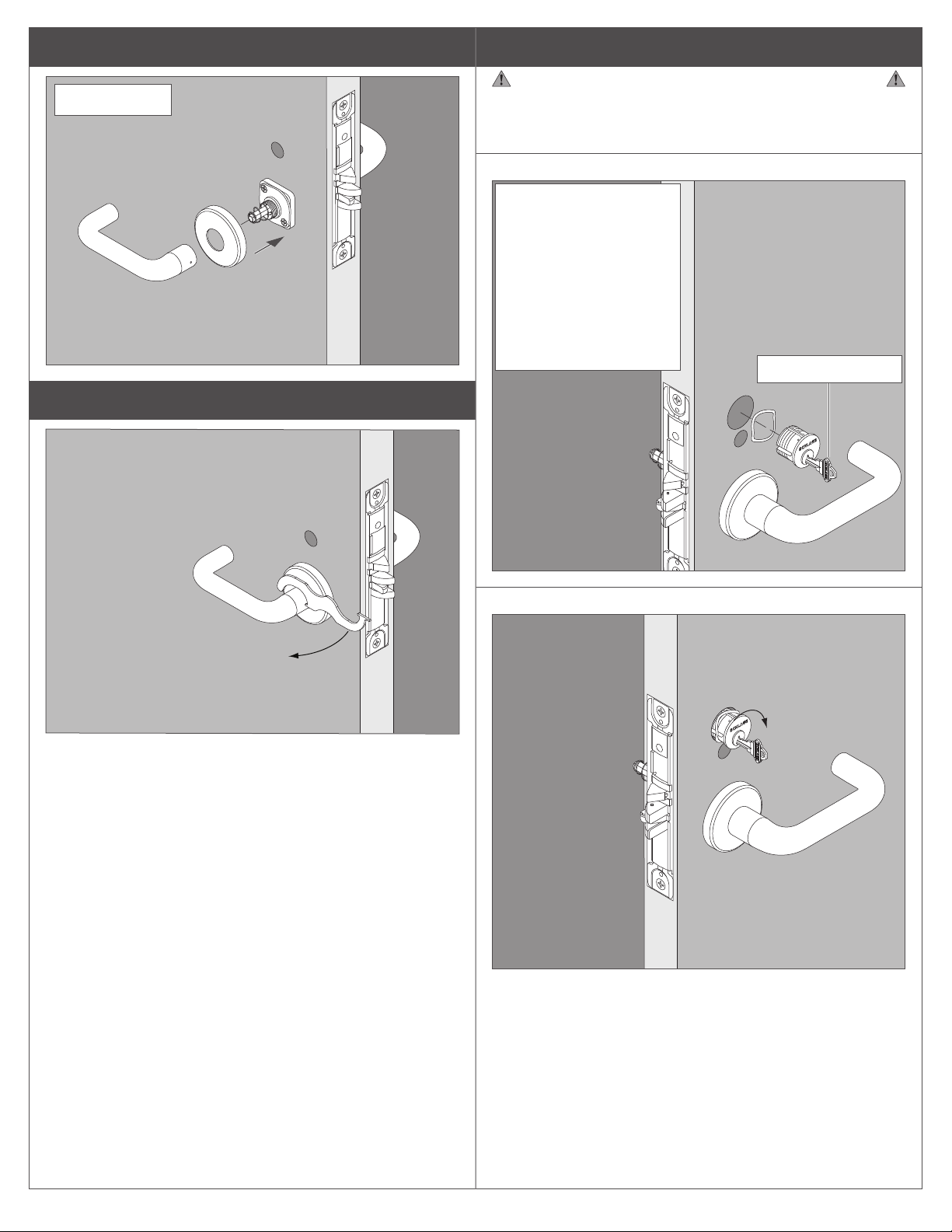

5a Install outside spring cage or spacer.

LThe spring cage arrow

must point in direction

of lever down rotation.

Install spacer for L/LV9485

5b Install outside mounting posts.

LV functions

FULLY TIGHTEN MOUNTING POSTS ON SCREWS.

6 Install outside lever

All functions

Exterior

7 Install inside spring cage and mounting plate

LThe spring cage arrow

must point in direction

of lever down rotation.

Interior

8 Install inside lever and rose

All functions

9 Tighten bushing with spanner wrench

10 Install outside cylinder (if applicable)

Steps 10a – 10c for NON-INDICATOR TRIM ONLY

FOR INDICATOR OUTSIDE TRIM, SKIP TO STEP 11.

10a Insert key halfway into the cylinder.

10b Install the cylinder with cylinder spring as shown.

Functions

L/LV9050

L/LV9056

L/LV9060

L/LV9070

L/LV9071

L/LV9456

L/LV9457

L/LV9458

L9460

L9462

L9463

L9464

L9465

L9466

L9473

L/LV9485

LM/LMV9350

LM/LMV9370

LM/LMV9371

Key inserted halfway

10c Rotate cylinder clockwise.

11 Install outside INDICATOR with cylinder (if applicable)

Steps 8a – 8g for INDICATOR TRIM ONLY

11a Install the indicator mounting plate.

Functions

L/LV9050

L/LV9056

L/LV9060

L/LV9070

L/LV9071

L/LV9456

L/LV9457

L/LV9458

L9460

L9462

L9463

L9464

L9465

L9466

L9473

L/LV9485

LM/LMV9350

LM/LMV9370

LM/LMV9371

Mounting plate

11b Adjust the cam spindle length.

Cut the spindle at the appropriate mark

according to door thickness.

For 2Z\v” door do not cut the spindle.

11c Install the indicator slide and cam.

Indicator

slide

Cam

11d Connect the cam to the indicator slide. The cam must

engage either the left or right side of the indicator slide

according to door handing and indicator location.

• Unlock the door.

• Move the indicator slide against the top rim of the

mounting plate (unlocked position).

• Assemble the cam as shown.

Door Hand/Indicator Location

Lock Type

Non-deadbolt

functions

RH/Outside

LH/Inside

RH/Inside

LH/Outside

Deadbolt

functions

RH/Inside

LH/Outside

RH/Outside

LH/Inside

11e Insert key halfway into the cylinder.

11f Install the indicator faceplate and cylinder with cylinder

spring as shown.

Key inserted

halfway

Indicator

faceplate

11g Rotate cylinder clockwise.

12 Install inside thumb turn or cylinder

Steps 12a – 12b for NON-INDICATOR TRIM ONLY

FOR INDICATOR INSIDE TRIM, SKIP TO STEP 13.

Thumb turn:

(1) Rotate 180°

(2)

Functions

L/LV9040

L/LV9044

L/LV9050

L/LV9056

L/LV9456

L/LV9457

L/LV9458

L9460

L9473

L/LV9485

LM/LMV9350

(3)

– OR –

Cylinder:

Rotate clockwise

(2)(1)

Functions

L/LV9060

L/LV9071

L9462

L9463

L9466

LM/LMV9371

13 Install inside INDICATOR cylinder (if applicable)

Steps 13a – 13g for INDICATOR TRIM ONLY

13a Install the indicator mounting plate.

Mounting plate

Functions

L/LV9060

L/LV9071

L9462

L9463

L9466

LM/LMV9371

13b Adjust the cam spindle length.

Cut the spindle at the appropriate mark

according to door thickness

For 2Z\v” door do not cut the spindle.

13c Install indicator slide and cam.

Indicator

slide

Cam

13d Connect the cam to the indicator slide. The cam must

engage either the left or right side of the indicator slide

according to door handing and indicator location.

• Unlock the door.

• Move the indicator slide against the top rim of the

mounting plate (unlocked position).

• Assemble the cam as shown.

Door Hand/Indicator Location

Lock Type

Non-deadbolt

functions

RH/Outside

LH/Inside

RH/Inside

LH/Outside

Deadbolt

functions

RH/Inside

LH/Outside

RH/Outside

LH/Inside

13e Insert key halfway into the cylinder.

13f Install the indicator faceplate and cylinder with cylinder

spring as shown.

Indicator

faceplate

Key inserted

halfway

13g Rotate cylinder clockwise.

14a Tighten cylinder mounting screw.

14b Tighten top and bottom chassis mounting screws.

Cylinder

mounting

screw

Chassis

mounting

screws

15 Install armor front

All functions

INDICATOR LOCK RETROFIT INSTRUCTIONS

1 Remove armor front 2 Remove cylinder(s), if applicable

2a Loosen the cylinder mounting screw.

2b Remove the inside cylinder, if applicable.

Insert the key halfway into the cylinder and rotate cylinder

counterclockwise to remove.

Key inserted halfway

2c Remove the outside cylinder.

Insert the key halfway into the cylinder and rotate cylinder

counterclockwise to remove.

Key inserted halfway

3 Check door preparation

IMPORTANT

• To install the indicator trim, additional door preparation

may be required. If additional door preparation is required,

remove the lock chassis from the door before drilling. Steps

for reassembly are included in this instruction sheet.

• Please refer to the template included in this package.

• Make sure the door is prepared with any necessary holes for

the indicator trim.

4 Complete installation of indicator trim

Go to STEP 11 ON PAGE 4 and follow the instructions to

complete the installation of the indicator trim.

Customer Service

1-877-671-7011 www.allegion.com/us

*P516-909*

P516-909
