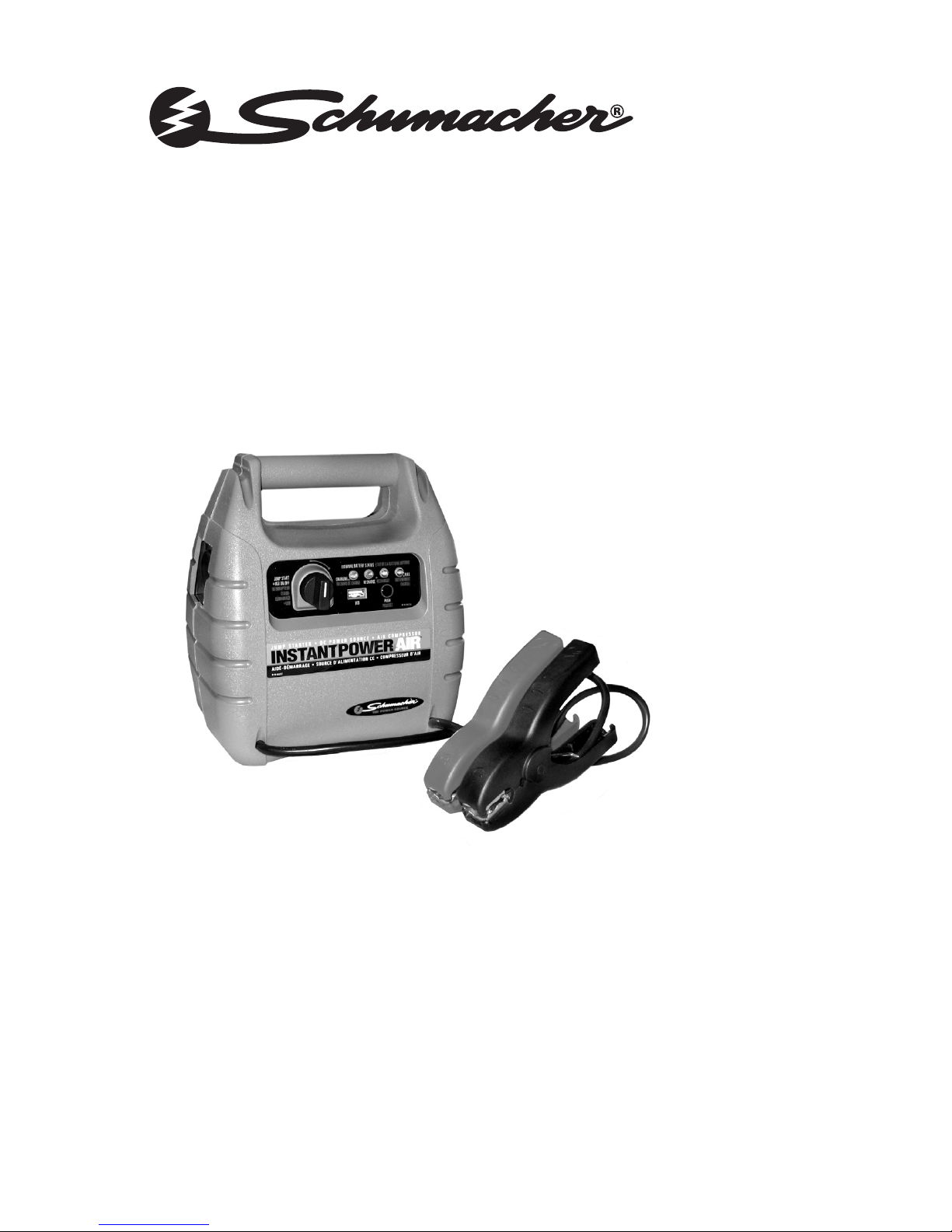

Schumacher INSTANT POWER IP-95C Bedienungsanleitung

Models:

IP-95C, IP-125C

INSTANT POWER™

Jump Starter, Air Compressor & 12V DC

Power Source Plus 5V USB

INSTRUCTION MANUAL

00-99-000837/0608

English......................................... p. 1

Français....................................... p. 7

Español........................................ p. 17

•1 •

IMPORTANT: CHARGE IMMEDIATELY AFTER PURCHASE

IMPORTANT: READ AND SAVE THIS SAFETY AND INSTRUCTION MANUAL.

IMPORTANT SAFETY INSTRUCTIONS1.

Consider having someone close enough by to come to your aid when you1.1

work near a lead-acid battery.

Have plenty of fresh water and soap nearby in case battery acid contacts1.2

skin, clothing, or eyes. If acid enters the eye area, rinse with cold water for

at least 10 minutes and get medical help immediately.

Do not smoke, or use matches or cigarette lighter, or allow any spark or1.3

ame near the battery or engine.

Never operate the jump starter if it has a damaged lead wire or clamps.1.4

Wear complete eye and clothing protection when working with any battery.1.5

Do not permit the internal battery of the Instant Power™ to freeze. A fully1.6

charged battery will not freeze - refer to storage section of the manual.

Never charge a frozen battery.1.7

HANDLING WARNING2.

WARNING:2.1 Handling the cord on this product or cords associated with this

product, may expose you to lead, a chemical known to the State of Califor-

nia to cause cancer and birth defects or other reproductive harm. Wash

hands after handling.

OPERATING INSTRUCTIONS3.

WARNING: Failure to follow instructions may cause damage or an

explosion. Read entire instruction manual before use.

Use in a well-ventilated area.3.1

Keep clear of fan blades, belts, pulleys and other parts that may cause3.2

injury.

To prevent sparking, NEVER allow clamps to touch together or contact the3.3

same piece of metal.

Turn vehicle’s ignition OFF before making cable connections.3.4

Make sure the ON/OFF switch on the Instant Power™ is in the OFF posi-3.5

tion.

Clamp the red clamp (+) to the positive terminal of the battery - For a3.6

negative grounded system. (See section 3.12 for a positive grounded

system.)

Clamp the black clamp (-) to an unpainted and unmoving part of the chas-3.7

sis or engine block.

•2 •

If you have connected the clamps of your Instant Power™ backwards, an3.8

audio alarm will sound. DO NOT turn your Instant Power™ on. This could

cause serious damage. Reverse the connections, and the audio alarm will

stop.

If no audio alarm is sounded, turn ON the Jump Start switch and then3.9

crank the engine. If the engine does not start within 5-8 seconds, stop

cranking and wait at least 1 minute before attempting to start vehicle

again. (This permits the battery to cool down.)

After the engine starts, make sure to turn OFF the Jump Start switch.3.10

Then disconnect the black clamp (-) and then the red clamp (+) in that

order.

Recharge the Instant Power™ as soon as possible after use.3.11

NOTE:3.12 In the rare case of jump-starting a vehicle that has a positive-

grounded vehicle electrical system, connect the NEGATIVE black clamp

(-) to the negative terminal (-) of the vehicle battery. Then connect the

POSITIVE red clamp (+) to an unpainted and unmoving part of the vehicle

chassis or engine block. If you are unsure of the nature of the vehicle’s

electrical grounding system, check the owner’s manual of the vehicle. To

disconnect clamps, reverse order.

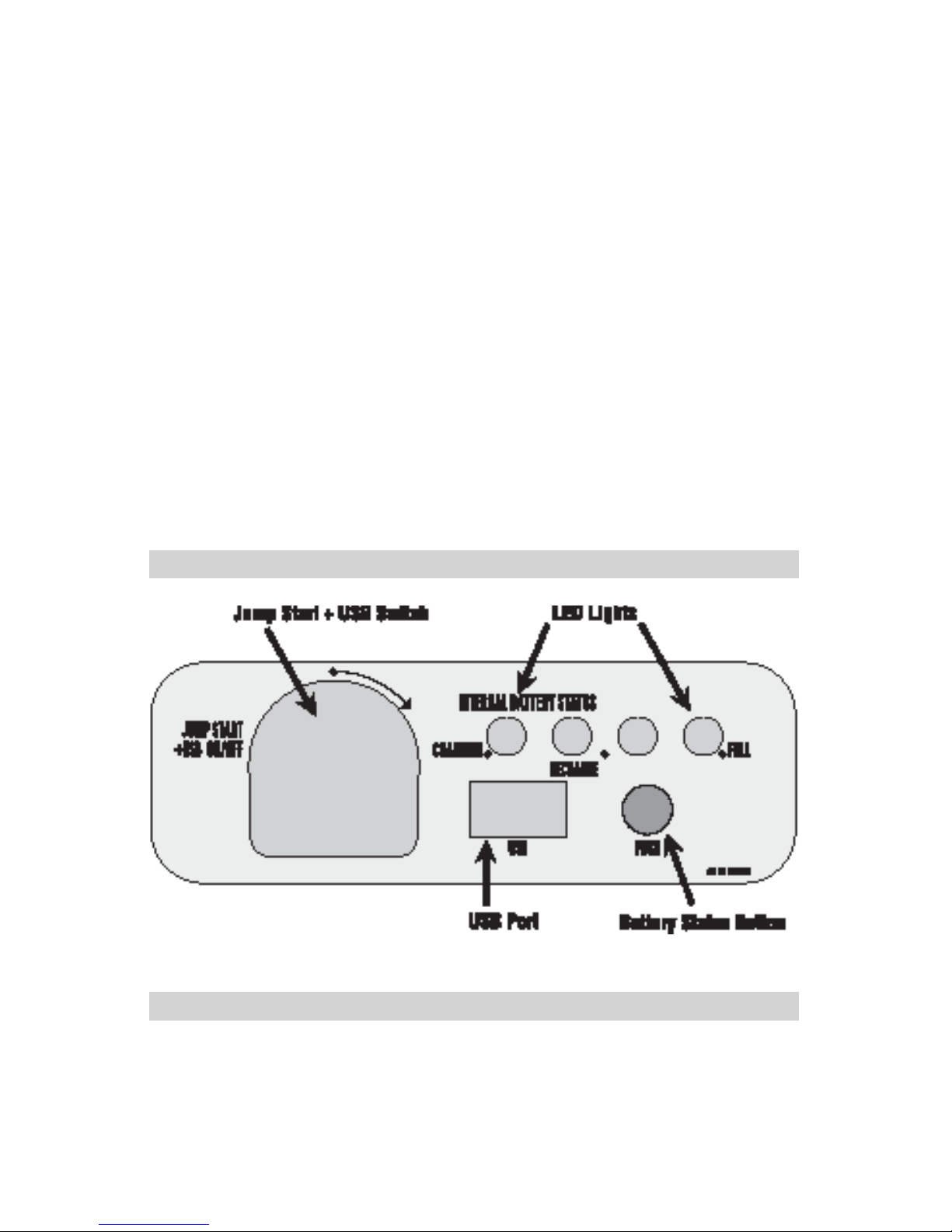

CONTROL PANEL4.

LED INDICATORS5. (Re d , Ye l l o w a n d GR e e n l i G h t s )

To check the internal battery’s charge status, press the Battery Status But-5.1

ton button on the front of the Instant Power™.

The5.2 LED lights will indicate the charge level as follows:

A red LED indicates a 50% or less charge and you should immediatelya.

•3 •

recharge the Instant Power™.

A yellow LED indicates a 50 to 75% charge. The Instant Power™ mayb.

be used but should be recharged as soon as possible.

A green LED indicates the internal battery is fully charged.c.

CHARGING OF INTERNAL BATTERY WITH BUILT-IN CHARGER6.

After removing the Instant Power™ from the carton, charge it for a mini-6.1

mum of 8 hours before using, even if the green charged LED glows.

NOTE: The ON/OFF switch should be in the OFF position to recharge the

internal battery.

To charge, plug an extension cord into charger plug on the right side of6.2

the Instant Power™. (Extension cord not included; must be purchased

separately.)

Plug the extension cord into 110V AC electrical wall outlet.6.3

The red CHARGING LED will glow indicating charging.6.4

The green LED will glow when the battery has reached full charge. This6.5

could take up to 72 hours due to age and condition of the battery. The

charger will automatically drop into a oat mode and maintain the battery

at full charge without damaging the battery.

Charge the Instant Power™ as soon as possible after use.6.6

12 VOLT DC POWER OUTLET CHART7.

The Instant Power™ is a power source for all 12 volt DC accessories7.1

equipped with a 12 volt accessory plug. Make sure the device to be pow-

ered is OFF before inserting 12 volt accessory plug into 12 volt DC acces-

sory outlet. Use for power outages, shing, and camping trips. Estimated

usage time is listed in below chart:

Appliance Type Estimated

Wattage

Estimated Time

for IP-95C

Estimated Time

for IP-125C

Cell Phones 4 Watts 15 Hours 20 Hours

Fluorescent

Lights

4 Watts 15 Hours 20 Hours

Radios, Fans 9 Watts 11 Hours 14 Hours

Depth Finders 9 Watts 11 Hours 14 Hours

Camcorders,

VCRs

15 Watts 6 Hours 8 Hours

•4 •

Appliance Type Estimated

Wattage

Estimated Time

for IP-95C

Estimated Time

for IP-125C

Electrical Tools 24 Watts 4 Hours 5 Hours

Electrical Coolers 48 Watts 1.5 Hours 2 Hours

Car Vacuum,

Air Compressors

80 Watts 45 Minutes 1 Hour

NOTE: Estimated run-times. Actual time may vary. Times are based on the

internal battery being fully charged.

The DC accessory outlet has a 15-amp automatic overload protection

circuit breaker. If an overload occurs, unplug (remove) accessory, and the

breaker will automatically reset.

USING USB PORT8.

NOTE: The Jump Start + USB On/Off switch energizes both the jump

starting clamps and the USB port. Do not allow the clamps to touch each

other or the same piece of metal when the switch is “On” (turned to the

right).

Conrm both jump starting clamps are stored on the storage holders.8.1

Turn the Jump Start + USB switch to “On” position.8.2

The USB plug is now live; plug in the accessory.8.3

USING THE AIR COMPRESSOR9.

PRECAUTION – Read instructions of the product being inated before

using the compressor. Avoid over ination, do not exceed the manufactur-

ers recommended pressures. DO NOT leave the compressor unattended

during use.

The 12 volt compressor is rated for 150 PSI pressure. The hose is stored

on the back of your Instant Power™.

The ON / OFF switch for the compressor is located on the back of the

Instant Power™.

Attach the air compressor hose to the product or accessory to be inated 9.1

by ipping down the lever.

Push the air compressor switch to the ON position and inate product.9.2

When the product is inated to the proper air pressure, push the compres-9.3

sor switch to the OFF position and remove the hose.

Do not run compressor for more than 10 minutes maximum at a time. Al-9.4

low to cool down for 10 minutes before using again.

•5 •

NOTE: If the compressor overheats, the built-in thermal protection will turn

the unit off. Wait a few minutes and it will automatically restart.

Estimated Time for Inating

Vehicle 13” to 16” 3 to 16 Minutes

Bike Tire 30 to 40 Seconds

Balls 5 to 30 Seconds

Use an air compressor gauge to ensure the proper pressure has been

reached. Do not over inate.

STORAGE10.

IMPORTANT:

CHARGE IMMEDIATELY AFTER PURCHASE•

KEEP FULLY CHARGED.•

Charge the Instant Power™ internal battery immediately upon purchase,

every 30 days and after every use.

All batteries are affected by temperature. The ideal storage temperature is

at 70 degrees Fahrenheit. The internal battery will gradually self-discharge

(lose power) over time, especially in warm environments. Leaving the

battery in a discharged state may result in permanent battery damage. To

ensure satisfactory performance and avoid permanent damage, charge

the internal battery every month.

When the Instant Power™ is ON, the clamps are live and will produce

arcing or sparking if they come in contact with each other. To prevent ac-

cidental arcing, always keep the clamps on the storage holders and the

JUMP START ON/OFF switch in the OFF position when not using it to

jump start a vehicle.

•6 •

LIMITED WARRANTY11.

Schumacher Electric Corporation warrants your unit to be free from defects in material

and workmanship, excepting abuse or misuse, for a period of one year from the date

of sale to the original user or consumer purchaser. If your unit fails or malfunctions

within the rst 30 days of the warranty, we will replace it with a new unit. If your unit

malfunctions or fails within the 12 month warranty period because of a defect in

material or workmanship, we will repair without charge.

The internal battery, excluding units with swollen batteries or melted battery terminals,

carries a 90-day warranty from the date of purchase. Proof of purchase required.

All battery replacements will be at the sole discretion of the manufacturer or his

designated agents.

This warranty is in lieu of all other express warranties. The duration of any implied

warranty, including but not limited to any implied warranty of merchantability or tness

for a particular purpose, made in respect to your unit is limited to the period of the

express warranty set forth above.

For warranty service, return your product, with proof of purchase, to the factory

or a designated agent: Schumacher Electric Corporation Warranty Service

Department, 1025 E. Thompson Street, PO Box 280, Hoopeston, IL 60942. Phone

1-800-621-5485, Customer Service hours: 7 AM to 4:30 PM CST.

You will be responsible for all insurance and freight or other transportation charges

to the factory or point of repair. We will return your unit freight prepaid if repair is

covered under warranty. Your unit should be properly packed to avoid damage in

transit, since we will not be responsible for any such damage.

In no event shall Schumacher Electric Corporation be liable for consequential or

incidental damages. Some states do not allow limitations on the length of the implied

warranty or the exclusion or limitation of incidental or consequential damages, so the

above limitations or exclusions may not apply to you. This warranty gives you specic

legal rights and you may also have other rights which vary from state to state.

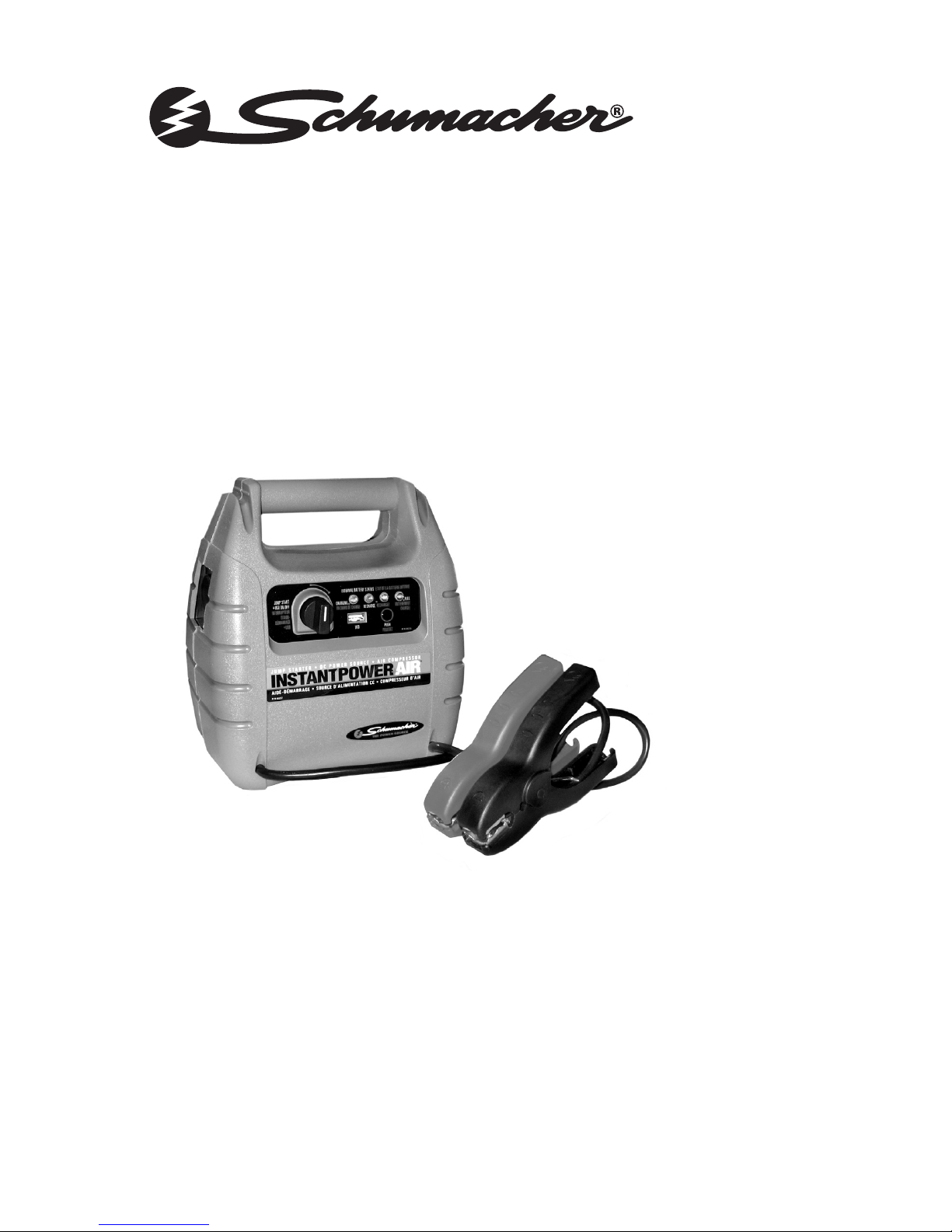

Modèle:

IP-95C, IP-125C

INSTANT POWER™

Aide-démarrage, compresseur d’air et Source

d’alimentation de 12 V CC plus 5 V USB

GUIDE DE L’UTILISATEUR

00-99-000837/0608

Andere Handbücher für INSTANT POWER IP-95C

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Schumacher Fernstartsystem Handbücher

Schumacher

Schumacher Instant Power IP-1825FL Bedienungsanleitung

Schumacher

Schumacher SPR1631 Bedienungsanleitung

Schumacher

Schumacher IP-1825 Bedienungsanleitung

Schumacher

Schumacher SJ1289 Bedienungsanleitung

Schumacher

Schumacher XPF400 Bedienungsanleitung

Schumacher

Schumacher e-CHARGE EC-4000-USB Bedienungsanleitung

Schumacher

Schumacher DSR128 Bedienungsanleitung

Schumacher

Schumacher SJ1290 Bedienungsanleitung

Schumacher

Schumacher INSTANT POWER IP-95L Bedienungsanleitung

Schumacher

Schumacher SL1517 Bedienungsanleitung

Schumacher

Schumacher INSTANT POWER IP-125C Bedienungsanleitung

Schumacher

Schumacher SL1317 Bedienungsanleitung

Schumacher

Schumacher BE01254 Bedienungsanleitung

Schumacher

Schumacher INSTANT POWER IP-180KE Bedienungsanleitung

Schumacher

Schumacher e-CHARGE EC-4000-USB Bedienungsanleitung

Schumacher

Schumacher SL1316I Bedienungsanleitung

Schumacher

Schumacher INSTANT POWER IP-75C Bedienungsanleitung

Schumacher

Schumacher INSTANT POWER XP400W Bedienungsanleitung

Schumacher

Schumacher SL1452 Bedienungsanleitung

Schumacher

Schumacher INSTANT POWER XJS4 Bedienungsanleitung

Schumacher

Schumacher SL1473 Bedienungsanleitung

Schumacher

Schumacher SL1327 Bedienungsanleitung

Schumacher

Schumacher SL010 Bedienungsanleitung

Schumacher

Schumacher FR01240 Bedienungsanleitung

Beliebte Fernstartsystem Handbücher anderer Marken

AstroStart

AstroStart 803U Bedienungsanleitung

Durite

Durite 0-649-20 Handbuch

EINHELL

EINHELL BT-PS 1000 Handbuch

Linear

Linear ACCESS AK-21 Technische Daten

Soundstream

Soundstream TARANTULA RS.2 Bedienungsanleitung

Jaycar Electronics

Jaycar Electronics MB3752 Bedienungsanleitung

Ultra Start

Ultra Start 72 Series Bedienungsanleitung

ADS

ADS FLASHLOGIC FLRSVW1 Bedienungsanleitung

Selecta

Selecta JS012 Bedienungsanleitung

Black Widow Security

Black Widow Security BW RAS 400 Bedienungsanleitung

Vector

Vector Power City DK080706 Beilage

Code Alarm

Code Alarm CA-535 Bedienungsanleitung

Ozito

Ozito OJS-800 Bedienungsanleitung

Profi-Partner

Profi-Partner 46387 Bedienungsanleitung

EZ STARTER

EZ STARTER EZ-45 Bedienungsanleitung

Viper

Viper 4204 Bedienungsanleitung

Essex Electronics

Essex Electronics KE-1701 Bedienungsanleitung

EINHELL

EINHELL EGS 3600 Handbuch
